>>Your Current Position: Mini PC Industal PC Series MINI PC




fanless nano-itx industrial pc with c1037 cpu size 135*128*35

Model: NQ37ECM
Size: 135*128*35mm(L*H*W)

Motherboard Model: C1037NQ
more spec: http://www.teket.com/en/motherboard/intel/c1037nq.htm

Intel Celeron 1037 1.8GHZ, NM70,H, 2*MINI PCIe,LVDS, HDMI,8-19VDC






C1037NQ spec:

Nano-itx, 120mmx120mm
CPU: Intel celeron dual 1037u, 1.8ghz, 2mb
Display: Intel graphics
Network: Realtek RT8111E 1000M lan port
Audio: Realtek ALC661 HD, encode, 4 channal audio output
Storage: 1x SATA 3.0(6Gb/s)
Inner I/O
1x full size MINI PCIE, for msata SSD
1x half size MINI PCIE, for wifi
1x DDR3 1333/1066Mhz SO-DIMM, up to 8GB
1x ATX power connector
1x LED power
1x LED hdd
1x 9pin VGA
1x LVDS(option)
1x audio input/output
1xUSB 2*usb

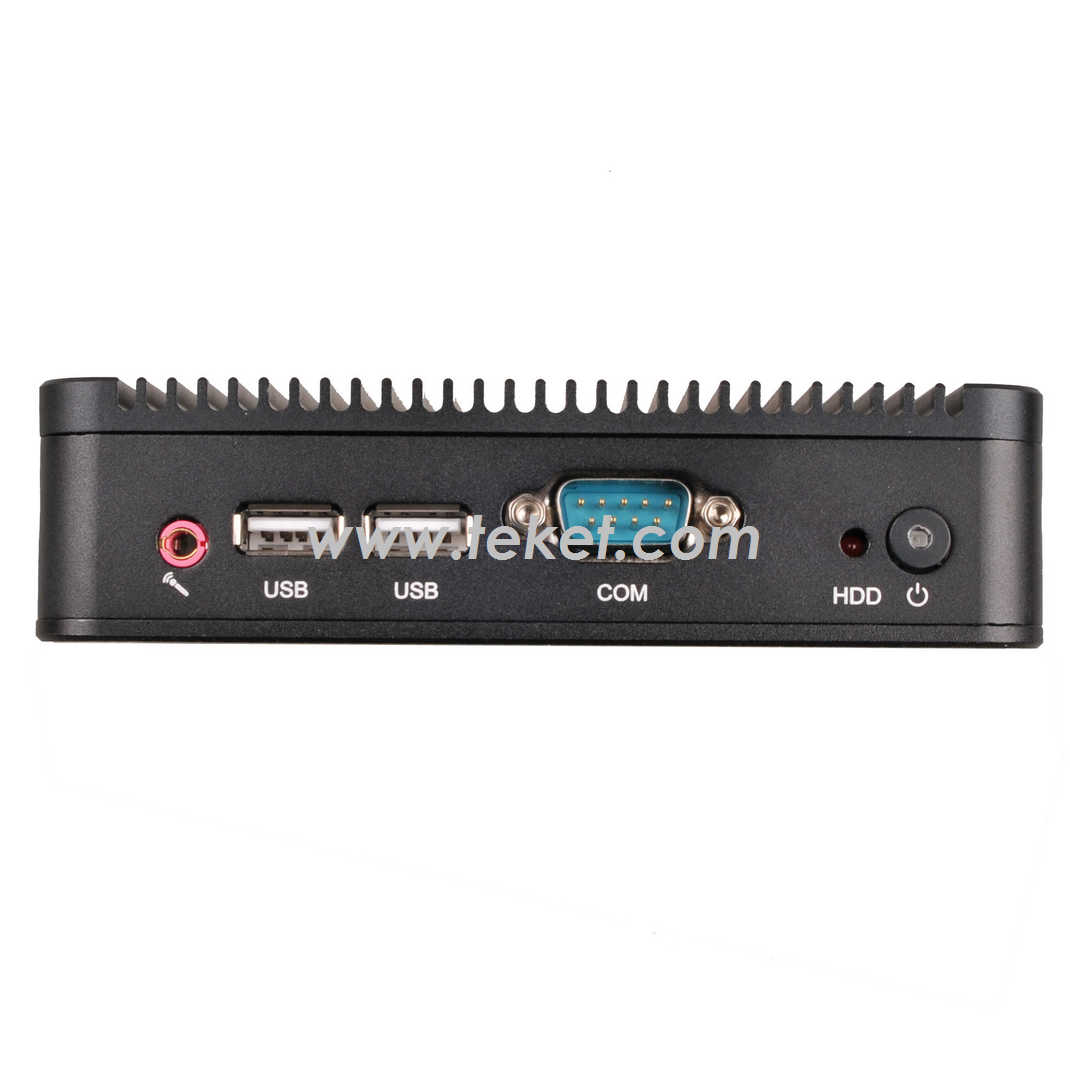

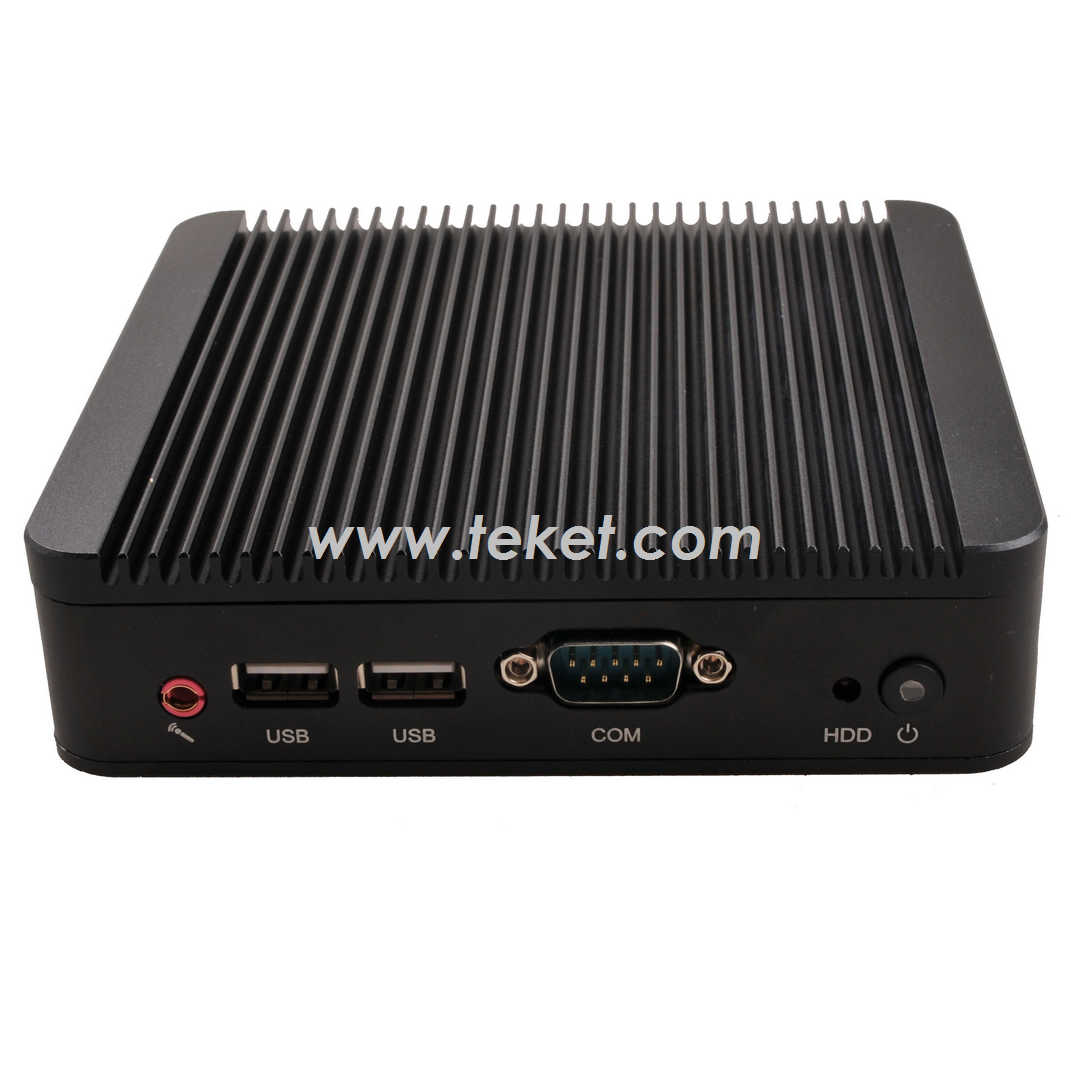

External I/O
1x power switch
2x USB 2.0
1x COM port
1x HDD led
1x audio I/O

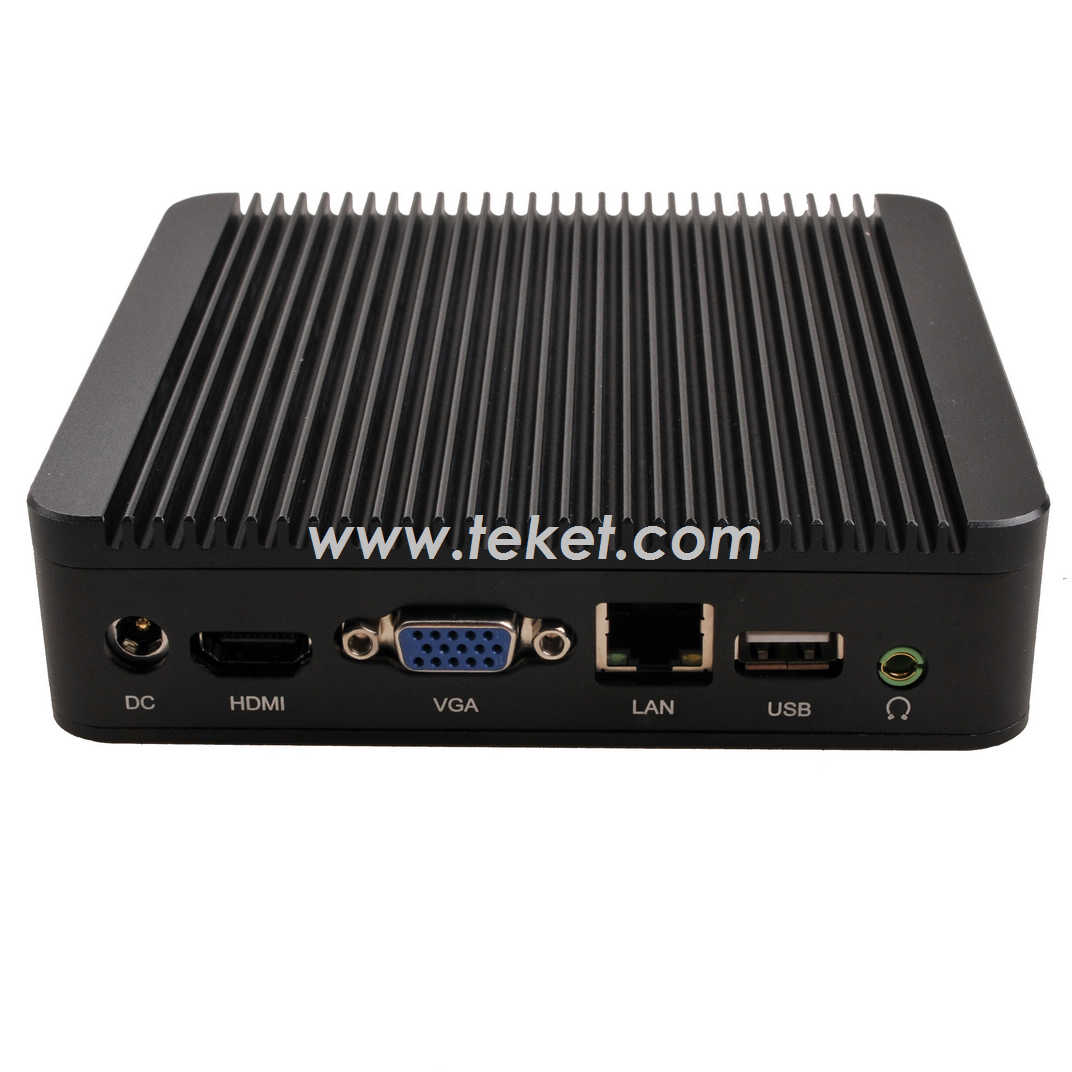

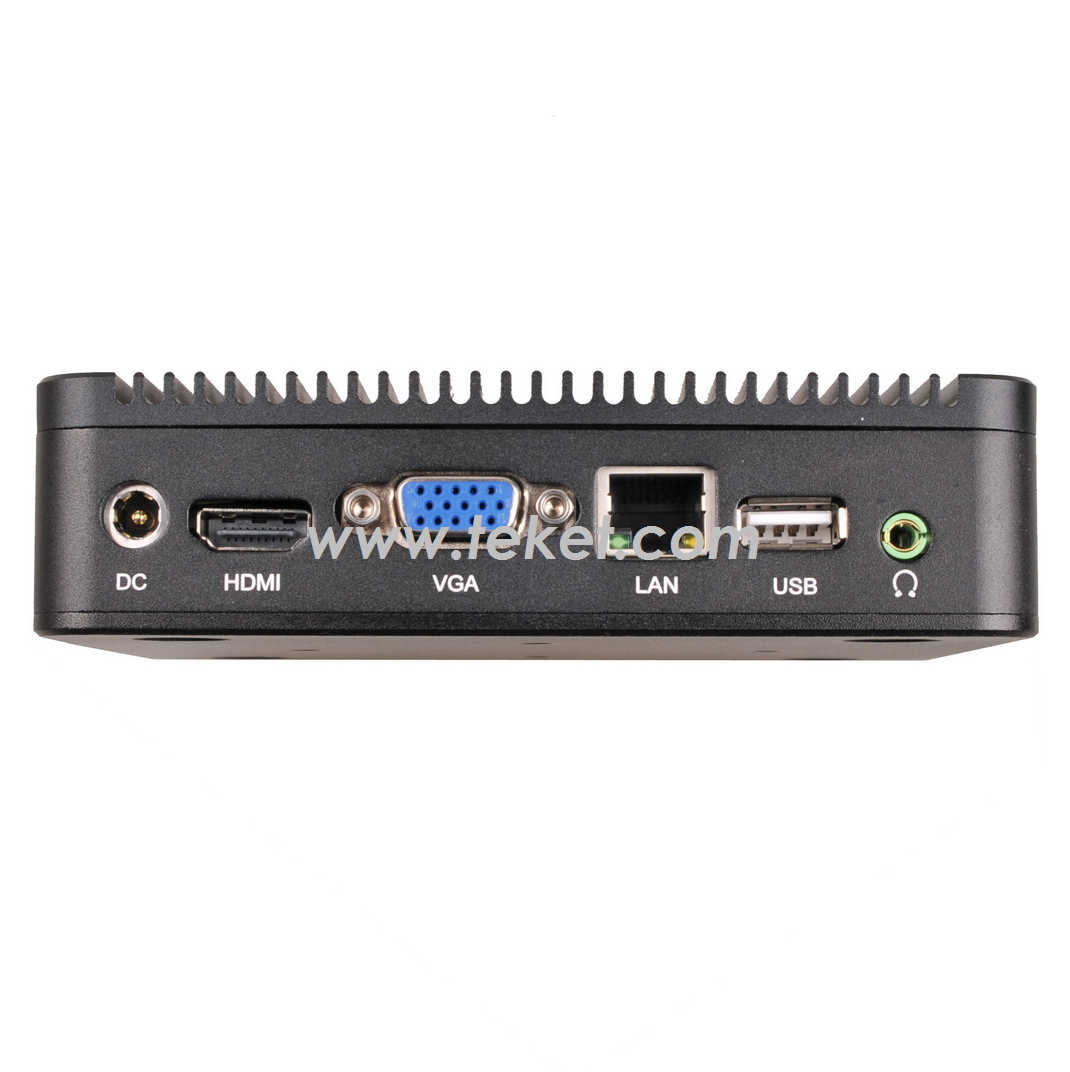

Back
1x DC 9-19v
1x HDMI
1x VGA (D-sub)
1x RJ45
1x USB 2.0
1x audio output

Size: 135*128*35mm (S1)135*128*45mm (S2)
Weight: 800g
Power: 12w
s1: msata ssd only
s2: msata ssd + 2.5" hdd

Packaging dimension: 145*145*60mm(L*H*W)

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.
