>>Your Current Position: Mini PC




-->> Customize Mini PC Model: E12-AM1I for Thin Clinet <<--

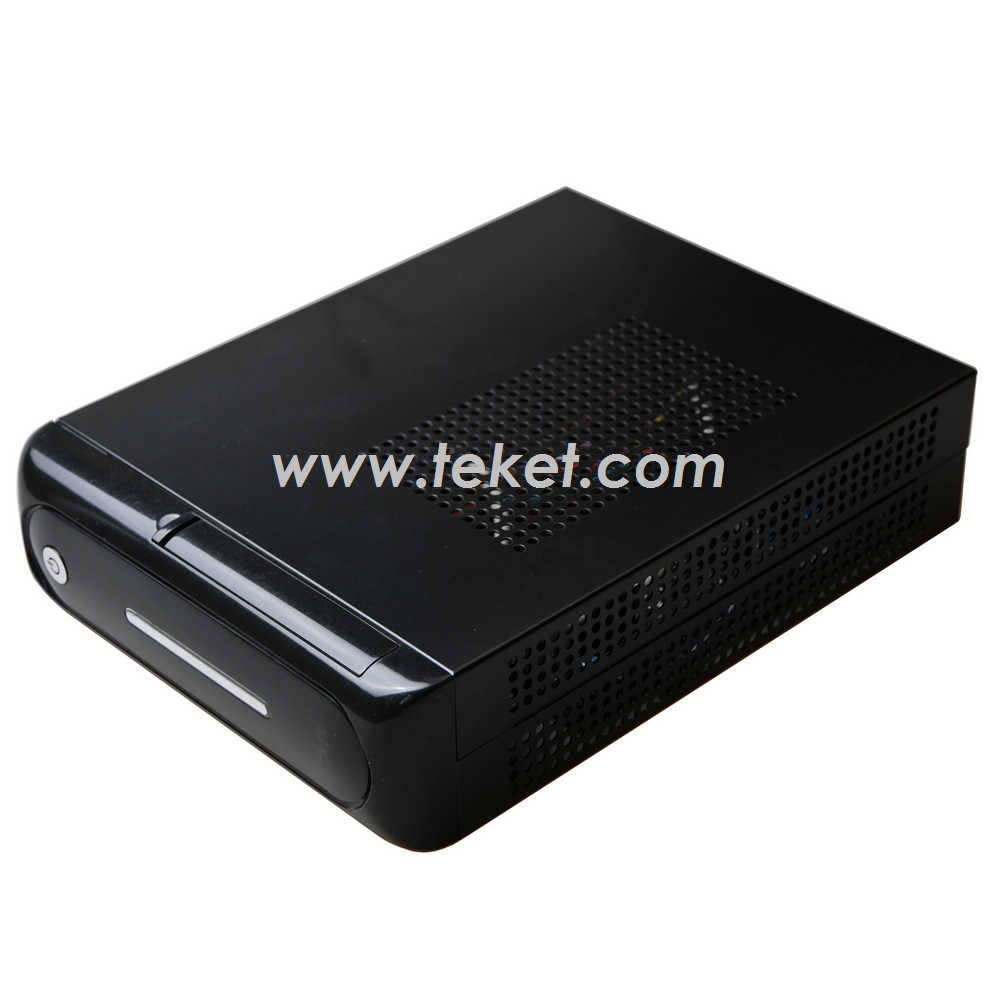

PC Chassie: E12

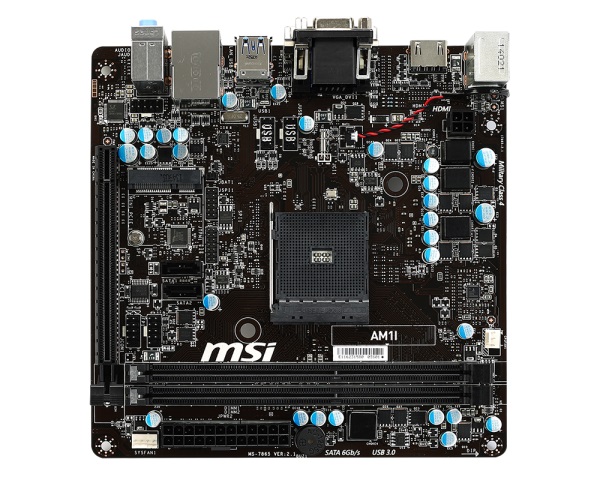

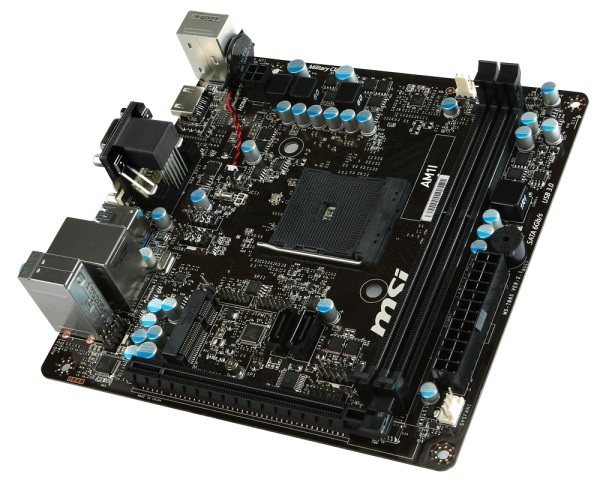

Motherboard: AM1I (MSI)
RAM: DIMM DDR3 2/48G
System Storage: 500GB HDD or 32G/64G/128G/256G SSD


Supports AMD Socket AM1 Athlon? /Sempron? Processors
Supports DDR3 Memory
USB 3.0 + SATA 6Gb/s
Military Class 4: Top Quality & Stability
Military Class Essentials: Total Protection for Military Class Motherboards
4K UHD Support: Ultra-high Definition Visual Experience
3 Display Outputs: HDMI/DVI/D-Sub Support
Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds

Motherboard Specifications
Processor AMD Socket AM1 Processors
Memory Support 2x DDR3 memory slots supporting up to 32GB Supports DDR3 1600/ 1333/ 1066 MHz
Single channel memory architecture Supports non-ECC, un-buffered memory
Expansion Slots
1x PCIe 2.0 x16 slot, supports x4 speed
1x Mini-PCIe slot
Onboard Graphics
1x VGA port, supporting a maximum resolution of 1920x1200
1x HDMI port, supporting a maximum resolution of 4096x2160
1x DVI-D port, supporting a maximum resolution of 1920x1200
Storage 2x SATA 6Gb/s ports
USB 3.0 2x USB 3.0 ports on the back panel
USB 2.0 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio Realtek® ALC887 Codec
LAN Realtek® RTL8111G Gigabit LAN controller

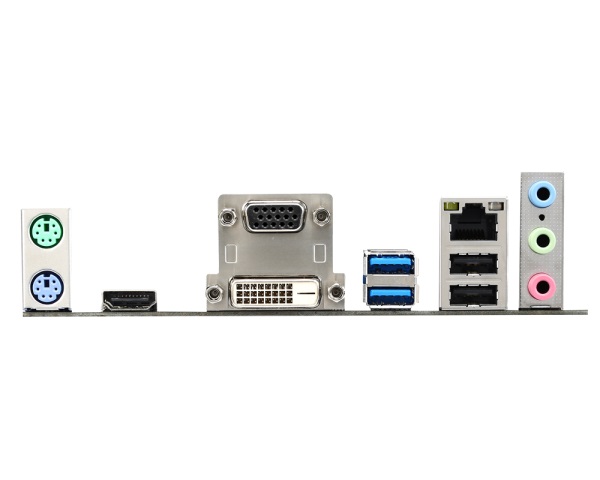

Back Panel
Connectors
1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
1x DVI-D port
1x HDMI port
2x USB 3.0 ports
2x USB 2.0 ports
1x LAN (RJ45) port
3x audio jacks
Internal Connectors
1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
2x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 3-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
1x Serial port connector
1x TPM connector
1x System panel connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
BIOS Features UEFI AMI BIOS
ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0 Multi-language
Form Factor Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)



More System Config Information
1),PC chassis: E12
http://www.teket.com/en/chassis/e/pc_chassis_e12.htm
2),Motherboard: MSI AM1I
http://www.teket.com/en/motherboard/amd/am1i.htm
3),RAM DIMM DDR3
4),DOM or SSD
http://www.teket.com/en/storage/flashstorage.htm
5),POWER ADAPTOR: 12V5A
http://www.teket.com/en/powersupply/ps_adaptor.htm
