>>Your Current Position: MINI PC TEKET L Series

TEKET L05 Series MINI PC

-->> MINI PC Slim all aluminum chassis Fanless L05-HT3150 HT630 HT650 HT760 HT770 series <<--


Key Specifications/Special Features:
Model No.: L05
Case dimensions(mm): 197x197x29mm or 197x197x33mm or 197x197x37mm
Color: white
Main board size(mm): 4" or mini-iTX fanless industral motherboard

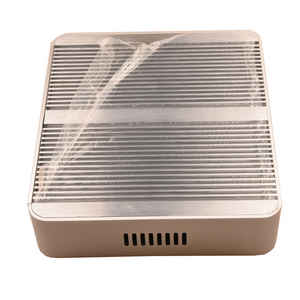

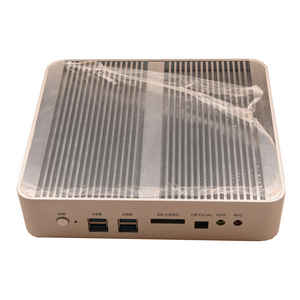

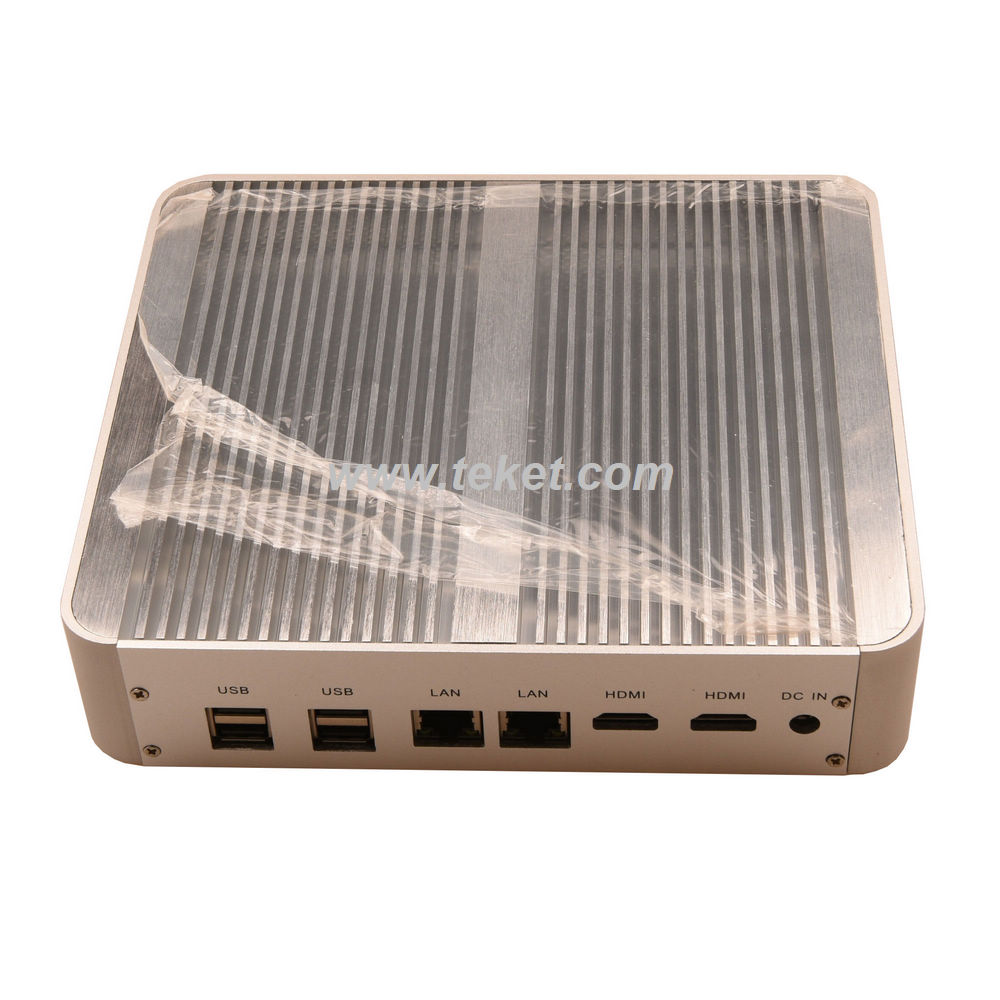

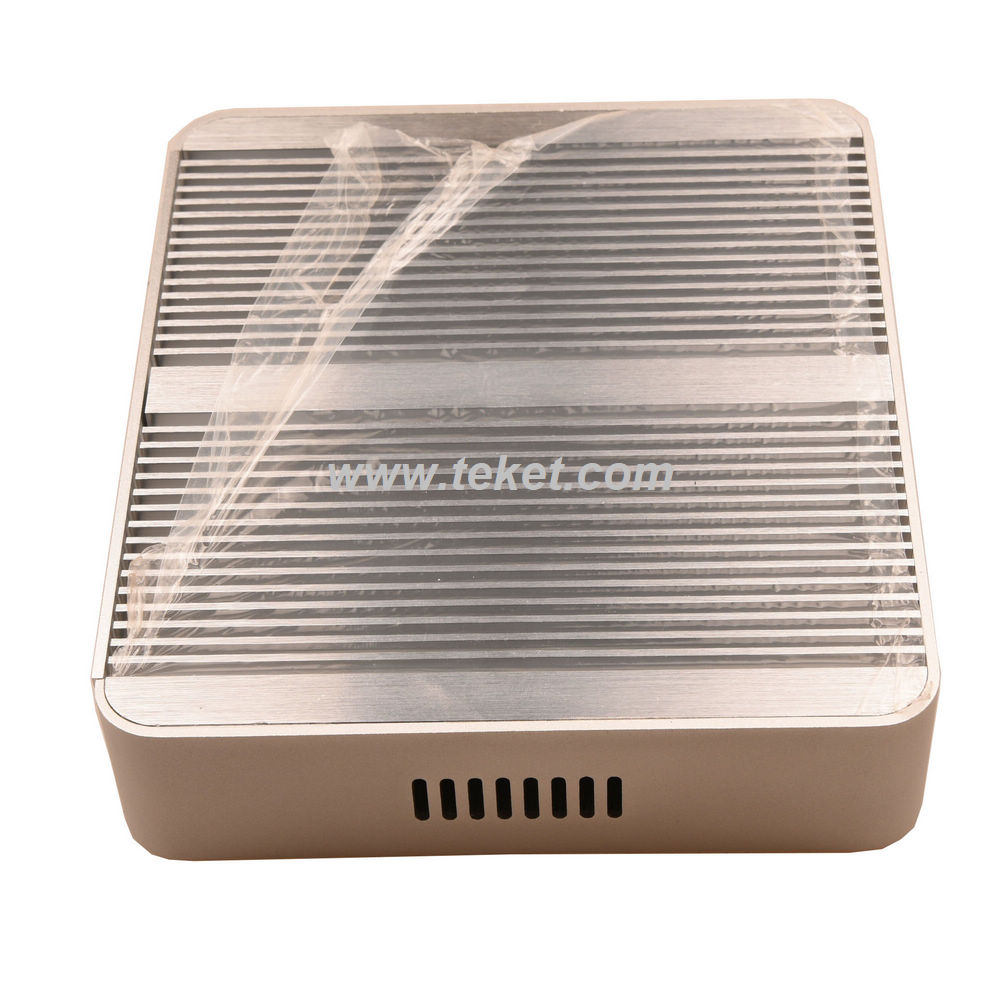

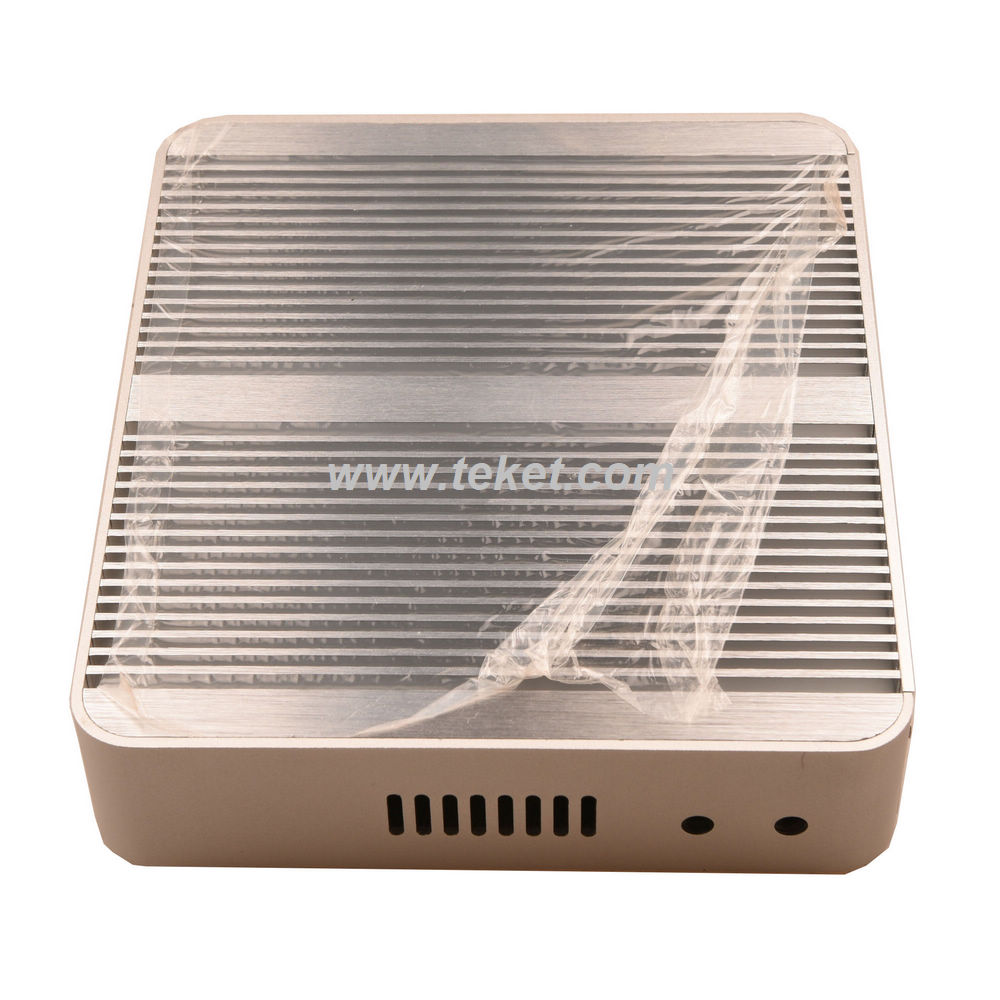

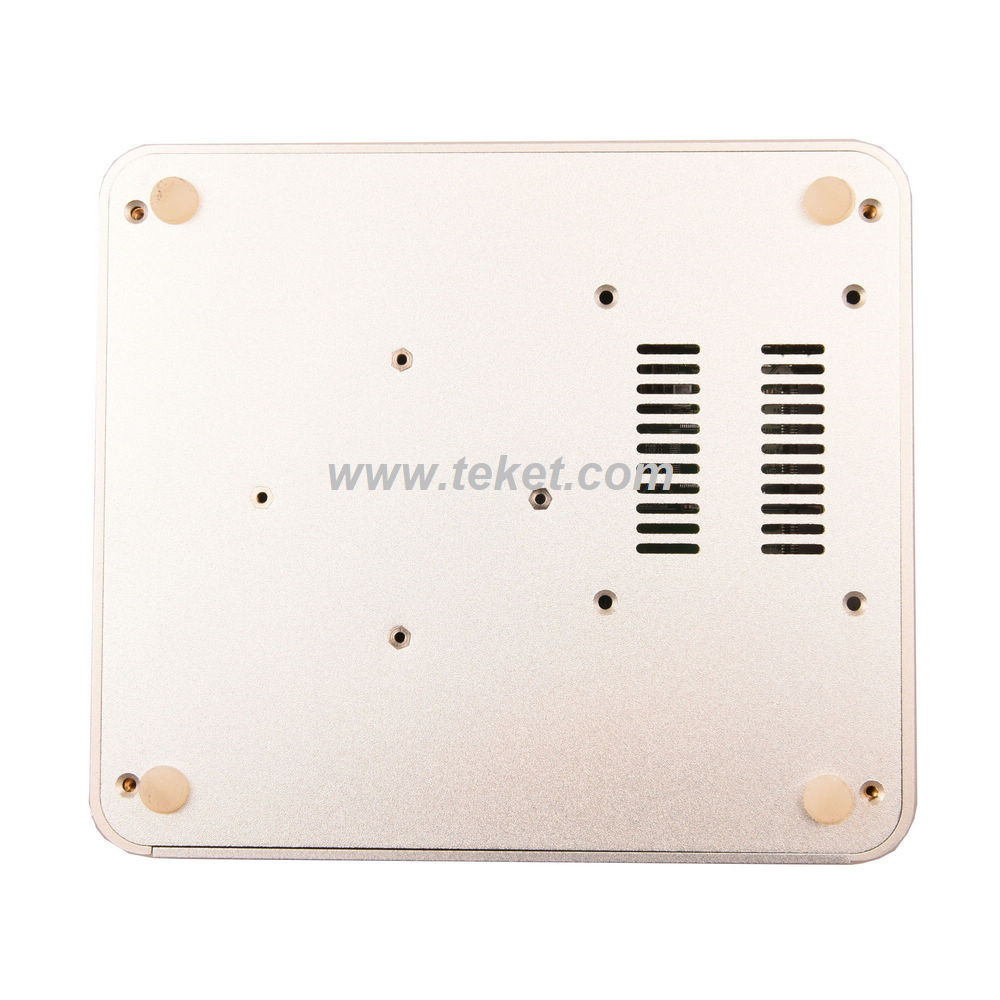

L05-HT630,i3-500U

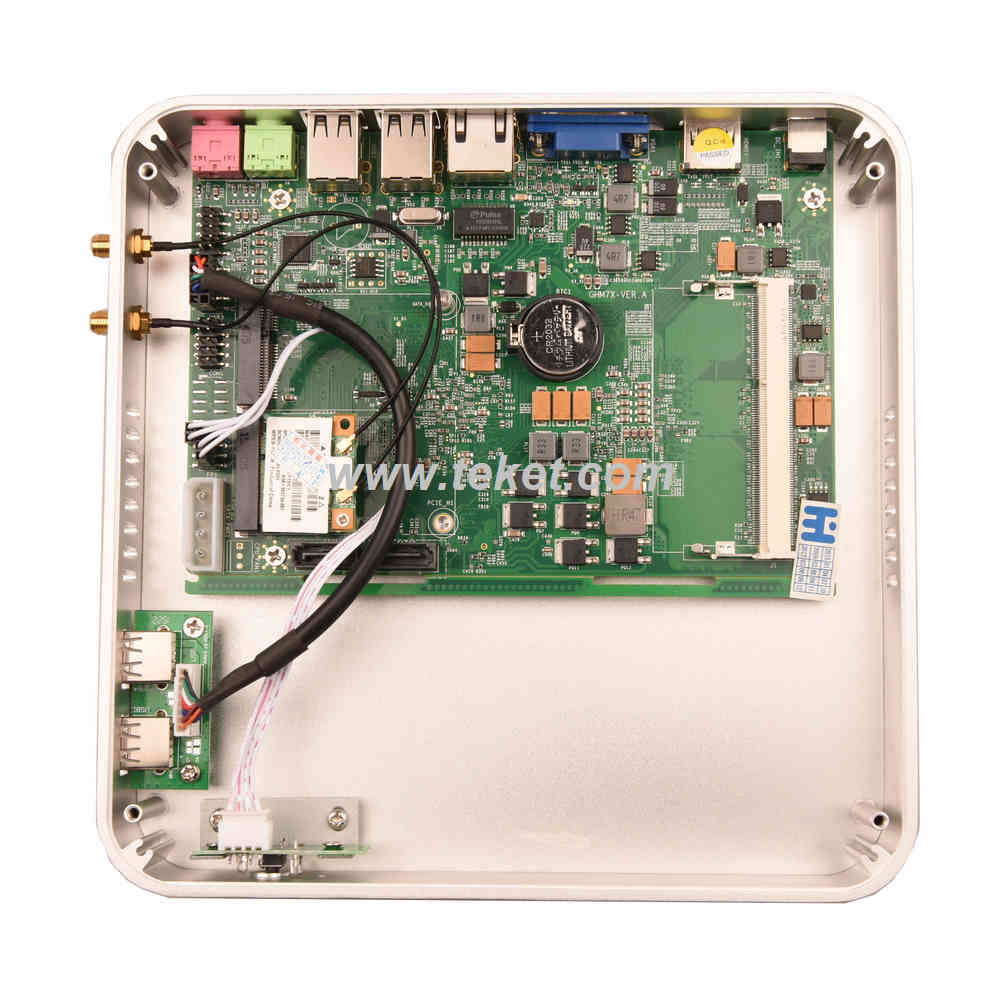

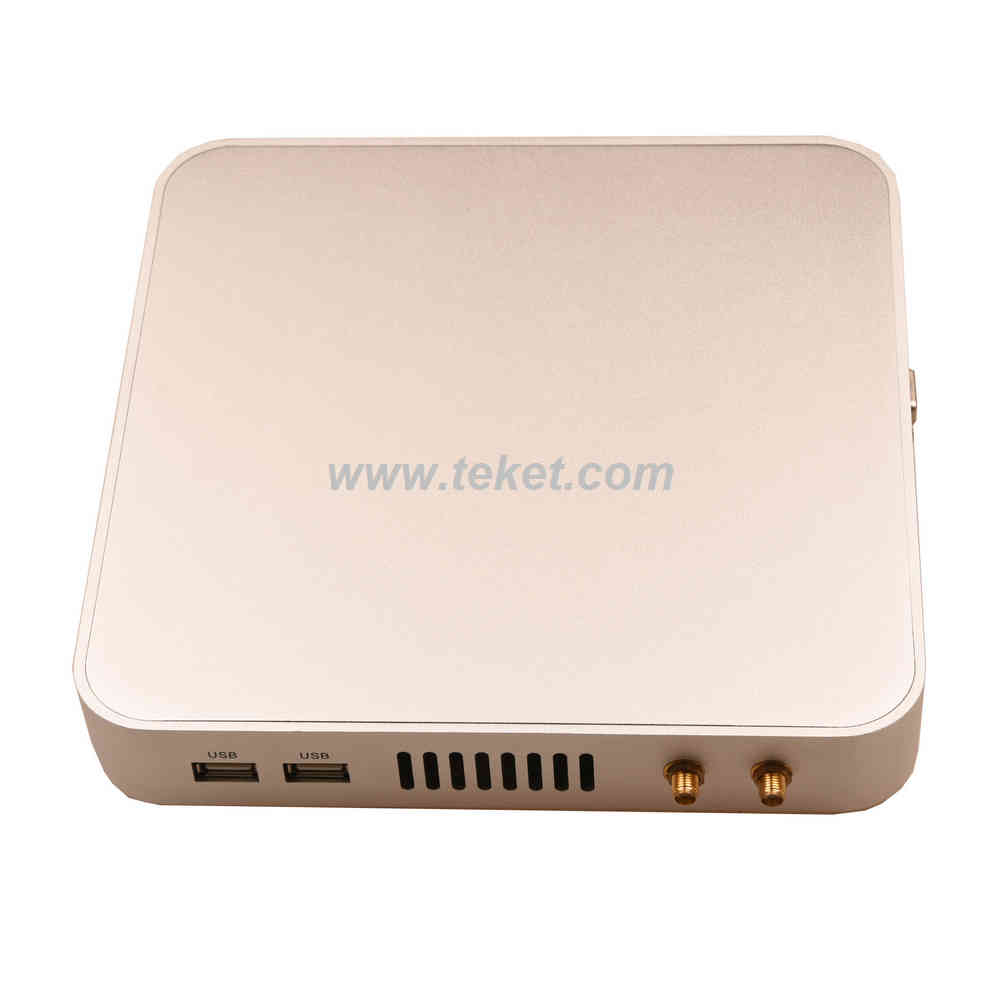

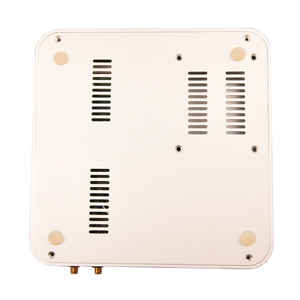

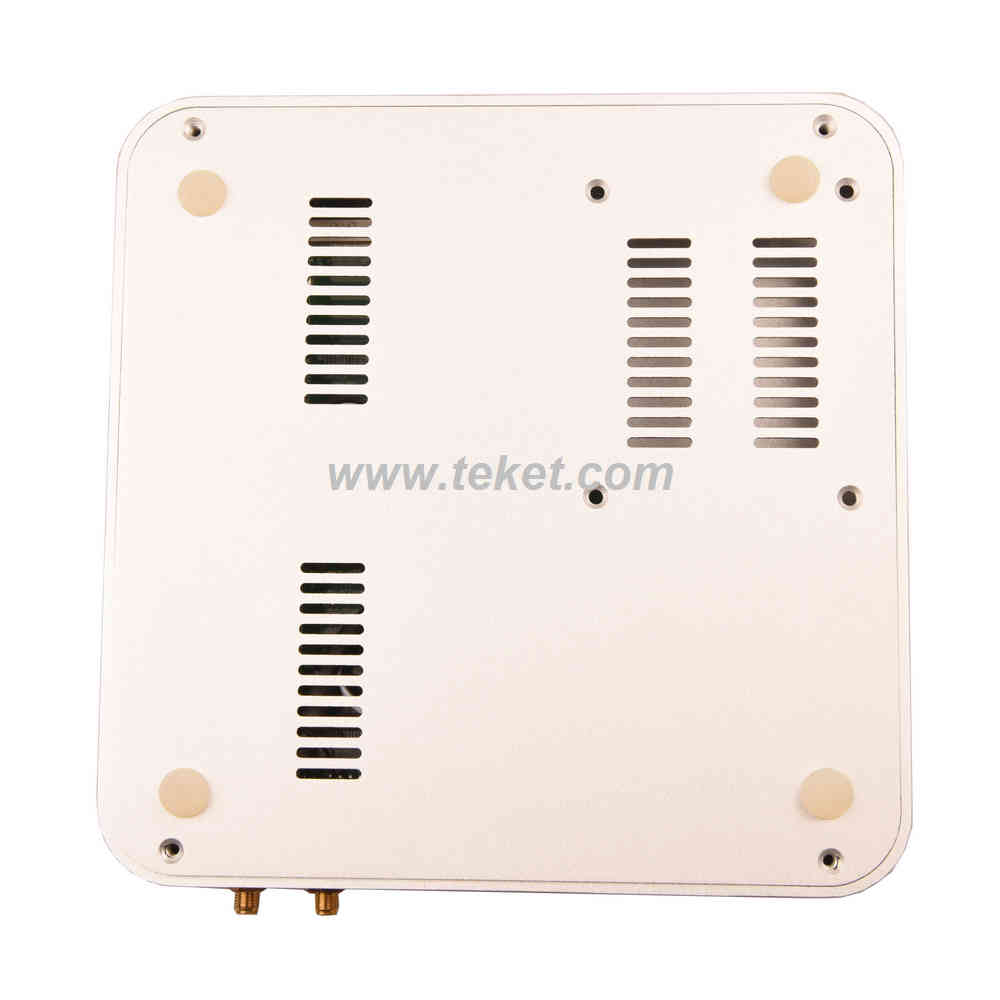

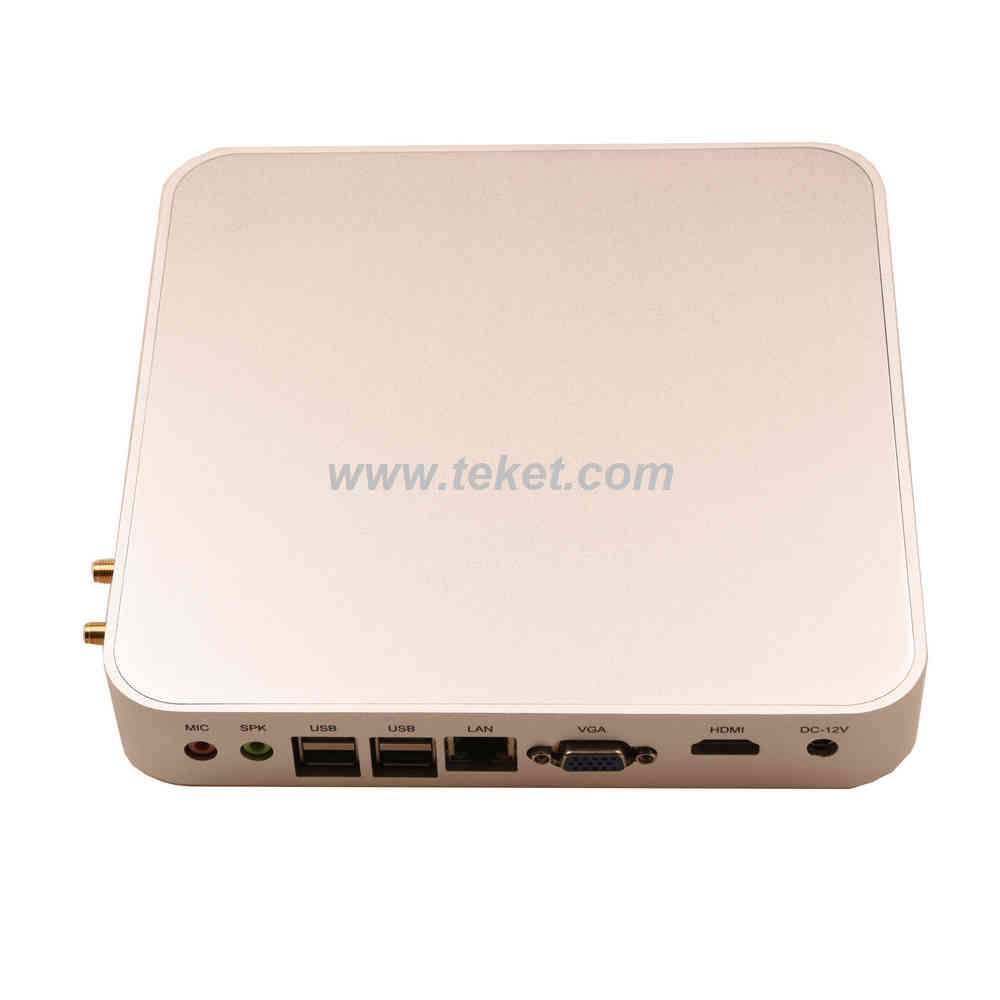

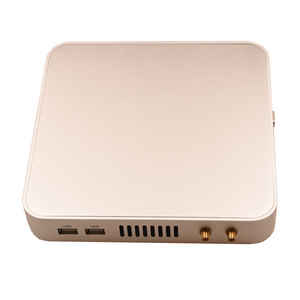

L05-HT650, C1037U

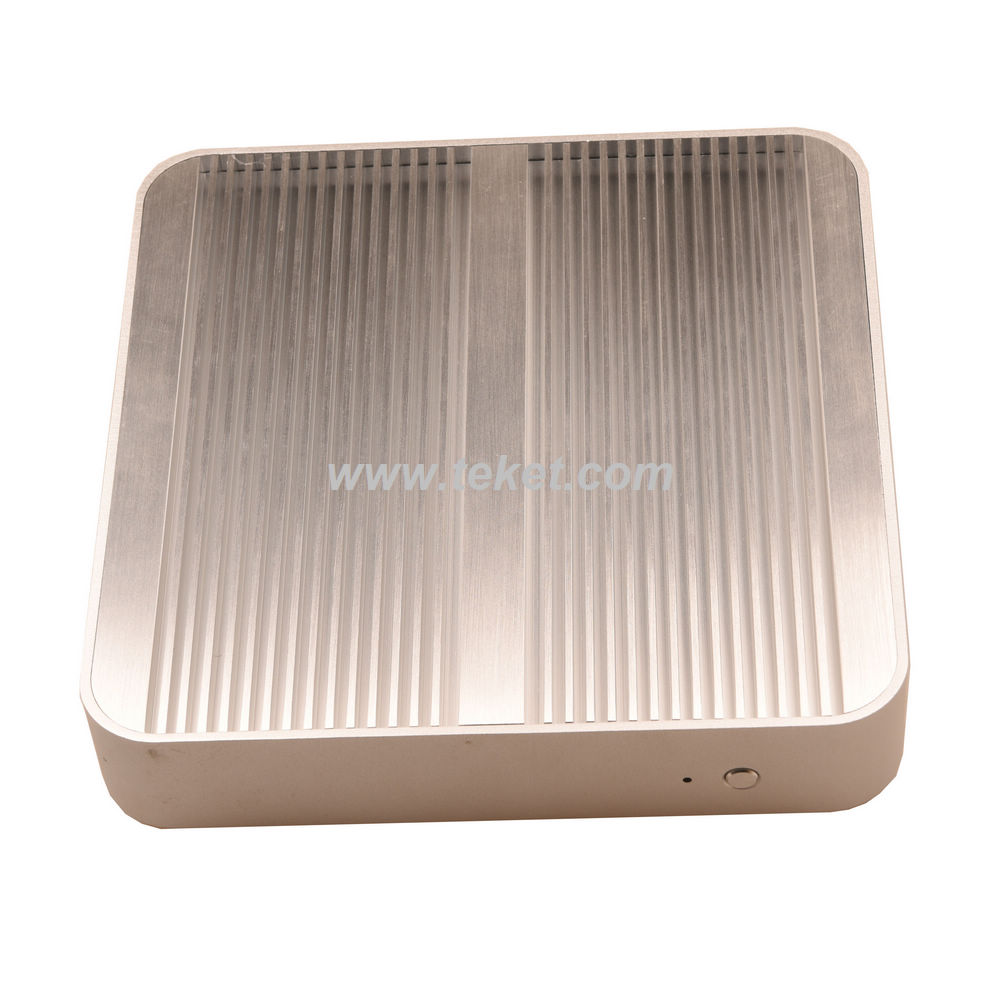

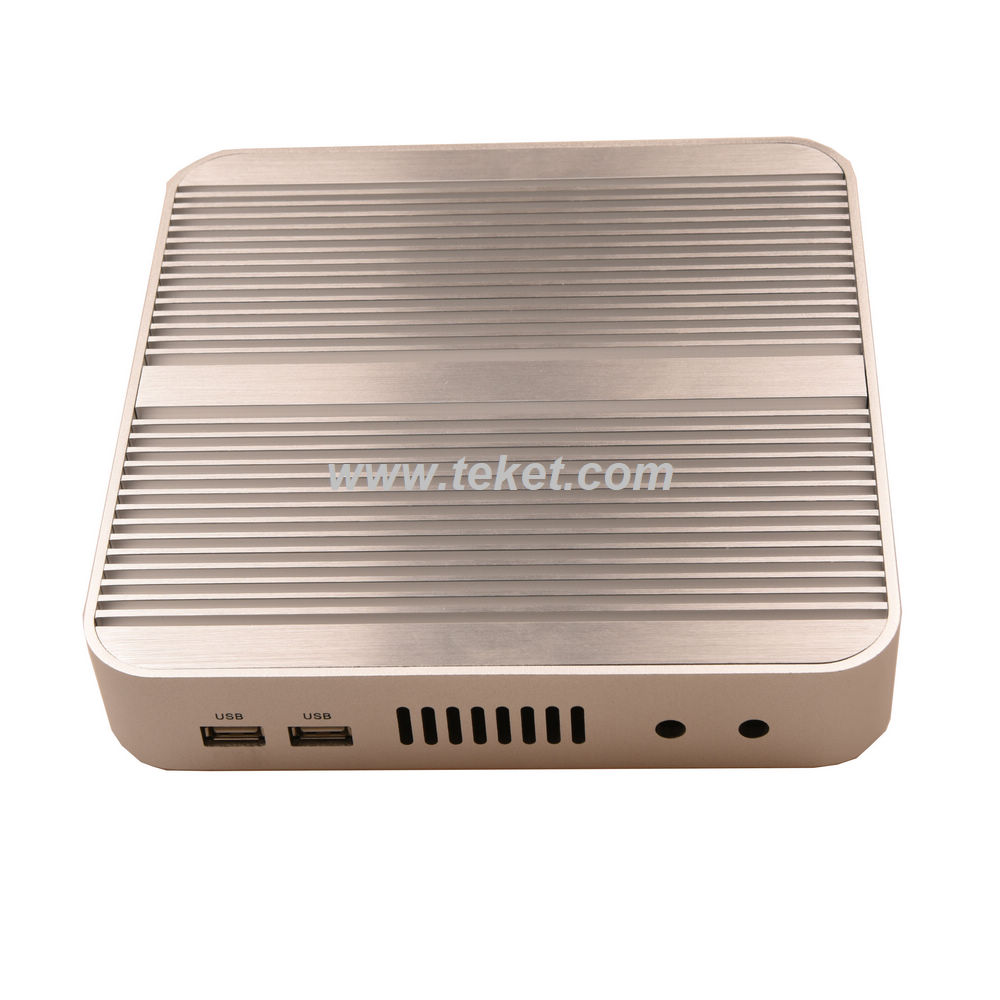

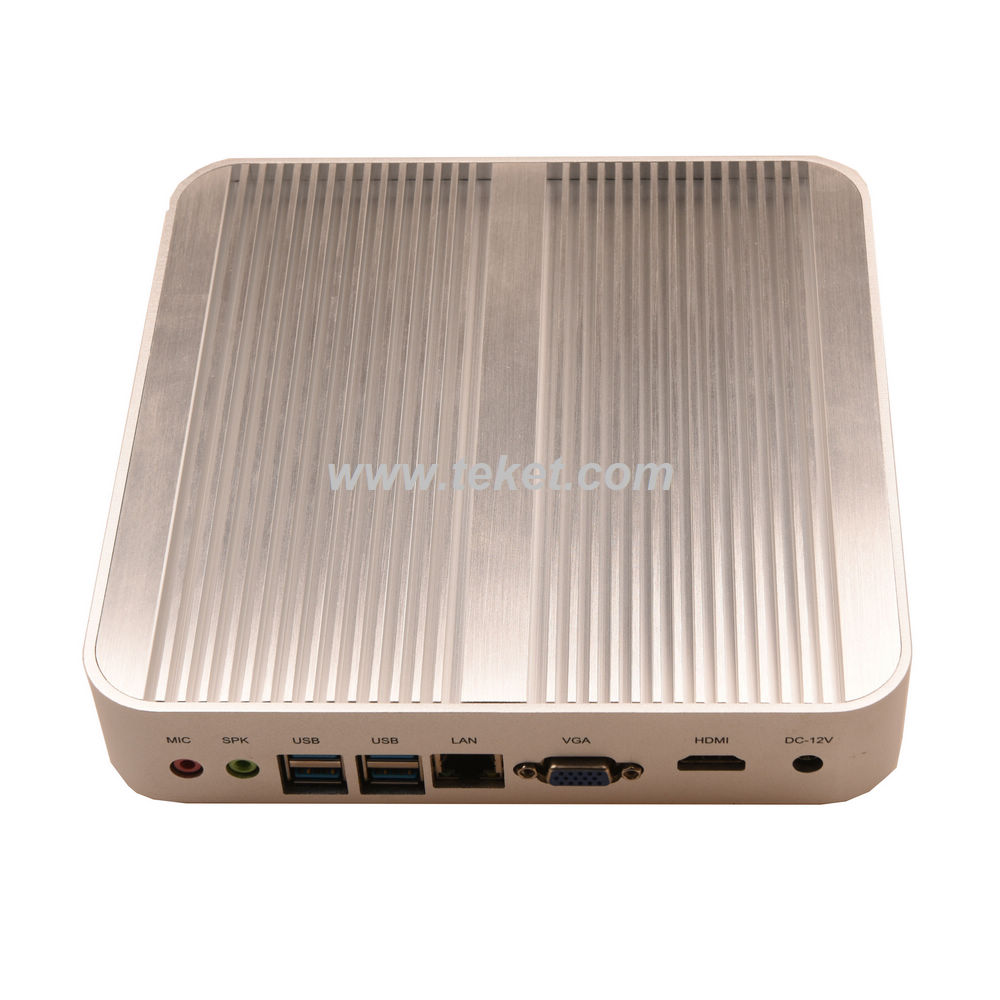

L05-HT770, I34010U

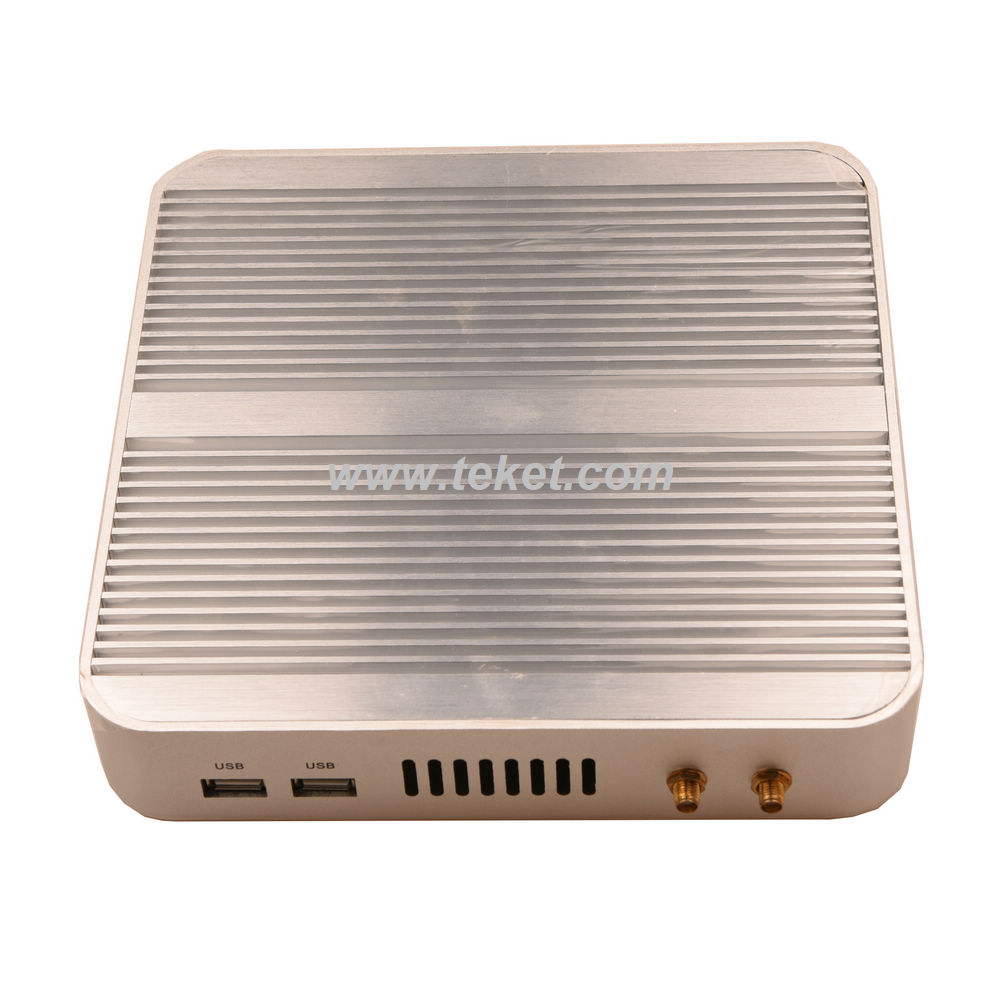

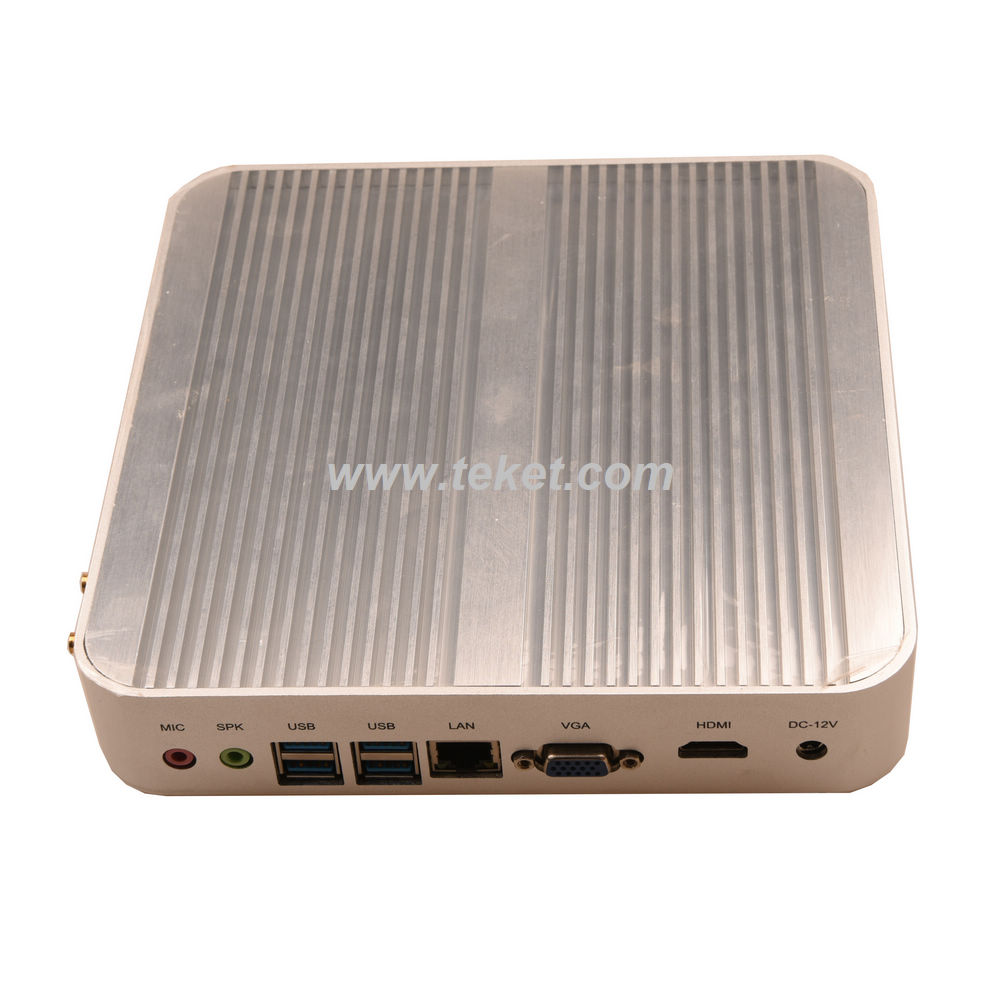

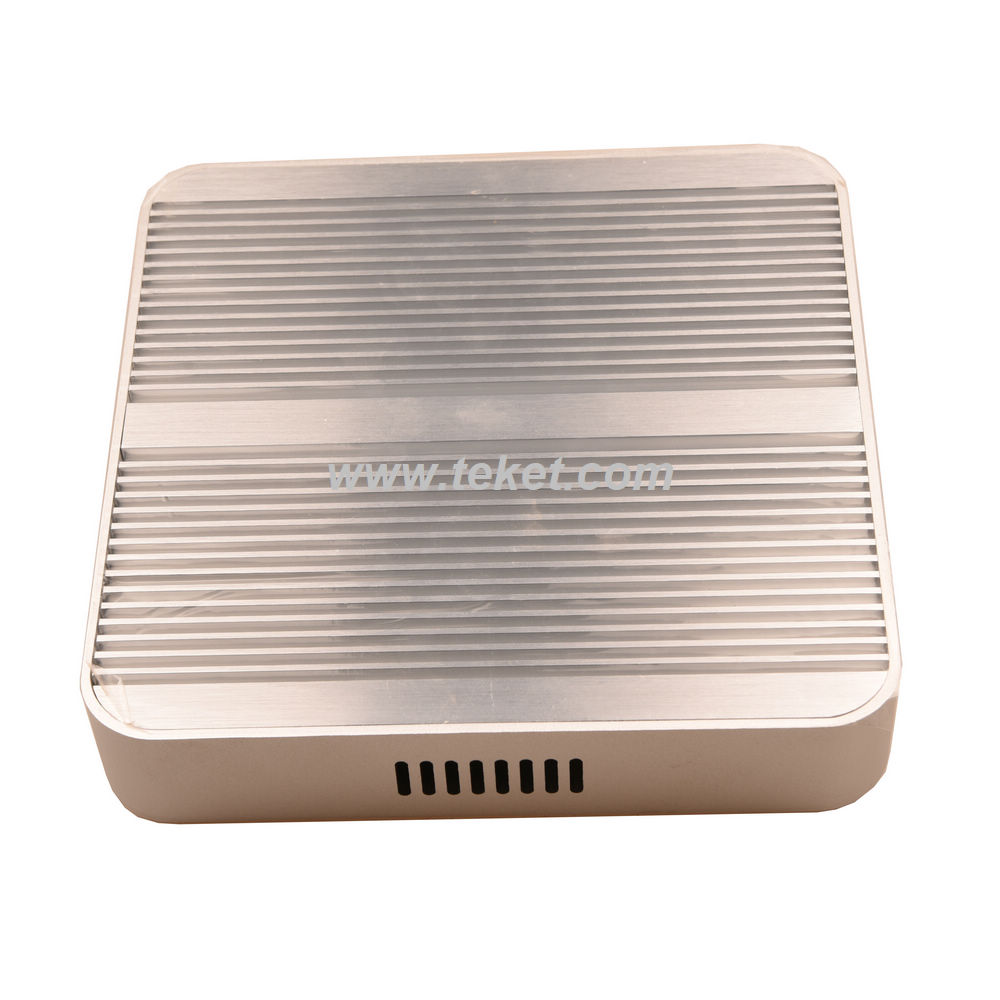

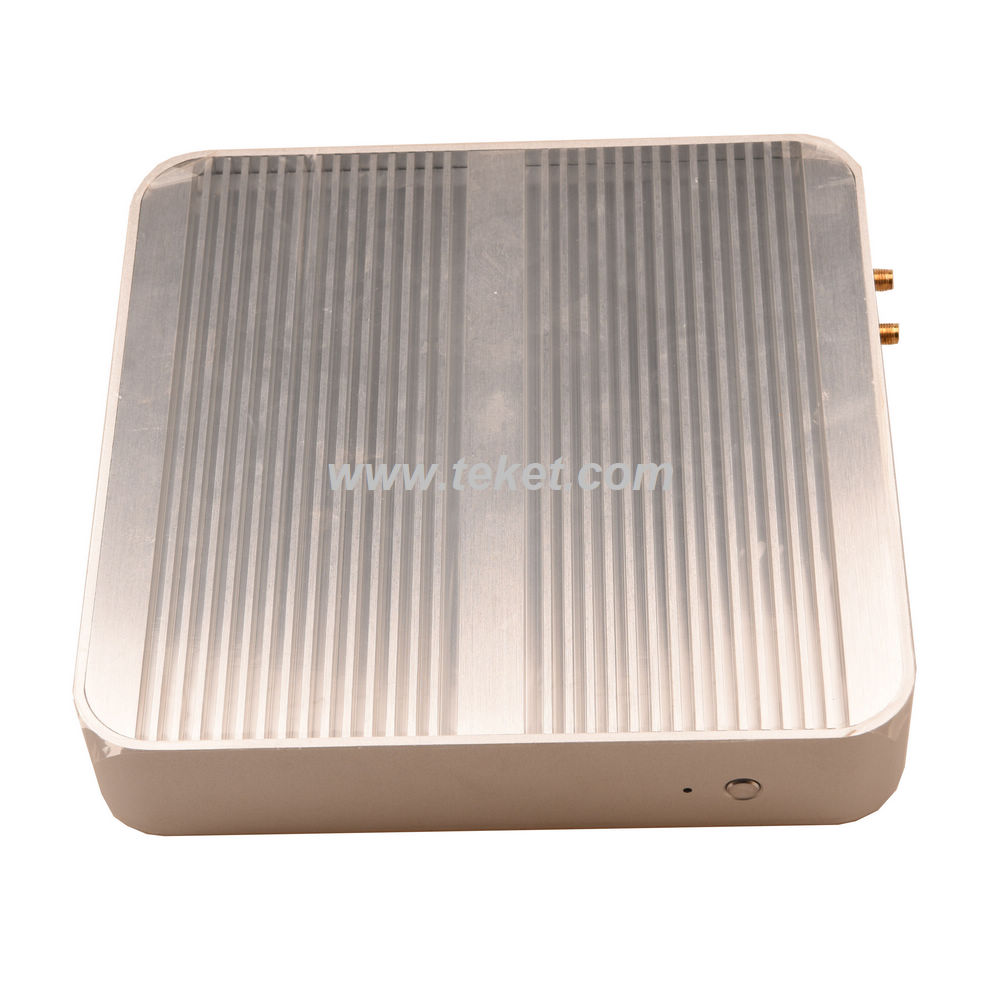

L05-HT770, I54210U

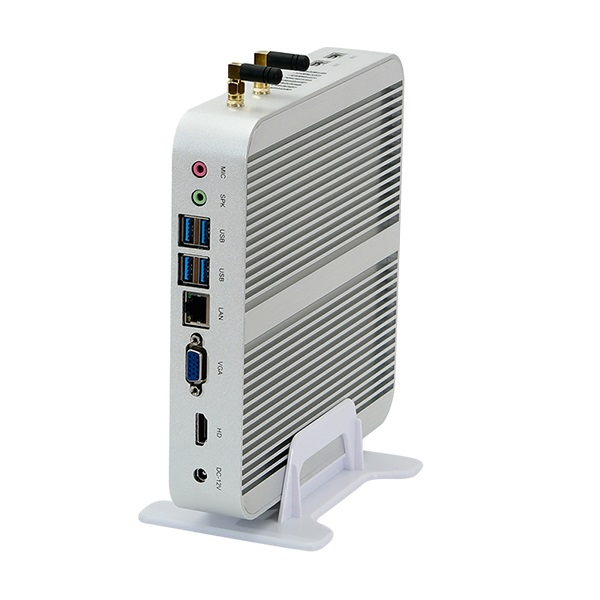

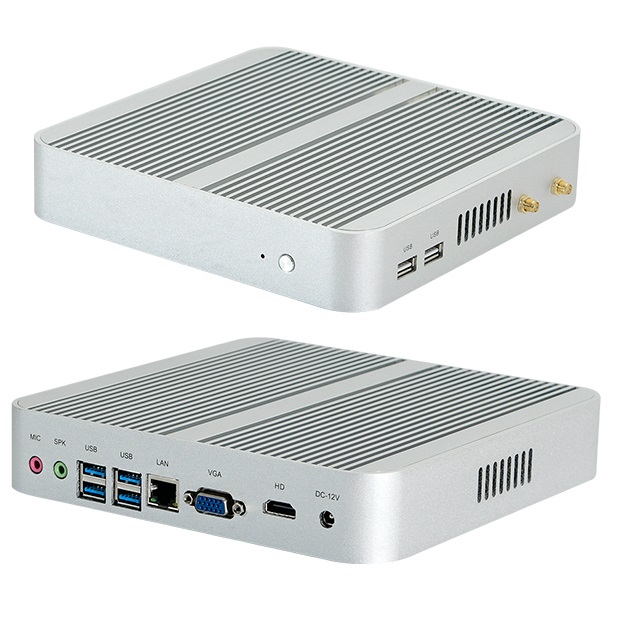

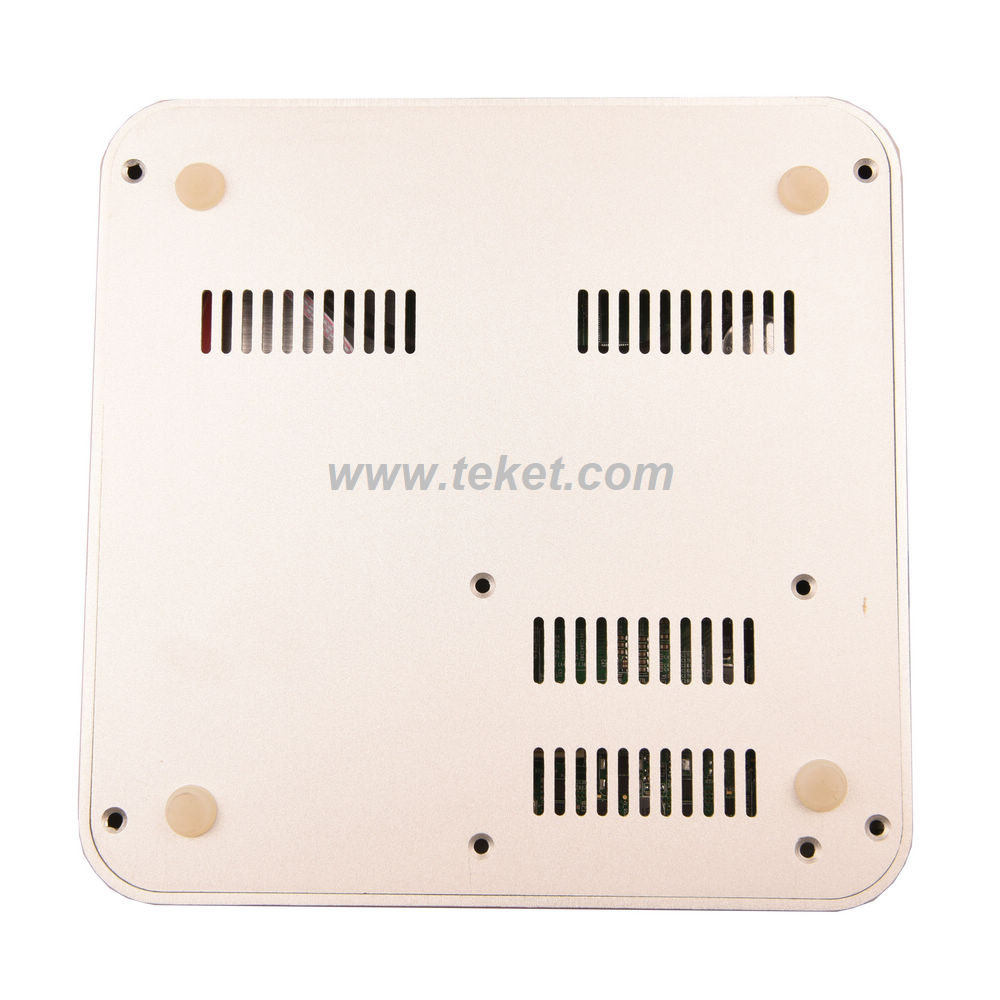

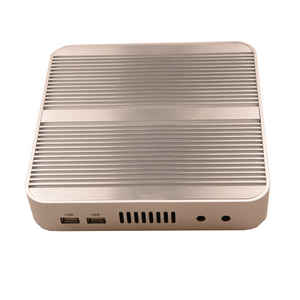

L05-HT770 Standard Views



Ordering Information:
L05-i34005U,i3-4005U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)
L05-i35005U,i3-5005U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)
L05-i36157U,i3-6157U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)
L05-i38145U,i3-8145U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)
L05-i55287U,i5-5287U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)
L05-i57200U,i5-7200U,1*LAN,HDI+VGA,2*USB2.0,4*USB3.0,12VDC,HT770,197*197*37(mm)


Intel Celeron® Processor 1037U (2M Cache, 1.8GHz),22nm,17W,Intel® HD Graphics
Intel Core i3-3217U Processor (3M Cache, 1.8GHz),22nm,17W,Intel® HD Graphics 4000
Intel Core i5-3317U Processor (3M Cache, 1.7GHz up to 2.6GHz),22nm,17W,Intel® HD Graphics 4000
Intel Core I34010U Processor (3M Cache, 1.7GHz),22nm,15W,Intel® HD Graphics 4400
Intel Core i5-4200U Processor (3M Cache, 1.6GHz up to 2.6GHz),22nm,15W,Intel® HD Graphics 4400
Intel Core i5-4200Y Processor (3M Cache, 1.4Ghz up to 1.9GHz),22nm,11.5W,Intel HD Graphics 4200
Intel Core i5-4210Y Processor (3M Cache, 1.5Ghz up to 1.9GHz),22nm,11.5W,Intel HD Graphics 4200
Intel Core i5-4258U Processor (3M Cache, 2.4Ghz up to 2.9GHz),22nm,28W,Intel Iris™ Graphics 5100

Intel Core i3-5005U Processor (3M Cache, 2.0GHz),14nm,10W,Intel HD Graphics 5500
Intel Core i5-5200U Processor (3M Cache, 2.2Ghz up to 2.7GHz),14nm,15W,Intel HD Graphics 5500
Intel Core i5-5257U Processor (3M Cache, 2.7Ghz up to 3.1GHz),14nm,28W,Intel Iris Graphics 6100

Super mini fanless machine, the use of aluminum alloy chassis, can use the chassis cooling.
Support dual display support synchronous and asynchronous dual display

Product Specifications
Computing System
Processor

Chipset N/A
System Memory 2 x DDR3L-1333 SODIMM Slots,Max 16GB
Graphics Graphics Engine Intel HD Graphics
Storage Hard Drive

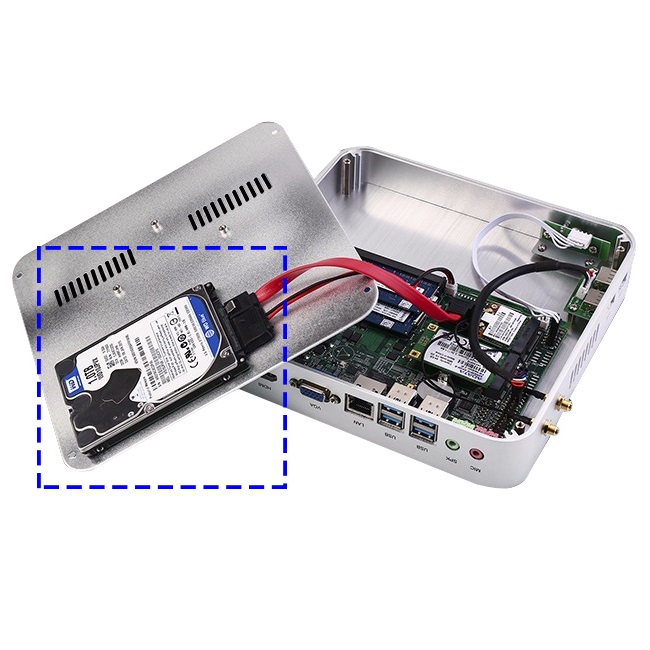

Mass Storage 1x 2.5" SATA 3Gbps HDD/SSD Slot (onboard design)
Optical Drive None
mSATA Yes
LAN: Realtek 8111E Gigabit Ethernet
Audio: Realtek ALC662, Audio Microphone, Headphone
USB Port
4xUSB 2.0(back)
2xUSB 2.0(front)
Antenna 1x WiFI SMA connetor(optional)
Display VGA+HDI

Power Supply AC Adapter O/P: DC 12V/36W,12V3A
Cooling system Fan + Heatsink
Dimensions 197x197x29mm or 197x197x33mm or 210x170x45mm

Application: Digital Signage,HTPC,OA,Thin client,living room

Net Weight:
Inner Packing:
Outer Packing:

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5

* Wireless mini-keyboard with 88 keys
* Ergonomic design.
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation.
* 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy.
* Integrated trackball and two click buttons to provide mouse function.
* Ice-white color and Mac stylish Design to satisfy your test.
* Keyboard ergonomic Design.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.

* Dimensions: 358 ( L ) * 156( W )* 28( H )mm
* Weight: 740g ( W/O Battery )
2.4G Wireless Keyboard with Touchpad Mouse K9

* Wireless mini-keyboard with 88 keys
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no
line-of-sight limitation.
* Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons.
* 12 function keys
* Ultra-stylish design with concise outline.
* Plug and Play ¨C No software to Install.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.
* Dimensions: 300( L ) * 210( W ) * 19( H )mm
* Weight: 520g ( W/O Battery)
