-->> All aluminum chassis fanless MINI PC L06-BD780 Series <<--

Key Specifications/Special Features:
Model No.: L06-BD780
Case dimensions(mm):200*175*45
color: white(silver)
Case dimensions(mm):225*185*48
olor: black

L06-DB780W: Intel core i5-7260U, size 210*170*45mm
L06-DB780B: Intel core i7-7560U, size 225*185*48mm
Display Intel Iris Plus Gracphics 640
Video: 1*DP,1*HDI
Audio: 1*SPK,1*MIC+SPDIF
Storage: Msata+M.2(nvme), 2.5" SATA
Memory: Dual SO-DIMM DDR4, up to 32GB
USB: 4*USB2.0,4*USB3.0
Network: 2*LAN
Wifi: support

Order Information
L06-BD780W,i3-8145U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
L06-BD780W,i5-7260U,2.2/3.4Ghz,Iris640,DDR4,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size210*17*45(mm)
L06-BD780W,i5-7267U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
L06-BD780W,i5-8259U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
L06-BD780W,i7-7200U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
L06-BD780B,i5-7267U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size225*185*48(mm)

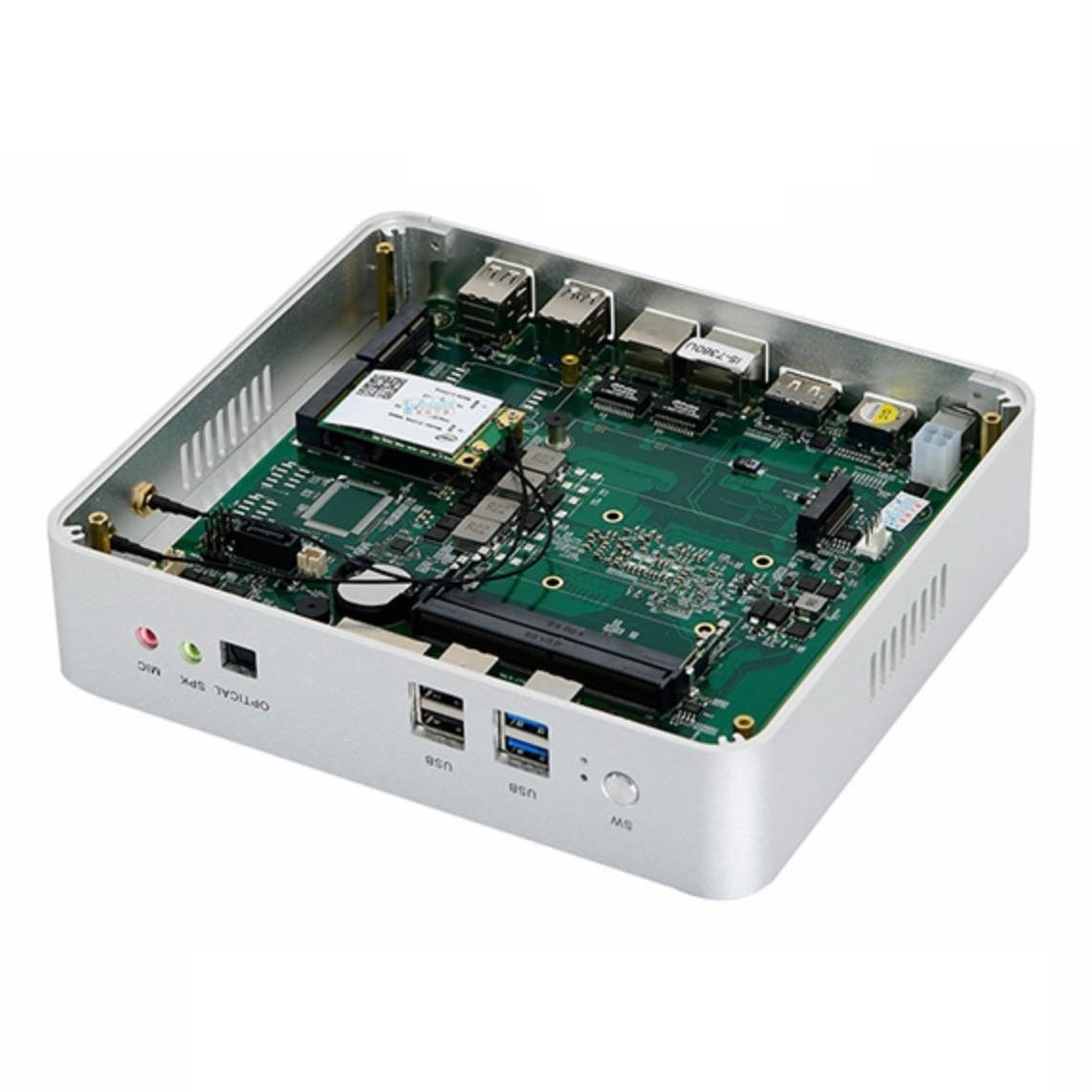

BD780W views

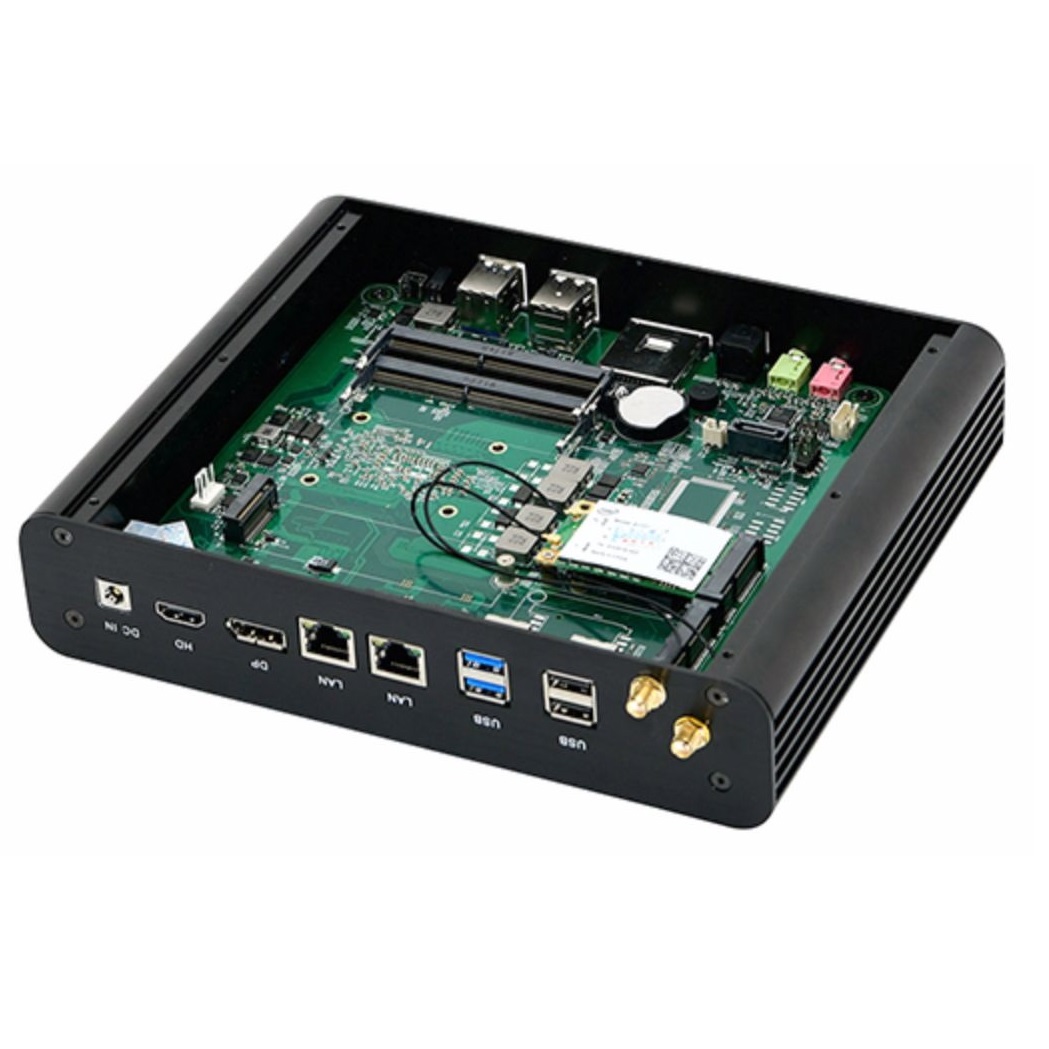

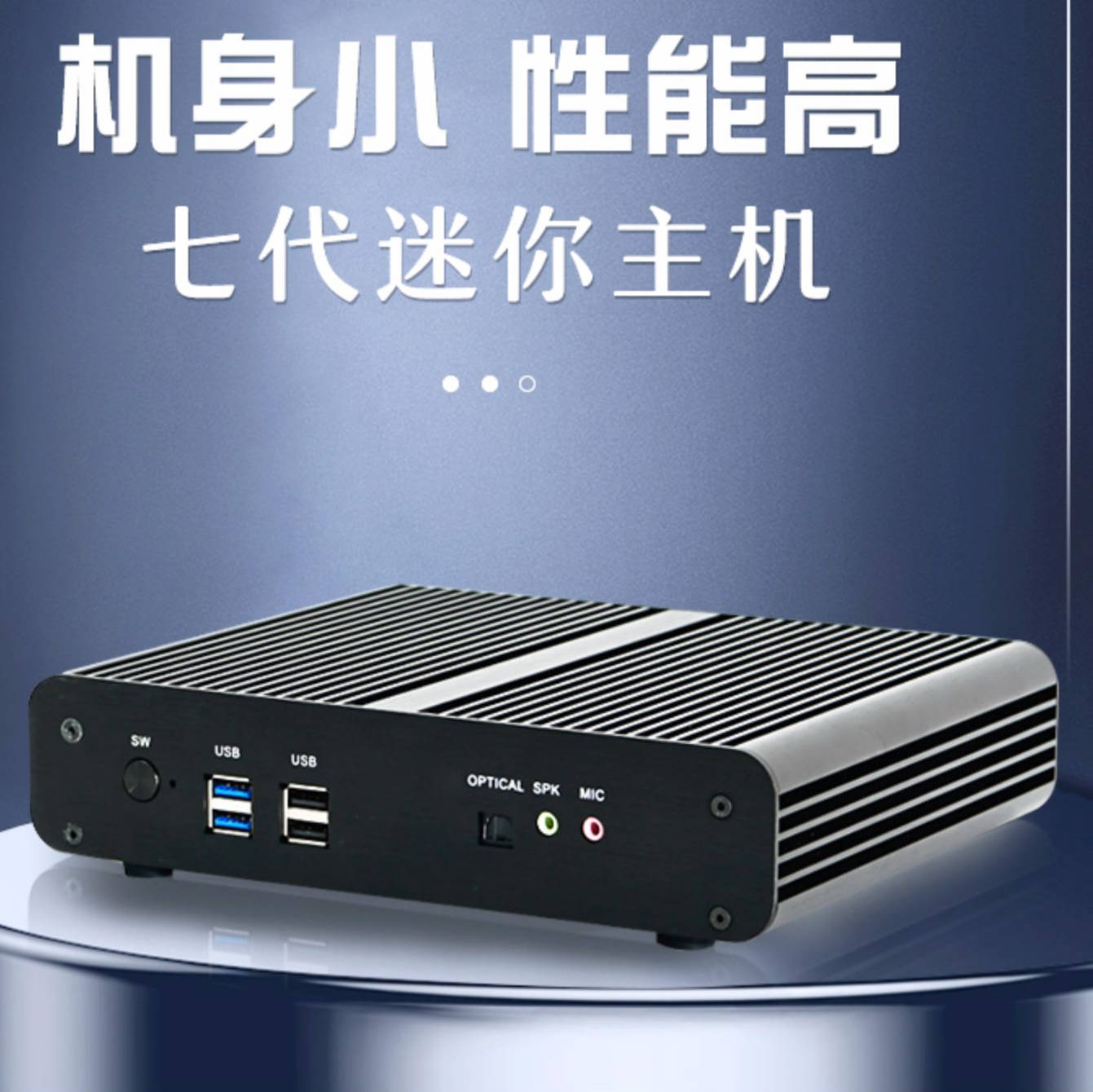

BD780B views

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5 * Wireless mini-keyboard with 88 keys * Ergonomic design. * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy. * Integrated trackball and two click buttons to provide mouse function. * Ice-white color and Mac stylish Design to satisfy your test. * Keyboard ergonomic Design. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 358 ( L ) * 156( W )* 28( H )mm * Weight: 740g ( W/O Battery )

2.4G Wireless Keyboard with Touchpad Mouse K9 * Wireless mini-keyboard with 88 keys * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons. * 12 function keys * Ultra-stylish design with concise outline. * Plug and Play ¨C No software to Install. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 300( L ) * 210( W ) * 19( H )mm * Weight: 520g ( W/O Battery)
