-->> All aluminum chassis fanless MINI PC Intel Core 10th generation CPU i5-1035G1 i7-1065G7 DB780G10 Series <<--

Key Specifications/Special Features:
Model No.: L06-BD780G10
Case dimensions(mm):224x185x49/55mm，210*170*45mm
color: black or white（silver)

BD780G10
CPU i5-1035G1
Intel® Core™ i5-1035G1 Processor
6M Cache, up to 3.60 GHz
Product Collection 10th Generation Intel® Core™ i5 Processors
Code Name Products formerly Ice Lake
Processor Number i5-1035G1
# of Cores 4
# of Threads 8
Processor Base Frequency 1.00 GHz
Max Turbo Frequency 3.60 GHz
Cache 6 MB Intel® Smart Cache
Memory Types DDR4-3200, LPDDR4-3733 up to 64GB
Processor Graphics Intel® UHD Graphics for 10th Gen Intel® Processors

CPU i7-1065G7
Intel® Core™ i7-1065G7 Processor
8M Cache, up to 3.90 GHz
Product Collection 10th Generation Intel® Core™ i7 Processors
Code Name Products formerly Ice Lake
Processor Number i7-1065G7
# of Cores 4
# of Threads 8
Processor Base Frequency 1.30 GHz
Max Turbo Frequency 3.90 GHz
Cache 8 MB Intel® Smart Cache
Memory Types DDR4-3200, LPDDR4-3733 up to 64GB
Processor Graphics Intel® Iris® Plus Graphics

Memory: 2*SO-DIMM DDR4 up to 16GB*2
SATA: M.2, Msata3.0,SATA3.0

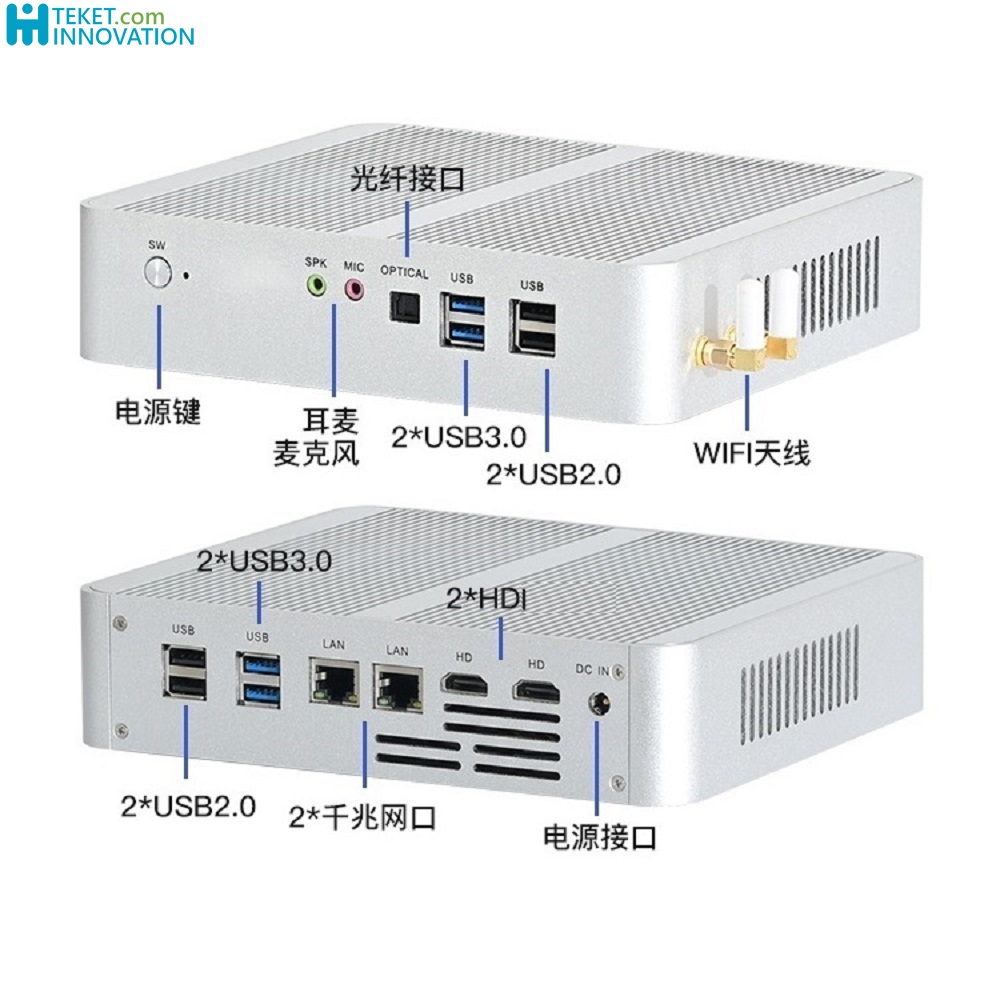

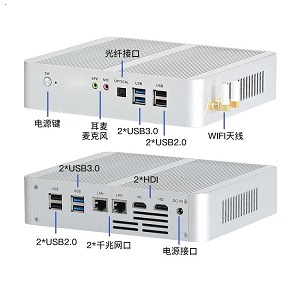

MINIPCIE: msata,mini pcie for wifi, mini pcie for 4G
Network: 2*LAN(RTL8111DL)
WIFI： 150/300M WIFI module option
Display: 2*HDI,support 4K@60hz (HDI to VGA disable)
USB: 4*USB2.0,4*USB3.0
Power: 12-19VDC IN
Size: 210*170*45mm
Weght: 1500-1650g
Color: silver or black

Ordering Information
L06-BD780G10,i5-1035G1,UHD,2*SODDR4,2*HDI,M.2, Msata3.0,SATA3.0,2*LAN(RTL8111DL),4*USB2.0,4*USB3.0,12-19VDC,210*170*45mm
L06-BD780G10,i7-1065G7,UHD,2*SODDR4,2*HDI,M.2, Msata3.0,SATA3.0,2*LAN(RTL8111DL),4*USB2.0,4*USB3.0,12-19VDC,210*170*45mm

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5 * Wireless mini-keyboard with 88 keys * Ergonomic design. * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy. * Integrated trackball and two click buttons to provide mouse function. * Ice-white color and Mac stylish Design to satisfy your test. * Keyboard ergonomic Design. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 358 ( L ) * 156( W )* 28( H )mm * Weight: 740g ( W/O Battery )

2.4G Wireless Keyboard with Touchpad Mouse K9 * Wireless mini-keyboard with 88 keys * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons. * 12 function keys * Ultra-stylish design with concise outline. * Plug and Play ¨C No software to Install. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 300( L ) * 210( W ) * 19( H )mm * Weight: 520g ( W/O Battery)
