-->> Super small size all aluminum chassis fanless MINI PC Intel Celeron or core i3 or i5 CPU for Digital Signage or HTPC <<--

Model:(HT490 series, 140x107x34,single LAN,dual HDI
L07-N2810
L07-N2820
L07-N2910
L07-N2920
L07-N2930
L07-N3150 (braswell)

Model: HT590 series,170x120x37,single LAN,single HDI
L07-1037U
L07-2980U
L07-3556U

Model:HT690 series,170x120x37,dual LAN,dual HIMI
L07-N3510
L07-N3520
L07-N3530
L07-N3150 (braswell)
L07-I34010Y
L07-I34020Y
L07-I54200Y

photo	description

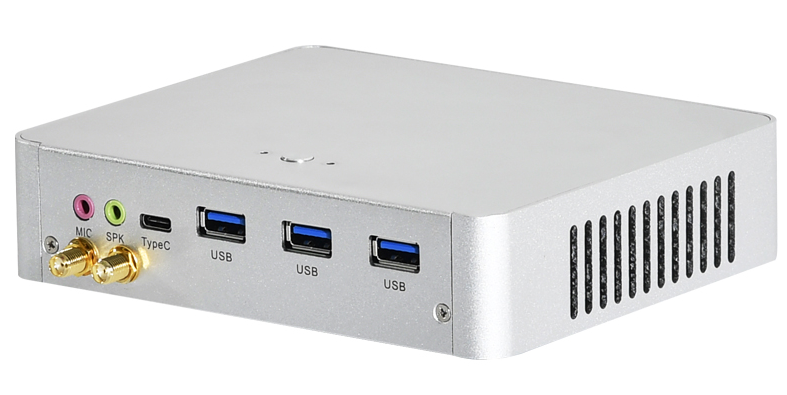

	HT490,i3-6157U,150*120*35
	HT590,2955U,170*120*36 HT590,3205U,170*120*36 HT590,3556U,170*120*36 HT590,i3-4020Y,170*120*36 HT590,J1800,0*COM,170*120*16 HT590,J1900,0*COM,170*120*36 HT590,J1800,0/2*COM,170*120*16 HT590,J1900,0/2*COM,170*120*36 HT590,N2920,0/2*COM,170*120*36 HT590,N3520,0/2*COM,170*120*36

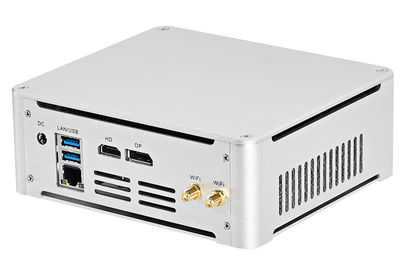

	HT590HQ1,i5-7300HQ,160*150*60 HT590HQ1,i7-7820HK,160*150*60

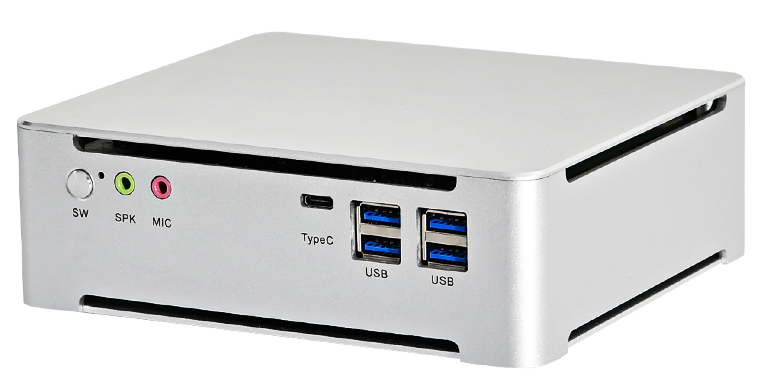

	HT590HQ2,i5-8300H,160*150*52 HT590HQ2,i7-8750H,160*150*52 HT590HQ2,i9-9880H,160*160*52 HT590HQ2,i7-10870H,160*160*52
	HT690,N3150/J3160,160*120*37

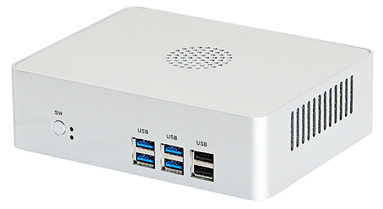

	HT690,i5-6267U,170*130*49 HT690,i7-6650U,170*130*49

Key Specifications/Special Features:
Model No.: L07
Case dimensions(mm): 140x107x34mm or 170x120x37mm
Color: black,white

Product Specifications
Computing System
Processor
Intel Celeron Processor 1037U (2M Cache, 1.8GHz),dual core, 2 threads,22nm,17W,Intel HD Graphics
Intel Celeron Processor N2810 (1M Cache, 2.00 GHz),dual core, 2 threads,22nm,7.5W,Intel HD Graphics
Intel Celeron Processor N2820 (1M Cache, 2.13Ghz up to 2.39 GHz),dual core, 2 threads,22nm,7.5W,Intel HD Graphics
Intel Celeron Processor N2910 (2M Cache, 1.60 GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Celeron Processor N2920 (2M Cache, 1.86Ghz up to 2.0GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Celeron Processor N2930 (2M Cache, 1.83Ghz up to 2.16GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Pentium Processor 2980U (2M Cache, 1.60 GHz),dual core, 2 threads,22nm,15W,Intel HD Graphics
Intel Pentium Processor 3556U (2M Cache, 1.70 GHz),dual core, 2 threads,22nm,15W,Intel HD Graphics
Intel Pentium Processor N3510 (2M Cache, 2.00 GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Pentium Processor N3520 (2M Cache, 2.166Ghz up to 2.42 GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Pentium Processor N3530 (2M Cache, 2.16Ghz up to 2.58 GHz),quad core, 4 threads,22nm,7.5W,Intel HD Graphics
Intel Celeron Processor N3150 (2M Cache, 1.6Ghz up to 2.08 GHz),quad core, 4 threads,14nm,6W,Intel HD Graphics
Intel Core i3-4010Y Processor (3M Cache, 1.30Ghz),dual core, 4 threads,22nm,11.5W,Intel HD Graphics 4200
Intel Core i3-4020Y Processor (3M Cache, 1.50Ghz),dual core, 4 threads,22nm,11.5W,Intel HD Graphics 4200
Intel Core i5-4200Y Processor (3M Cache, 1.40Ghz up to 1.90Ghz),dual core, 4 threads,22nm,11.5W,Intel HD Graphics 4200
Chipset N/A
System Memory: 2*SO-DDR3 SDRAM,up to16GB DDR SDRAM
Storage Hard Drive
Mass Storage 1x 2.5" SATA 3Gbps HDD/SSD Slot

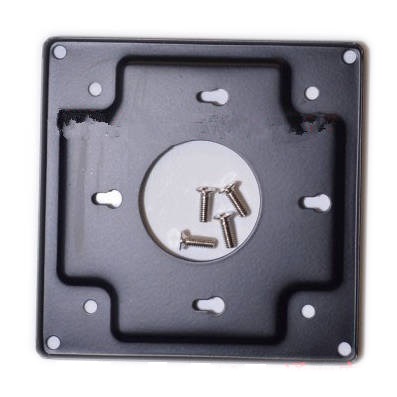

(1*SATA 2.5", 1*VESA rock,but can only choose one)
Optical Drive None
mSATA Yes
LAN: Realtek 8111E Gigabit Ethernet
Audio: Realtek ALC662, Audio Microphone, Headphone
USB Port USB3.0 and USB2.0
Antenna 1x WiFI SMA connetor(optional)
Display VGA+HDI or dual HDI

BIOS AMI BIOS, ACPI supported
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)

Power Supply AC Adapter O/P: DC 12V/36W,12V3A
Cooling system Fan + Heatsink
Application: Digital Signage,HTPC,OA,Thin client,living room

Net weight:
L07:
L07(W/O Power) NW:
L07(W/O Power) Inner:

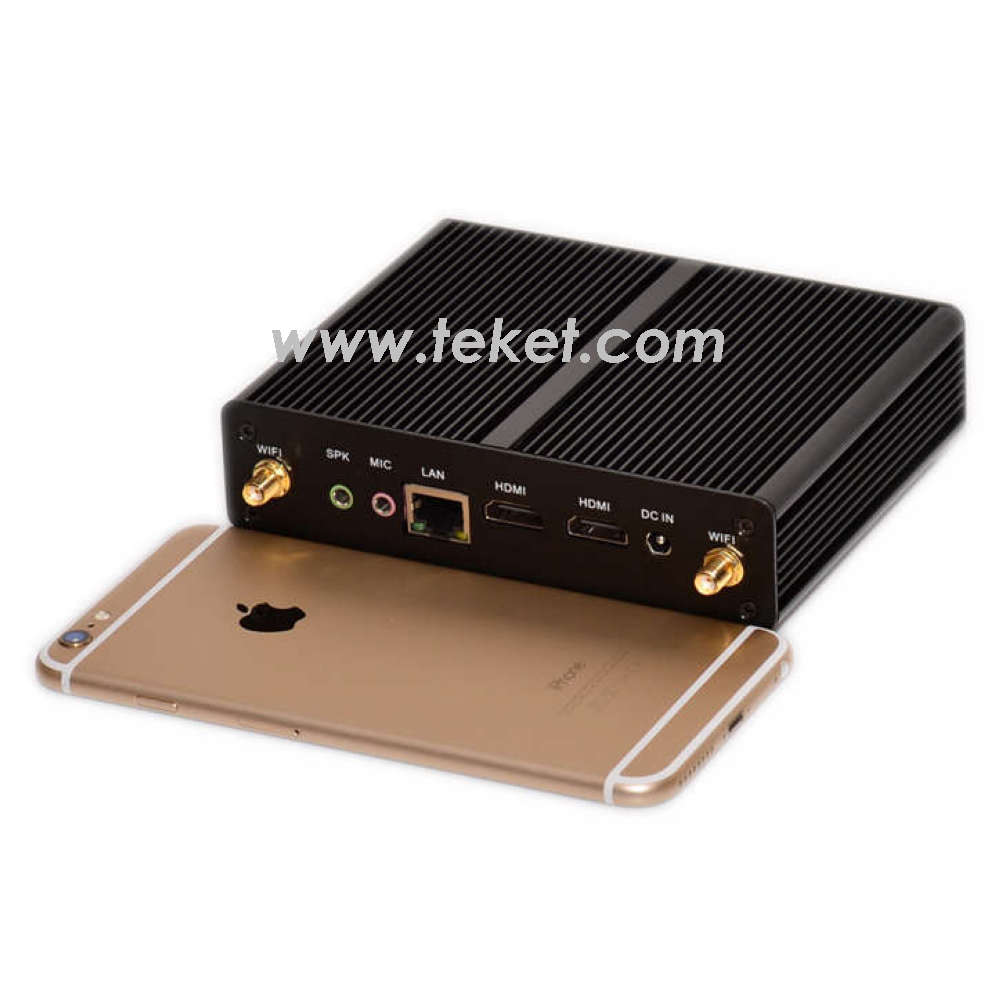

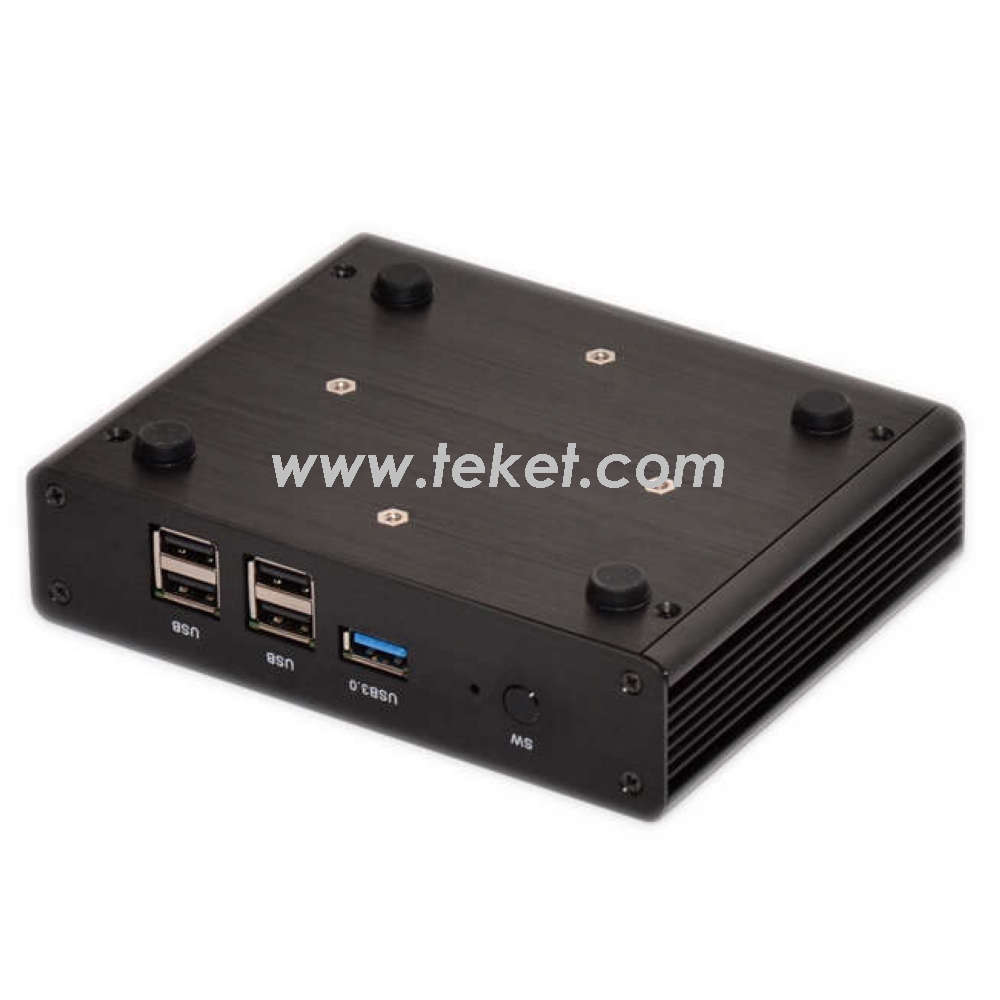

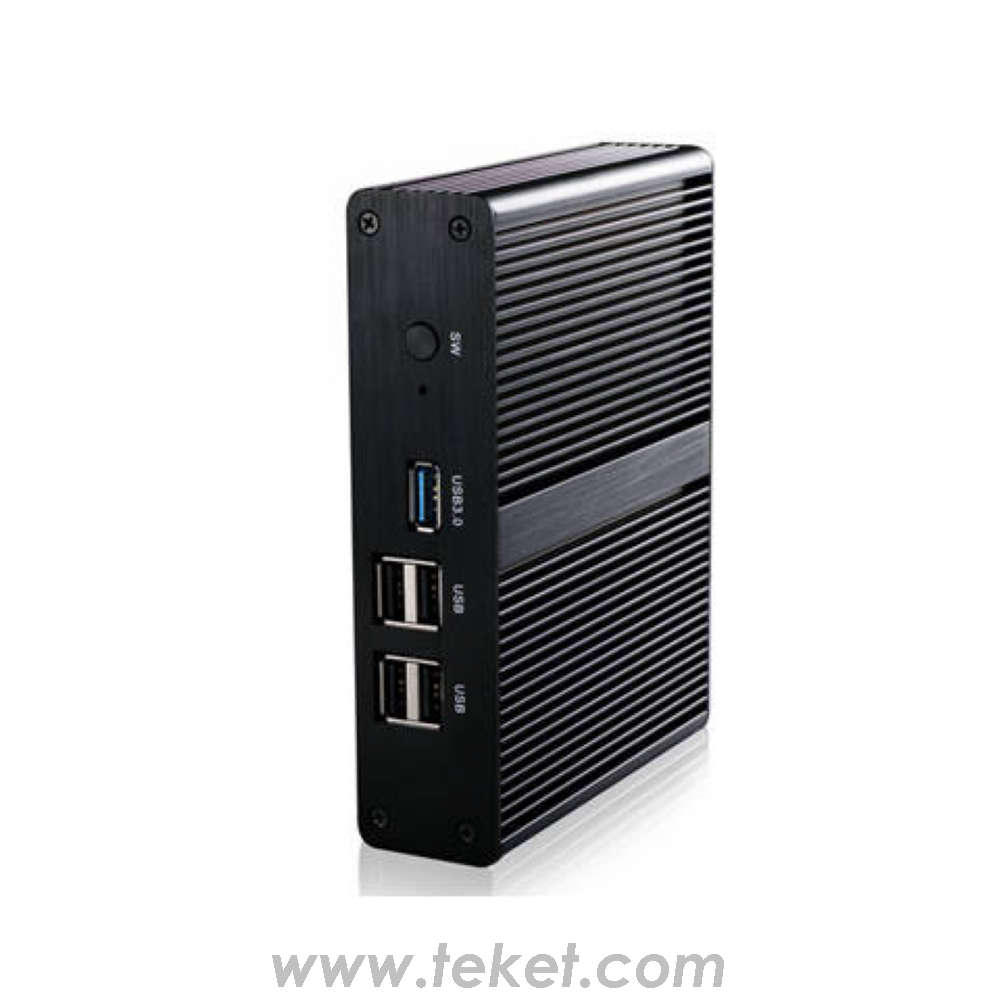

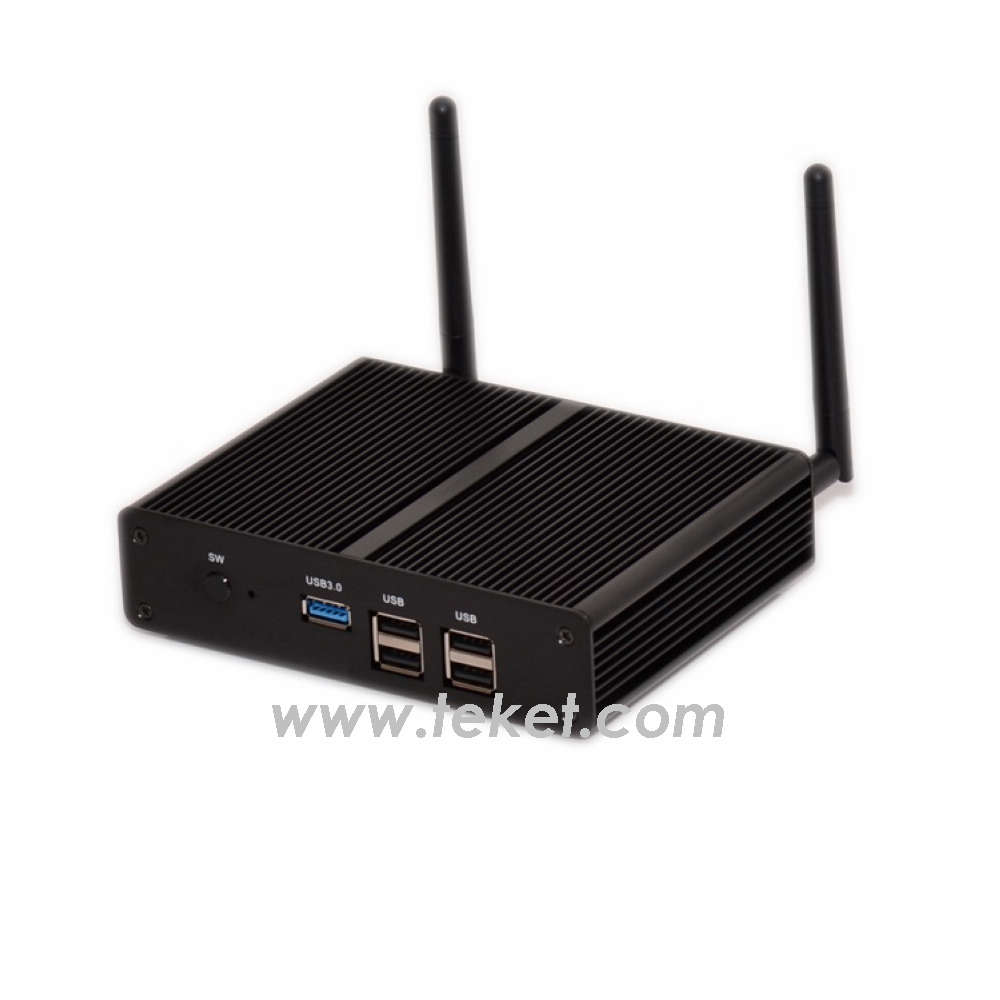

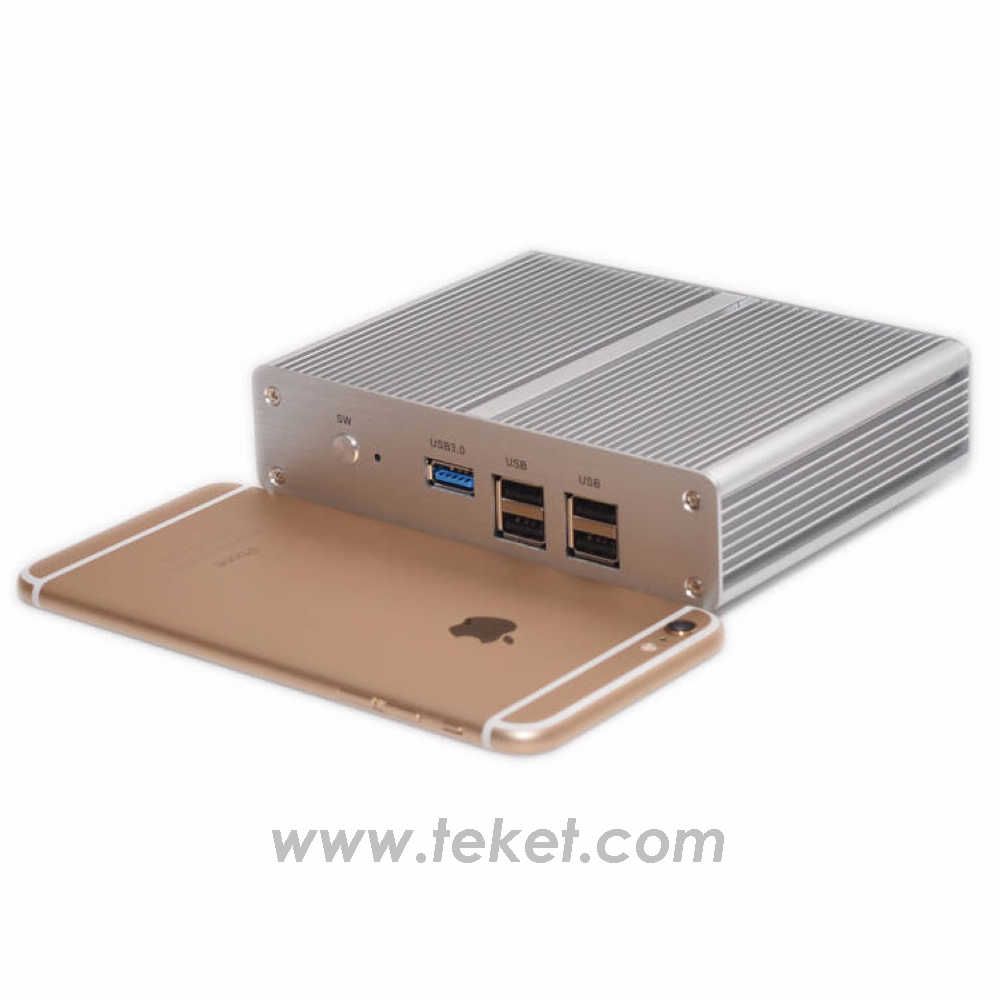

L07-N2810 HT490 Series
color: back or white
display: dual HDI
CPU: N2810,N2820,N2910,N2920 and N3150
size: 140x107x34mm
front: pwr_on,pwr_led,DCIN,1*USB3.0,4*USB2.0

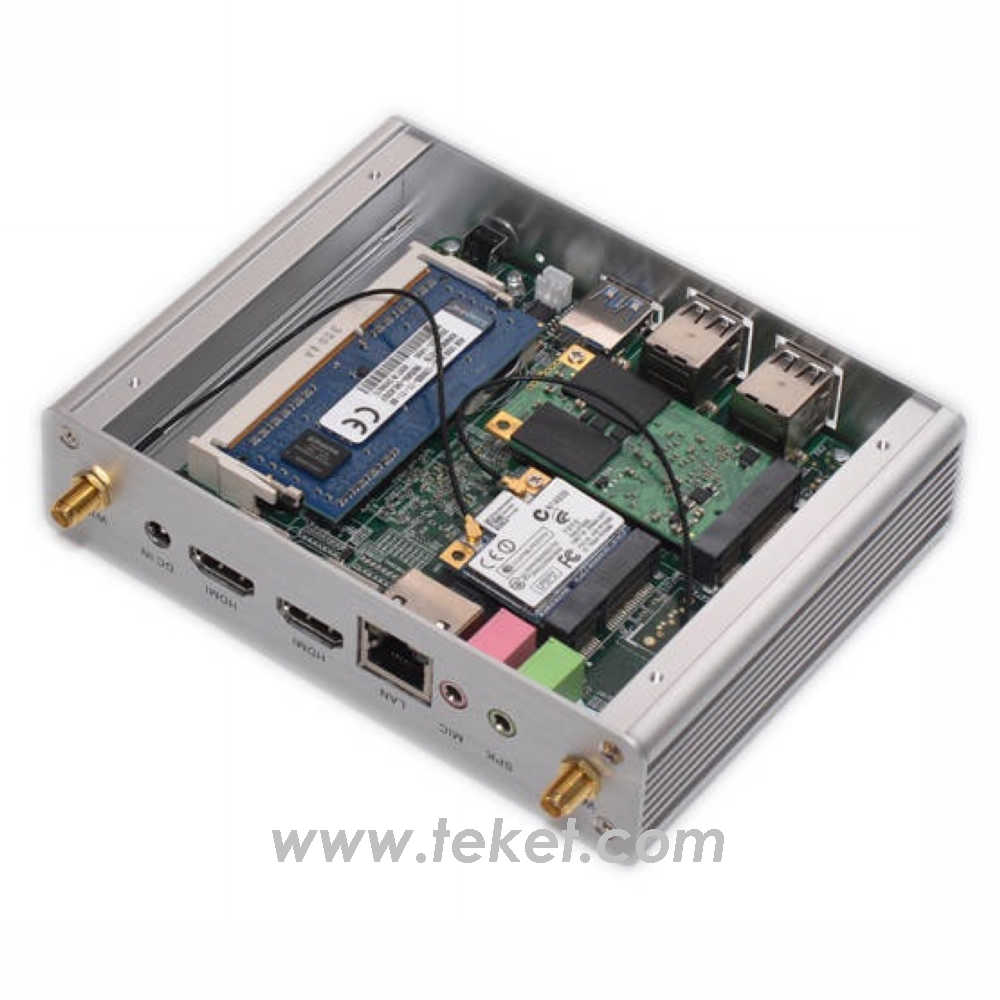

back: 2*wifi,1*spk,1*mic,1*LAN,2*HDI

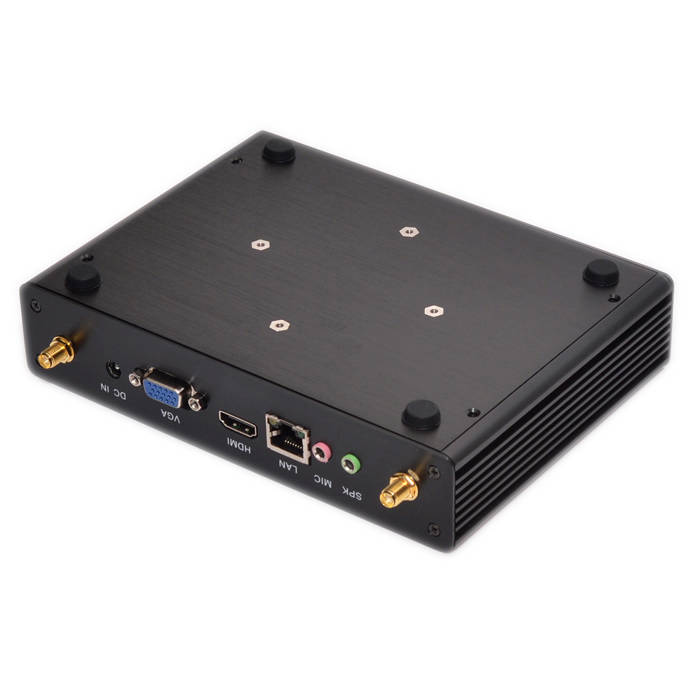

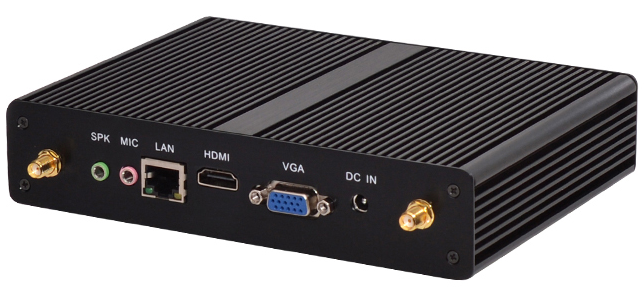

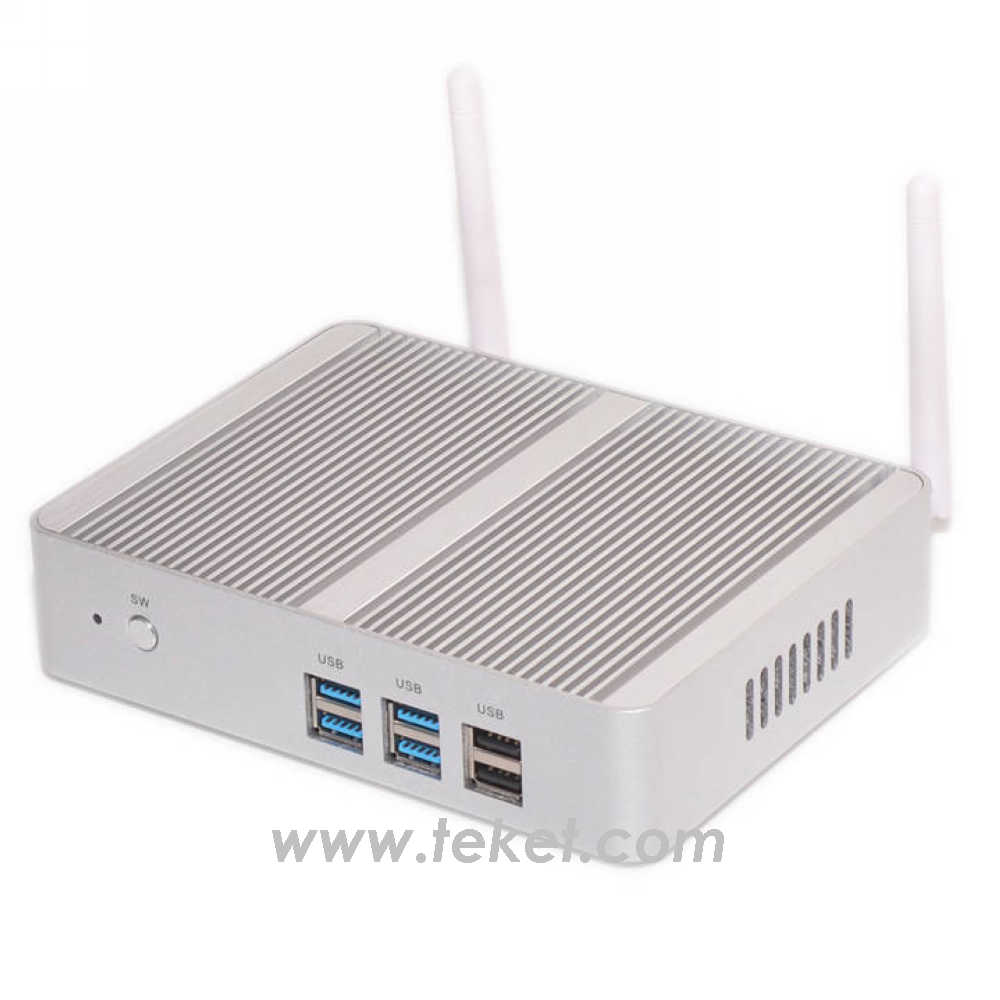

L07-3556U HT590 Series
color: back
display: vga and HDI
CPU: 1037U,2998U and 3556U
size: 170x120x37mm
front: pwr_on,pwr_led,4*USB3.0,2*USB2.0
back: 2*wifi,1*spk,1*mic,1*LAN,1*VGA,1*HDI,DCIN

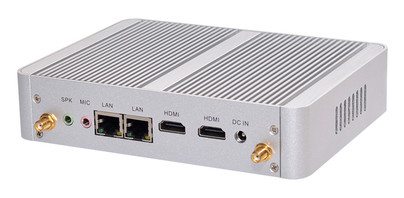

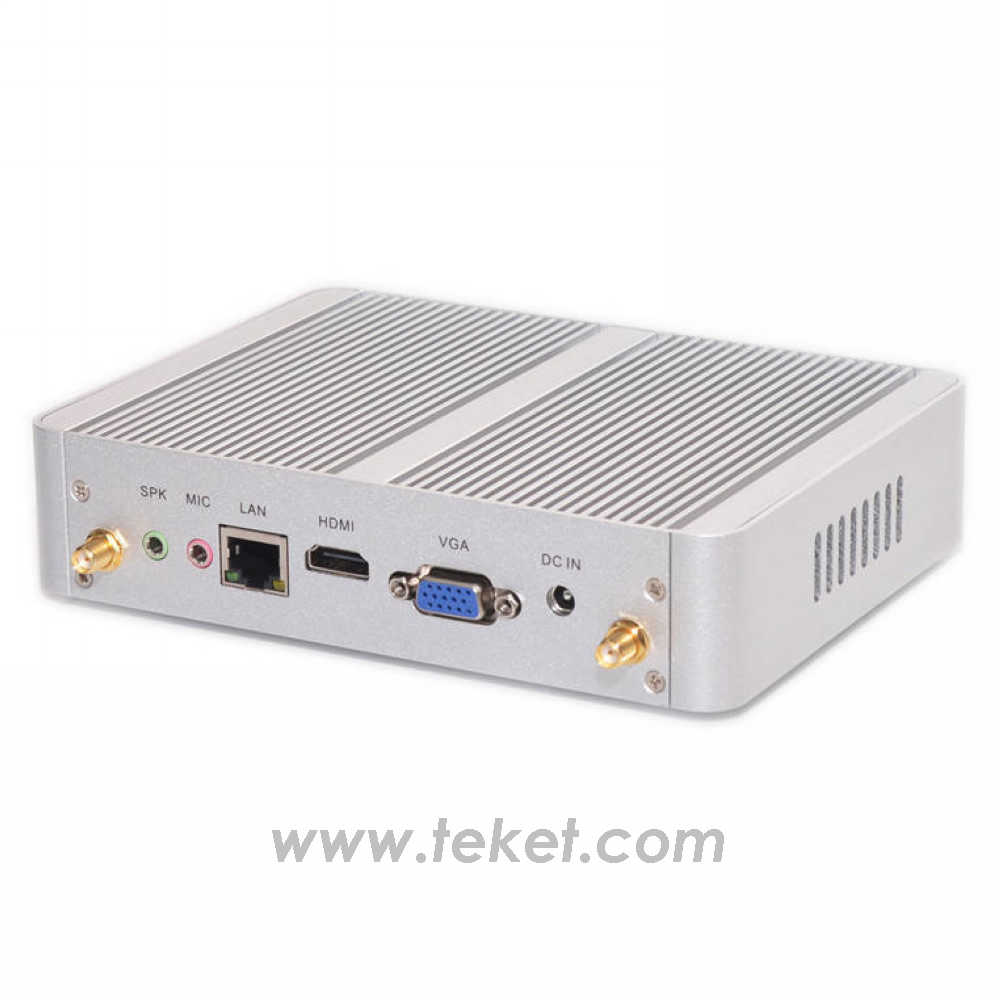

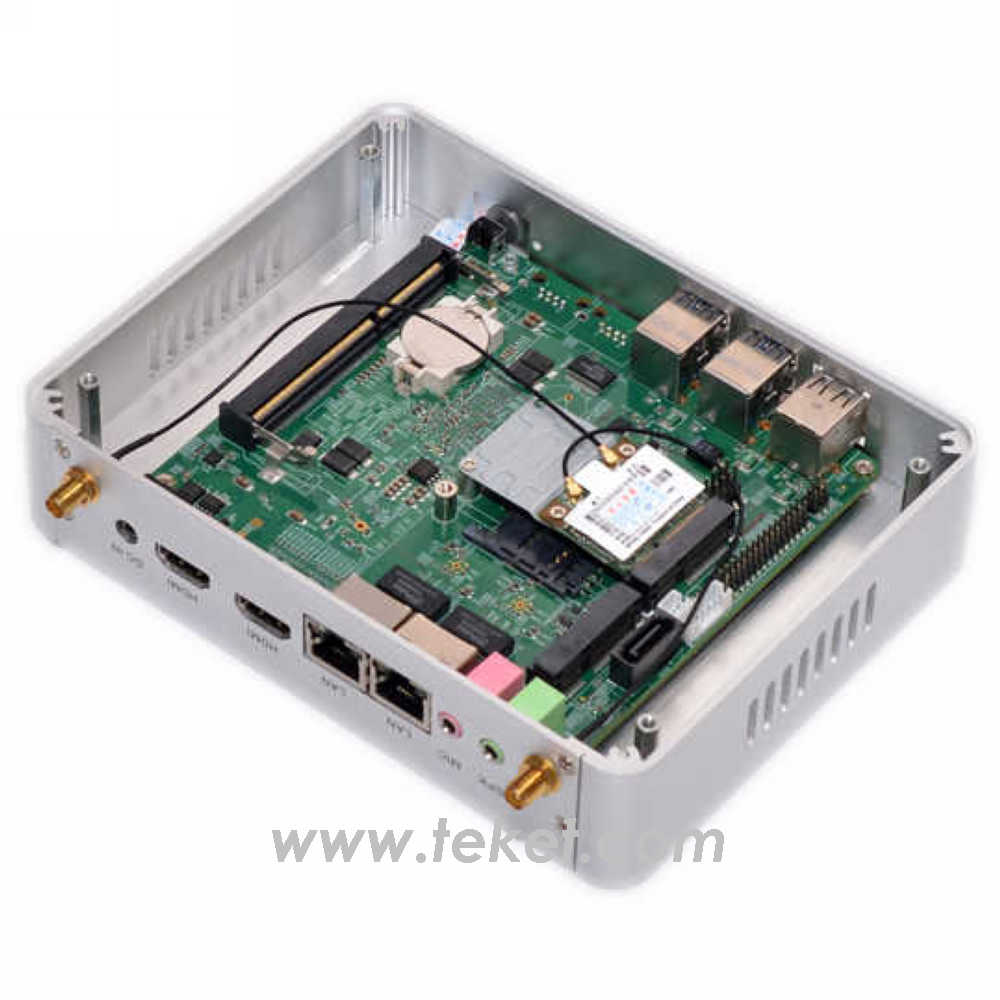

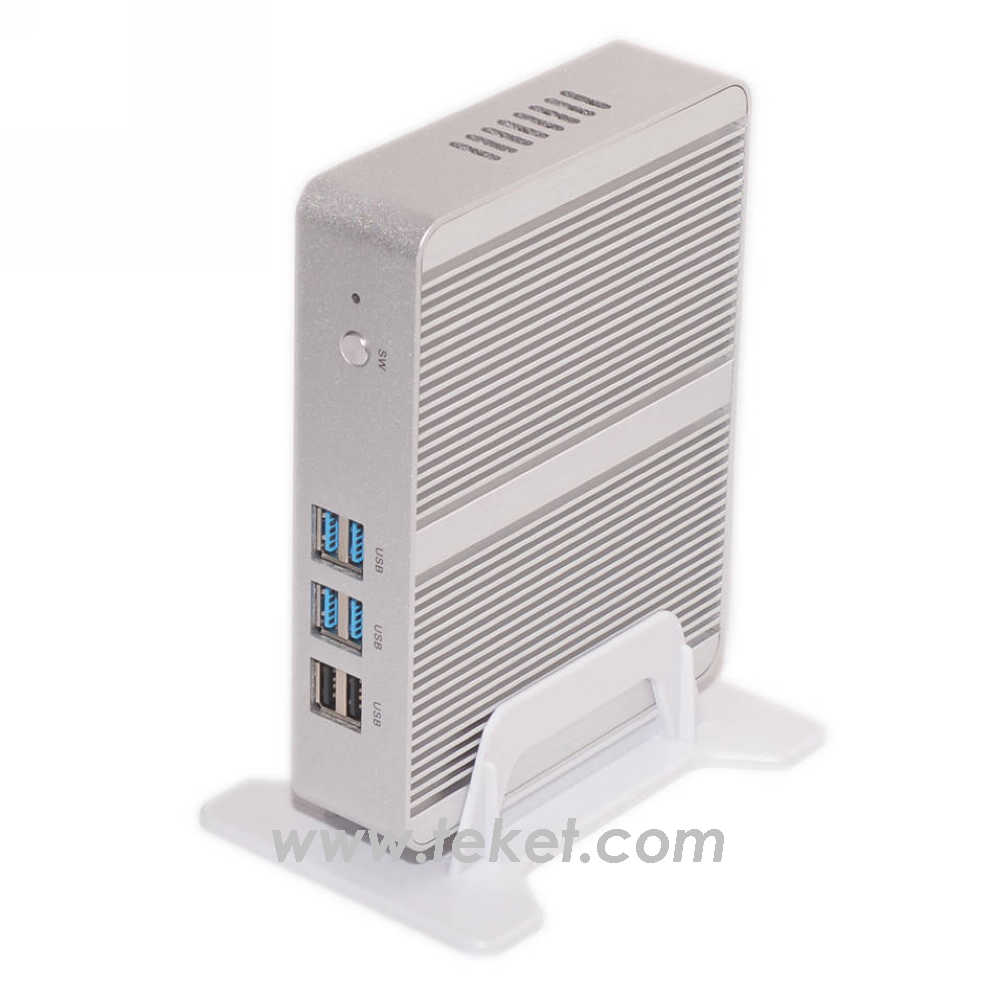

L07-N3150 HT690 Series
color: white
display: dual HDI or vga and HDI(optional)
CPU: N3510,N3520,N3050,N3150,I3-4010Y,I3-4020Y,I3-4030Y
size: 170x120x37mm
front: pwr_on,pwr_led,4*USB3.0,2*USB2.0
back: 2*wifi,1*spk,1*mic,2*LAN,2*HDI,DCIN

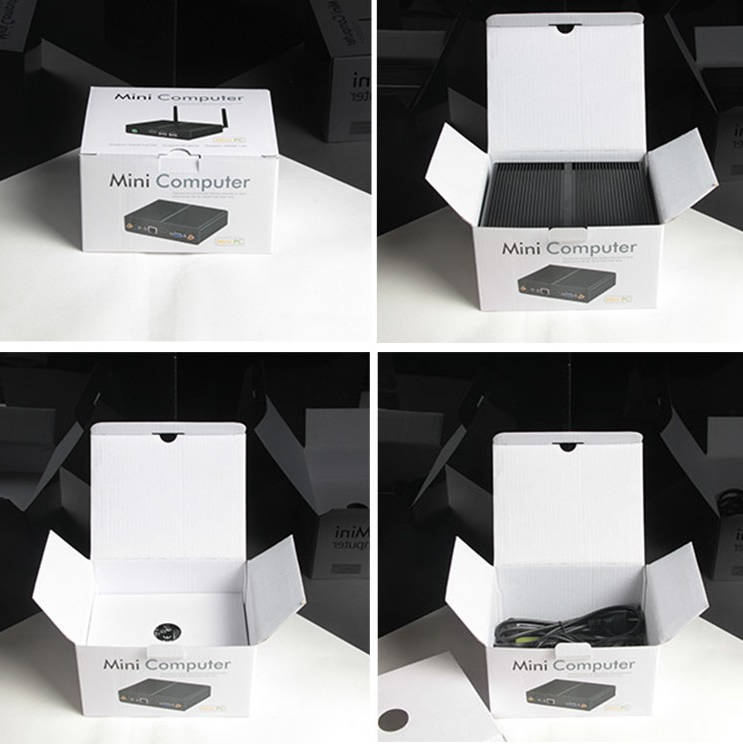

L07 Seriese 2.5" HDD bracket and inner package box

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5 * Wireless mini-keyboard with 88 keys * Ergonomic design. * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy. * Integrated trackball and two click buttons to provide mouse function. * Ice-white color and Mac stylish Design to satisfy your test. * Keyboard ergonomic Design. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 358 ( L ) * 156( W )* 28( H )mm * Weight: 740g ( W/O Battery )

2.4G Wireless Keyboard with Touchpad Mouse K9 * Wireless mini-keyboard with 88 keys * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons. * 12 function keys * Ultra-stylish design with concise outline. * Plug and Play ¨C No software to Install. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 300( L ) * 210( W ) * 19( H )mm * Weight: 520g ( W/O Battery)
