-->> All aluminum chassis MINI PC Intel Celeron J1800 and J1900 with Intel HD gracphics for Digital Signage or HTPC <<--

Model:
L08-J1800
L08-J1900

Key Specifications/Special Features:
Model No.: L08
Case dimensions(mm): 134x124x36mm
Color: black

Super mini fanless machine, the use of aluminum alloy chassis, can use the chassis cooling.

Product Specifications
Computing System
Processor
Intel Celeron Processor J1800 (1M Cache, 2.41 GHz up to 2.58 GHz),dual core,2 threads,22nm,10W, Intel HD Graphics
Intel Celeron Processor J1900 (2M Cache, 2.00 GHz up to 2.42 GHz),quad core,4 threads,22nm,10W, Intel HD Graphics
Chipset N/A
System Memory: 2*SO-DDR3 SDRAM,up to16GB DDR SDRAM
Storage Hard Drive
Mass Storage 1x 2.5" SATA 3Gbps HDD/SSD Slot
Optical Drive None
mSATA Yes
LAN: Realtek 8111E Gigabit Ethernet
Audio: Realtek ALC662, Audio Microphone, Headphone
USB Port
4xUSB 3.0(back)
0xUSB 2.(back)
Antenna 1x WiFI SMA connetor(optional)
Display HDI+DP

BIOS AMI BIOS, ACPI supported
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)

Power Supply AC Adapter O/P: DC 12V/36W,12V3A
Cooling system Fan + Heatsink

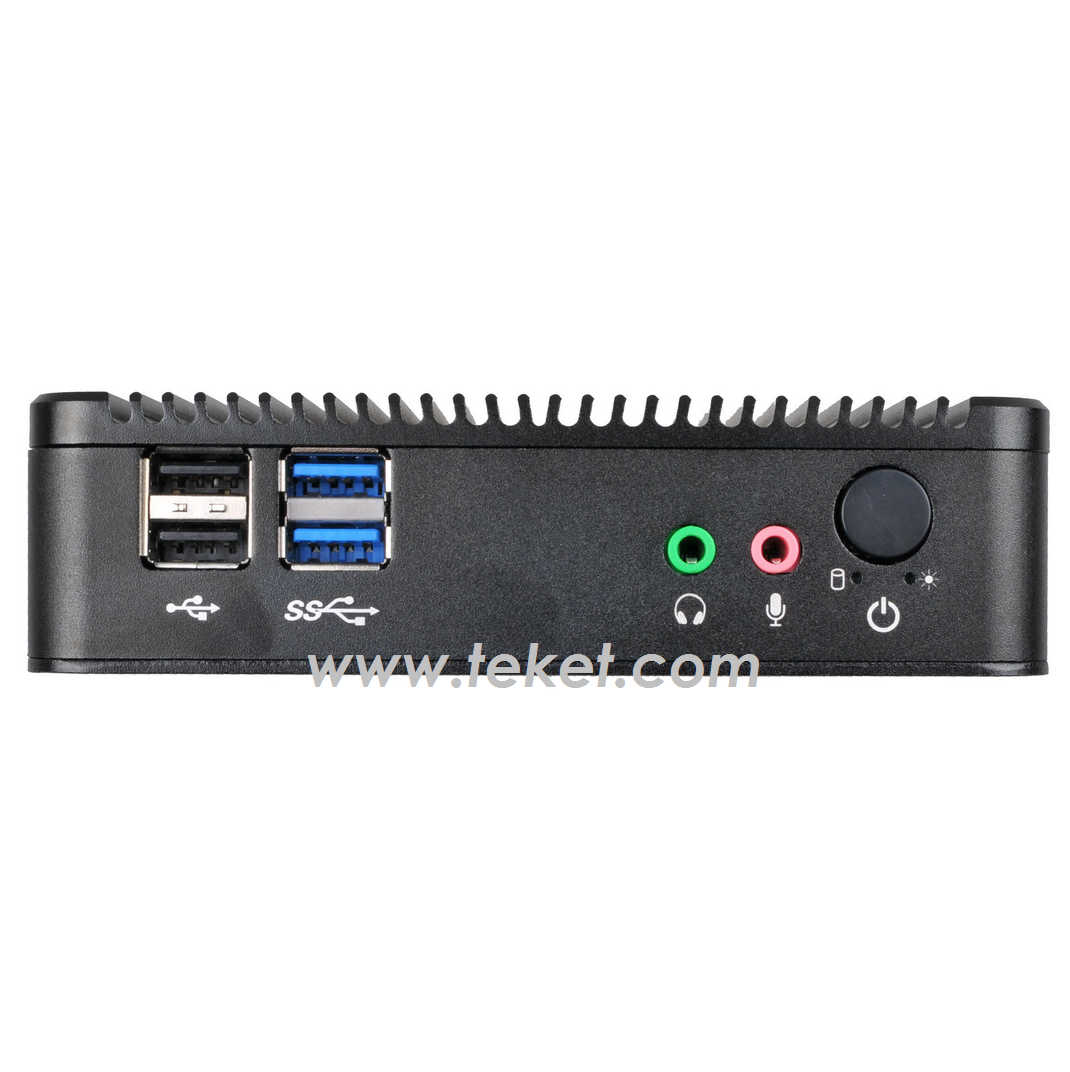

front: pwr_sw,pwr_led,1*MIC,1*SPK,2*USB3.0,2*USB2.0

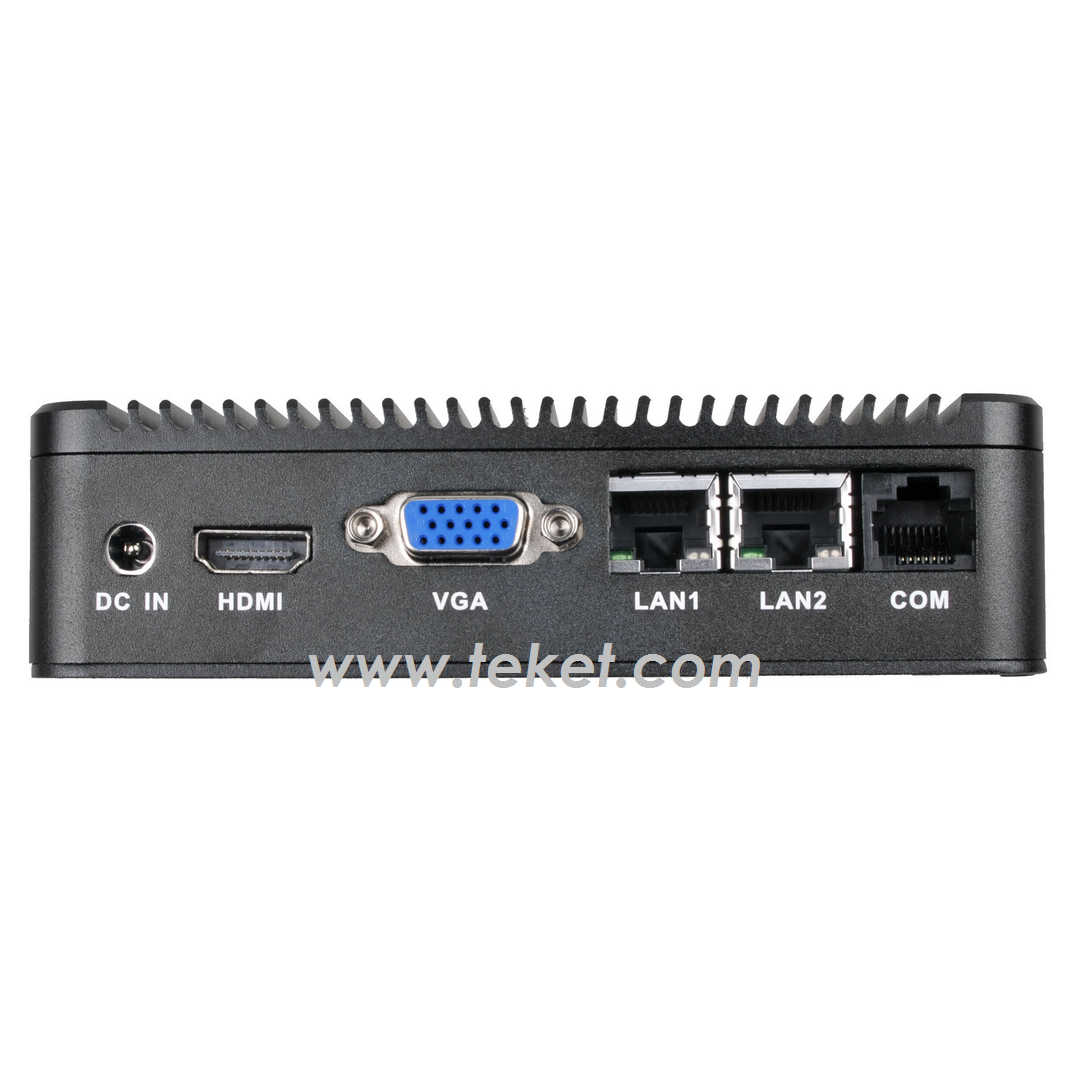

back: 12VDC,HDI,VGA,2*LAN,RS232/COM(RJ45 connector)
Side: 1*WIFI (option)

Dimensions: 134x124x36mm

Application: Digital Signage,HTPC,OA,Thin client,living room

Net weight:
L08:
L08(W/O Power) NW:
L08(W/O Power) Inner:

Application: OA,Thin client, HTPC, living room

Net weight: 1.5kg gross weight
Power adaptor: 12v3a adaptor
L08(W/O Power) NW:
L08(W/O Power) Inner

: :
optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5 * Wireless mini-keyboard with 88 keys * Ergonomic design. * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy. * Integrated trackball and two click buttons to provide mouse function. * Ice-white color and Mac stylish Design to satisfy your test. * Keyboard ergonomic Design. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 358 ( L ) * 156( W )* 28( H )mm * Weight: 740g ( W/O Battery )

2.4G Wireless Keyboard with Touchpad Mouse K9 * Wireless mini-keyboard with 88 keys * RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation. * Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons. * 12 function keys * Ultra-stylish design with concise outline. * Plug and Play ¨C No software to Install. * Quiet stroke and tactile feedback due to Membrane included. * Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure. * Dimensions: 300( L ) * 210( W ) * 19( H )mm * Weight: 520g ( W/O Battery)
