>>Your Current Position: MINI PC TEKET L Series
TEKET L06 Series MINI PC

-->> All aluminum chassis fanless MINI PC Intel i5-7300HQ,i7-7820HQ XEON D1581 1050TI GTX1060 GTX1650 L06-HT610G7 Series <<--


Key Specifications/Special Features:

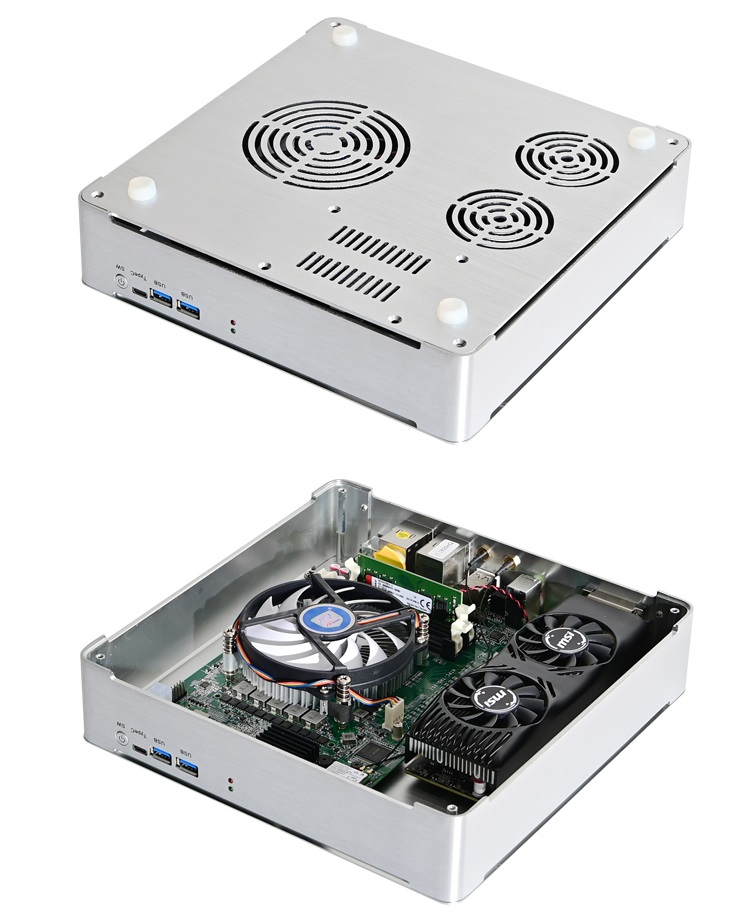

Model No.: L06-HT610G7
Case dimensions(mm):silver240*240*52(mm),black270*240*65(mm)

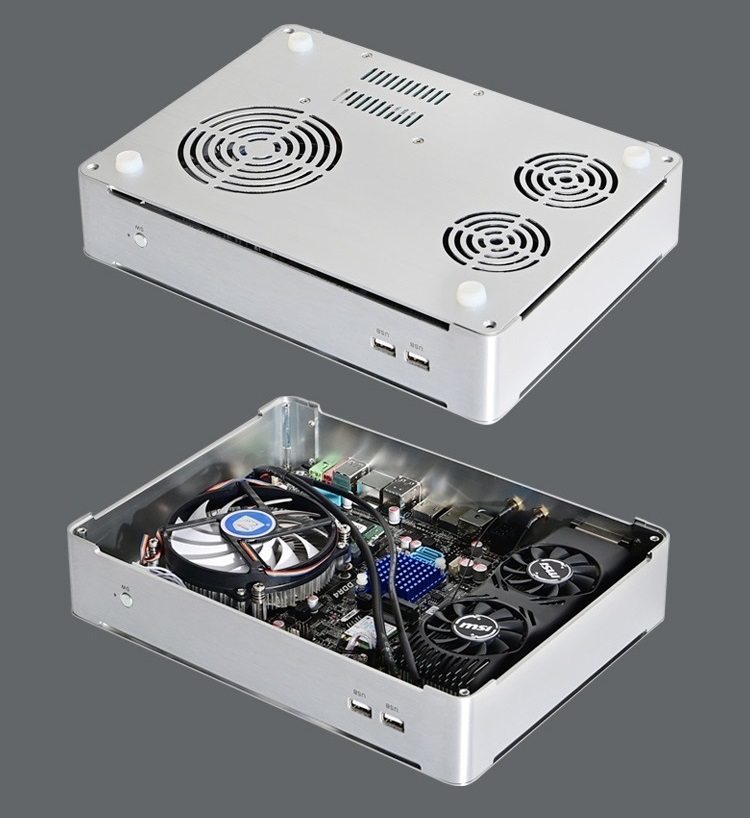

HT610G7,silver240*240*52
i7-7820HQ GTX1650-4G

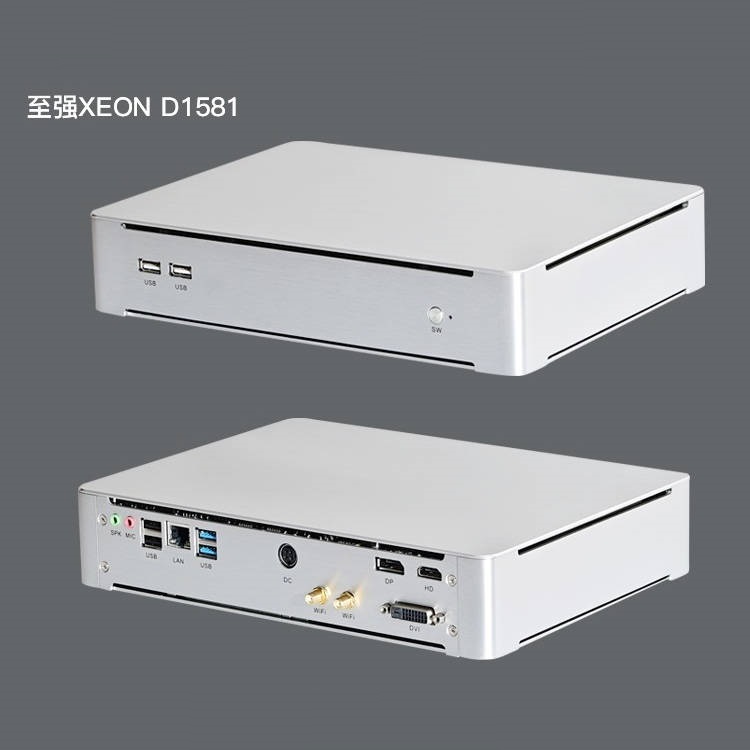

XEON D1581 GTX1650-4G

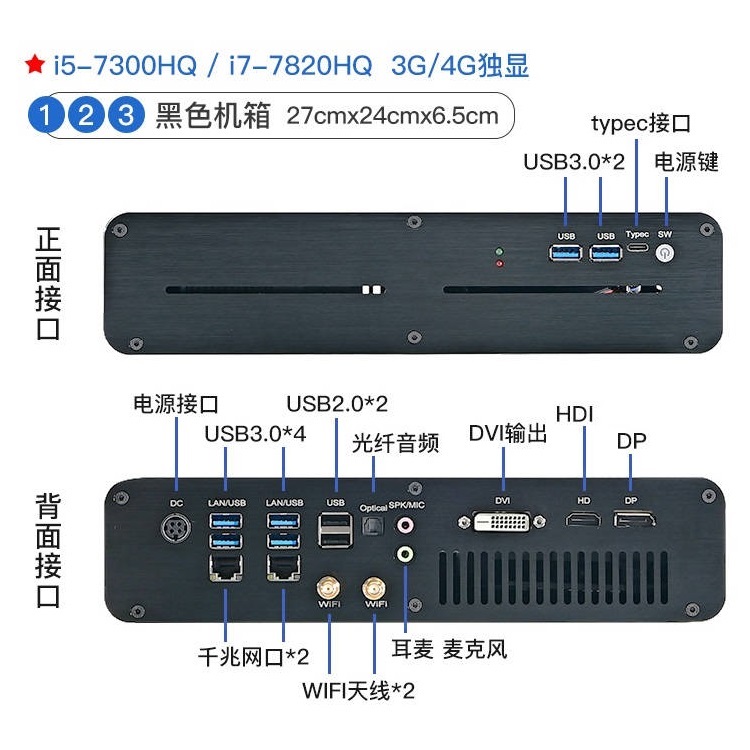

HT610G7,black270*240*65
i5-7300HQ 1050TI-4G
i7-7820HQ GTX1060-3G
i7-7820HQ GTX1650-4G

Intel® Core™ i5-7300HQ Processor
6M Cache, up to 3.50 GHz
Product Collection 7th Generation Intel® Core™ i5 Processors
Code Name Products formerly Kaby Lake
Vertical Segment Mobile
Processor Number i5-7300HQ
# of Cores 4
# of Threads 4
Processor Base Frequency 2.50 GHz
Max Turbo Frequency 3.50 GHz
Cache 6 MB

Intel® Core™ i7-7820HQ Processor
8M Cache, up to 3.90 GHz
Product Collection 7th Generation Intel® Core™ i7 Processors
Code Name Products formerly Kaby Lake
Vertical Segment Mobile
Processor Number i7-7820HQ
# of Cores 4
# of Threads 8
Processor Base Frequency 2.90 GHz
Max Turbo Frequency 3.90 GHz
Cache 8 MB
Memory Types DDR4-2400, LPDDR3-2133, DDR3L-1600
Processor Graphics Intel® HD Graphics 630

Intel® Xeon® Processor D-1581
24M Cache, 1.80 GHz
Product Collection Intel® Xeon® D Processor
Code Name Products formerly Broadwell
Vertical Segment Server
Processor Number D-1581
# of Cores 16
# of Threads 32
Processor Base Frequency 1.80 GHz
Max Turbo Frequency 2.40 GHz
Cache 24 MB
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4, DDR3

Display: GTX1650 4G Discrete graphics card
Memory: 2*SO-DDR4 SDRAM, up to 32GB*2
Storage: 1*M.2(nvme), 1*SATA 2.5"
Network: 1*LAN(RTL8111DL)
WIFI+BT: 300M
USB: 5*USB2.0,2*USB3.0
Video: DP,HDI
Audio: ALC662
Power: 19VDC IN
Size: silver240*240*52(mm),black270*240*65(mm)
Weight: 1.8kgs

Ordering Information

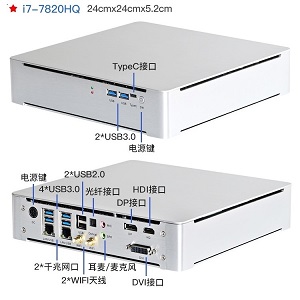

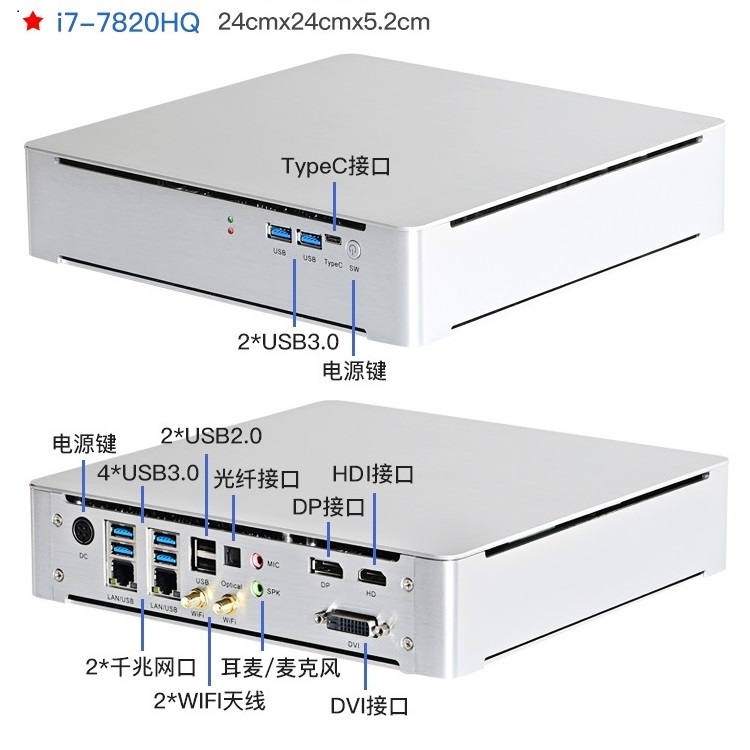

L06-HT610G7,i7-7820HQ ,GTX1650(4G),DP,HDI,DVI,2*LAN,2*USB2.0,6*USB3.0,Type-C,SPDIF,19VDC IN,silver240*240*52

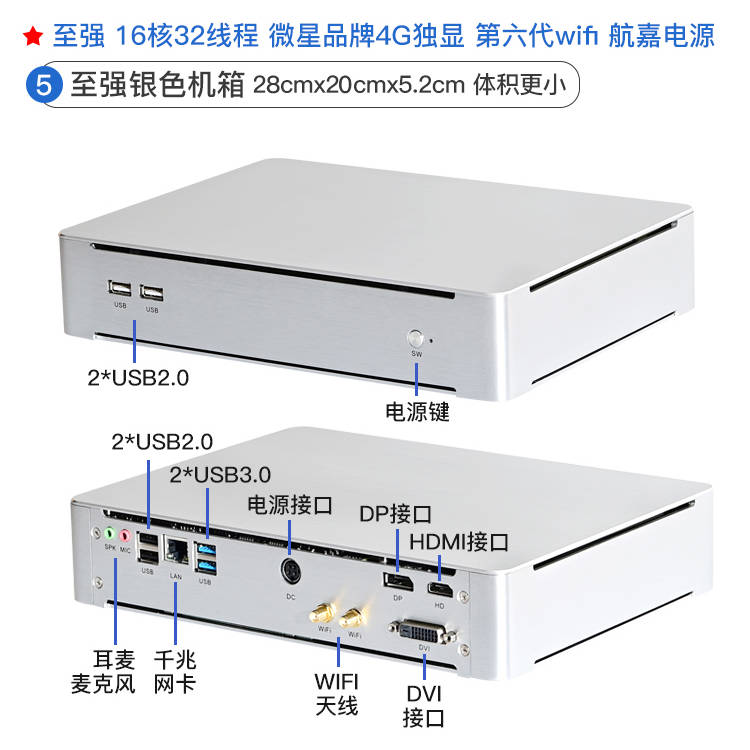

L06-HT610G7,XEON D1581,GTX1650(4G),DP,HDI,DVI,1*LAN,4*USB2.0,2*USB3.0,19VDC IN,silver240*240*52
L06-HT610G7,i5-7300HQ,GTX1050TI(4G),DP,HDI,DVI,2*LAN,2*USB2.0,6*USB3.0,Type-C,SPDIF,19VDC IN,black270*240*65mm
L06-HT610G7,i7-7820HQ,GTX1060(3G),DP,HDI,DVI,2*LAN,2*USB2.0,6*USB3.0,Type-C,SPDIF,19VDC IN,black270*240*65mm
L06-HT610G7,i7-7820HQ,GTX1650(4G),DP,HDI,DVI,2*LAN,2*USB2.0,6*USB3.0,Type-C,SPDIF,19VDC IN,black270*240*65mm

L06-H610G7W, silver





L06-H610G7X, silver


L06-H610G7B, Black




optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5

* Wireless mini-keyboard with 88 keys
* Ergonomic design.
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation.
* 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy.
* Integrated trackball and two click buttons to provide mouse function.
* Ice-white color and Mac stylish Design to satisfy your test.
* Keyboard ergonomic Design.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.

* Dimensions: 358 ( L ) * 156( W )* 28( H )mm
* Weight: 740g ( W/O Battery )
2.4G Wireless Keyboard with Touchpad Mouse K9

* Wireless mini-keyboard with 88 keys
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no
line-of-sight limitation.
* Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons.
* 12 function keys
* Ultra-stylish design with concise outline.
* Plug and Play ¨C No software to Install.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.
* Dimensions: 300( L ) * 210( W ) * 19( H )mm
* Weight: 520g ( W/O Battery)
