-->> ZOTAC ZBOX CI545 Dual Core i5-6300U 2.4-3.0Ghz with Intel HD520 graphics HTPC <<--

CI545 Nano
ZBOX-CI545

https://www.zotac.com/product/mini_pcs/ci545-nano-plus
CI545 Nano Plus
ZBOX-CI545-P
System Memory 4GB DDR3L SODIMM (up to 16GB)
Hard Drive 120GB 2.5" SATA SSD

Redefining workstation performance and reliability in the most compact of solutions - the ZBOX nano. Incorporating Intel AMT technology to deliver efficiency, effectiveness, protection and productivity for both back and front end usability. The enhanced thermal systems allows greater performance output without compromising the silence of the ZBOX. With Intel Skylake CPU's processing power combined with blazing connectivity potential, a silent powerhouse that provides stellar workstation performance experience awaits.

Product Specifications
Computing System
Processor Intel Core i5-6300U, dual core 2.4 GHz, up to 3.0 GHz
Chipset Intel SoC
System Memory 2 x DDR3L-1600 SODIMM Slot (up to 16GB)
Graphics
Graphics Engine Intel HD Graphics 520
Video Output
DisplayPort: 3840x2160 @ 60Hz
HDMI: 4096x2160 @ 24Hz
Storage
Hard Drive 1 x 2.5-inch SATA 6Gbps HDD/SSD Slot
Mass Storage N/A
Optical Drive N/A
mSATA N/A
M.2 N/A
Card Reader 3-in-1 (SD/SDHC/SDXC)

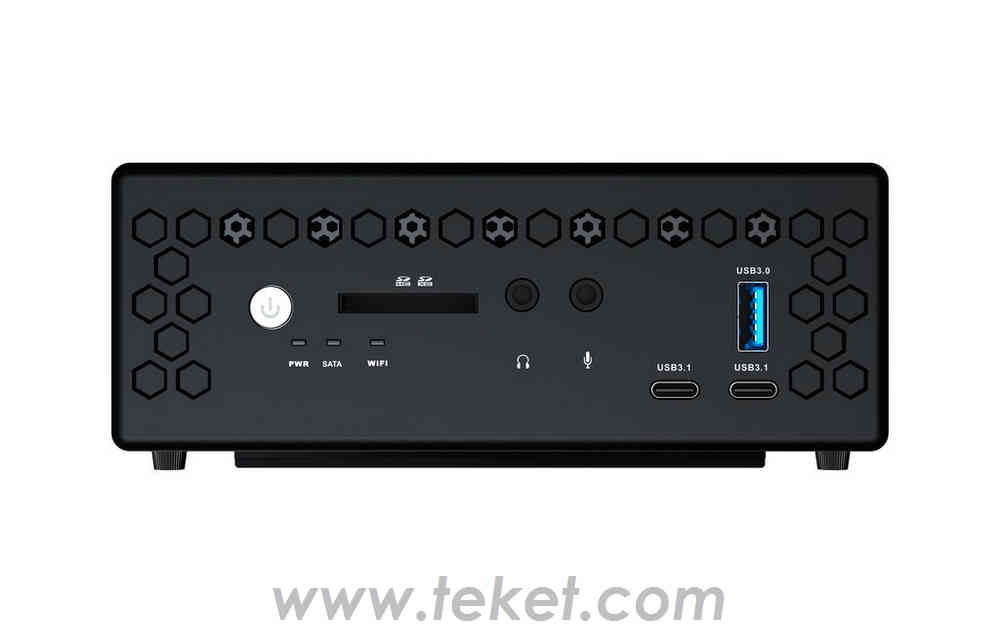

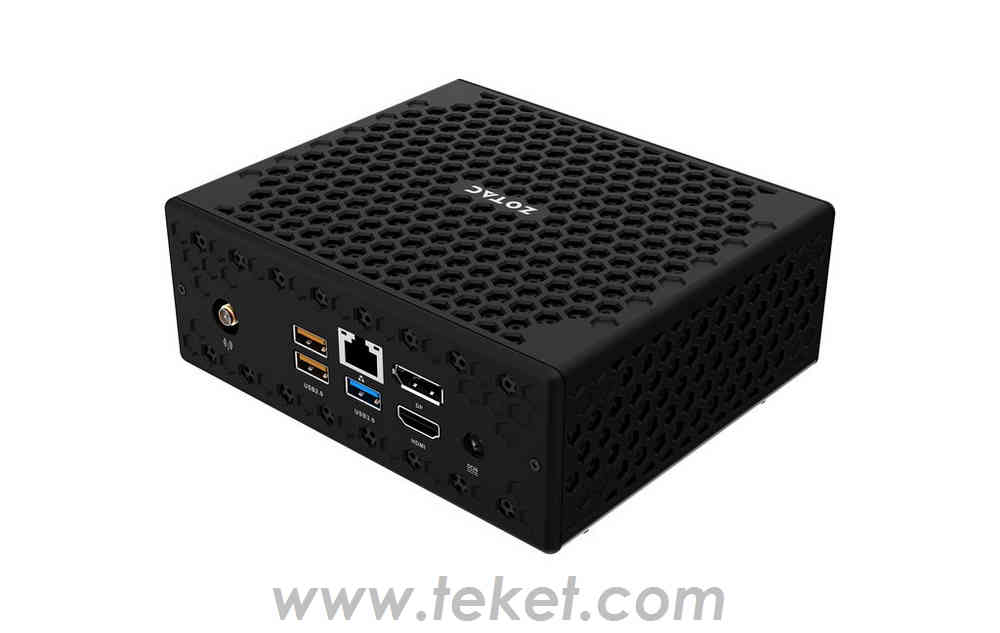

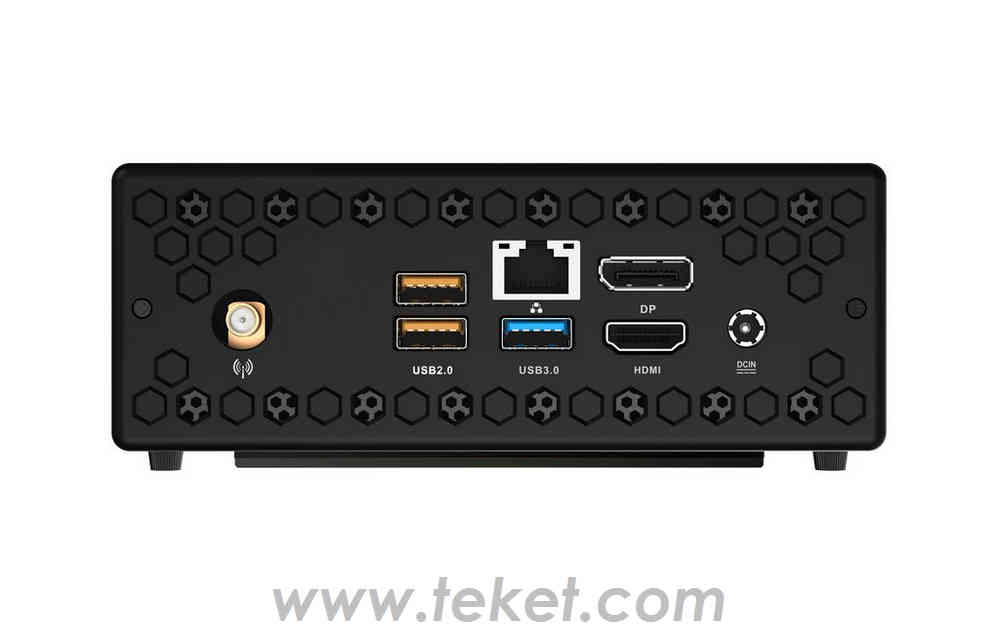

I/O Ports
Audio Stereo output, Microphone
USB Port
2 x USB 3.1 Type-C (front)
3 x USB 3.0 (1 front, 2 rear)
2 x USB 2.0 (rear)
LAN 2 x 10/100/1000 Mbps
Antenna Yes
Wifi 802.11ac
Bluetooth Bluetooth 4.1
Legacy I/O N/A
CIR Infrared Port N/A
Thunderbolt N/A
USB
IDE
VGA
Mechanical
Kensington Lock N/A
LED Indicators Power, HDD
Power Supply AC Adapter O/P: DC 19V/65W

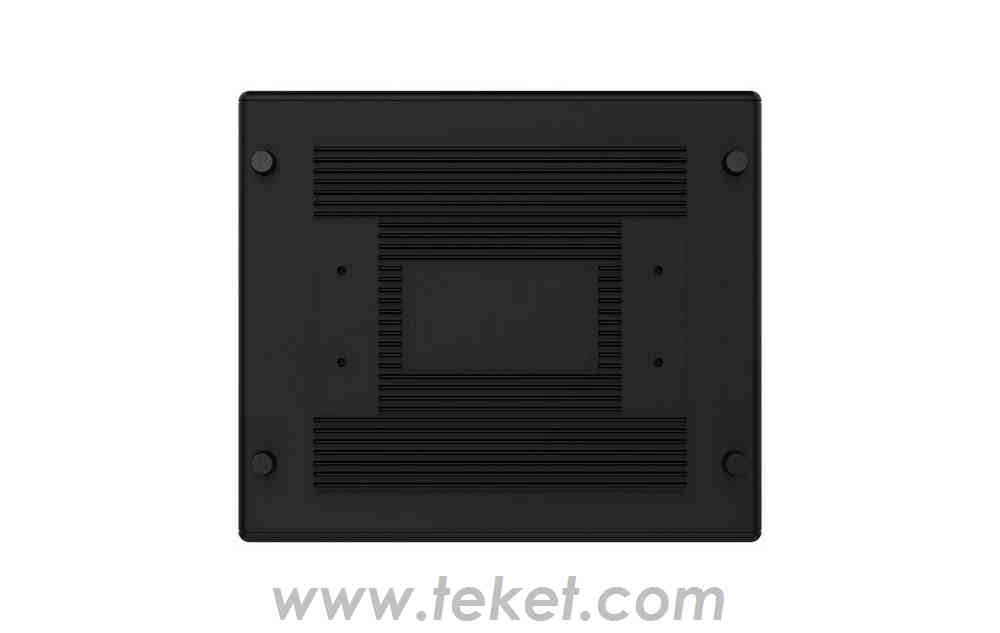

Cooling system Heatsink
ZBOX Dimensions 146.4mm x 126.5mm x 60.5mm
Case Mounting VESA mount kit
Miscellaneous
Supported OS Windows 10, 8.1 (32/64-bit)

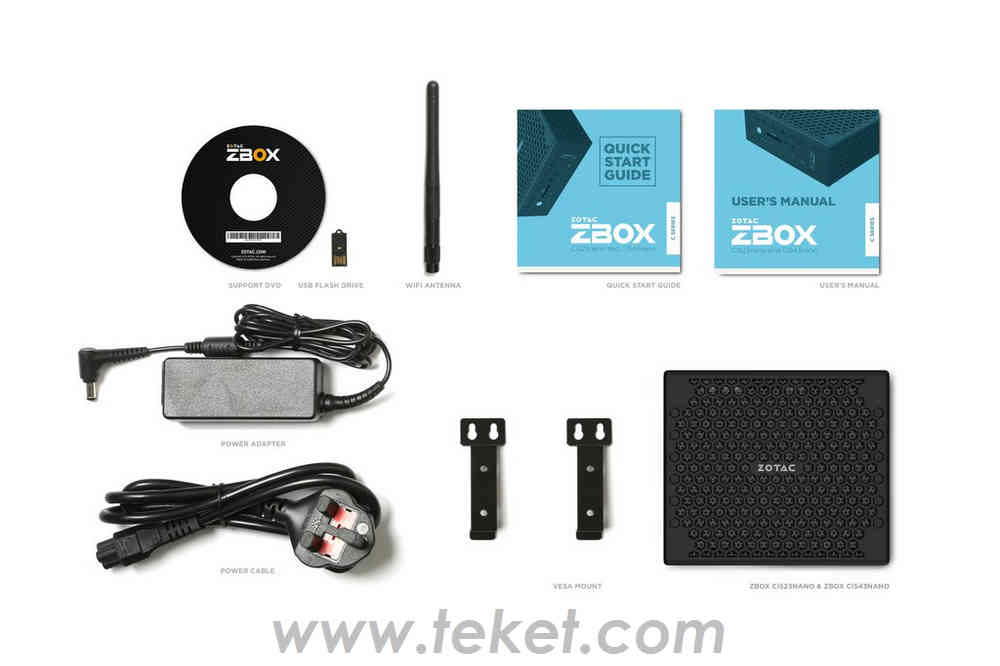

Accessories
1 x WiFi antenna
2 x Mount brackets
2 x Mounting screws
1 x AC Adapter
1 x Power Cord
1 x Warranty Card
1 x User Manual
1 x Quick Start Guide
1 x USB drive with O/S driver
1 x Driver Disc

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
