>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC

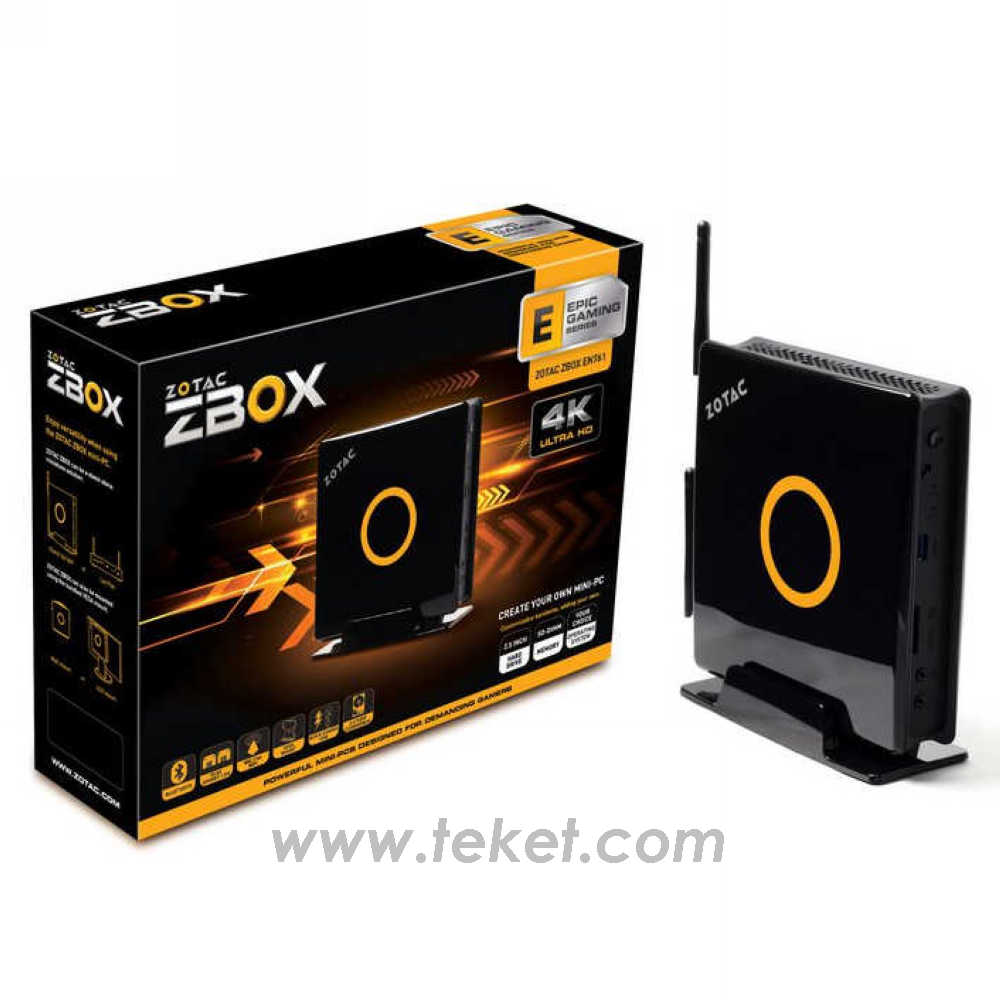

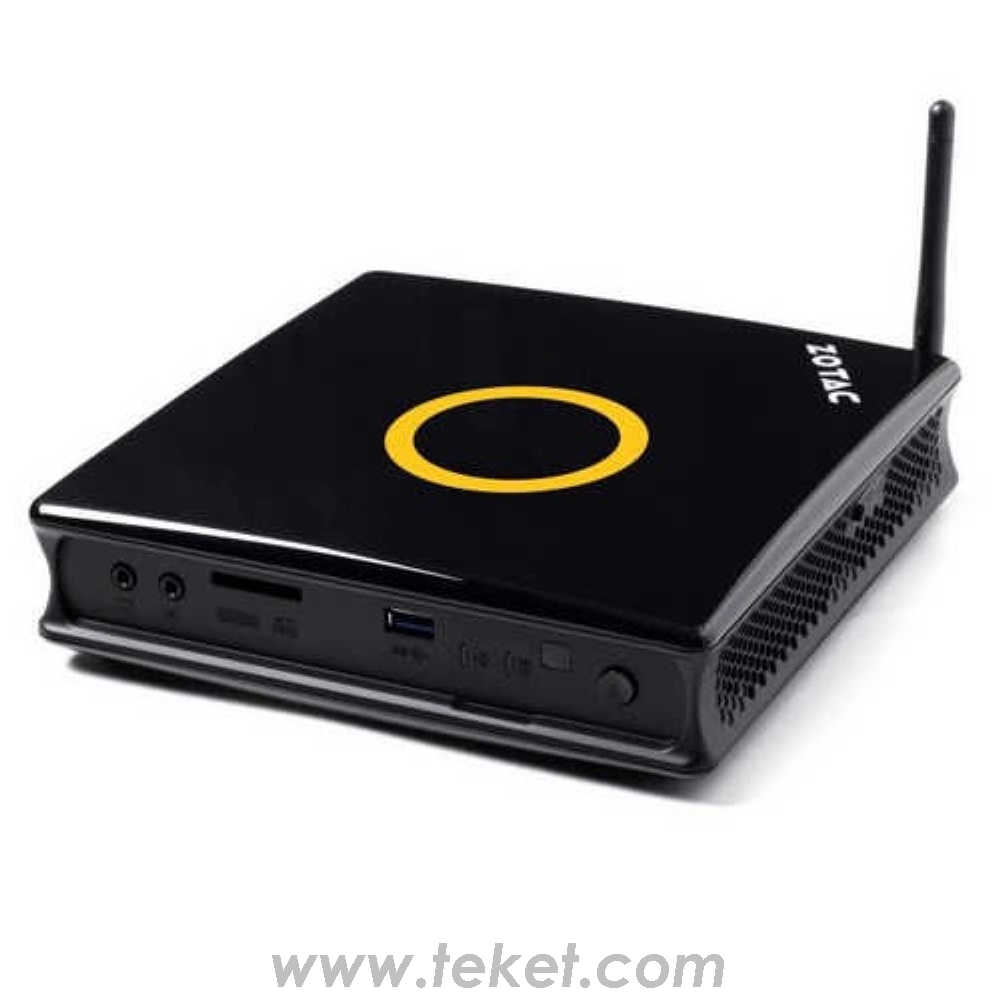

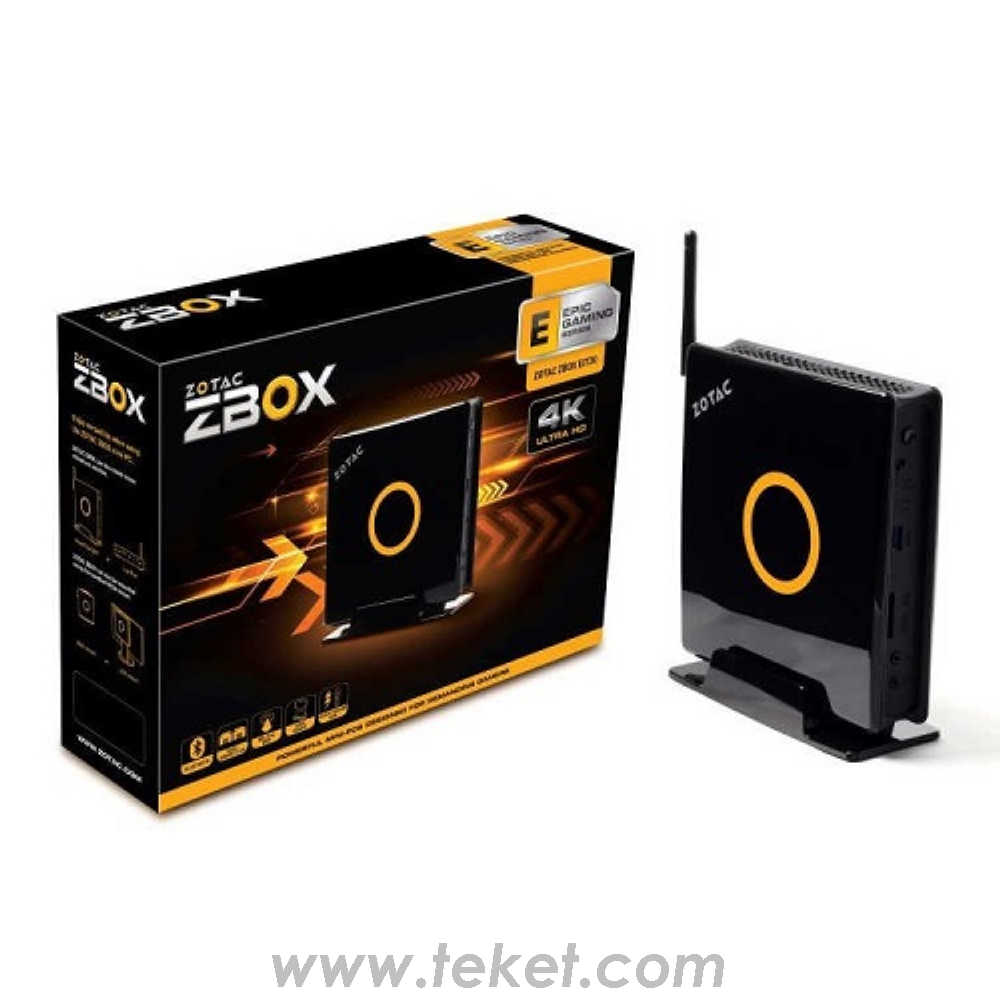

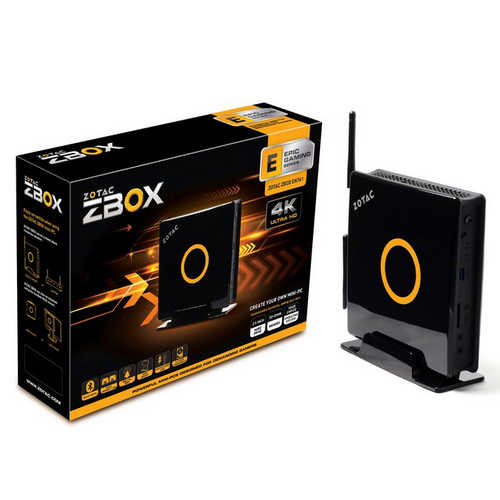

-->> ZOTAC ZBOX-EI751 mini pc Quad Core i7-5775R 3.3-3.8Ghz with Intel Iris Pro 6200 HTPC <<--

EI751
ZBOX-EI751

EI751 PLUS
ZBOX-EI751-P
System Memory 8GB DDR3L (two slots up to 16GB, one slot occupied)
mSATA 128GB mSATA SSD

Enjoy high-performance computing in a toaster-sized ZBOX EI751 Mini PC. Pumping more CPU power and saving more energy than its predecessor, the EI751 is designed to perform any computing tasks effortlessly while having performance left over for entertainment. The good doesn't end there because the EI751 natively supports 4K and three displays to deliver both breadth and depth.

The EI751 powers your productivity and entertainment with a 5th Generation Intel Core i7-5775R, integrated with an Intel Iris Pro 6200. The speed keeps going with Dual Gigabit Ethernet and 802.11ac Wi-Fi so you can cruise both online and offline.

Product Specifications
Computing System
Processor Intel Core i7-5775R (quad-core 3.3 GHz, up to 3.8 GHz)
Chipset Intel
System Memory 2 x DDR3L-1600 SODIMM Slots (up to 16GB)
Graphics
Graphics Engine Intel Iris Pro Graphics 6200
Video Output
2 x DisplayPort 1.2: 3840x2160 @ 60Hz;
DVI-D: 1920x1080 @ 60Hz;
Storage
Hard Drive 2.5“ SATA 6.0Gbps HDD/SSD bay
Mass Storage
Optical Drive
mSATA Yes
M.2 None
Card Reader 4-in-1 SD/SDHC/SDXC/MMC

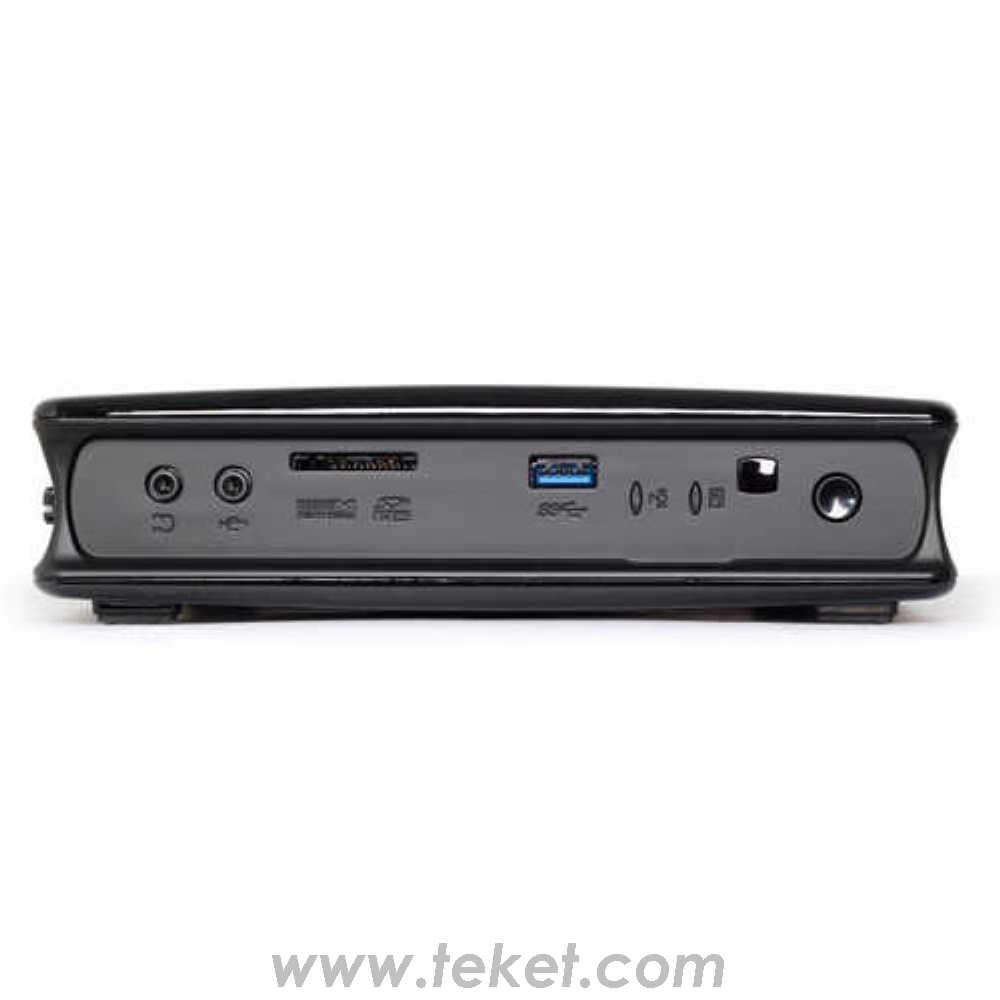

I/O Ports
Audio Stereo output , Microphone, Optical SPDIF
USB Port
4 x USB 3.0
LAN Dual 10/100/1000Mbps Ethernet
Antenna 1 x WiFI SMA
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Thunderbolt None
USB N/A
IDE N/A
VGA N/A
Mechanical
Kensington Lock None
LED Indicators Power, HDD, WiFi
Power Supply 19.5V/120W
Cooling system Fan + Heatsink
ZBOX Dimensions 188mm x 188mm x 51mm
Case Mounting VESA mount kit
Miscellaneous
Supported OS Windows 10 / 8 / 7 (32/64-bit)

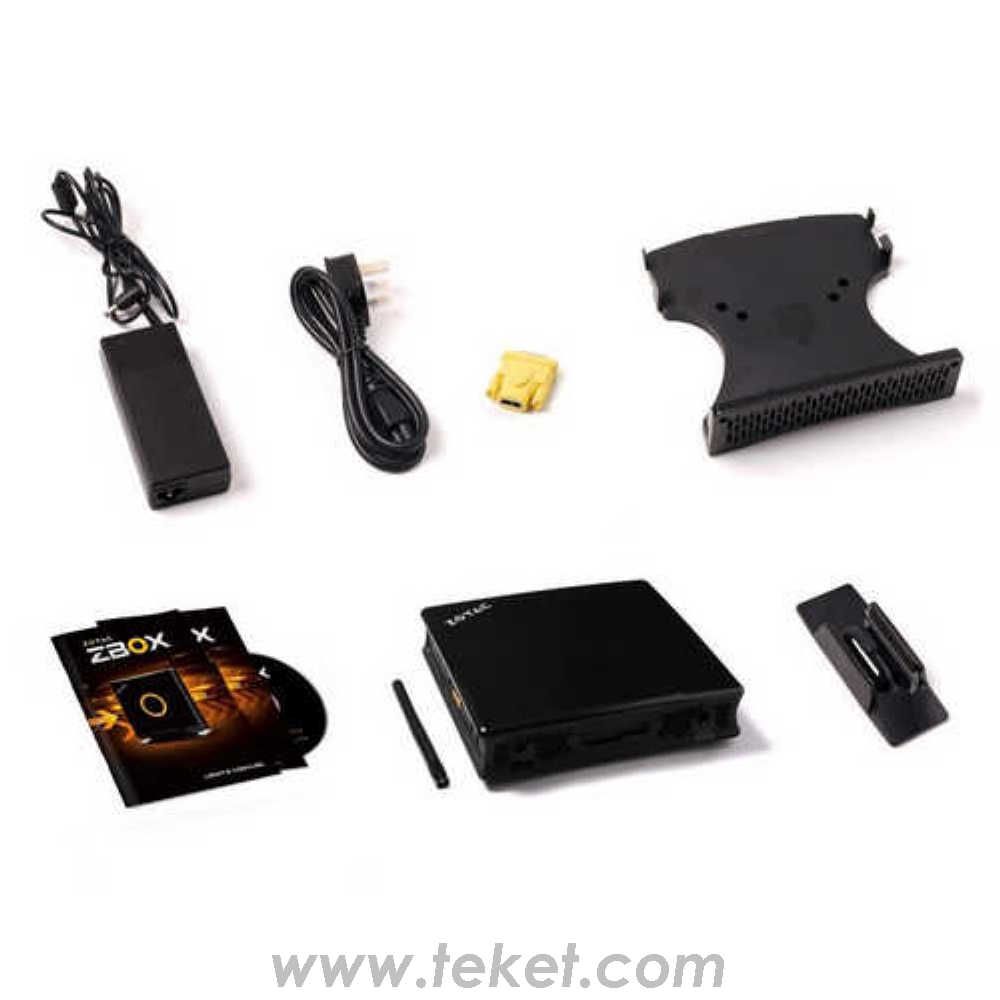

Accessories
1 x WiFi antenna
DVI-to-HDMI adapter
VESA mount
4 x mounting screws
Stand
AC Adapter
Power Cord
Warranty Card
User Manual
Quick Start Guide
USB drive with O/S driver
Driver Disc



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
