-->> ZOTAC
ZBOX-EN1060 mini pc Quad Core i5-6400U 2.2-2.8G with NNVIDIA GeForce GTX 1060 HTPC <<--

MAGNUS EN1060
ZBOX-EN1060

MAGNUS EN1060 PLUS
ZBOX-EN1060-P
System Memory 8GB (up to 32GB)
Hard Drive 1TB 2.5" HDD
M.2 120GB M.2 SATA SSD

MAGNUS EN1060 with Windows 10
ZBOX-EN1060-W2B/W3B/W4B
System Memory 8GB (up to 32GB)
Hard Drive 1TB 2.5" HDD
M.2 120GB M.2 SATA SSD
Supported OS Windows 10 Home Pre-installed

MAGNUS EN1060 transforms the entertainment experience with hardware that captures the essence of gaming. Designed to push the limit of your gaming experience and to strike the perfect balance between power and thermal for whisper quiet performance.

The power of Intel Skylake Core i5-6400T processor and graphical prowess of NVIDIA GeForce? GTX 1060 come together to create a superior VR and gaming performance, enabling native 4K display output and supporting up to 4 displays. MAGNUS EN1060 supports dual storage solutions to provide flexibility, and connects with 802.11ac Wi-Fi and dual gigabit LAN for high speed experience.

Product Specifications
Computing System
Processor Intel Core i5-6400T (quad-core, 2.2 GHz, up to 2.8 GHz)
Chipset Intel 100 Series, NVIDIA
System Memory 2 x DDR4-1866/2133 SODIMM Slots (up to 32GB)
Graphics
Graphics Engine
GeForce? GTX 1060 6GB GDDR5 192-bit
Video Output
2 x HDMI 2.0
2 x DisplayPort 1.3
Storage
Hard Drive 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
Mass Storage N/A
Optical Drive N/A
mSATA None
M.2 1 x M.2 PCIEx4 / SATA SSD slot (22/42,22/60,22/80)
Card Reader 3-in-1 (SD/SDHC/SDXC)

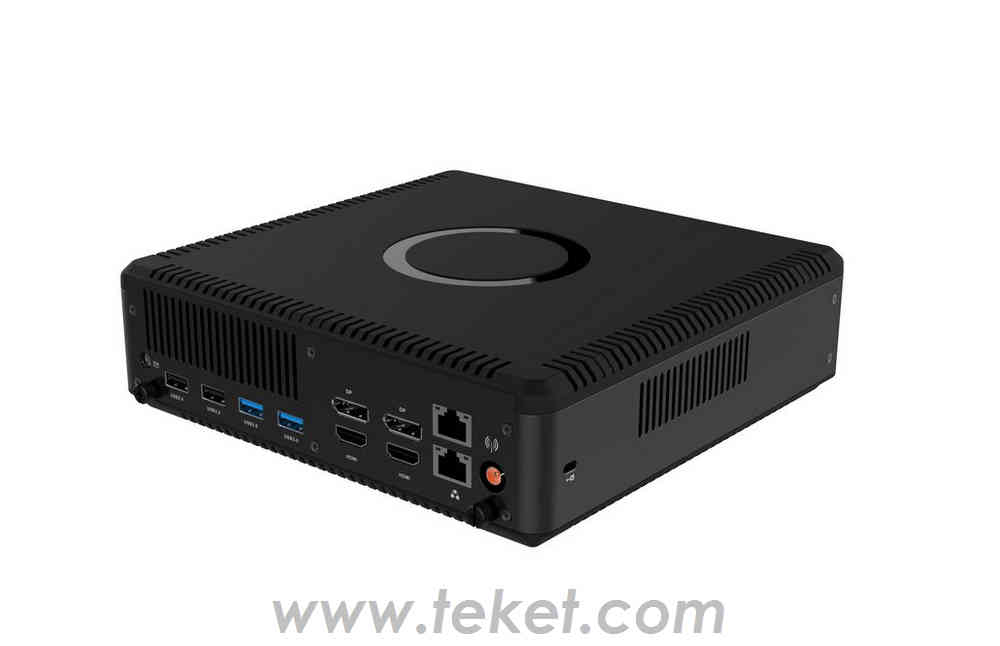

I/O Ports
Audio Microphone, Headphone
USB Port
2 x USB 3.0
1 x USB 3.1 Type-C
1 x USB 3.1
2x USB 2.0
LAN Dual Gigabit LAN
Antenna 1 x WiFI SMA connetor
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Thunderbolt None
USB
IDE
VGA

Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply
AC Adapter
O/P: DC 19.5V/180W
Cooling system Fan + Heatsink
ZBOX Dimensions 210mm x 203mm x 62.2mm
Case Mounting None

Miscellaneous
Supported OS Windows 8.1/10 (32/64-bit)

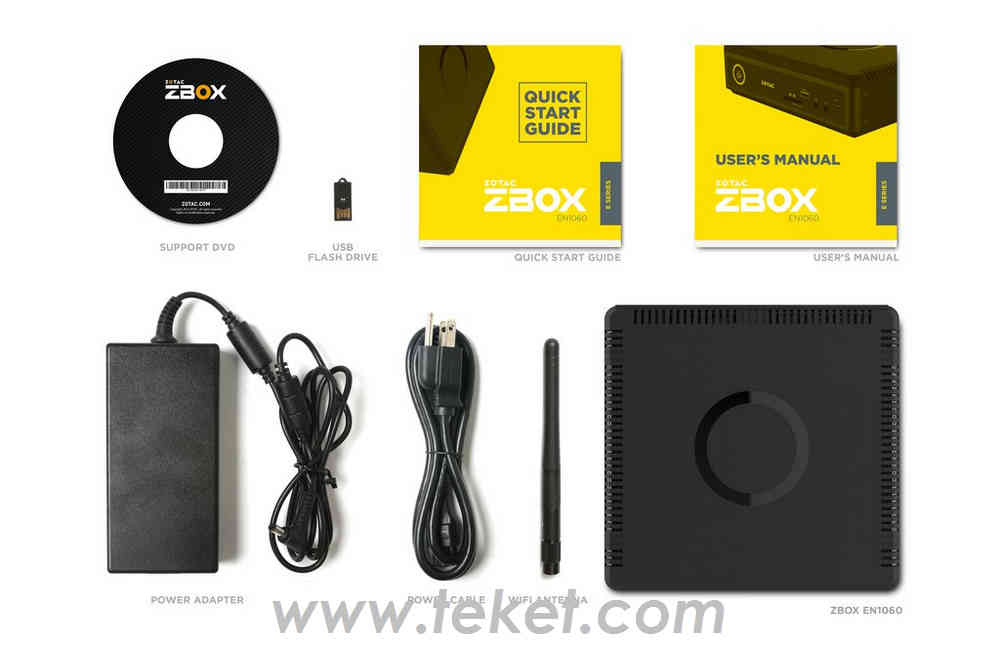

Accessories
WiFi antenna
AC Adapter
Power Cord
Warranty Card
User Manual
Quick Install Guide
USB drive with O/S driver
Driver Disc

Available SKU
ZBOX-EN1060
ZBOX-EN1060-BE
ZBOX-EN1060-U
ZBOX-EN1060-J
ZBOX-EN1060-AUS

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
