-->> ZOTAC
ZBOX-EN1060K mini pc Quad Core i5-7500T 2.7-3.3Ghz with NNVIDIA GeForce GTX 1060 HTPC <<--

MAGNUS EN1060K
ZBOX-EN1060K

MAGNUS EN1060K + HTC Vive Bundle
ZBOX-EN1060K-W2B (SW)
System Memory 8GB DDR4 (up to 32GB)
Hard Drive 1TB 2.5-inch SATA SSD
M.2 120GB M.2 SATA SSD
Supported OS Windows 10 Home 64-bit pre-installed
Available SKU
ZBOX-EN1060K-J-W2B (SW)
ZBOX-EN1060K-U-W2B (SW)

MAGNUS EN1060K PLUS ZBOX-EN1060K-P
System Memory 8GB DDR4 (up to 32GB)
Hard Drive 1TB 2.5-inch SATA SSD
M.2 120GB M.2 SATA SSD
Supported OS Windows 8.1/10 (32/64-bit)
Available SKU
ZBOX-EN1060K-P
ZBOX-EN1060K-P-BE
ZBOX-EN1060K-P-U
ZBOX-EN1060K-P-J
ZBOX-EN1060K-P-K

MAGNUS EN1060K with Windows 10
ZBOX-EN1060K-W2B
Supported OS Windows 10 Home 64-bit pre-installed
Available SKU
ZBOX-EN1060K-BE-W2B
ZBOX-EN1060K-U-W2B
ZBOX-EN1060K-J-W2B
ZBOX-EN1060K-BE-W3B
ZBOX-EN1060K-K-W4B

MAGNUS EN1060K transforms the entertainment experience with hardware that captures the essence of gaming. Designed to push the limit of your gaming experience and to strike the perfect balance between power and thermal for whisper quiet performance. Superior gaming performance with native 4K display output are the least you can expect from this spectacular Mini PC.

FEATURES:
- Powerful Intel 7th Gen Kaby Lake processor enables big number crunching
- GeForce GTX 1060 graphics enables playing AAA titles in ultra-fine quality
- Up to 32GB DDR4-2400 memory support for the super multitasker
- Supports up to 4 displays
- Supports USB 3.1 Type-C connection

Product Specifications
Computing System
Processor Intel Core i5-7500T (quad-core, 2.7 GHz, up to 3.3 GHz)
Chipset Intel 100 Series, NVIDIA
System Memory 2 x DDR4-2400/2133 SODIMM Slots (up to 32GB)

Graphics
Graphics Engine GeForce? GTX 1060 6GB GDDR5 192-bit
Video Output
2 x HDMI 2.0
2 x DisplayPort 1.3
Storage
Hard Drive 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
Mass Storage N/A
Optical Drive N/A
mSATA None
M.2 1 x M.2 PCIEx4 / SATA SSD slot (22/42,22/60,22/80)
Card Reader 3-in-1 (SD/SDHC/SDXC)

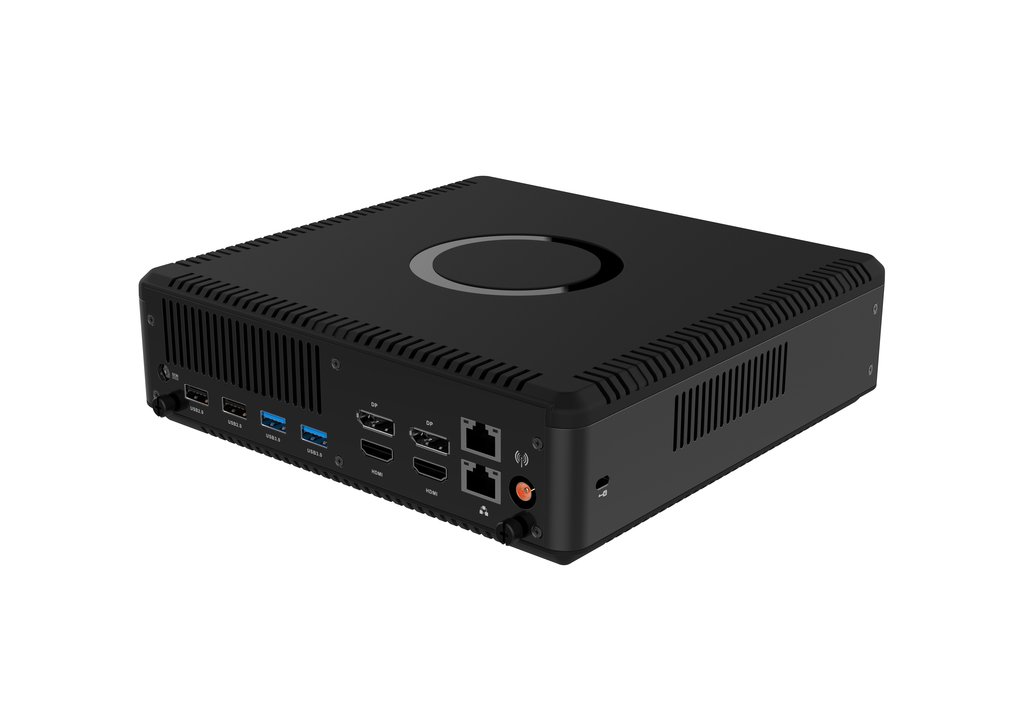

I/O Ports
Audio Microphone, Headphone
USB Port
2 x USB 3.0
1 x USB 3.1 Type-C
1 x USB 3.1
2x USB 2.0
LAN Dual Gigabit LAN
Antenna 1 x WiFI SMA connetor
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.2
Legacy I/O None
CIR Infrared Port Yes
Thunderbolt None
USB
IDE
VGA

Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply
AC Adapter
O/P: DC 19.5V/180W

Cooling system Fan + Heatsink
ZBOX Dimensions 210mm x 203mm x 62.2mm
Case Mounting None

Miscellaneous
Supported OS Windows 8.1/10 (32/64-bit)

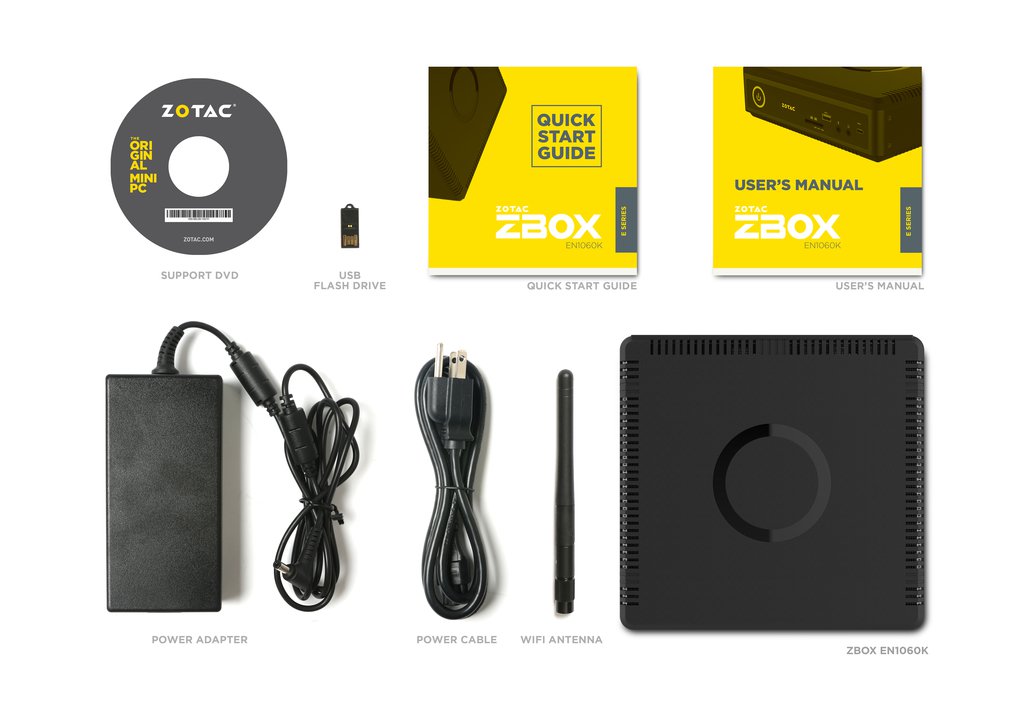

Accessories
WiFi antenna
AC Adapter
Power Cord
Warranty Card
User Manual
Quick Install Guide
USB drive with O/S driver
Driver Disc

Available SKU
ZBOX-EN1060K
ZBOX-EN1060K-BE
ZBOX-EN1060K-U
ZBOX-EN1060K-J
ZBOX-EN1060K-AUS

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
