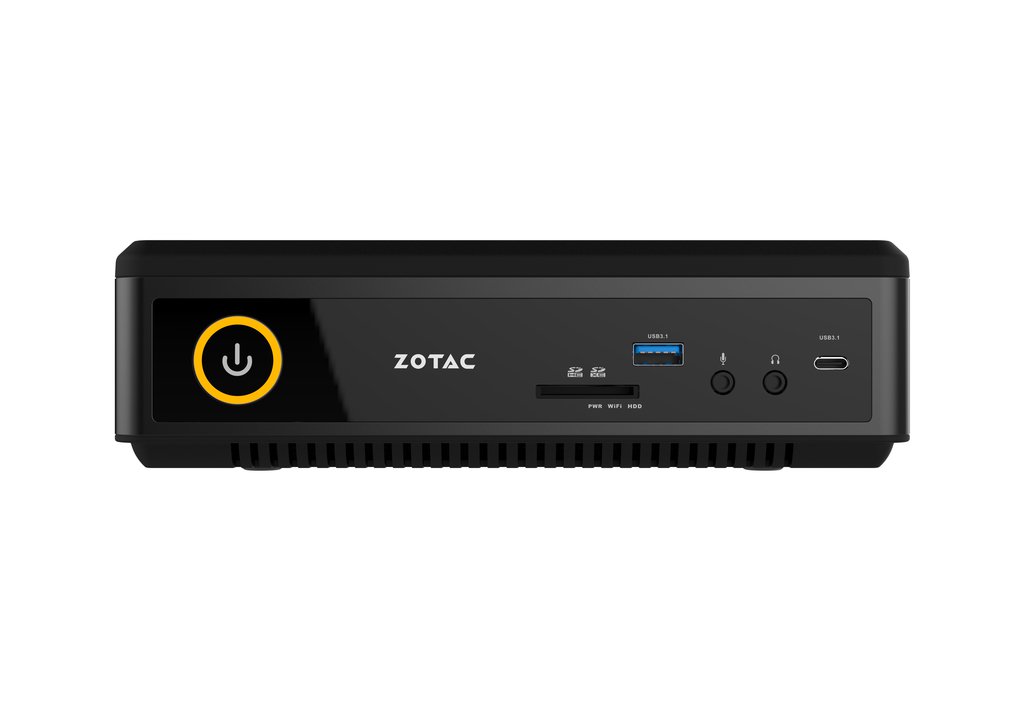

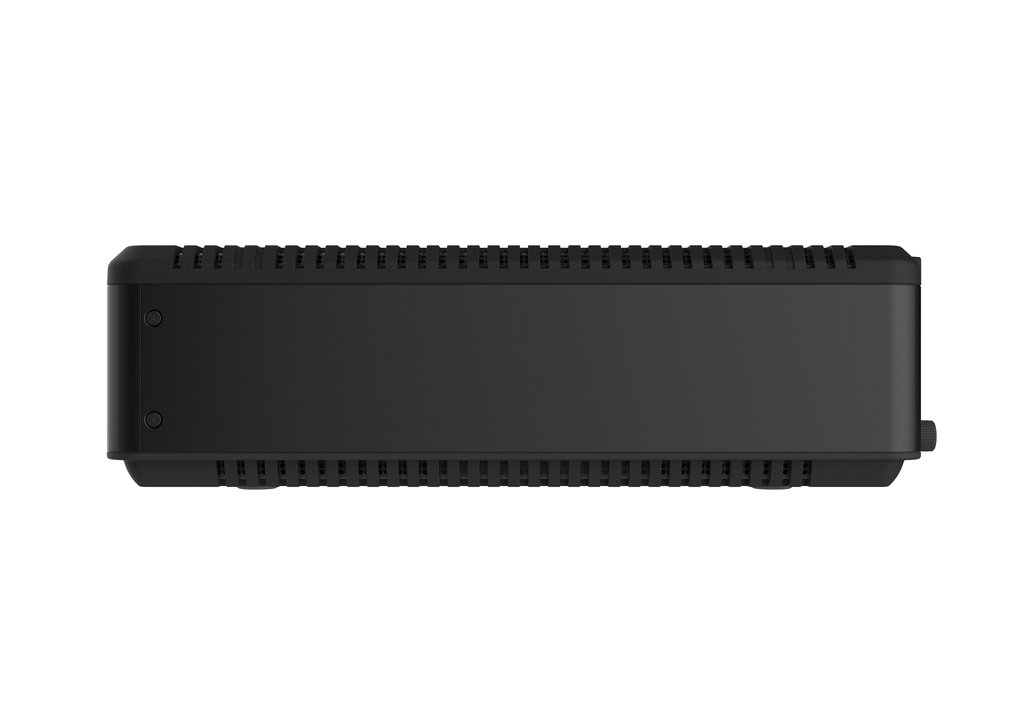

ZBOX-EN1070K mini pc Quad Core i5-7500T 2.7-3.3Ghz with NNVIDIA GeForce GTX 1070 HTPC <<--


MAGNUS EN1070K
ZBOX-EN1070K

MAGNUS EN1070K PLUS
ZBOX-EN1070K-P
System Memory 8GB DDR4 (up to 32GB)
Hard Drive 1TB 2.5-inch SATA SSD
Supported OS Windows 8.1/10 (32/64-bit)
Available SKU
ZBOX-EN1070K-P
ZBOX-EN1070K-P-BE
ZBOX-EN1070K-P-U
ZBOX-EN1070K-P-J
ZBOX-EN1070K-P-K

MAGNUS EN1070K with Windows 10
ZBOX-EN1070K-W2B
System Memory 8GB DDR4 (up to 32GB)
Hard Drive 1TB 2.5-inch SATA SSD
Supported OS Windows 10 Home 64-bit pre-installed
Available SKU
ZBOX-EN1070K-BE-W2B
ZBOX-EN1070K-U-W2B
ZBOX-EN1070K-BE-W3B
ZBOX-EN1070K-J-W2B
ZBOX-EN1070K-K-W4B


MAGNUS EN1060K transforms the entertainment experience with hardware that captures the essence of gaming. Designed to push the limit of your gaming experience and to strike the perfect balance between power and thermal for whisper quiet performance. Superior gaming performance with native 4K display output are the least you can expect from this spectacular Mini PC.

FEATURES:
- Powerful Intel 7th Gen Kaby Lake processor enables big number crunching
- GeForce GTX 1060 graphics enables playing AAA titles in ultra-fine quality
- Up to 32GB DDR4-2400 memory support for the super multitasker
- Supports up to 4 displays
- Supports USB 3.1 Type-C connection

Product Specifications
Computing System
Processor Intel Core i5-7500T (quad-core, 2.7 GHz, up to 3.3 GHz)
Chipset Intel 100 Series, NVIDIA
System Memory 2 x DDR4-2400/2133 SODIMM Slots (up to 32GB)
Graphics
Graphics Engine GeForce? GTX 1070 8GB GDDR5 256-bit
Video Output
2 x HDMI 2.0
2 x DisplayPort 1.3
Storage
Hard Drive 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
Mass Storage N/A
Optical Drive N/A
mSATA None
M.2 1 x M.2 PCIEx4 / SATA SSD slot (22/42,22/60,22/80)
Card Reader 3-in-1 (SD/SDHC/SDXC)

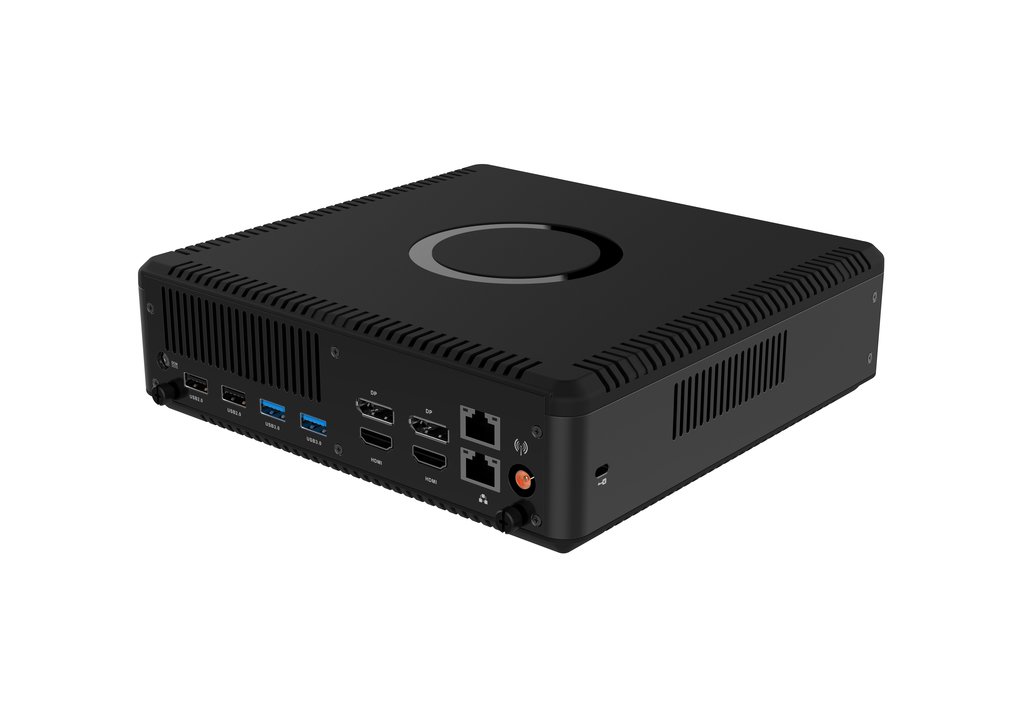

I/O Ports
Audio
Microphone, Headphone
USB Port
2 x USB 3.0
1 x USB 3.1 Type-C
1 x USB 3.1
2x USB 2.0
LAN Dual Gigabit LAN
Antenna 1 x WiFI SMA connetor
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.2
Legacy I/O None
CIR Infrared Port Yes
Thunderbolt None
USB
IDE
VGA
Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply
AC Adapter O/P: DC 19.5V/230W
Cooling system Fan + Heatsink
ZBOX Dimensions 210mm x 203mm x 62.2mm
Case Mounting None
Miscellaneous
Supported OS Windows 8.1/10 (32/64-bit)

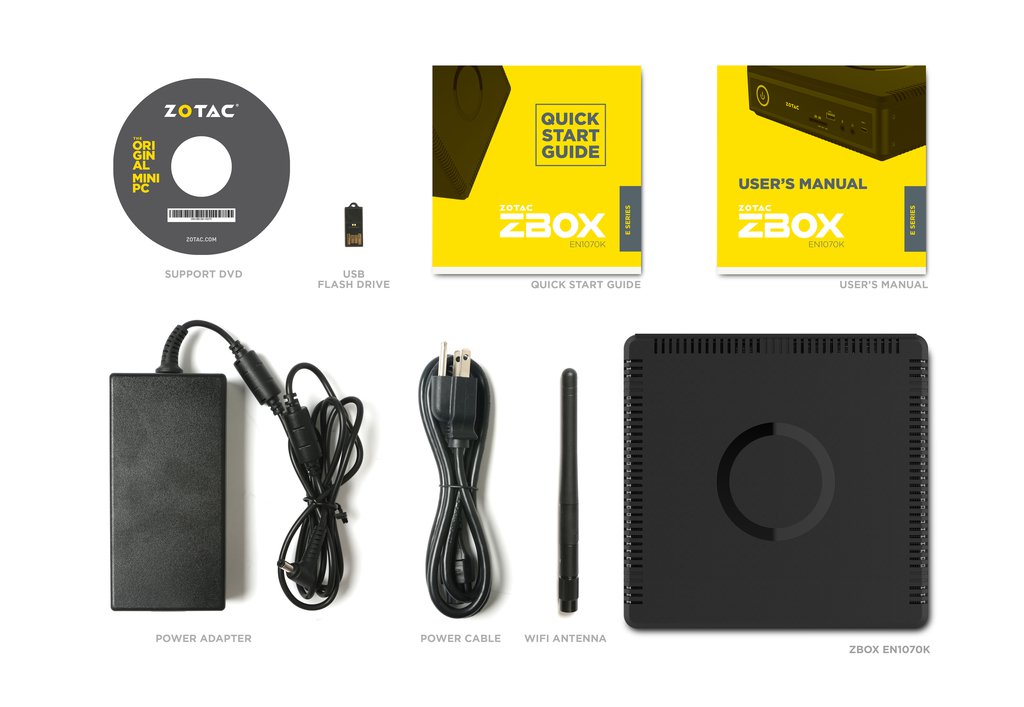

Accessories
WiFi antenna
AC Adapter
Power Cord
Warranty Card
User Manual
Quick Install Guide
USB drive with O/S driver
Driver Disc

Available SKU
ZBOX-EN1070K
ZBOX-EN1070K-BE
ZBOX-EN1070K-U
ZBOX-EN1070K-J
ZBOX-EN1070K-AUS







optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
