-->> ZOTAC
ZBOX-EN1080 mini pc Quad Core i7-6700 3.4-4.0Ghz with NNVIDIA GeForce GTX 1080 HTPC <<--

MAGNUS EN1080 10 Year Anniversary Edition
ZBOX-EN1080

MAGNUS EN1080 10 Year Anniversary Edition with Windows 10 Home
ZBOX-EN1080-W2B
System Memory 8GB DDR4-2133 (one slot occupied, up to 32GB)
Hard Drive 1TB 2.5“ SATA HDD
M.2 120GB M.2 SATA SSD
Supported OS Microsoft Windows 10 Home (64-bit) pre-installed
Available SKU
ZBOX-EN1080-BE-W2B
ZBOX-EN1080-J-W2B
ZBOX-EN1080-U-W2B
ZBOX-EN1080-BE-W3B
ZBOX-EN1080-K-W4B

THE 10 YEAR ANNIVERSARY EDITION MAGNUS EN1080 is ZOTAC‘s second generation of water cooling Mini PC. It ascends gaming to the Virtual Reality with an Intel 6th Generation Skylake Core i7 processor and NVIDIA GeForce? GTX 1080 graphics - the first Mini PC to equip NVIDIA‘s new generation flagship graphics. The unique SPECTRA lighting system gives the system a glow of its own, and users can customize the lighting with the SPECTRA utility.

Product Specifications
Computing System
Processor Intel Core i7-6700 (quad-core 3.4 GHz, up to 4.0 GHz)
Chipset Intel, NVIDIA
System Memory 2 x DDR4-2133/1866 SODIMM Slots (up to 32GB)
Graphics
Graphics Engine NVIDIA GeForce? GTX 1080 w/ 8GB GDDR5x
Video Output
2 x DisplayPort 1.3
3 x HDMI 2.0 (max 4 displays)
Storage
Hard Drive 2.5“ SATA 6.0Gbps HDD/SSD bay
Mass Storage
Optical Drive
mSATA None
M.2 M.2 PCIE x4 / SATA SSD slot (22/42,22/60,22/80)
Card Reader 3-in-1 SD/SDHC/SDXC
I/O Ports
Audio Stereo output , Microphone
USB Port
1 x USB 3.1 Type-C
1 x USB 3.1
4 x USB 3.0
LAN Dual 10/100/1000Mbps Ethernet
Antenna 2 x WiFI SMA
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.2
Legacy I/O None
CIR Infrared Port None
Thunderbolt None
USB N/A
IDE N/A
VGA N/A
Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply 2 x 19.5V/180W
Cooling system Liquid cooled
ZBOX Dimensions 225mmx203mmx128mm
Case Mounting None
Miscellaneous
Supported OS Windows 10 / 8.1 (32/64-bit)

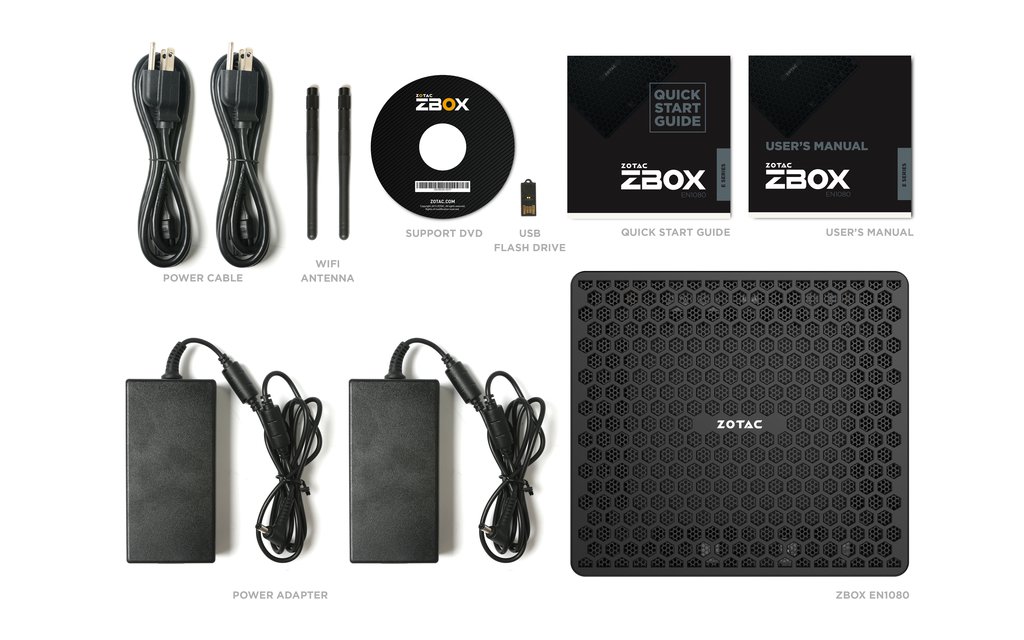

Accessories
2 x WiFi antenna
2 x AC Adapter
2 x Power Cord
Warranty Card
User Manual
Quick Start Guide
USB drive with O/S driver
Driver Disc
Available SKU
ZBOX-EN1080-BE
ZBOX-EN1080-J
ZBOX-EN1080-U
ZBOX-EN1080-AUS
ZBOX-EN1080-K

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
