>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC

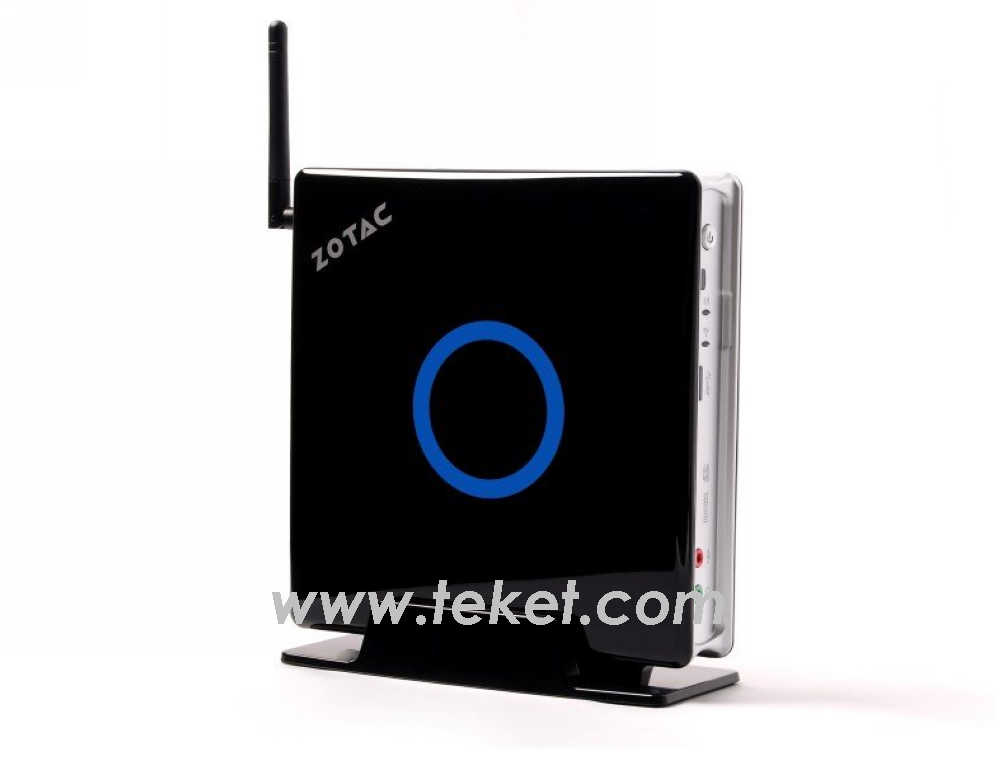

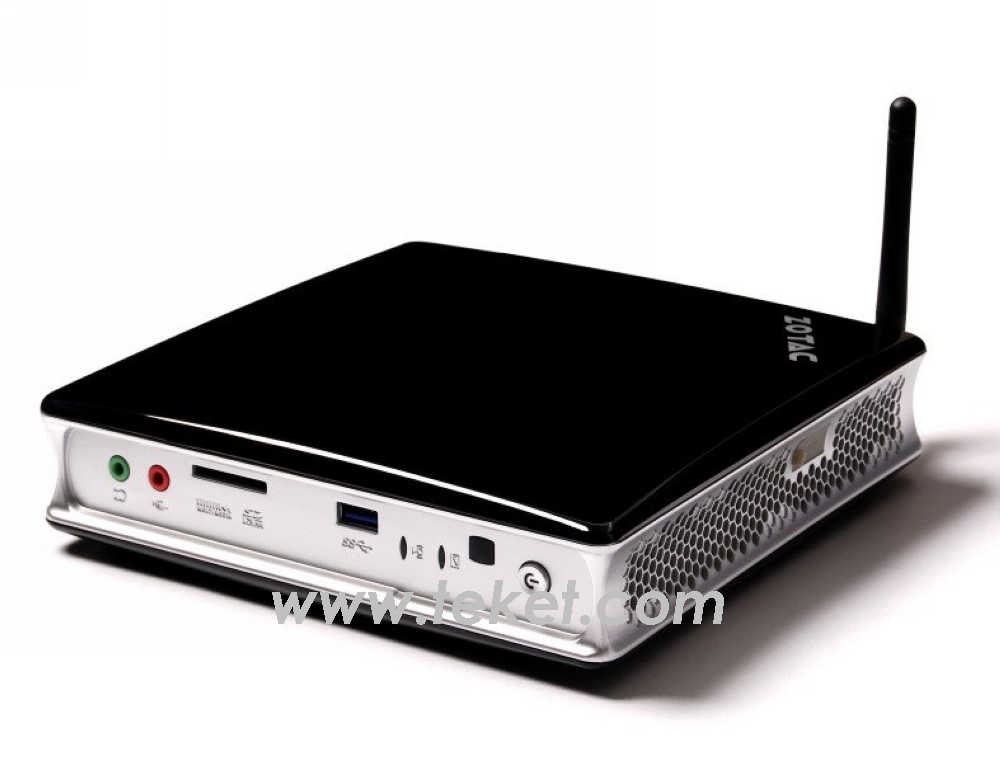

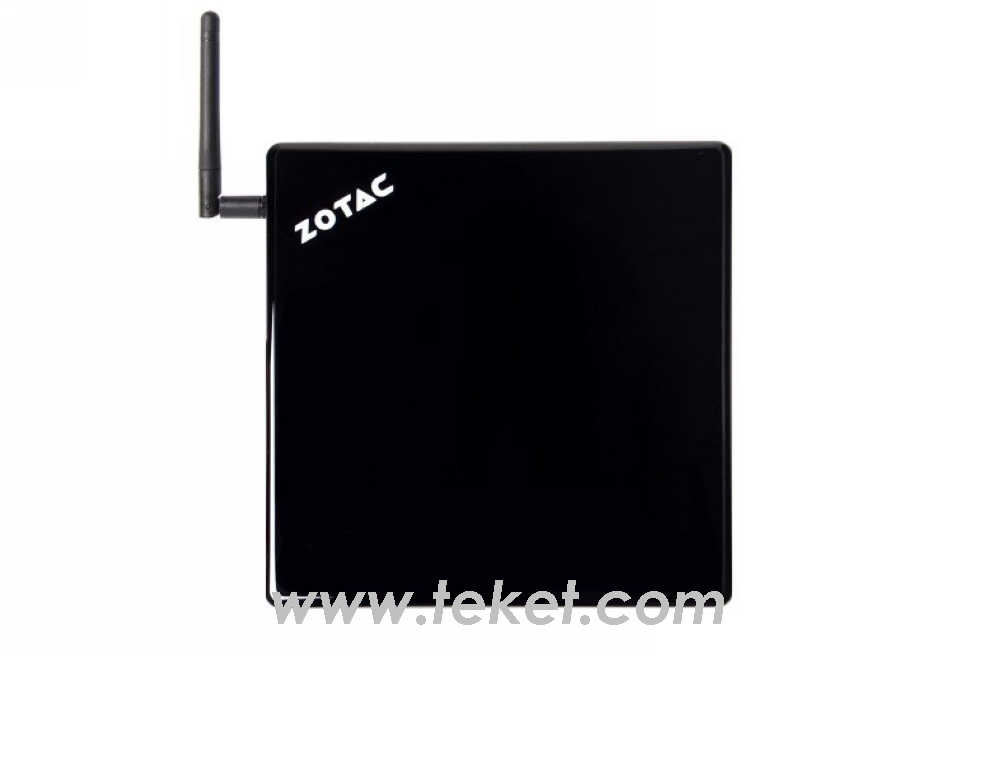

-->> ZOTAC ZBOX IQ01 Quad Core i7-4770T 2.5Ghz with Intel HD4600 graphics HTPC <<--

IQ01
ZBOX-IQ01

IQ01 PLUS
ZBOX-IQ01-PLUS
System Memory 4GB(Max 16GB)
Mass Storage 500GB 5400RPM SATA HDD

Experience unprecedented mini-PC performance with the powerful and energy-efficient ZOTAC ZBOX IQ01 series. By harnessing the raw power of 4th Generation Intel Core processors, the ZOTAC ZBOX IQ01 series delivers world-class processing power for lightning-fast responsiveness and performance that rivals much larger form factor systems.

The ZOTAC ZBOX IQ01 series features Intel HD Graphics 4600 for snappy 3D capabilities and outstanding HD audio and video playback capabilities. New 802.11ac WiFi technology enables the ZOTAC ZBOX IQ01 series to deliver lightning-fast wireless networking capabilities that rivals Gigabit Ethernet for a superior WiFi experience.


Product Specifications
Computing System
Processor Intel Core i7-4770T (quad core, 2.5 GHz up to 3.7 GHz)
Chipset Intel H87
System Memory 2 x DDR3-1600 SO-DIMM Slots, Max 16GB
Graphics
Graphics Engine Intel HD Graphics 4600
Video Output 2x DisplayPort, Single Link DVI-I
Storage
Hard Drive
Mass Storage 1 x 2.5" SATA 6Gbps Slot
Optical Drive
mSATA Yes
M.2 None
Card Reader MMC/SD/SDHC/SDXC

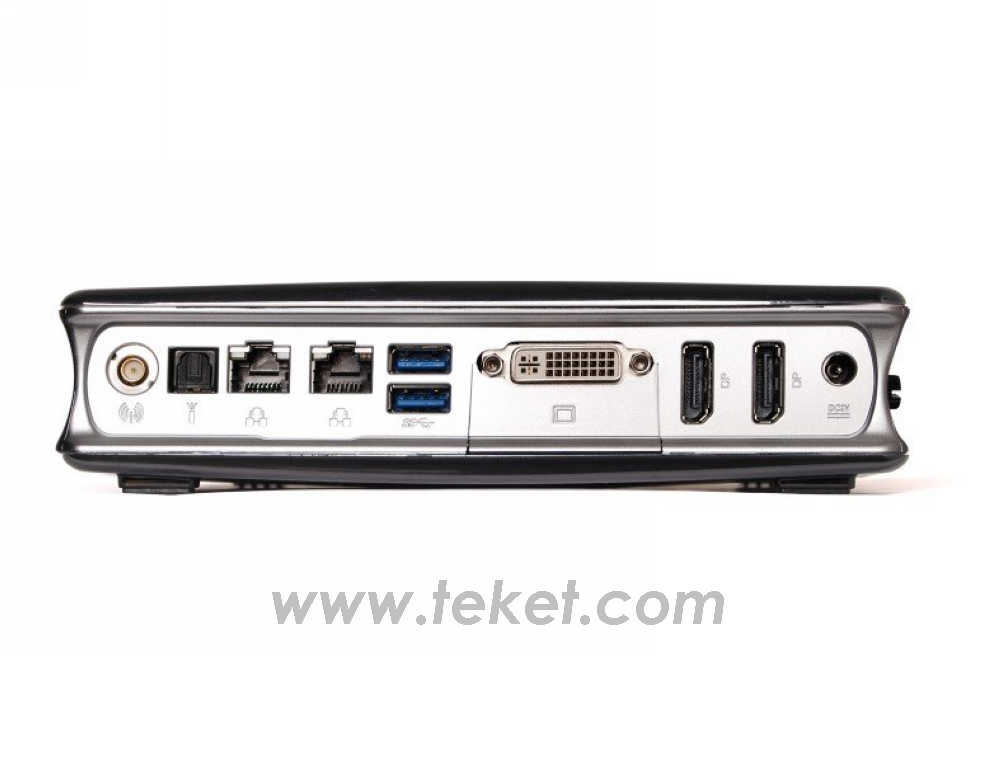

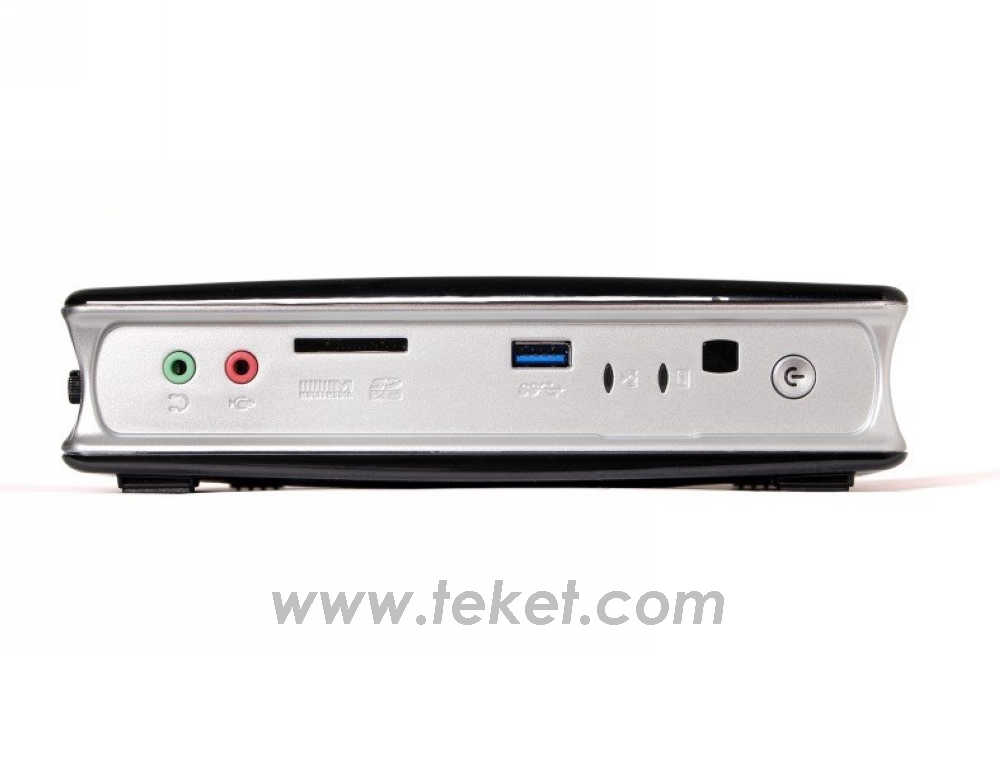

I/O Ports
Audio Microphone, Headphone, SPDIF optical output
USB Port 4 x USB 3.0
LAN Dual Gigabit LAN
Antenna 1 x WiFI SMA connetor
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical
Kensington Lock None
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/90W
Cooling system Fan + Heatsink
ZBOX Dimensions 188mm x 188mm x 51mm
Case Mounting Vesa mount kit
Miscellaneous
Supported OS Windows 8 / 7 (32/64-bit)

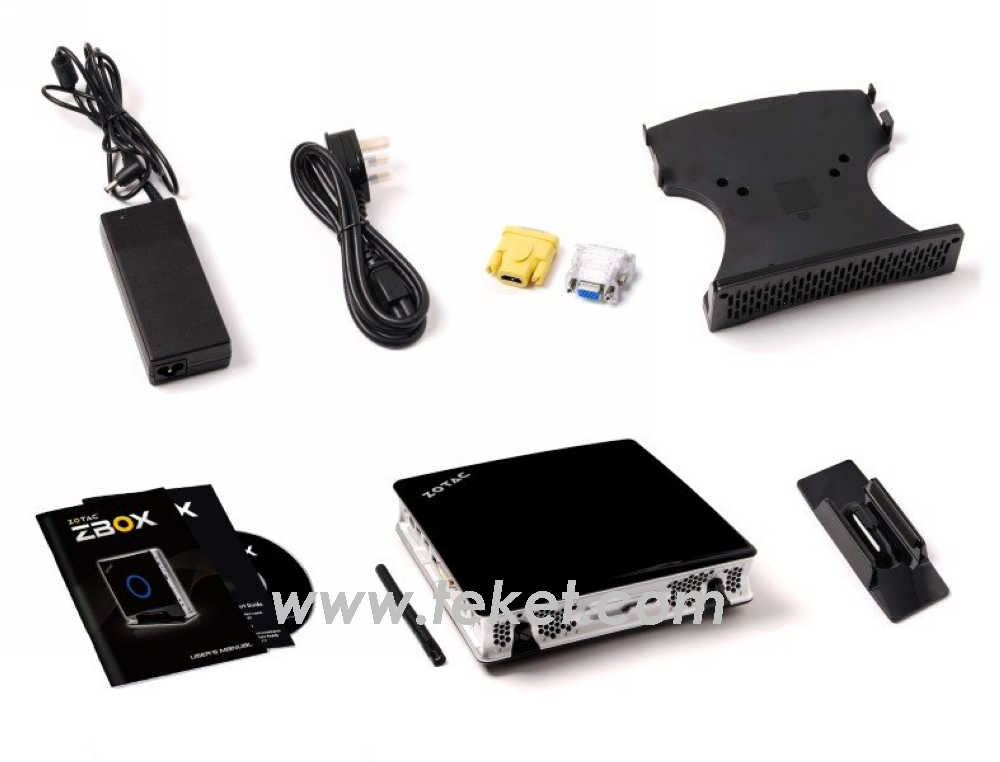

Accessories
2 x WiFi antenna
1 x VESA mount
4 x mounting screws
1 x DVI-VGA adapter
1 x stand
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x USB drive with O/S driver
1 x driver disc



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
