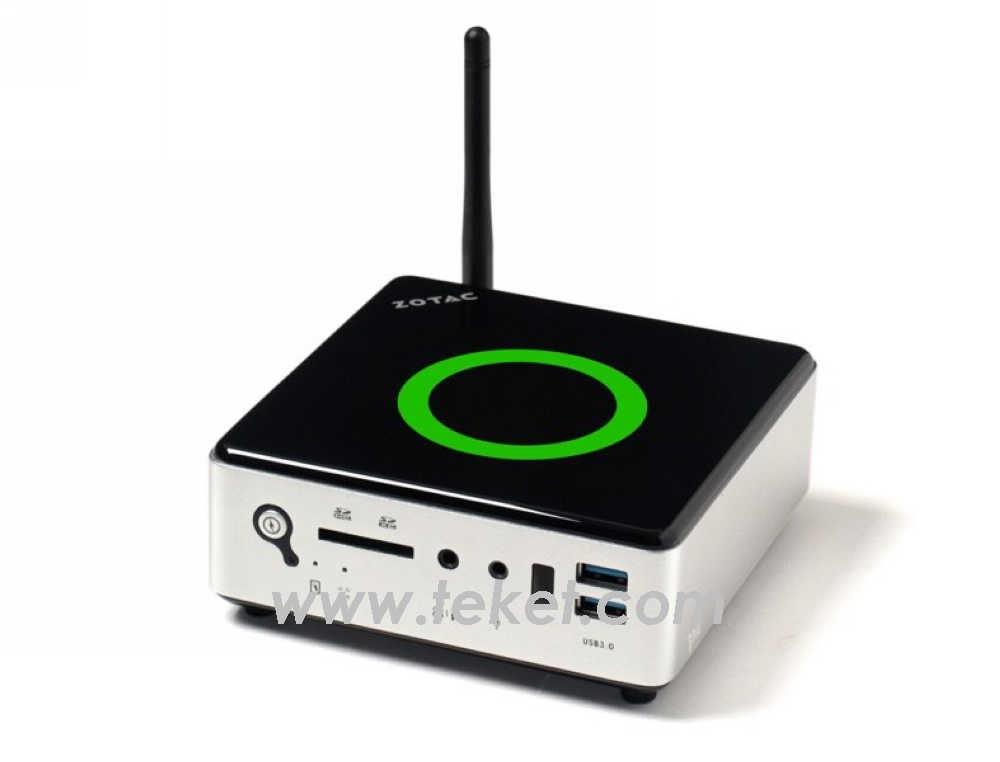

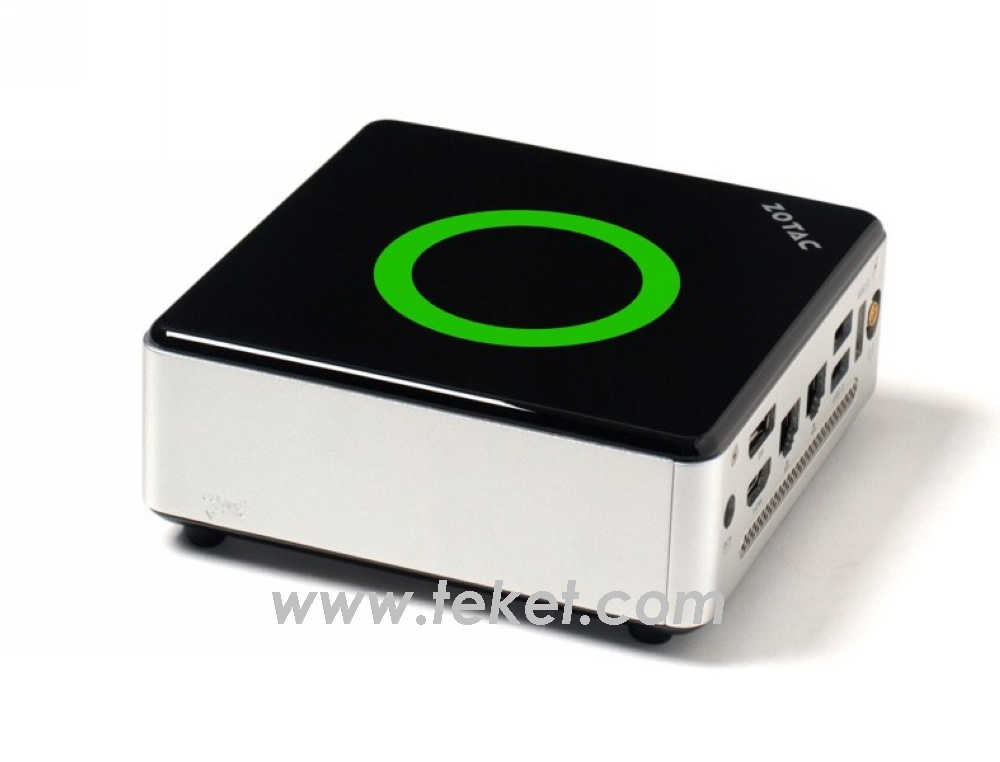

-->> ZOTAC ZBOX MA710NANO Quad Core AMD A8-7100 APU 1.8Ghz with AMD Radeon R5 HTPC <<--

MA710 nano
ZBOX-MA710NANO

MA710 nano PLUS
ZBOX-MA710NANO-P
System Memory 4GB (Max 16GB)
Mass Storage 500GB 5400RPM SATA HDD

Embrace quad processor cores in a palm-sized form factor with the ZOTAC ZBOX MA710 series. Powered by the latest high-performance AMD APU, the ZOTAC ZBOX MA710 series ushers in a new era of compact computing that offers whisper-quiet noise levels, outstanding energy-efficiency and rich AMD Radeon HD graphics.

AMD Radeon R5 series graphics processing enables compatibility with Microsoft DirectX 11.2, OpenCL and compute technologies on the ZOTAC ZBOX MA710 series for excellent performance and compatibility with the latest applications. High-definition video processing capabilities transforms the ZOTAC ZBOX MA710 series into a multimedia powerhouse for stunning HD audio and video playback.

Product Specifications
Computing System
Processor AMD A8-7100 APU (quad core 1.8GHz, up to 3.0GHz)
Chipset AMD A76M
System Memory 2 x DDR3-1600 SO-DIMM Slots, Max 16GB
Graphics
Graphics Engine AMD Radeon R5
Video Output HDMI 1.4a: 1920x1200 @ 60Hz; DisplayPort: 2560x1600 @ 60Hz
Storage
Hard Drive
Mass Storage 1 x 2.5" SATA 6Gbps HDD/SSD Slot
Optical Drive
mSATA None
M.2 None

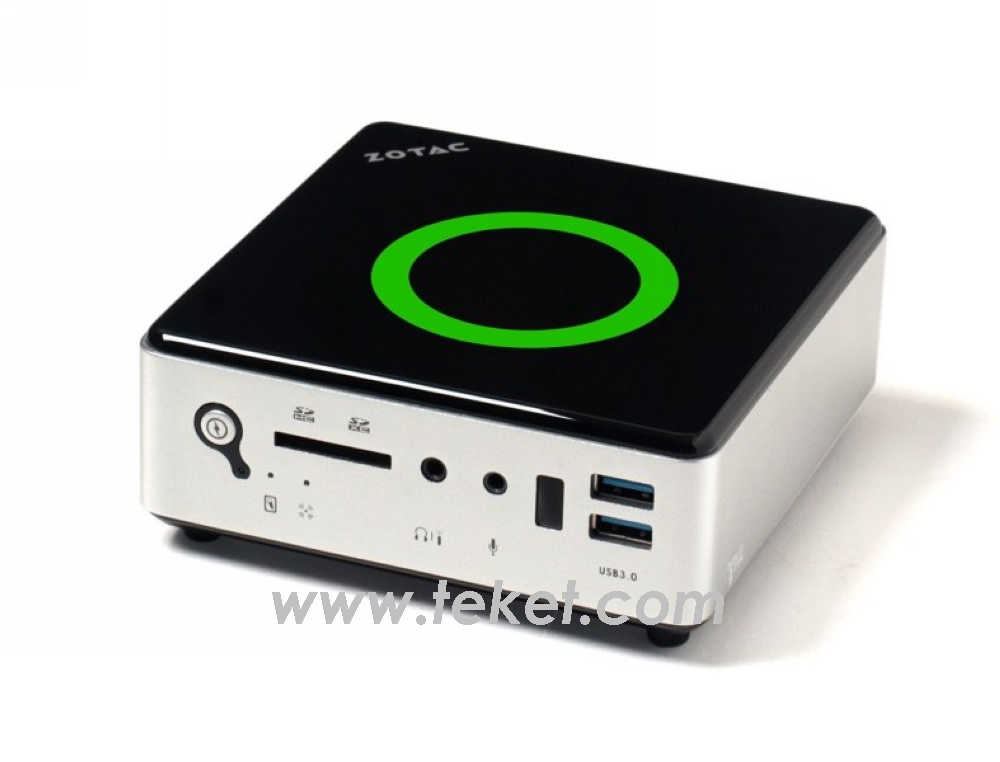

Card Reader SD/SDHC/SDXC

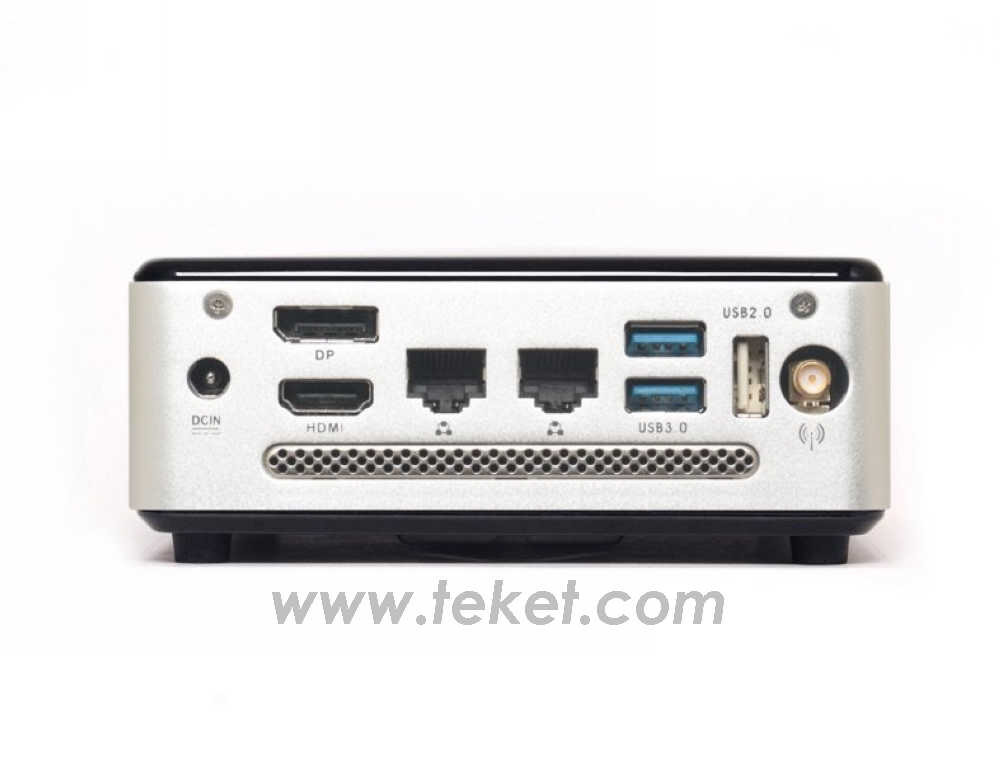

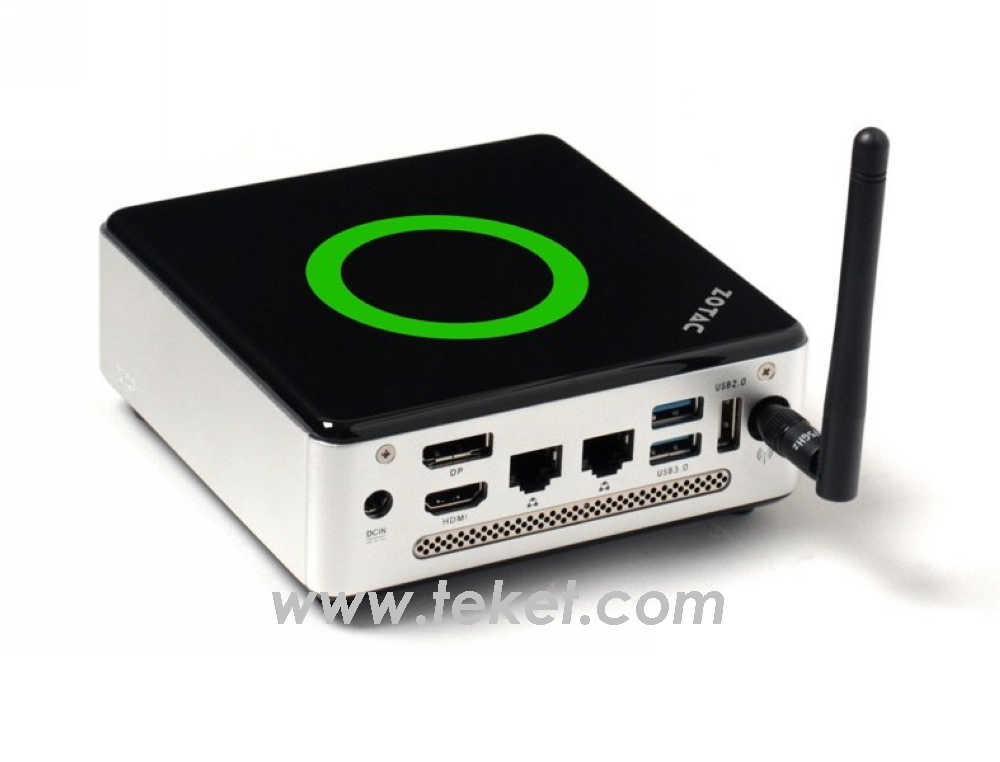

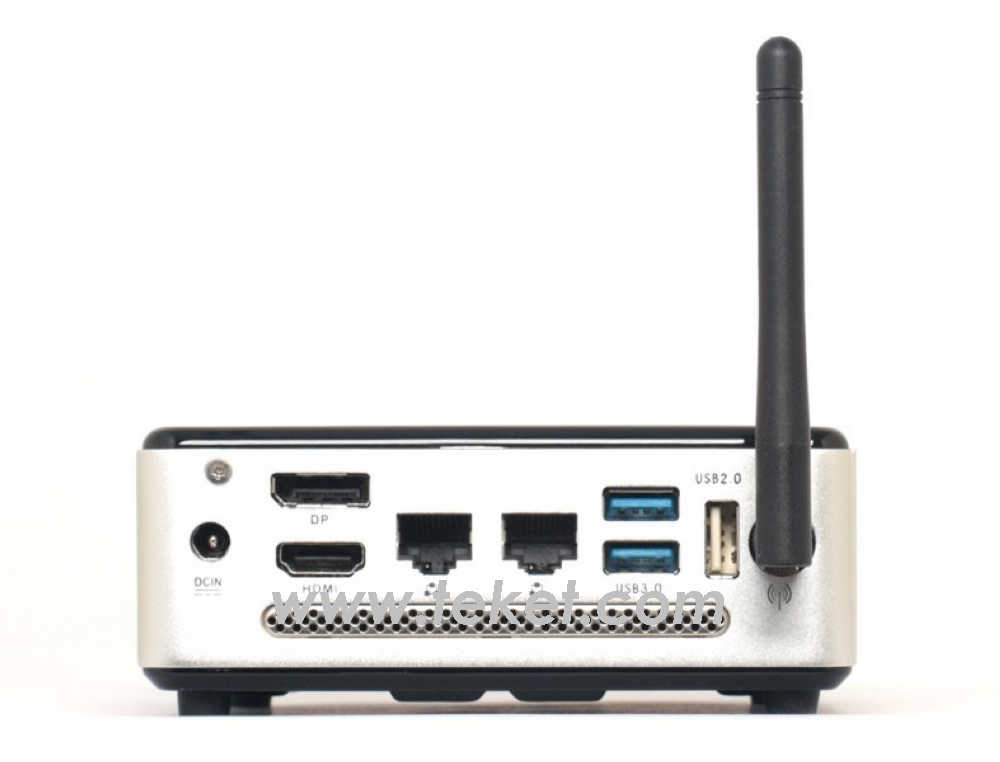

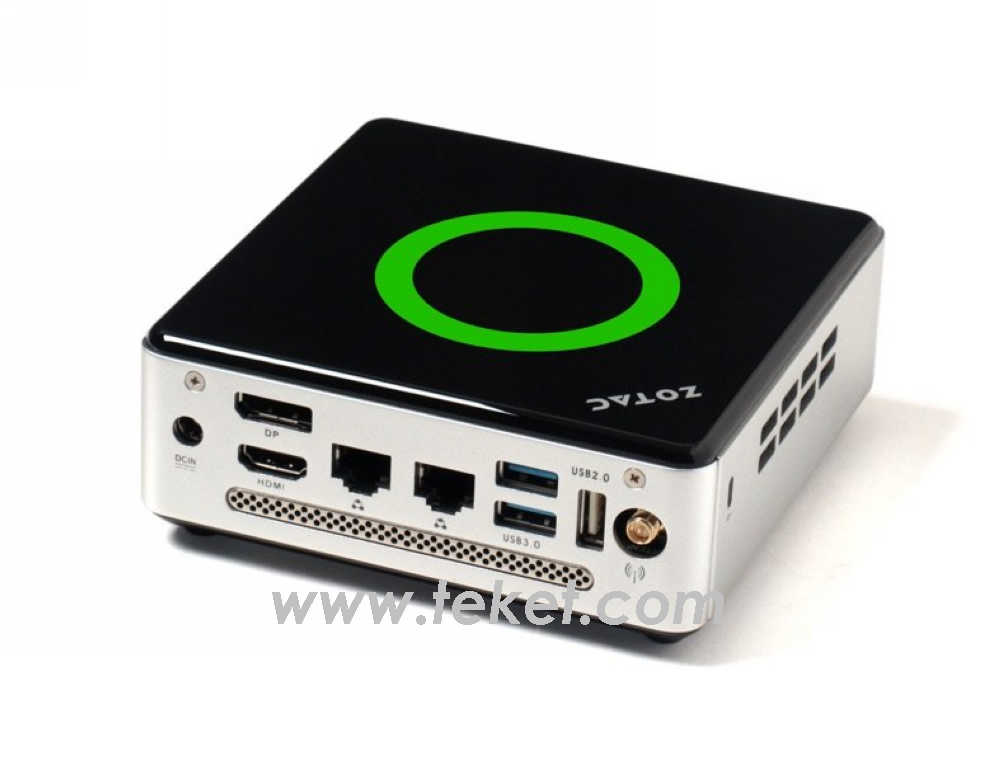

I/O Ports
Audio
Microphone, Headphone,
SPDIF optical output
USB Port
4 x USB 3.0
1 x USB 2.0
LAN Dual Gigabit LAN

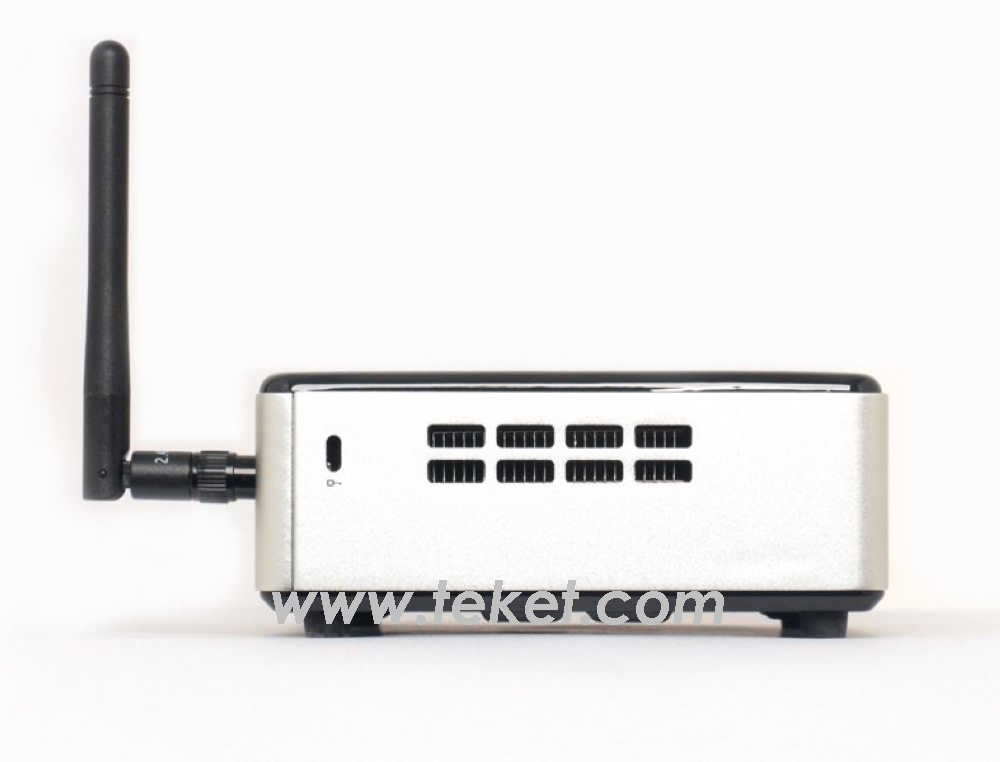

Antenna 1 x WiFi SMA connector
Wifi 802.11ac/b/g/n
Bluetooth
Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical

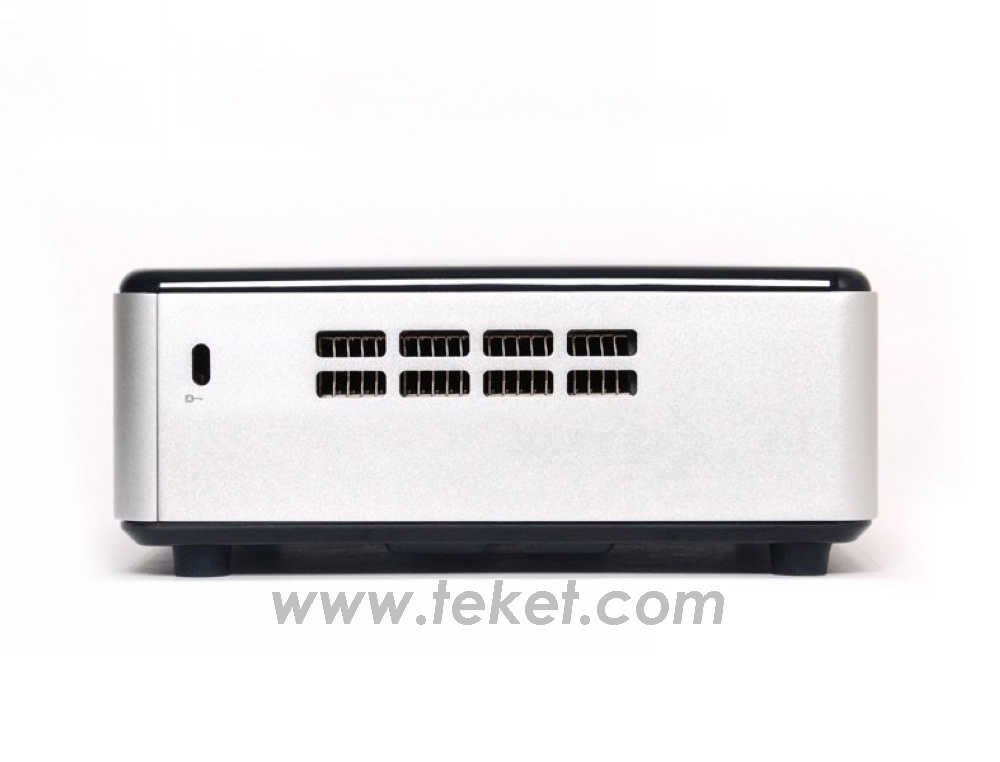

Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 127mm x 127mm x 45mm

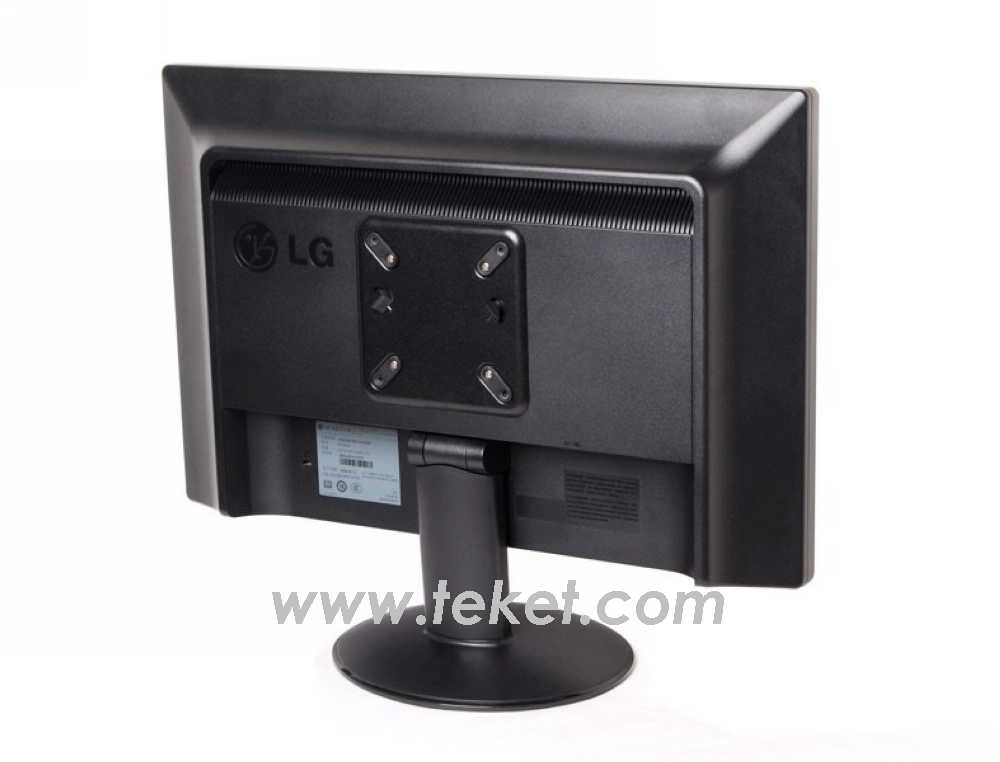

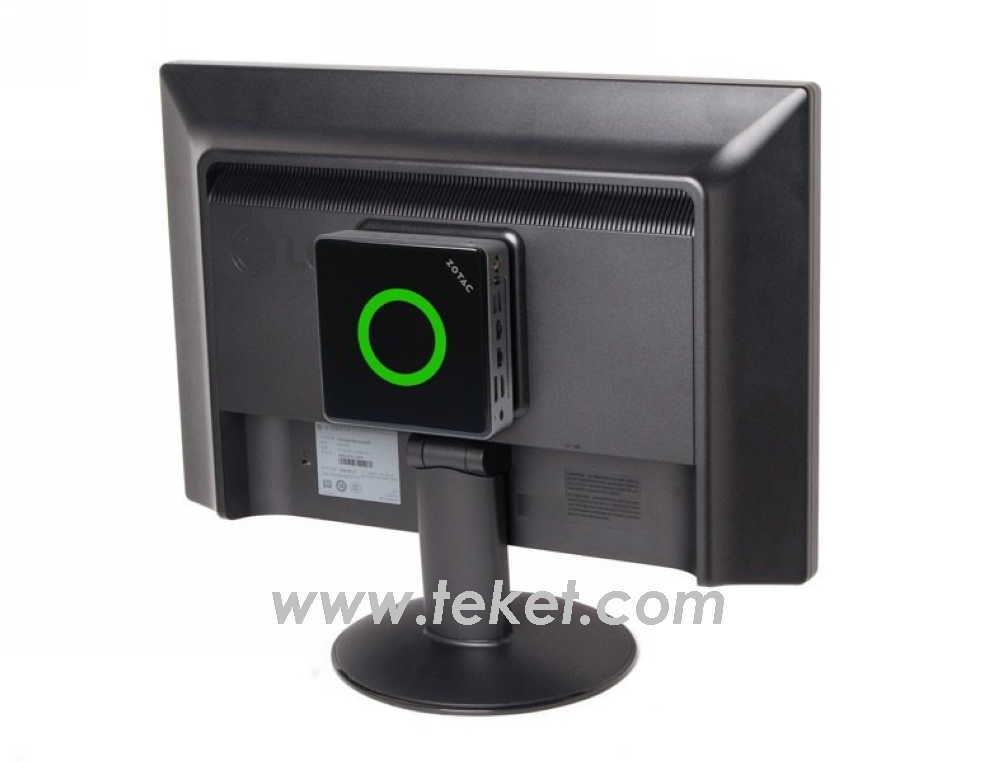

Case Mounting VESA mount kit
Miscellaneous
Supported OS Windows 8 / 7 (32/64-bit)
Accessories
1 x WiFi antenna
1 x VESA mount
4 x mounting screws
1 x Mini Optical S/PDIF
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x USB drive with O/S driver
1 x driver disc
1 x user manual
1 x quick install guide
1 x driver disc

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
