>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC

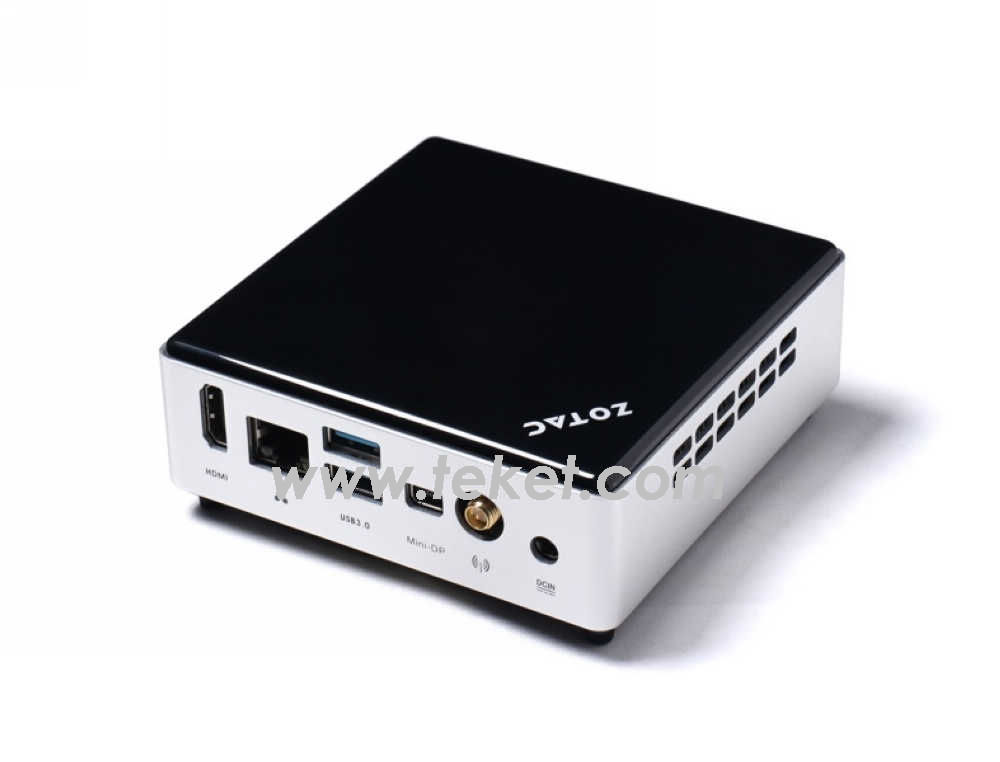

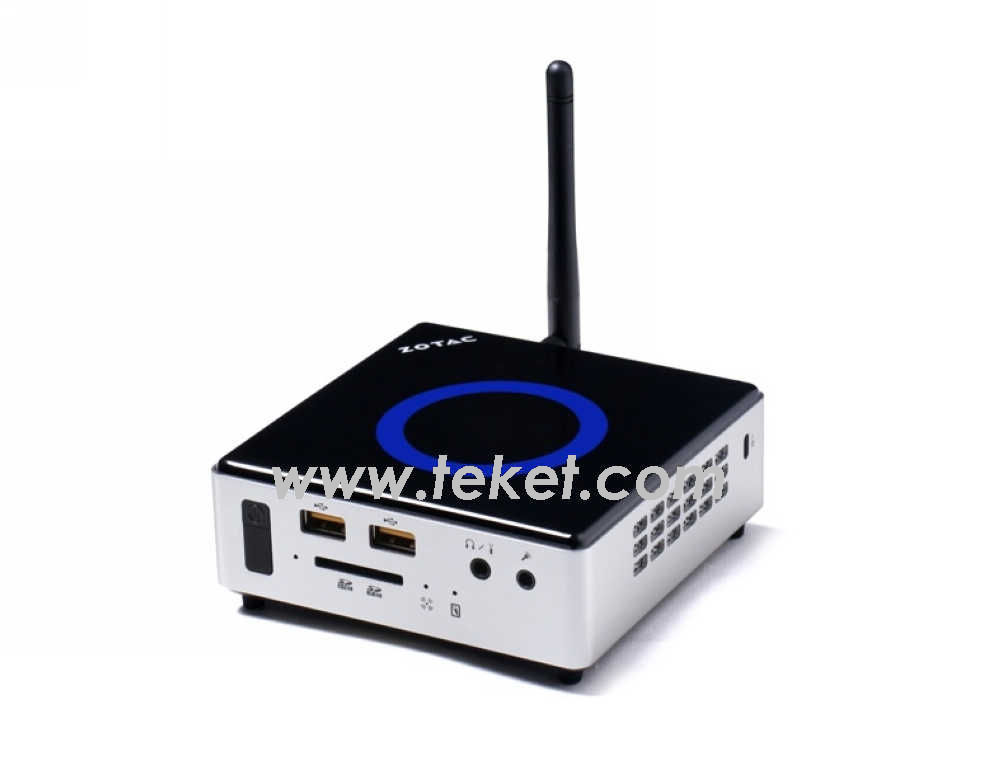

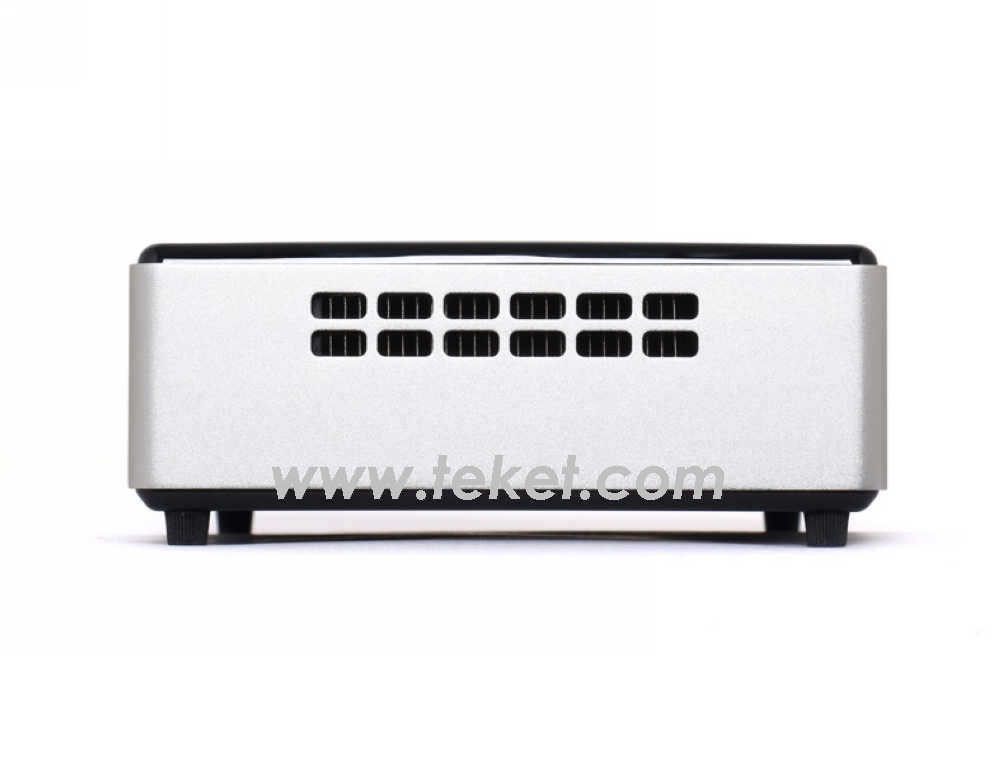

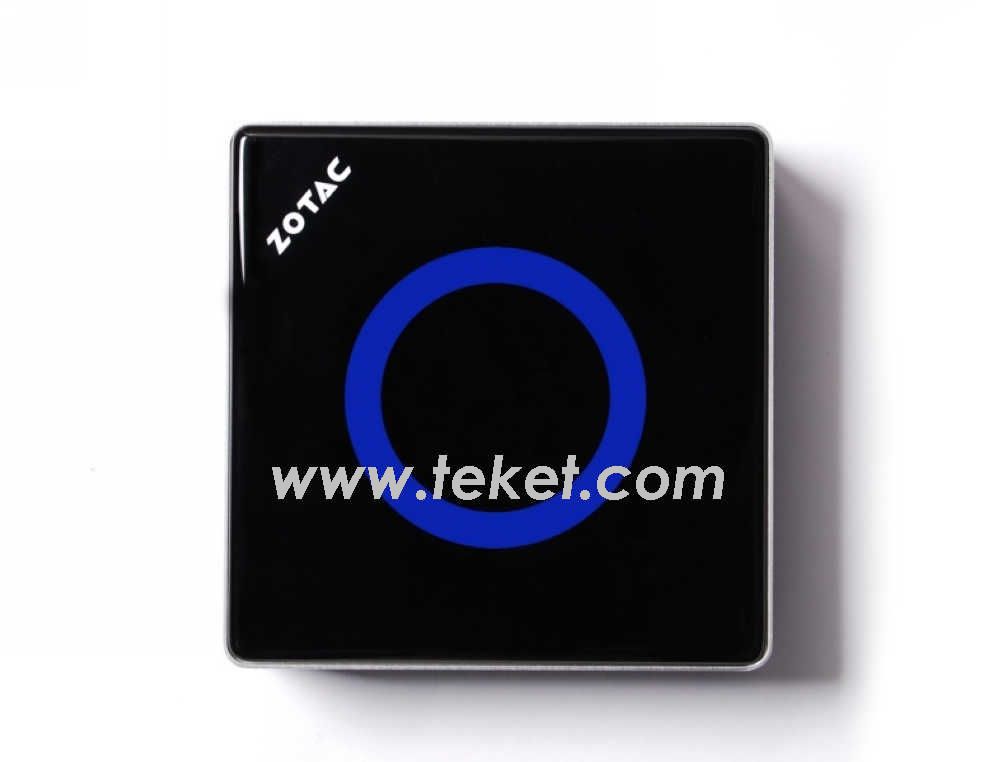

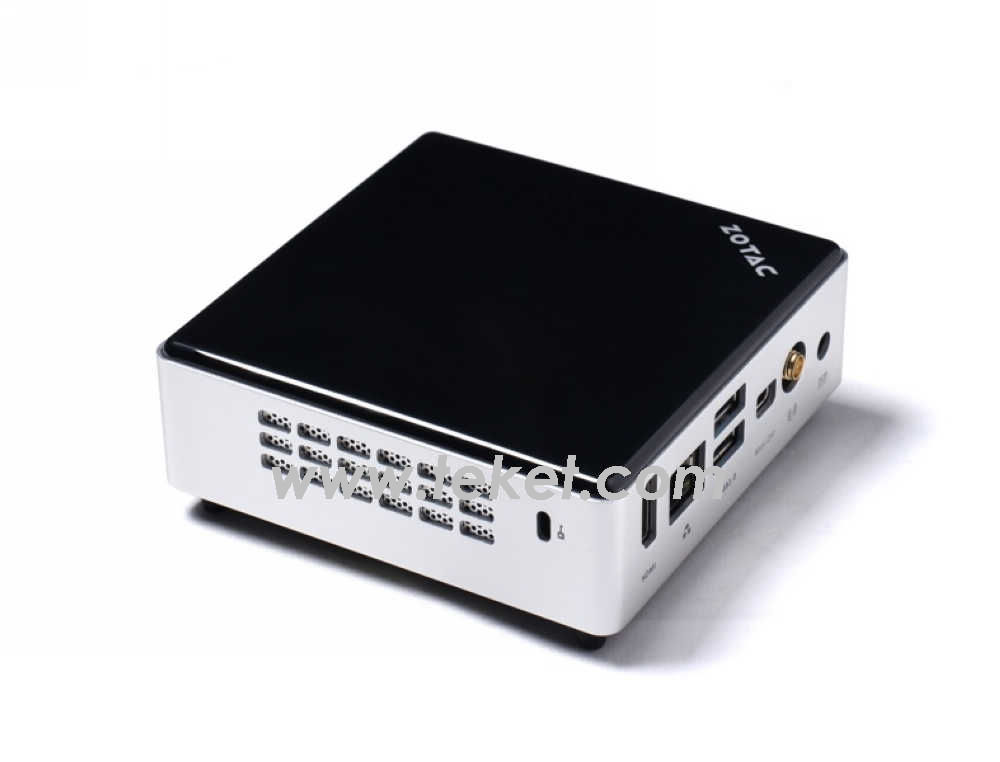

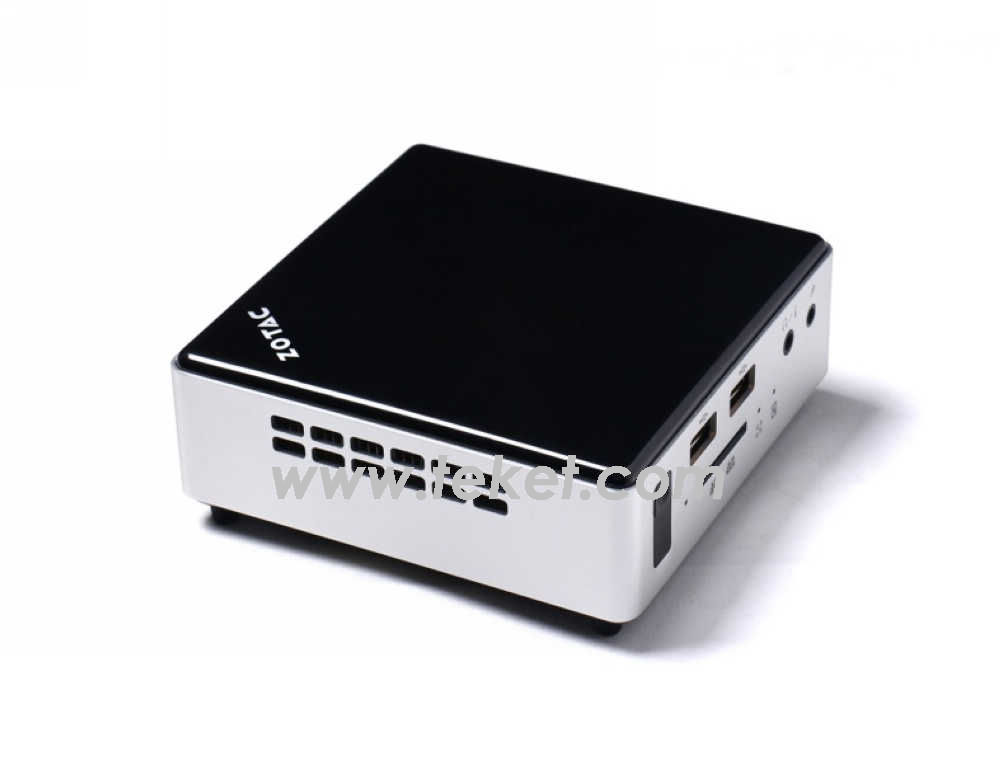

-->> ZOTAC ZBOX MI521NANO XS Dual Core i3-4030U 1.9Ghz with Intel HD4400 graphics HTPC <<--

MI521 nano XS
ZBOX-MI521NXS

MI521 nano XS PLUS
ZBOX-MI521NXS-P
System Memory 4GB(Max 16GB)
mSATA 128GB mSATA SSD

Experience a rich multimedia experience with the energy-efficient ZOTAC ZBOX MI521 nano XS series mini-PCs. Powered by an energy-sipping dual-core Intel Core processor, the ZOTAC ZBOX MI521 nano XS delivers a great computing experience for typical daily tasks such as web browsing, checking e-mail and productivity tasks. Intel HD Graphics technology enhances the ZOTAC ZBOX MI521 nano XS series with excellent multimedia capabilities for stunning and smooth high-definition video playback capabilities. Intel Quick Sync Video technology leverages the ZOTAC ZBOX MI521 nano XS series integrated graphics processor to transcode video formats for mobile devices quickly and easily.

Product Specifications
Computing System
Processor Intel Core i3-4030U(dual core 1.9GHz)
Chipset N/A
System Memory 2 x DDR3L-1600 SO-DIMM Slots,Max 16GB
Graphics Graphics Engine
Intel HD Graphics 4400
Video Output HDMI 1.4a: 4096x2160 @24Hz,mini DisplayPort: 3840x2160 @30Hz
Storage
Hard Drive
Mass Storage None
Optical Drive
mSATA Yes
M.2 None
Card Reader SD/SDHC/SDXC

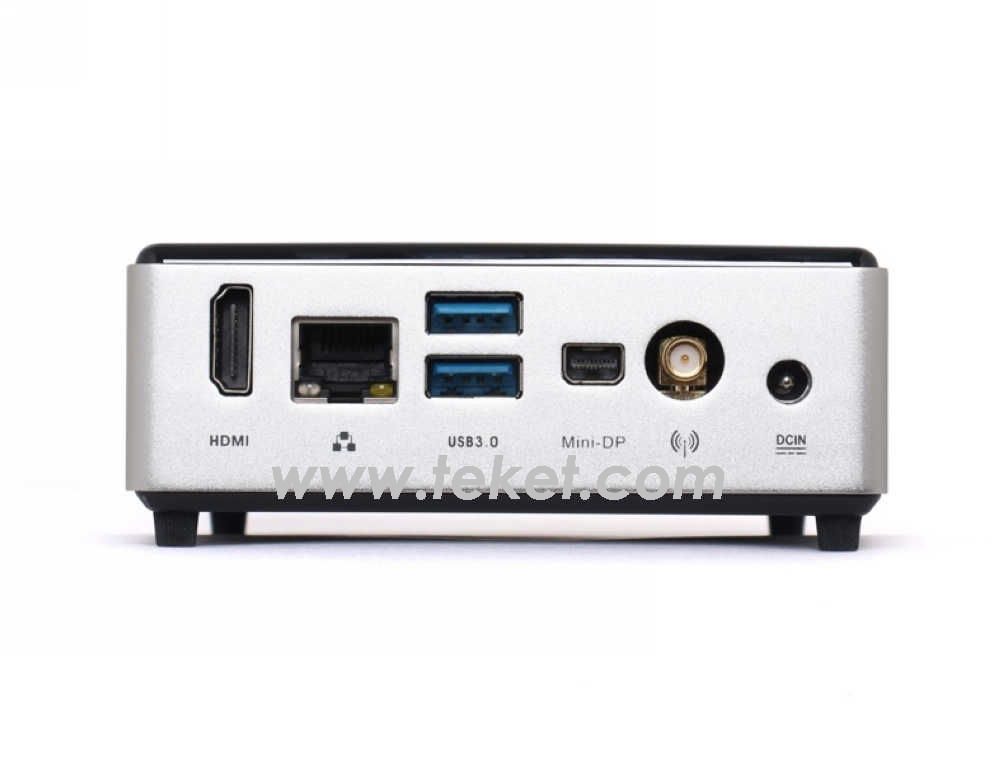

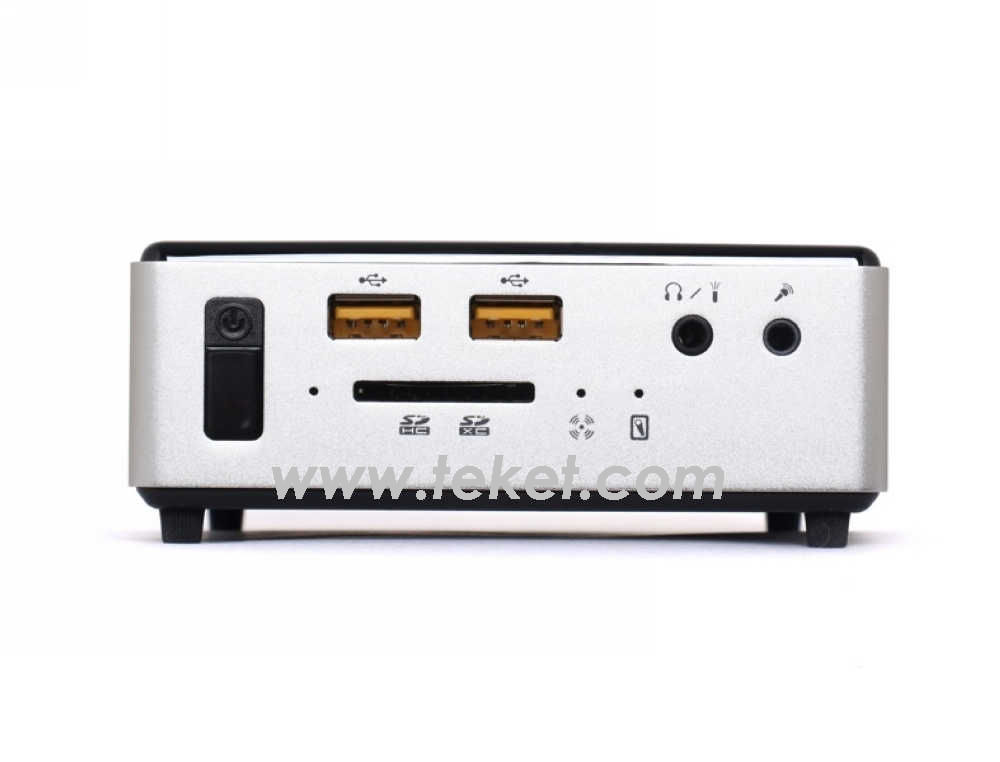

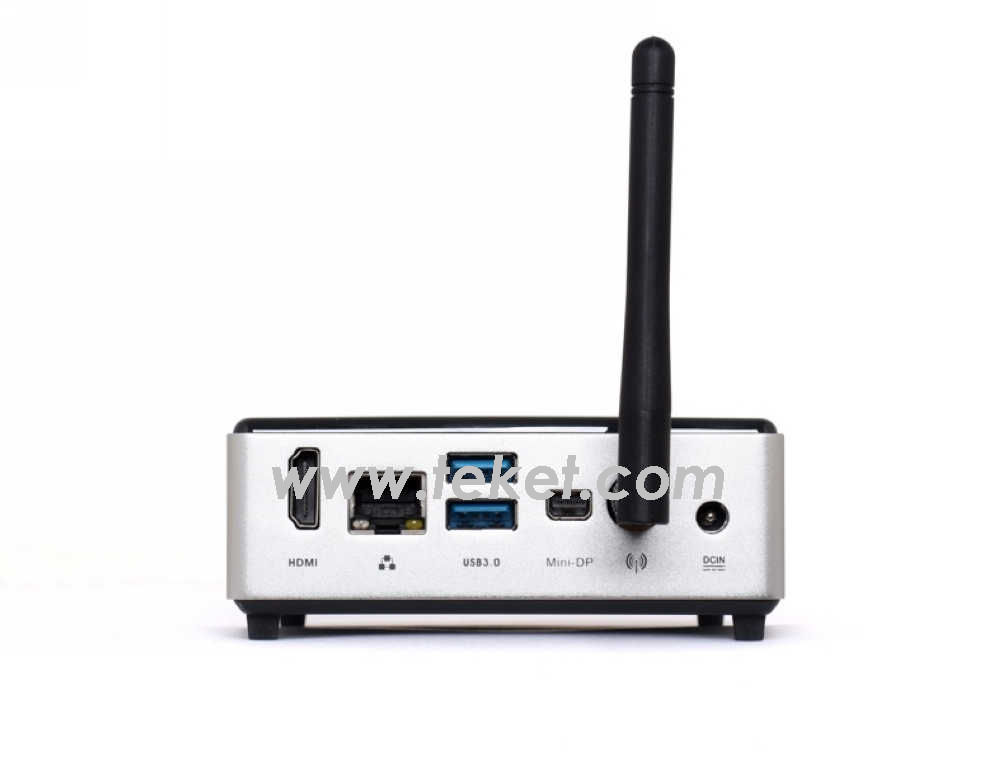

I/O Ports Audio
Microphone, Headphone, SPDIF optical output
USB Port
2 x USB 3.0
2 x USB 2.0
LAN Gigabit LAN

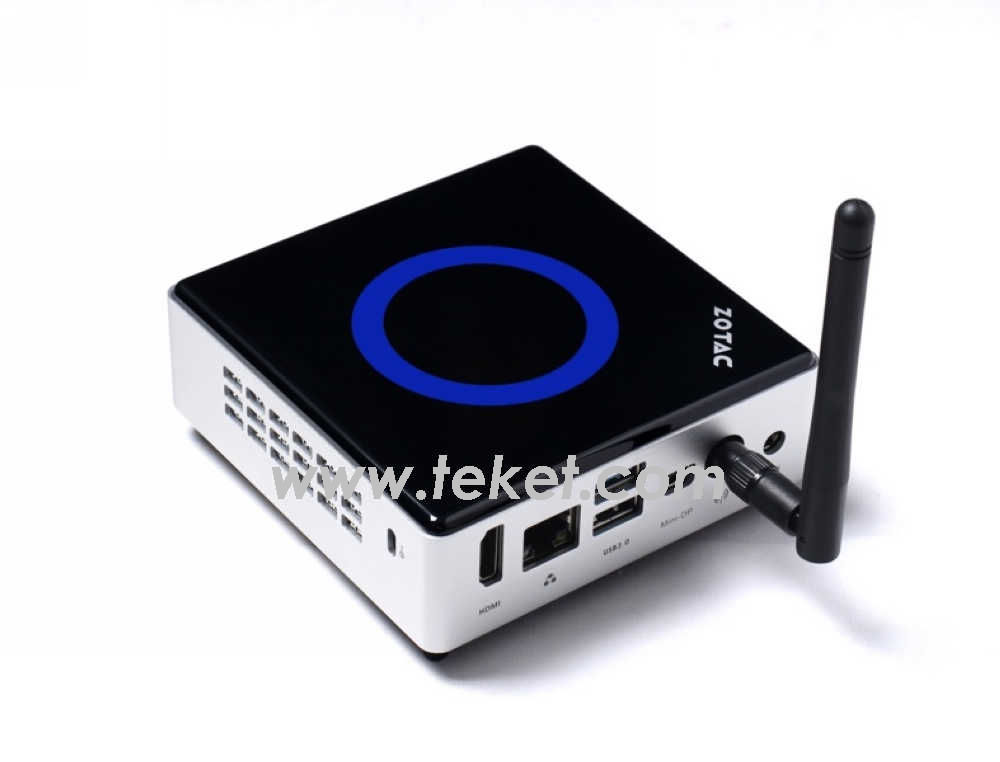

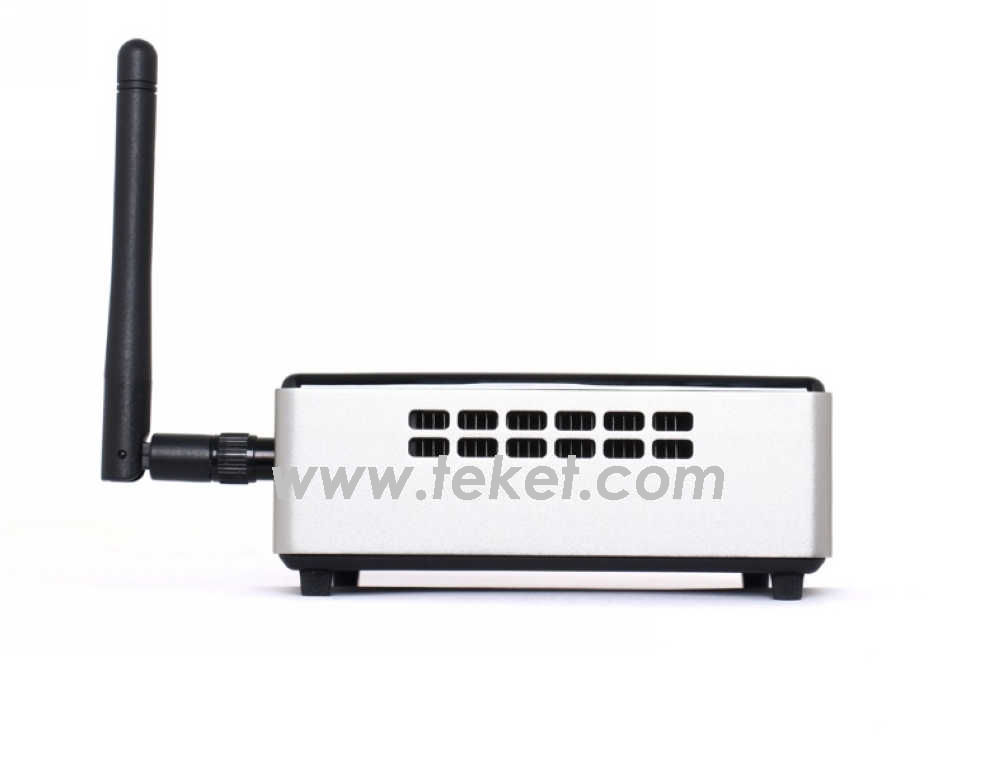

Antenna 1 x WiFi SMA connector
Wifi 802.11ac/b/g/n
Bluetooth
Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical

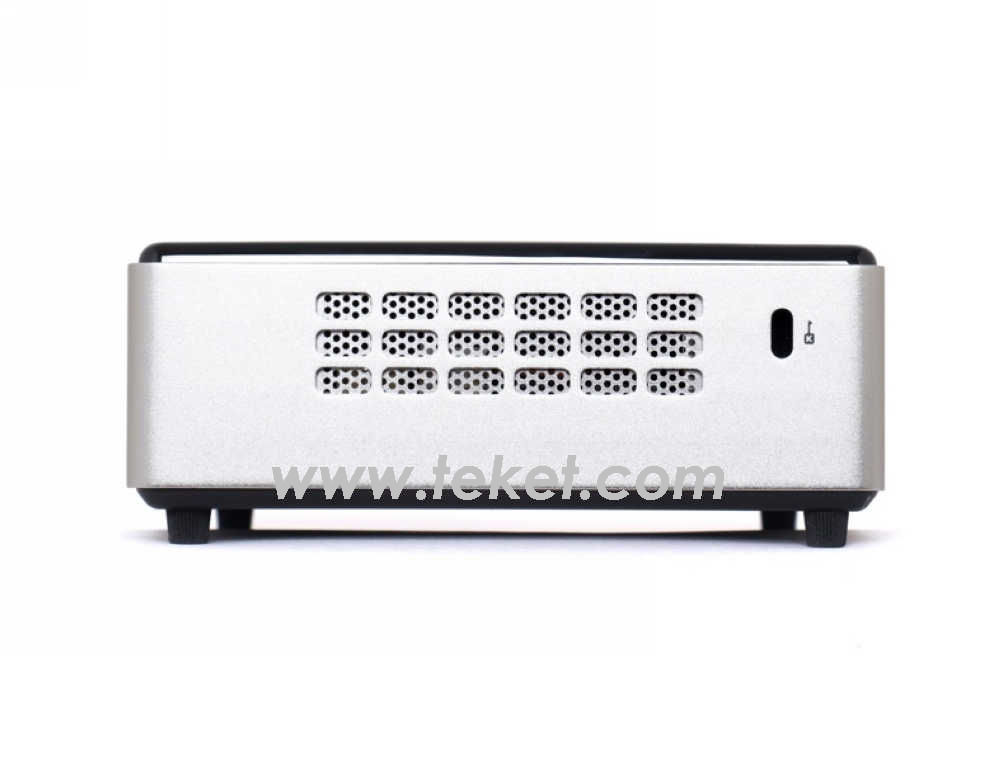

Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system
Fan + Heatsink

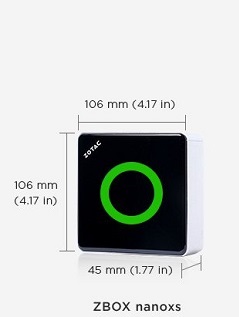

ZBOX Dimensions
106mm x 106mm x 45mm

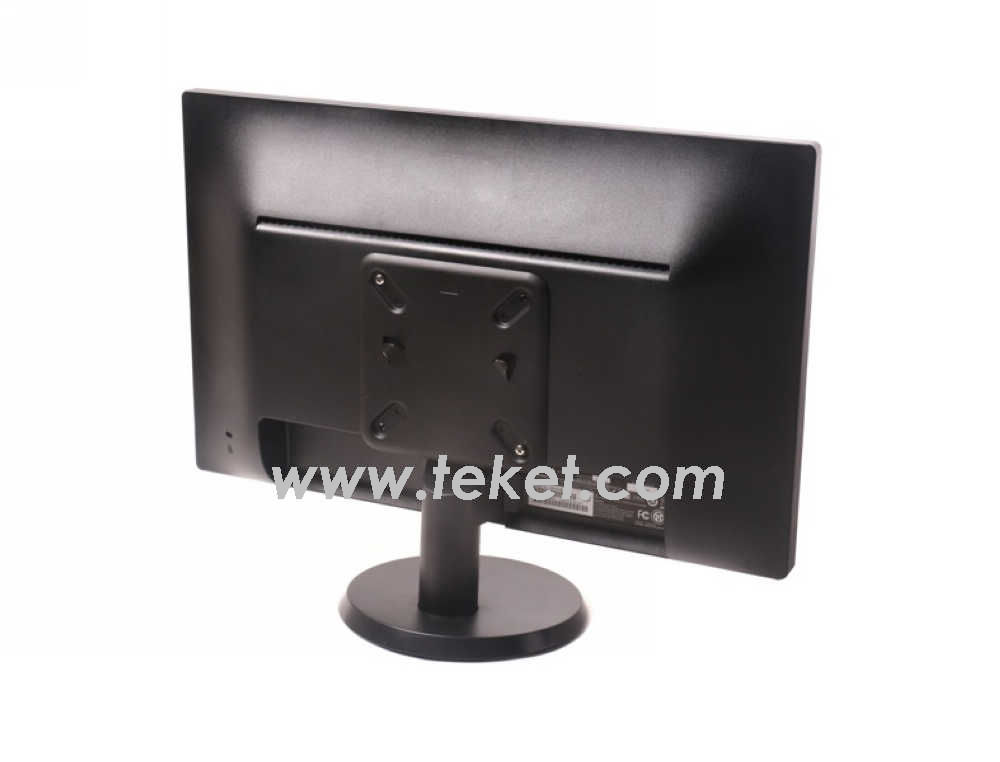

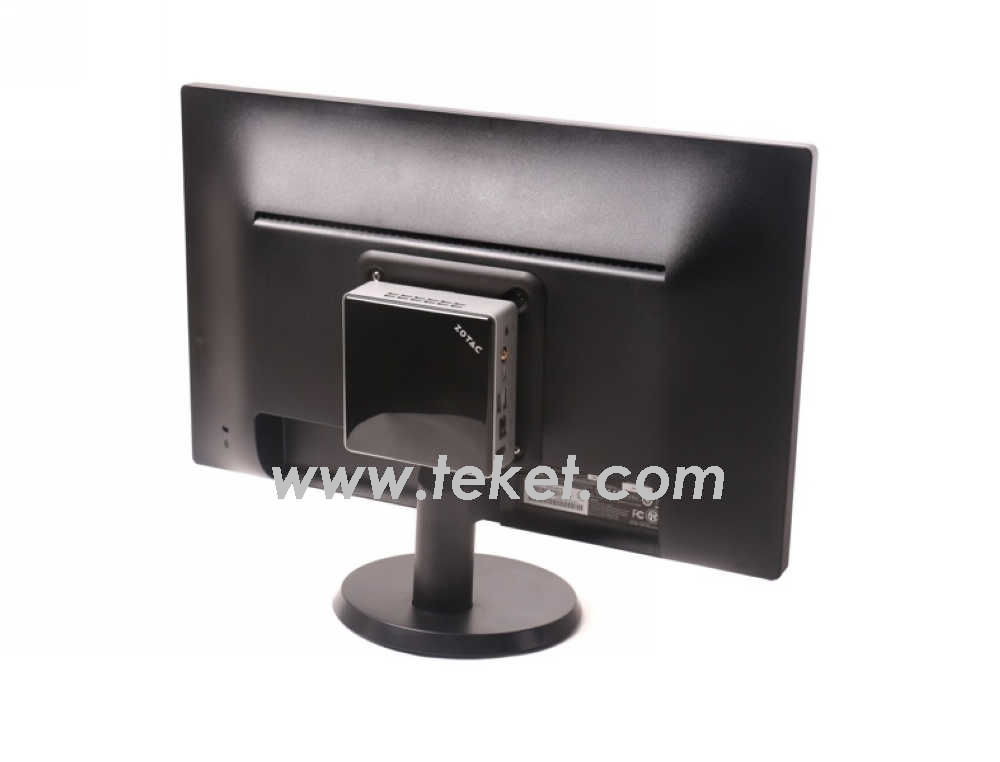

Case Mounting VESA mount kit
Miscellaneous
Supported OS Windows 8 / 7 (32/64-bit)

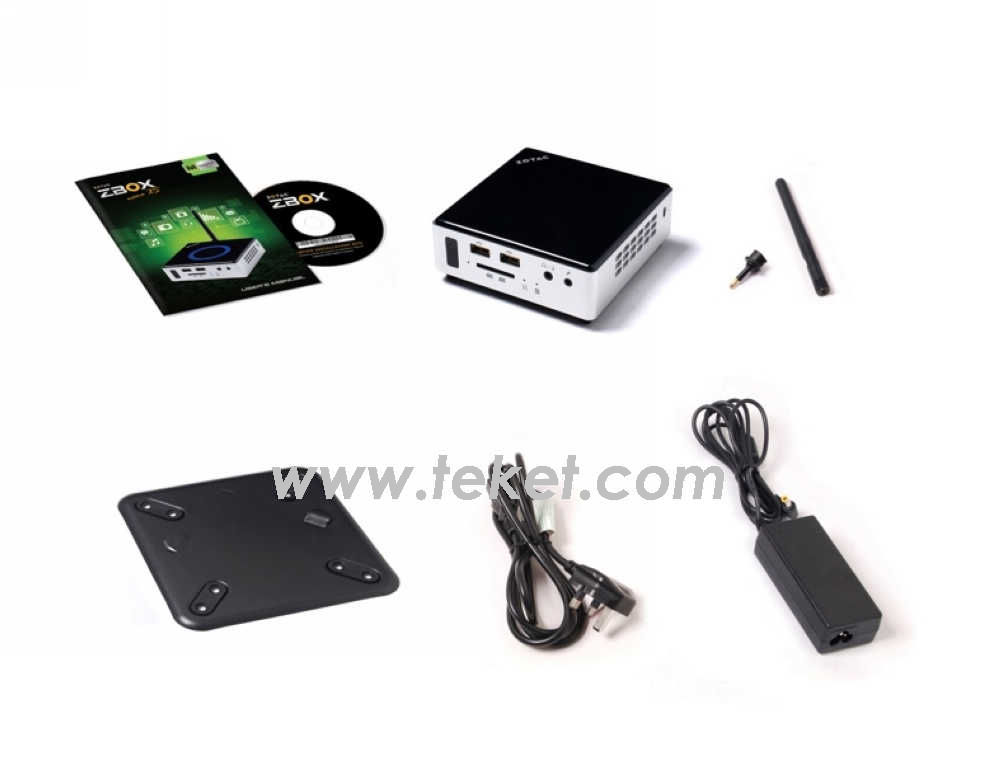

Accessories
1 x WiFi antenna

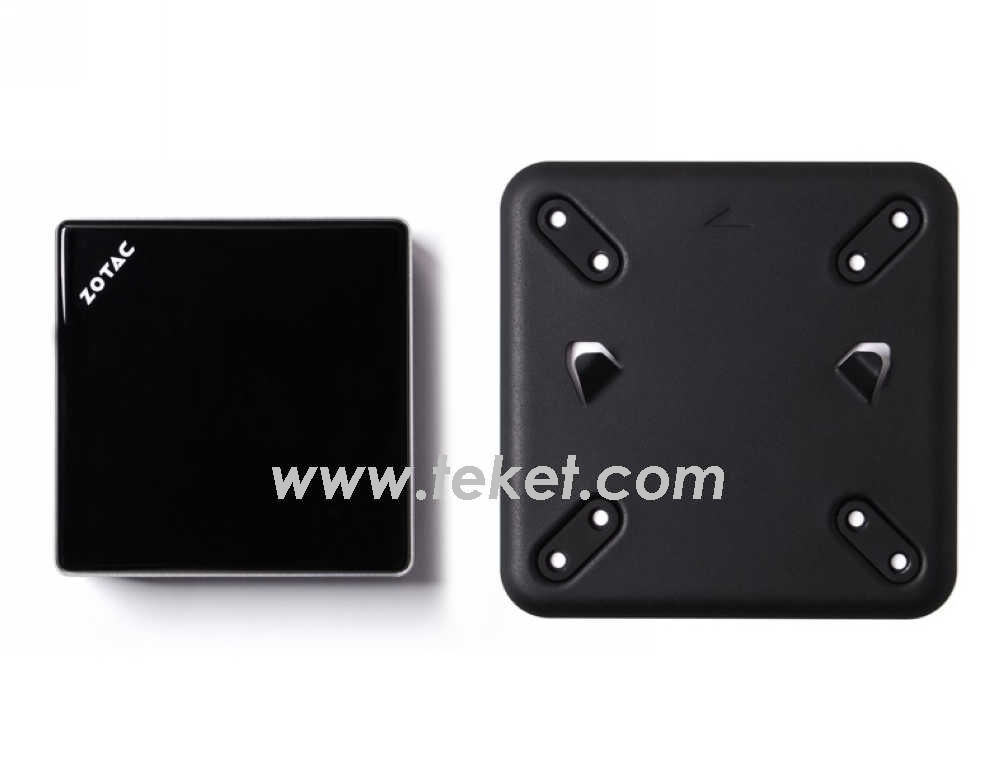

1 x VESA mount
4 x mounting screws
1 x Mini Optical S/PDIF
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x USB drive with O/S driver
1 x driver disc








optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
