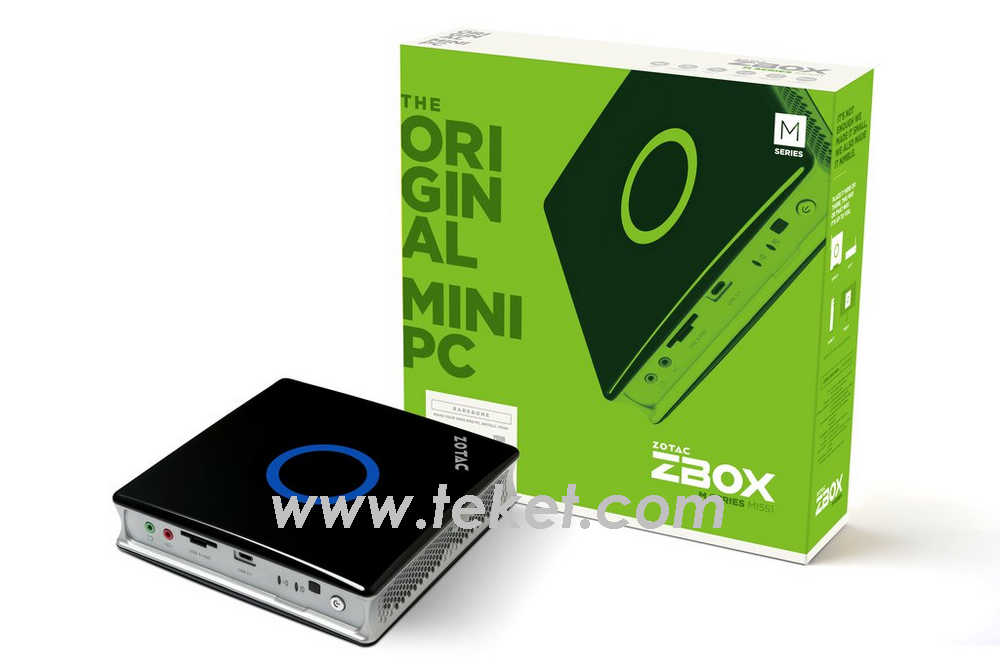

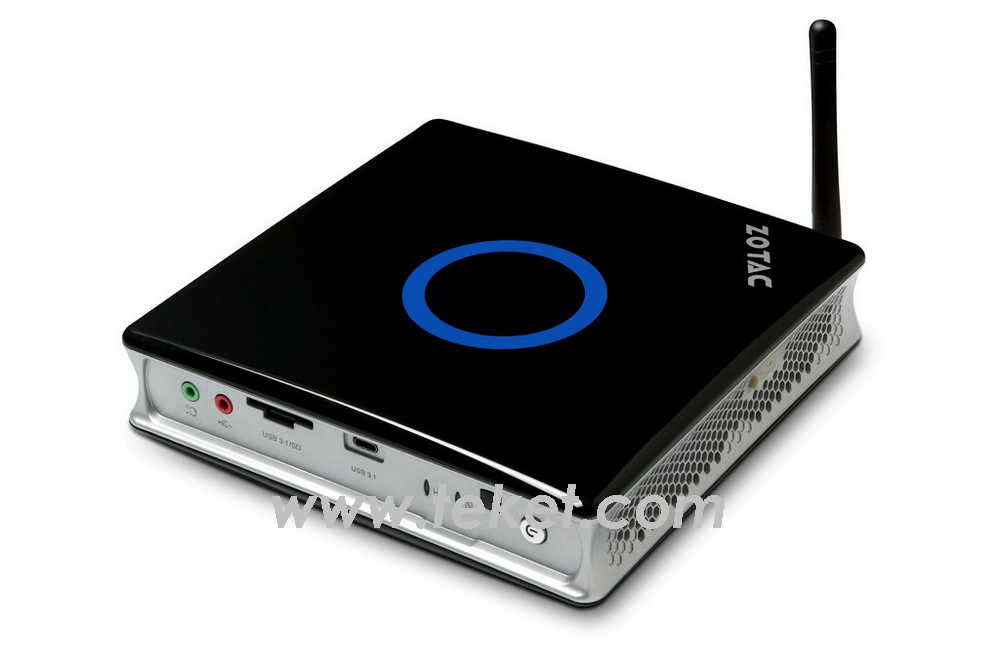

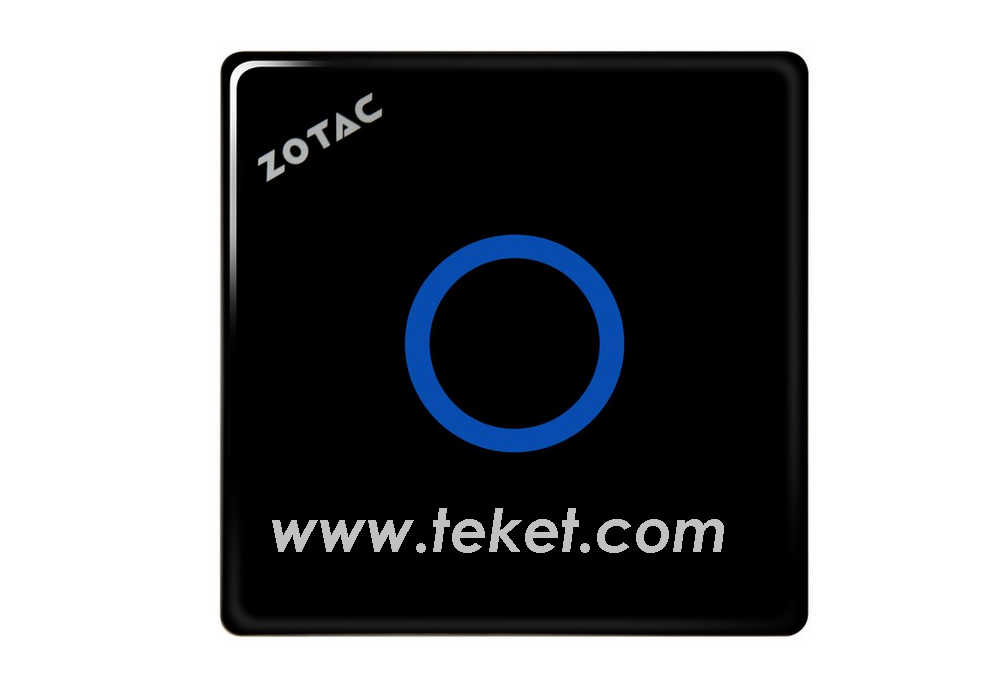

-->> ZOTAC ZBOX MI526 Dual Core I3-7100U 2.4Ghz with Intel HD560 graphics HTPC <<--

MI526
ZBOX-MI526

MI526 PLUS
ZBOX-MI526-P
System Memory 4GB DDR4 SO-DIMM pre-installed (max 32GB)
Hard Drive 120GB SSD

Raise productivity to a whole new level with Intel 7th Generation Kaby Lake processing power. This Mini PC has enough power for compiling complicated codes while maintaining native 4K output. With ecient power and thermal management, the Mini PC performs with minimal carbon footprint. Whether it is home, oce or even at the lab, this Mini PC is the perfect suit.


Product Specifications
Computing System
Processor Intel Core i3-7100U, dual core 2.4GHz
Chipset Intel SoC
System Memory 2 x DDR4-1866/2133 SODIMM Slots, Max 32GB

Graphics
Graphics Engine Intel HD Graphics 620
Video Output
DisplayPort: 3840x2160 @ 60Hz
HDMI: 3840x2160 @ 30Hz

Storage
Hard Drive 1 x 2.5-inch SATA 6Gbps HDD/SSD Slot
Mass Storage N/A
Optical Drive N/A
mSATA N/A
M.2 N/A
Card Reader 3-in-1 (SD/SDHC/SDXC) / USB 3.0 port Combo

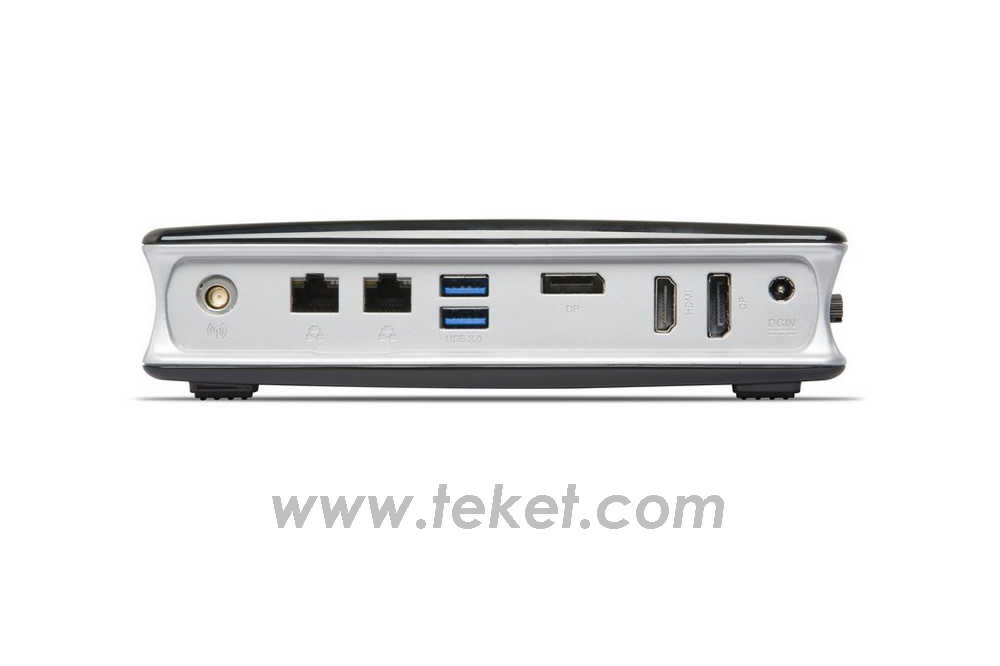

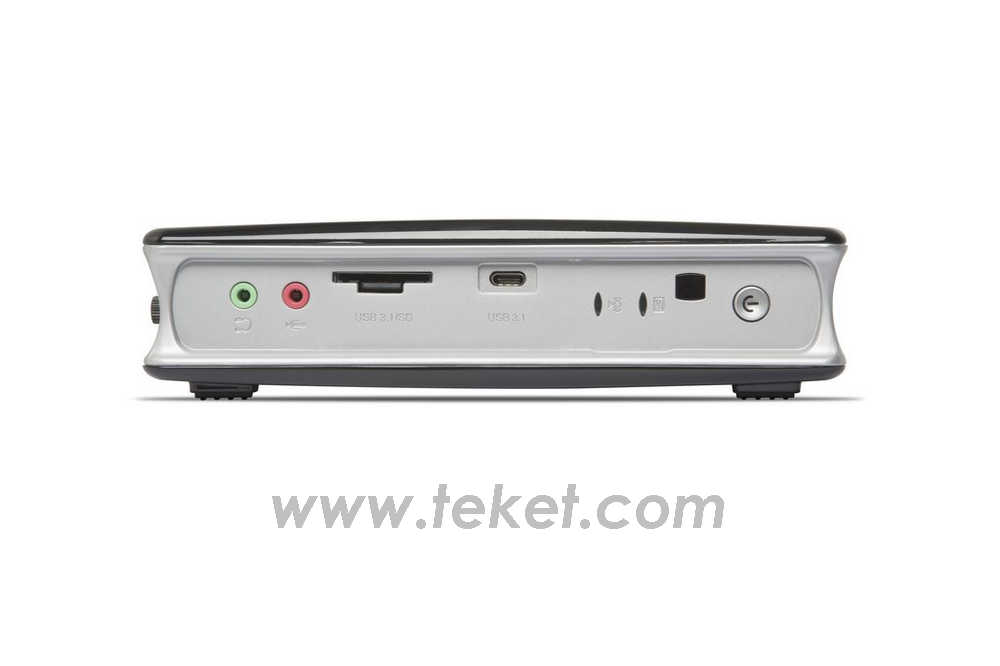

I/O Ports
Audio Stereo output, Microphone
USB Port
2 x USB 3.1 Type-C (front)
3 x USB 3.0 (2x rear, top)
1 x USB 2.0 (rear)
LAN 2 x 10/100/1000 Mbps
Antenna Yes
Wifi 802.11ac
Bluetooth Bluetooth 4.2
Legacy I/O N/A
CIR Infrared Port N/A
Thunderbolt N/A
USB
IDE
VGA

Mechanical
Kensington Lock N/A
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 188mm x 188mm x 44mm
Case Mounting VESA mount kit
Miscellaneous Supported OS Windows 10 (64-bit)

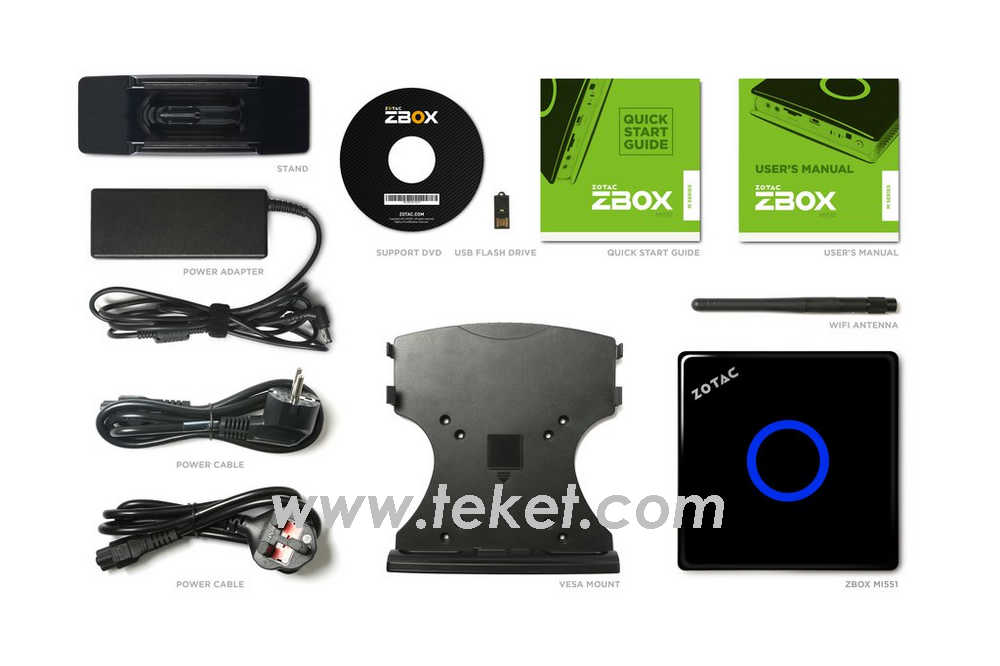

Accessories
1 x WiFi antenna
1 x VESA mount
4 x mounting screws

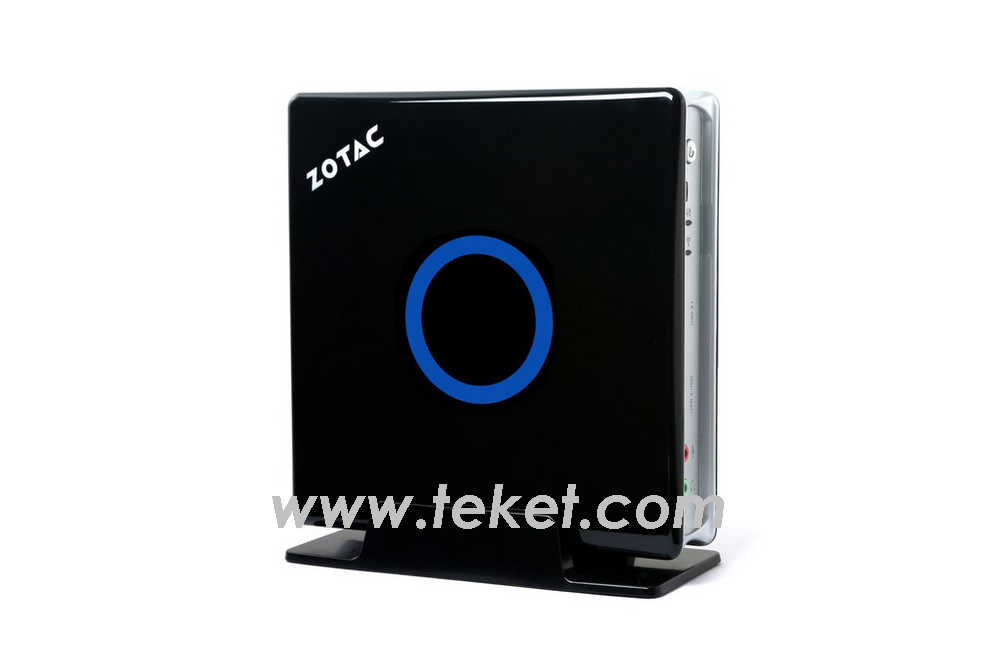

1 x Stand
1 x AC Adapter
1 x Power Cord
1 x Warranty Card
1 x User Manual
1 x Quick Start Guide
1 x USB drive with O/S driver
1 x Driver Disc

Available SKU
ZBOX-MI526-BE
ZBOX-MI526-U
ZBOX-MI526-J
ZBOX-MI526-K




optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
