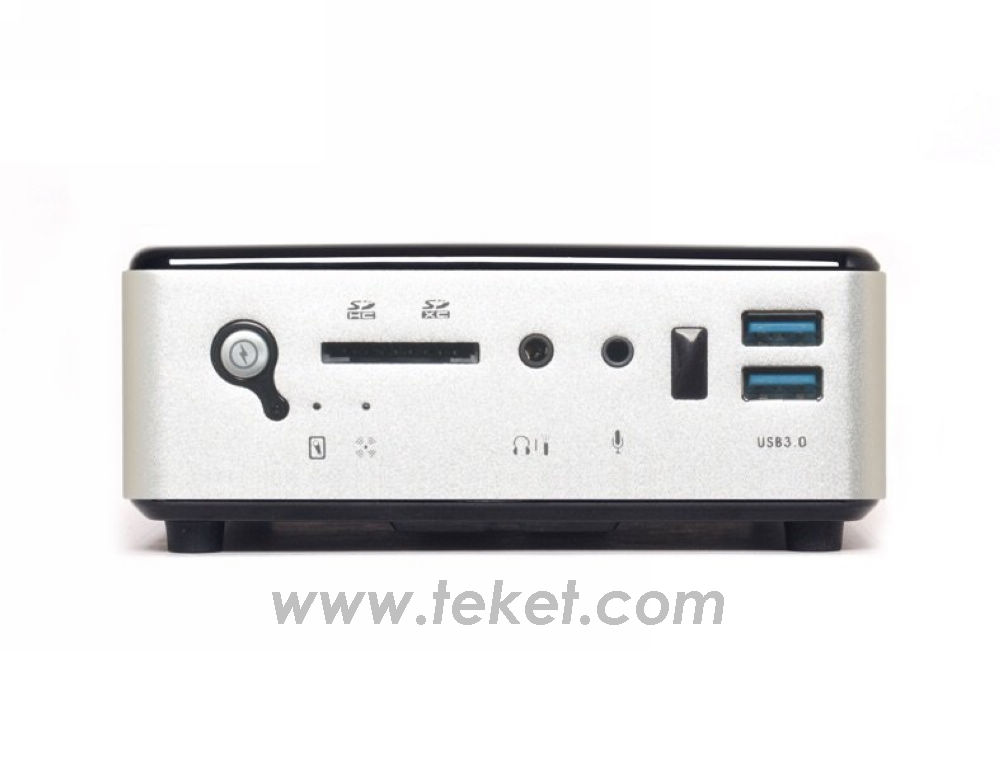

-->> ZOTAC ZBOX MI542NANO Dual Core i5-5200U 2.2Ghz with Intel HD5500 graphics HTPC <<--

MI542 nano
ZBOX-MI542NANO

MI542 nano PLUS
ZBOX-MI542NANO-P
System Memory 4GB(Max 16GB
Mass Storage 500GB 5400RPM SATA HDD

Faster and more power efficient than ever, the ZOTAC ZBOX MI542 nano series is the perfect versatile mini-PC for home and office. By introducing the latest Intel Broadwell CPU into the heart of the series, the mini-PC now achieves better performance while conserving energy. Enjoy doing more with less as the ZOTAC ZBOX MI542 nano series is power packed.
Powered by Intel’s 5th generation Core i5-5200U processor that integrates the latest Intel HD Graphics 5500, the MI542 nano series is able to leverage its powerful CPU to produce native 4K output. All these features plus dual gigabit LAN and dual-band 802.11ac Wi-Fi connectivity with dual-channel ready memory slots, are encased in a frame no larger than a desk calculator that can be VESA mounted almost anywhere you like, blending easily into any environment.

Product Specifications
Computing System
Processor Intel Core i5-5200U (dual core 2.2GHz, up to 2.7GHz)
Chipset N/A
System Memory 2 x DDR3L-1600 SO-DIMM Slots, Max 16GB
Graphics Graphics Engine
Intel HD Graphics 5500
Video Output HDMI 1.4a: 4096x2160 @24Hz,mini DisplayPort: 3840x2160 @30Hz
Storage
Hard Drive
Mass Storage 1 x 2.5" SATA 6Gbps HDD/SSD Slot
Optical Drive
mSATA None
M.2 None
Card Reader SD/SDHC/SDXC

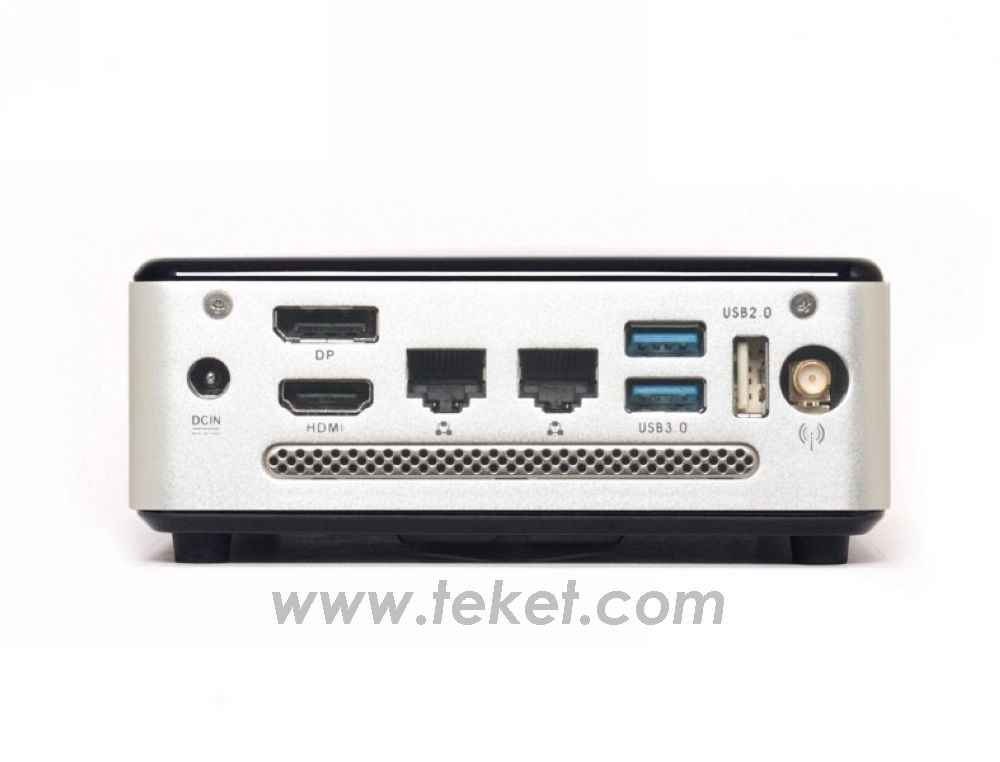

I/O Ports Audio
Microphone, Headphone, SPDIF optical output
USB Port
4 x USB 3.0
1 x USB 2.0
LAN Dual Gigabit LAN
Antenna 1 x WiFi SMA connector
Wifi 802.11ac/b/g/n
Bluetooth
Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system
Fan + Heatsink
ZBOX Dimensions
127mm x 127mm x 45mm

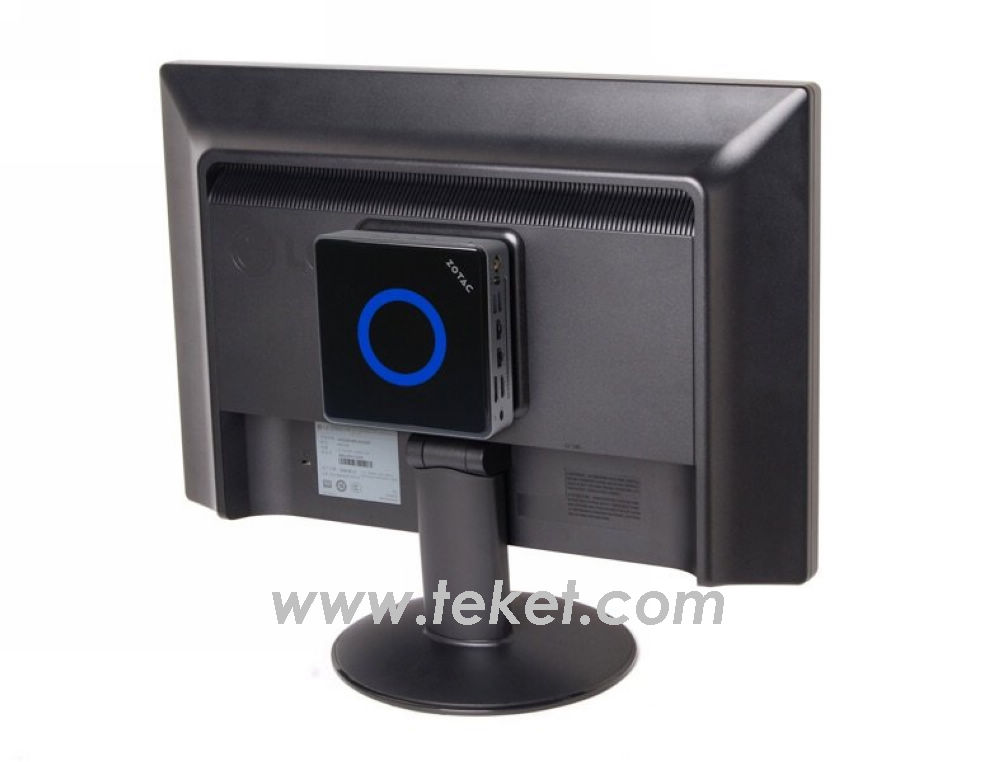

Case Mounting VESA mount kit
Miscellaneous
Supported OS Windows 8 / 7 (32/64-bit)

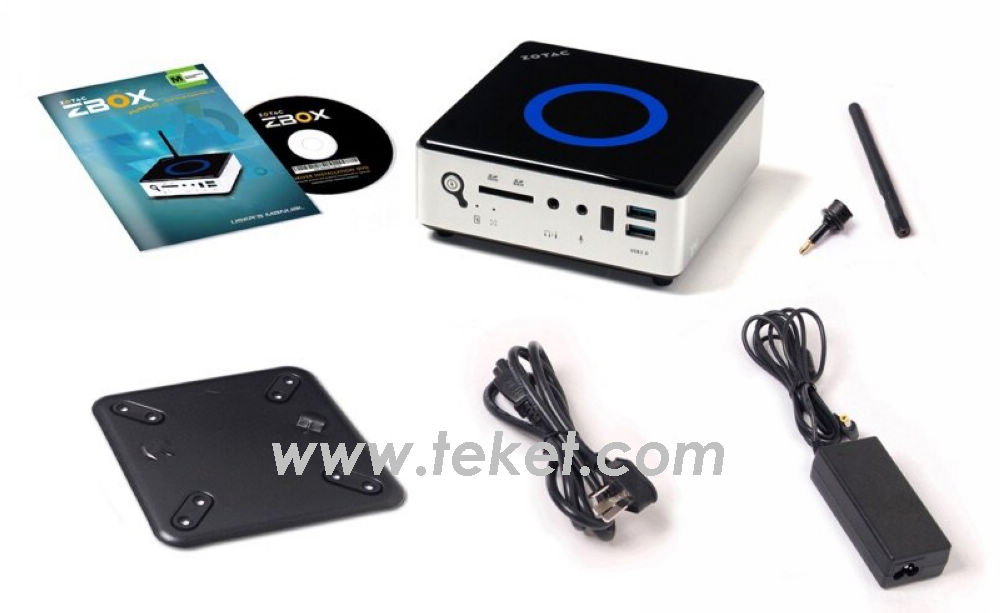

Accessories
1 x WiFi antenna
1 x VESA mount
4 x mounting screws
1 x Mini Optical S/PDIF
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x USB drive with O/S driver
1 x driver disc

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
