>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC

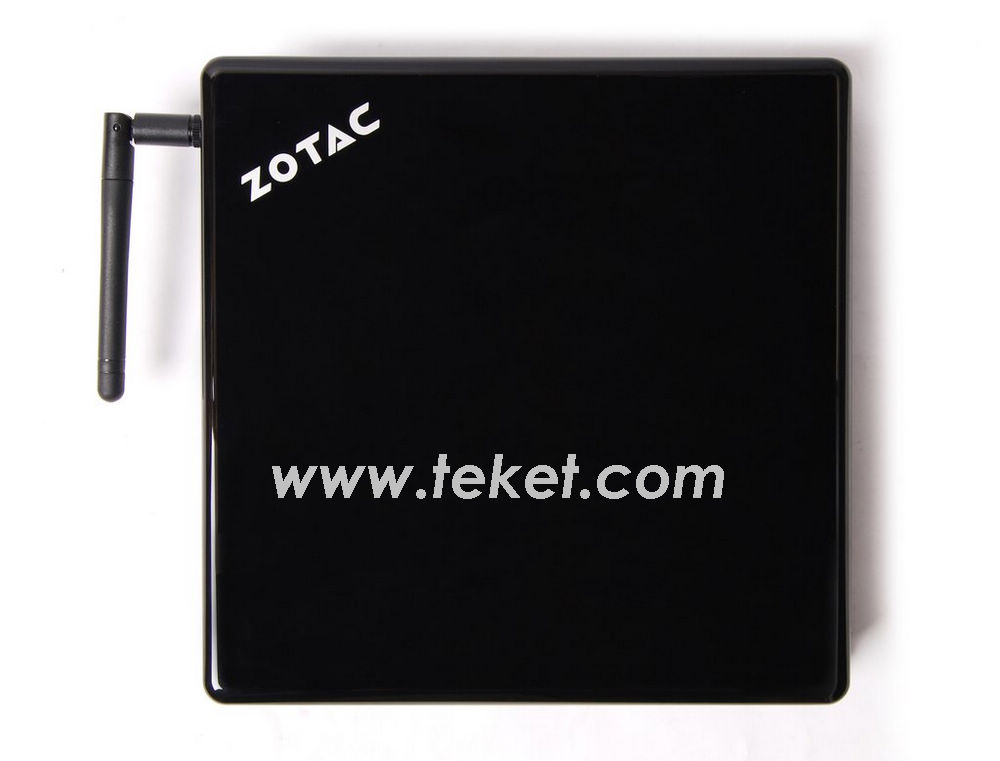

-->> ZOTAC ZBOX MN320 Quad Core Pentium J2900 2.41Ghz with NVIDIA GeForce GT 730 HTPC <<--

MN320
ZBOX-MN320

MN320 PLUS
ZBOX-MN320-P

System Memory 4GB (Max 8GB)
Mass Storage 500GB 5400RPM SATA HDD

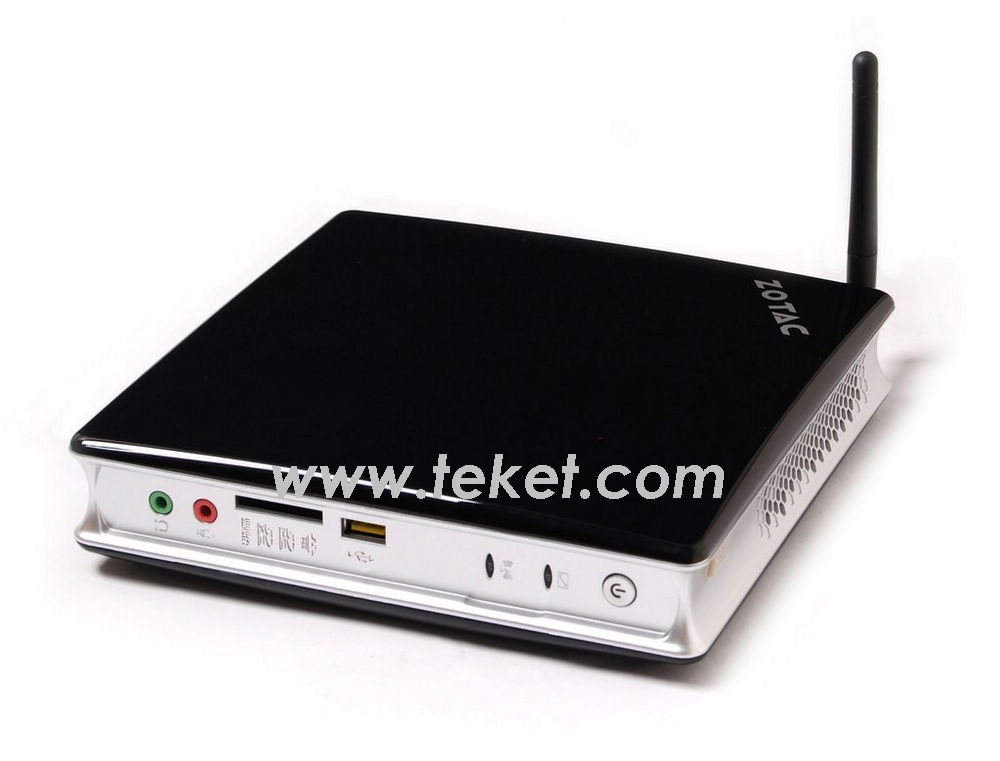

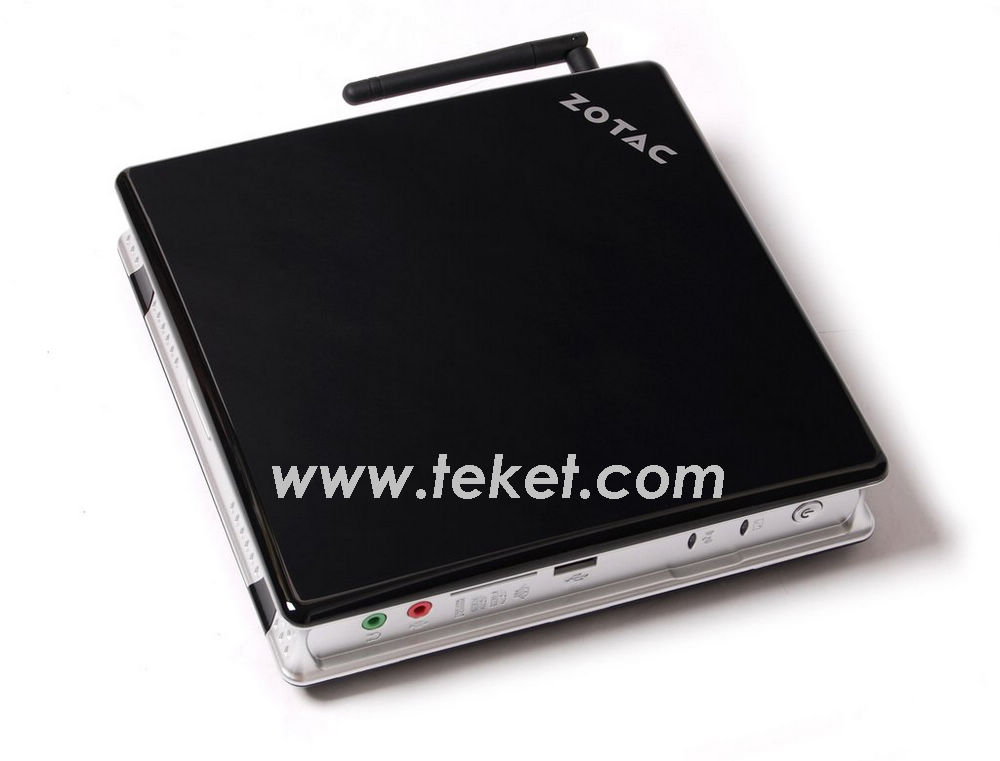

Enjoy eco-friendly computing with superior energy-efficiency and stunning graphics capabilities with the ZOTAC ZBOX MN320 series mini-PC powered by an NVIDIA GeForce GT 730 graphics processor and Intel Pentium processor. NVIDIA GeForce GT 730 graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX MN320 series mini-PC with NVIDIA CUDA, hardware decode acceleration, and 4K video playback technologies for eco-friendly computing with premium visual capabilities.

High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX MN320 series mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3L-1333 SO-DIMM slots enable users to customize the internals of the ZOTAC ZBOX MN320 series to their own needs while USB ports and a 6-in-1 memory card reader (SD/SDHC/SDXC/MS/MS Pro/MMC) provide greater external expansion capabilities for perfect eco-friendly computing.


Product Specifications
Computing System
Processor Intel Pentium J2900 (quad core 2.41 GHz, up to 2.66 GHz)
Chipset Intel, NVIDIA
System Memory 2 x DDR3L-1333 SODIMM slots, Max 8GB

Graphics
Graphics Engine NVIDIA GeForce GT 730
Video Output HDMI 1.4a, Dual Link DVI-I
Storage Hard Drive
Mass Storage 1 x 2.5" SATA 6Gbps HDD/SSD Slot
Optical Drive
mSATA None
M.2 None
Card Reader SD/SDHC/SDXC/MMC/MS/MS Pro

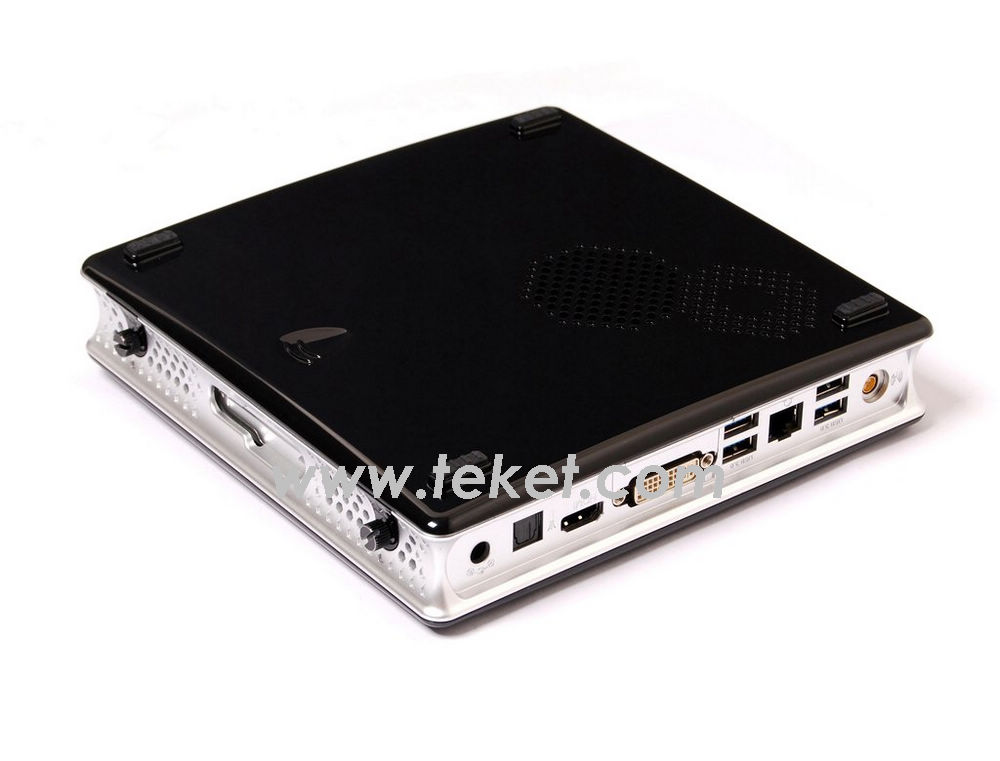

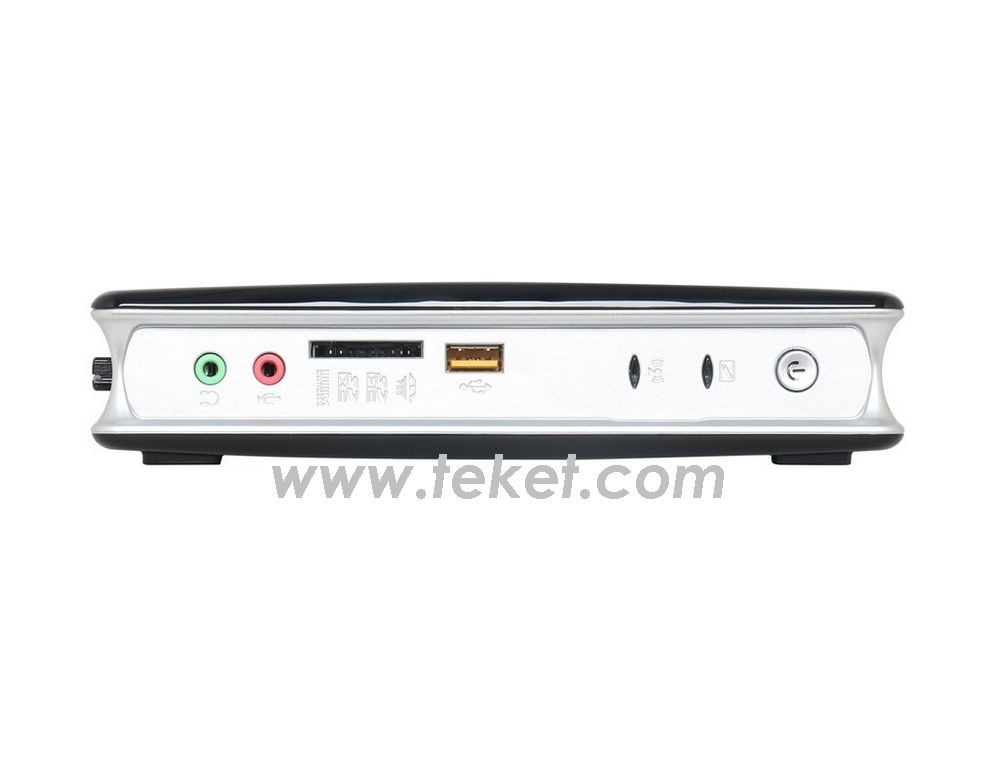

I/O Ports
Audio Microphone, Headphone,
SPDIF optical output
USB Port
1 x USB 3.0
5 x USB 2.0
LAN Gigabit LAN
Antenna 1 x WiFi SMA connector
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port None
Expansion None
USB
IDE
VGA
Mechanical
Kensington Lock None
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 188mm x 188mm x 44mm

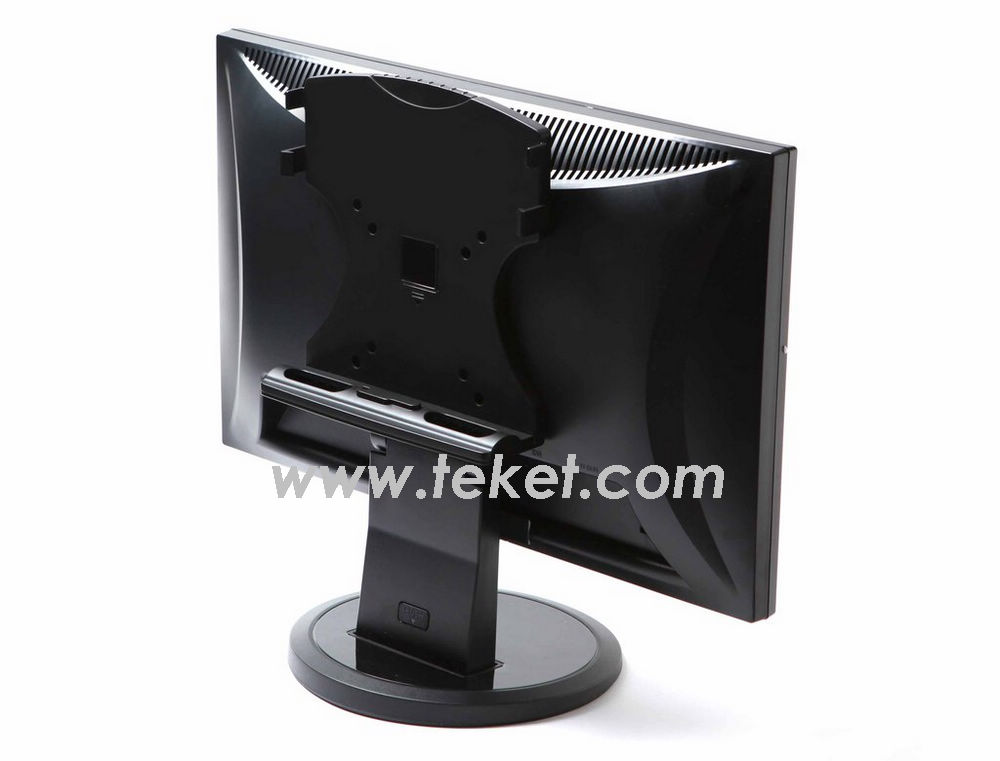

Case Mounting VESA mount kit

Miscellaneous
Supported OS Windows 8 / 7 (32/64-bit)
Accessories
1 x WiFi antenna
1 x VESA mount
4 x mounting screws
1 x DVI-VGA adapter
1 x stand
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x driver disc




optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
