>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC




-->> ZOTAC ZBOX-OI320 mini pc Celeron Dual Core 2957U with Intel HD Graphic HTPC <<--

OI320
ZBOX-OI320

OI320 PLUS
ZBOX-OI320-P
System Memory 4GB(Max 16GB)
Mass Storage 500GB 5400RPM SATA HDD

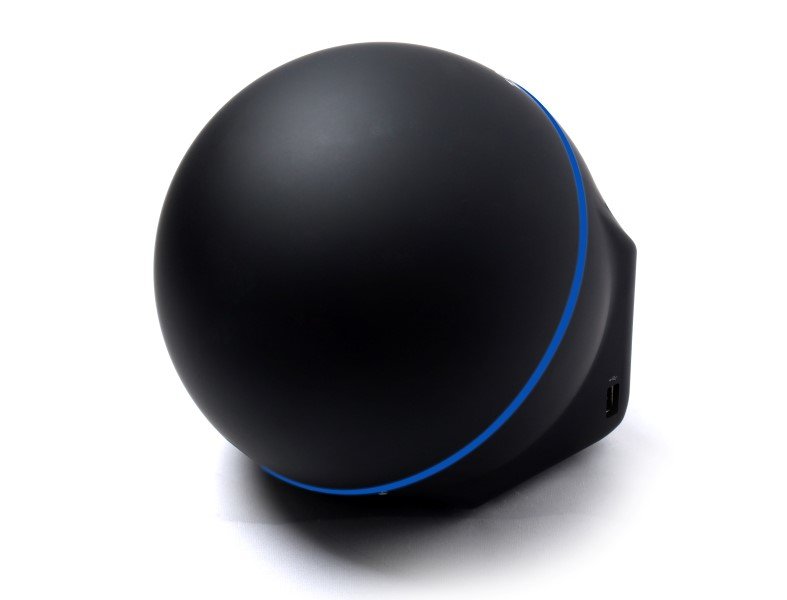

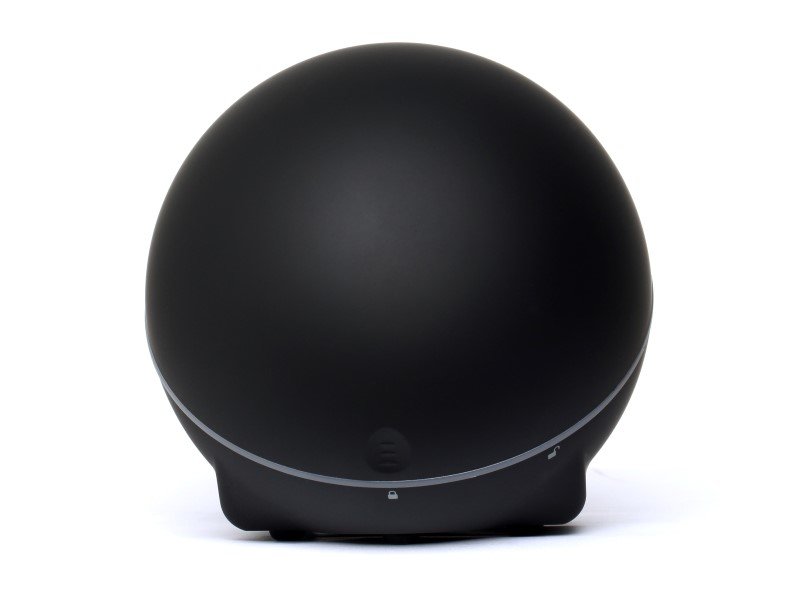

Express your individuality with the ZBOX Sphere OI320 series mini-PC from ZOTAC. The ZOTAC ZBOX Sphere OI320 series mini-PC features a sleek and stylish orb shape that’s unique yet functional for everyday computing and multimedia tasks. The orb-shape makes the ZOTAC ZBOX Sphere OI320 series the easiest mini-PC to customize. Simply twist the top of the ZBOX Sphere OI320 to gain access to the DDR3 SO-DIMM slot, 2.5-inch HDD drive bay and mSATA SSD slot to install or upgrade your components.


Product Specifications
Computing System
Processor Intel Celeron 2957U(dual core 1.4 GHz)
Chipset N/A
System Memory 2 x DDR3L-1600 SODIMM Slots,Max 16GB
Graphics
Graphics Engine Intel HD Graphics
Video Output HDMI 1.4a, DisplayPort
Storage
Hard Drive
Mass Storage 1 x 2.5" SATA 6bps HDD/SSD Slot
Optical Drive
mSATA Yes
M.2 None
Card Reader SD/SDHC/SDXC/MMC

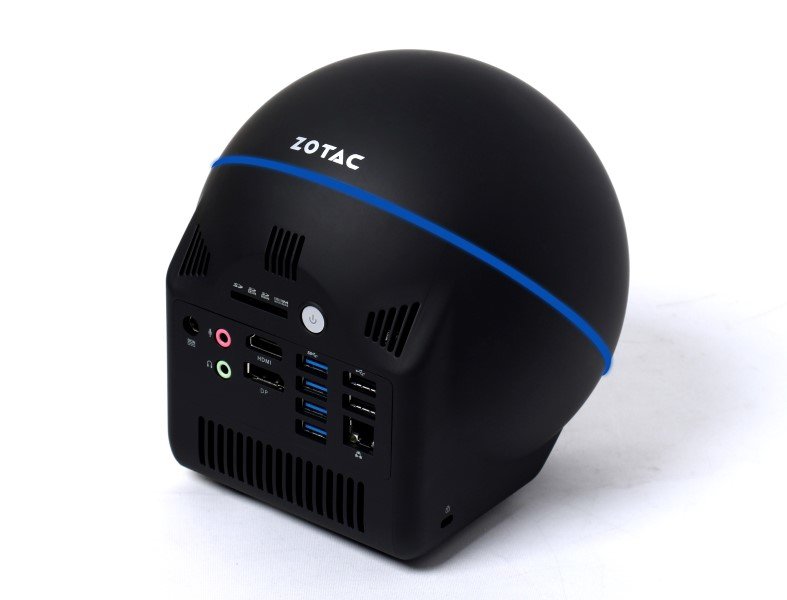

I/O Ports
Audio Microphone
USB Port 4 x USB 3.0, 3 x USB 2.0
LAN Gigabit LAN
Antenna Internal
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O
None
CIR Infrared Port None
Expansion
None
USB
IDE
VGA

Mechanical
Kensington Lock Yes
LED Indicators Power
Power Supply AC Adapter O/P: DC 19/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 161mm x 154mm x 154mm
Case Mounting N/A
Miscellaneous
Supported OS
Windows 8 / 7 (32/64-bit)

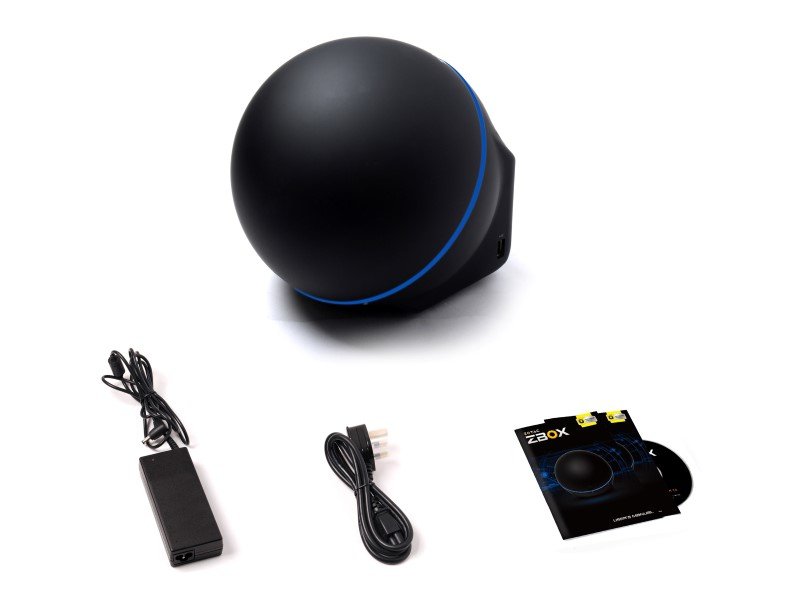

Accessories
1 x WiFi antenna
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x driver disc



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
