-->> ZOTAC ZBOX-PI220 mini pc Atom Quad Core x5-Z8300 with Intel
HD Graphic HTPC <<--
PI220
ZBOX-PI220-W2B
Advancing innovation with more power
in one of the tiniest form factors. Prepare for durable performance in
a package small enough to slip into any pocket. We’ve equipped a tiny
active smart fan that varies fan speed for a balance of speed, temperature,
and quiet. Pre-installed with Windows 10, it’s ready to hit the ground
running out of the box.
Product Specifications
Computing System
Processor Intel Atom x5-Z8300 (quad core, 1.44 GHz, up to 1.84 GHz)
Chipset Intel
System Memory 2GB DDR3L-RS1600
Graphics
Graphics Engine Intel HD Graphics
Video Output

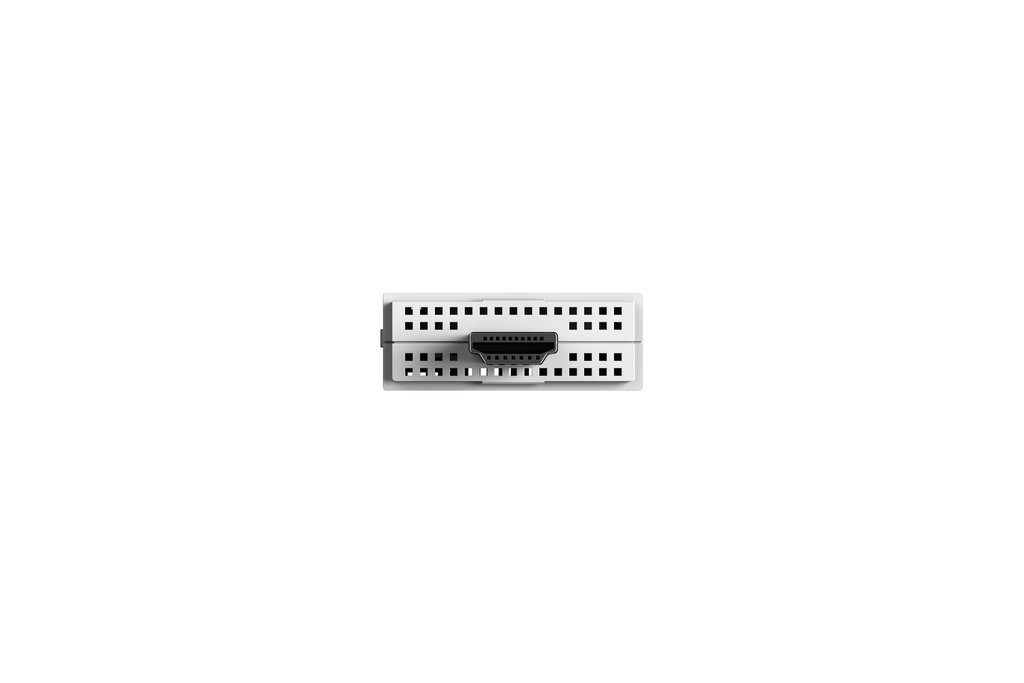

HDMI
Storage
Hard Drive
Mass Storage 32GB eMMC
Optical Drive
mSATA None
M.2 None
Card Reader micro SD/SDHC/SDXC

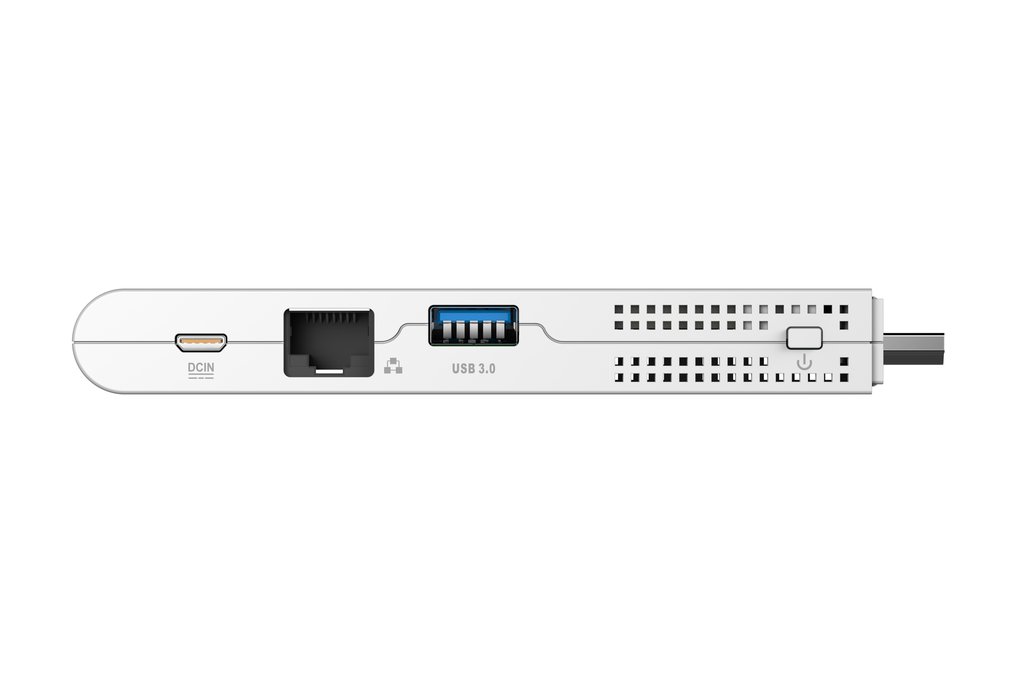

I/O Ports
Audio
USB Port 1 x USB 3.0
LAN 10/100 Ethernet
Antenna Yes
Wifi 802.11ac
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port None
Thunderbolt None
USB
IDE
VGA
Mechanical
Kensington Lock None
LED Indicators
Power
Power Supply C Adapter O/P: DC 5V/15W
Cooling system SmartFan
ZBOX Dimensions 131.5mm x 42.2mm x 15.8mm
Case Mounting
VESA Mounting Bracket
Miscellaneous
Supported OS Windows 10 Home 32-bit pre-installed

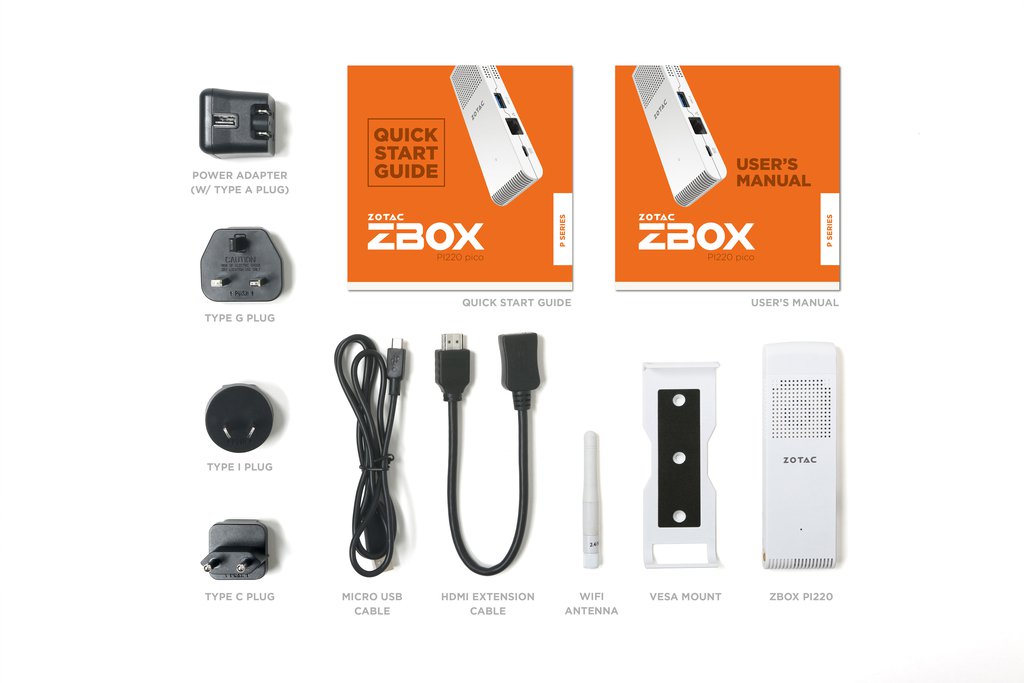

Accessories
1 x Universal power adapter
1 x VESA mounting bracket
3 x Mount screws
1 x O/S Recovery DVD
1 x HDMI extension cable
1 x Antenna
1 x Micro USB power cable
optional accessories: 2.4G wireless keyboard with
mouse (trackball or touchpad)
|
