>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC




-->> ZOTAC ZBOX-PI221-W3B mini pc Atom Quad Core x5-Z8300 with Intel HD Graphic HTPC <<--

PI221
ZBOX-PI221-W3B

Advancing innovation with more power in one of the tiniest form factors. Prepare for durable performance in a package small enough to slip into any pocket. Enhanced thermal system enables passive cooling for a balance of speed, temperature, and silence. Pre-installed with Windows 10, the award winning ZBOX PI221 is ready to hit the ground running out of the box.

Product Specifications
Computing System
Processor Intel Atom x5-Z8300 (quad core, 1.44 GHz, up to 1.84 GHz)
Chipset Intel System Memory 2GB DDR3L-RS1600

Graphics
Graphics Engine Intel HD Graphics
Video Output HDMI
Storage
Hard Drive
Mass Storage 32GB eMMC
Optical Drive
mSATA None
M.2 None
Card Reader micro SD/SDHC/SDXC

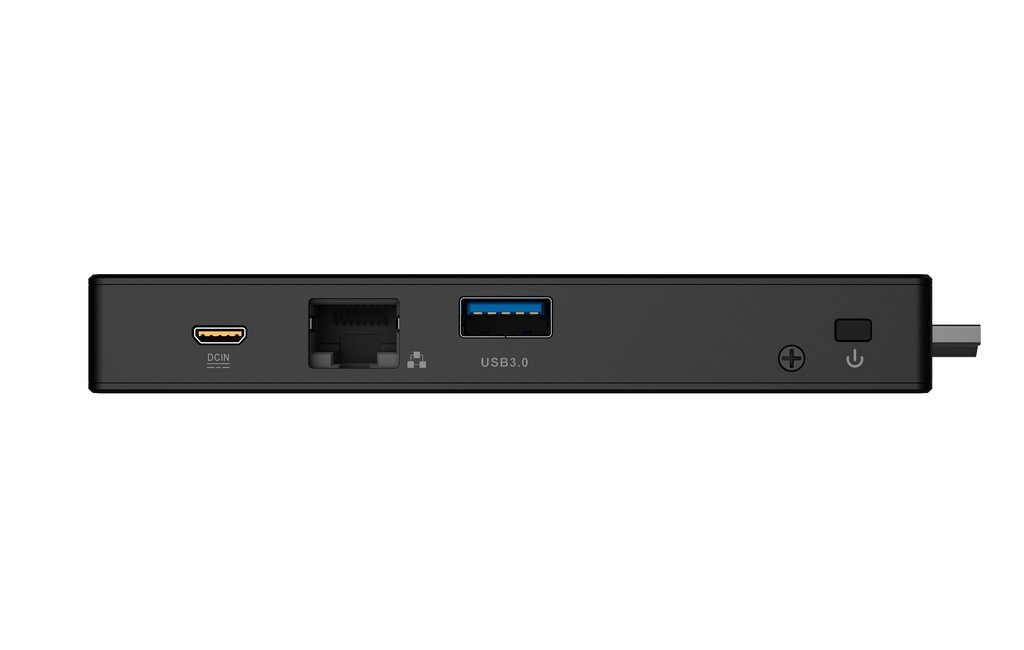

I/O Ports
Audio
USB Port 1 x USB 3.0
LAN 10/100 Ethernet
Antenna Internal
Wifi 802.11ac
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port None
Thunderbolt None
USB
IDE
VGA

Mechanical
Kensington Lock None
LED Indicators Power
Power Supply
AC Adapter O/P: DC 5V/15W
Cooling system Passive
ZBOX Dimensions 131.38mm x 42.5mm x 17mm
Case Mounting
VESA Mounting Bracket
Miscellaneous
Supported OS Windows 10 Home Pre-installed
Accessories
1 x Universal power adapter
1 x VESA mounting bracket
2 x Mount screws
1 x O/S Recovery DVD
1 x HDMI extension cable
1 x Micro USB power cable



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
