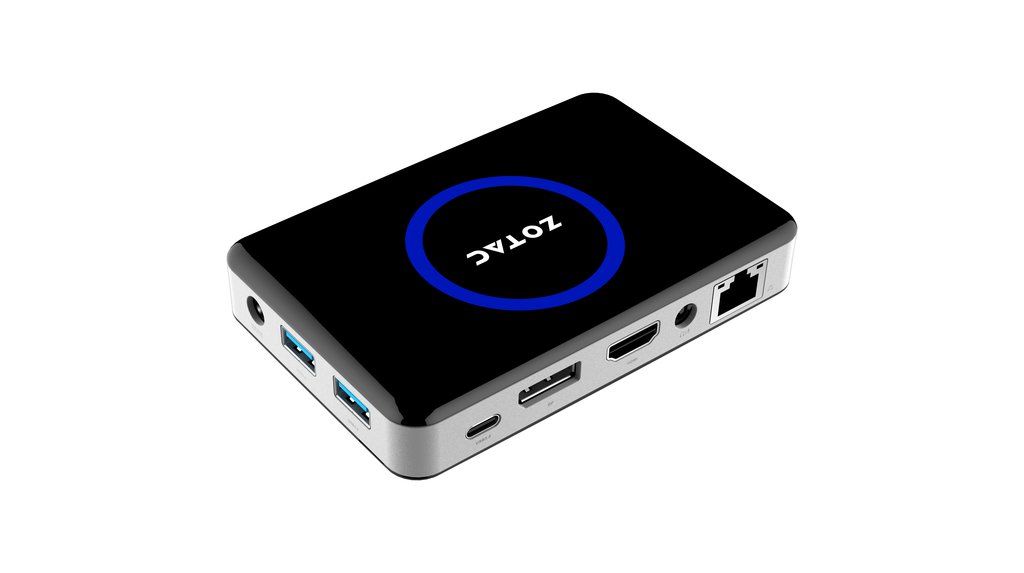

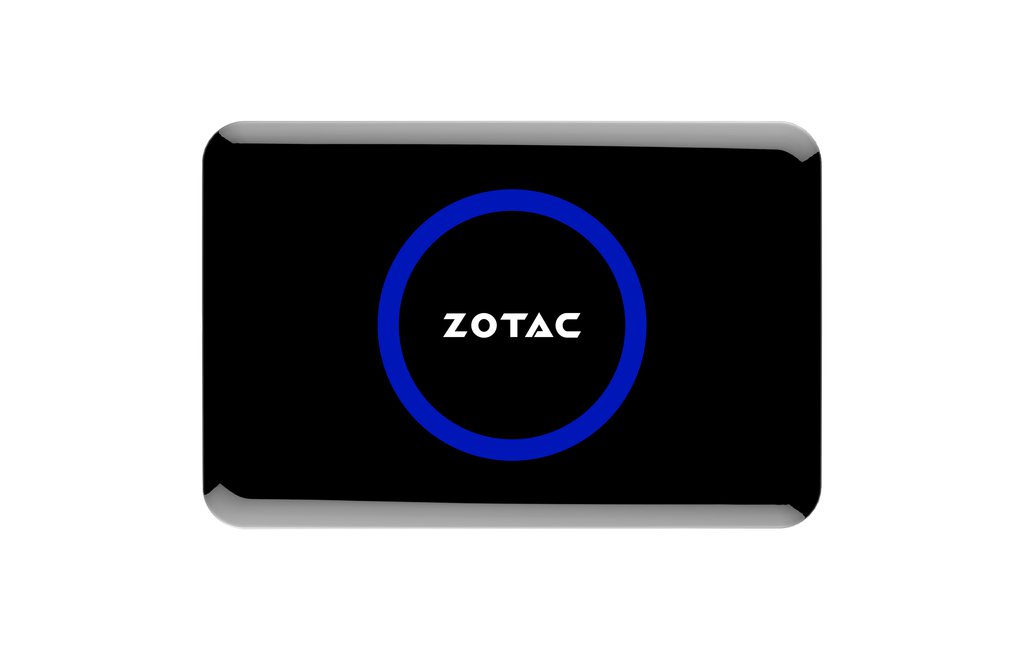

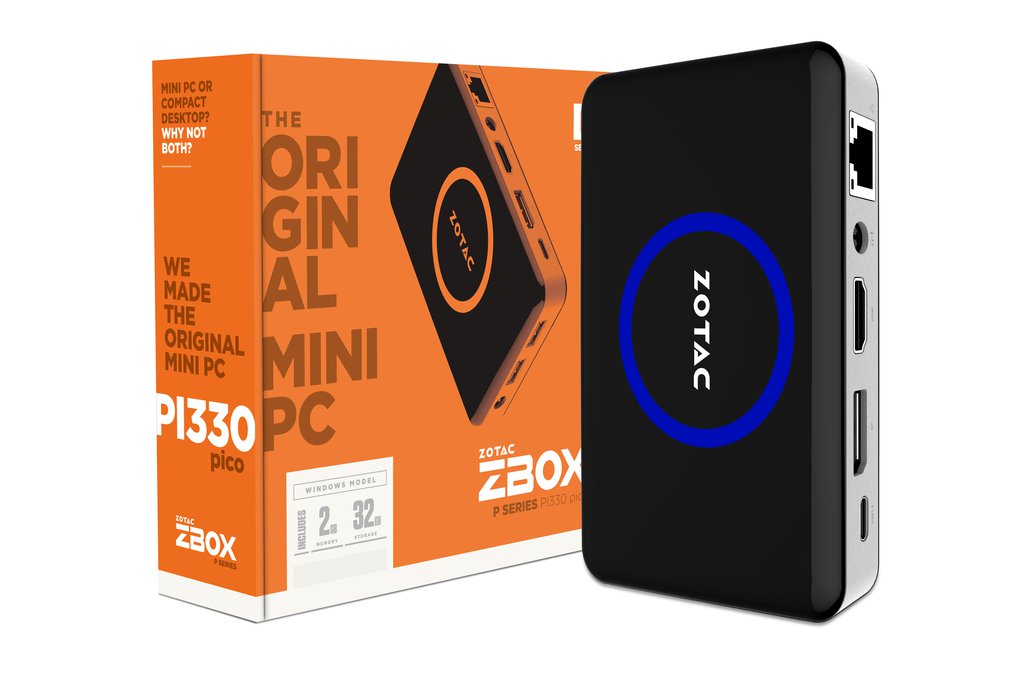

-->> ZOTAC ZBOX-PI330 mini pc Atom Quad Core x5-Z8500 with Intel HD Graphic HTPC <<--

PI330
ZBOX-PI330-W2B

ZOTAC ZBOX PICO doubles the viewing capacity with more power in one of the smallest form factors. Prepare for durable performance in a package small enough to slide into your pocket, making it nimble for easy placement. Designed for silent performance, we’ve equipped an ever more powerful fanless cooling solution to answer to the power upgrade while maintaining no moving parts. With HDMI and DisplayPort outputs available, greater display options are available, or use both to double your desktop size. Pre-installed with Windows, it’s ready to hit the ground running out of the box.

Product Specifications
Computing System
Processor Intel Atom x5-Z8500 (quad core, 1.44GHz up to 2.24GHz)
Chipset Intel
System Memory 2GB LPDDR3
Graphics
Graphics Engine Intel HD Graphics
Video Output
DP1.1a,
HDMI 1.4b
Storage Hard Drive
Mass Storage 32GB eMMC
Optical Drive
mSATA None
M.2 None

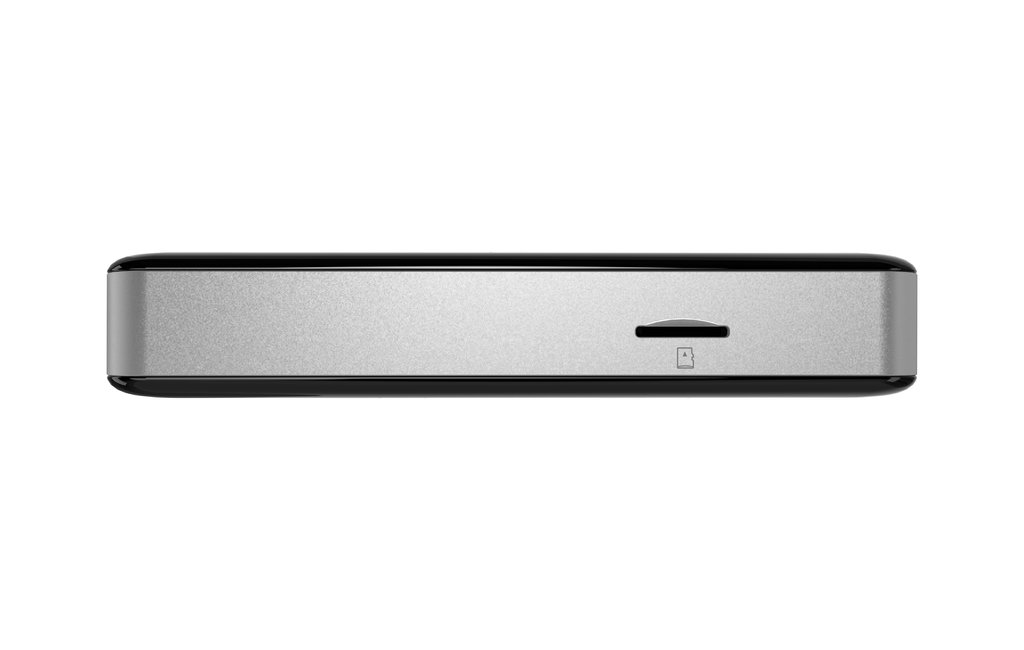

Card Reader micro SD/SDHC/SDXC

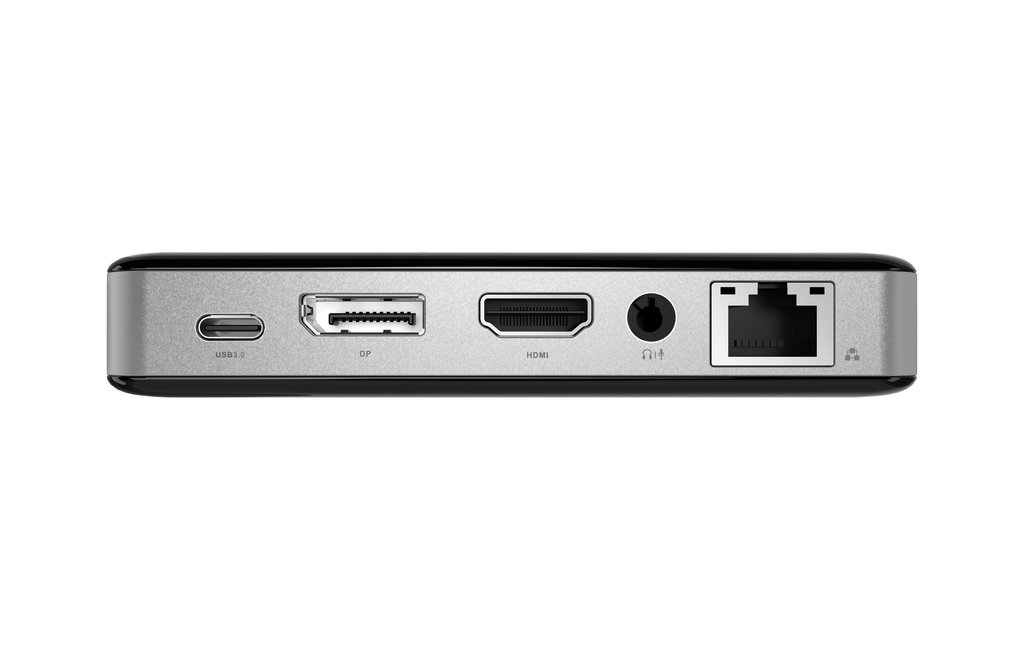

I/O Ports
Audio 1 x headphone/microphone combo jack

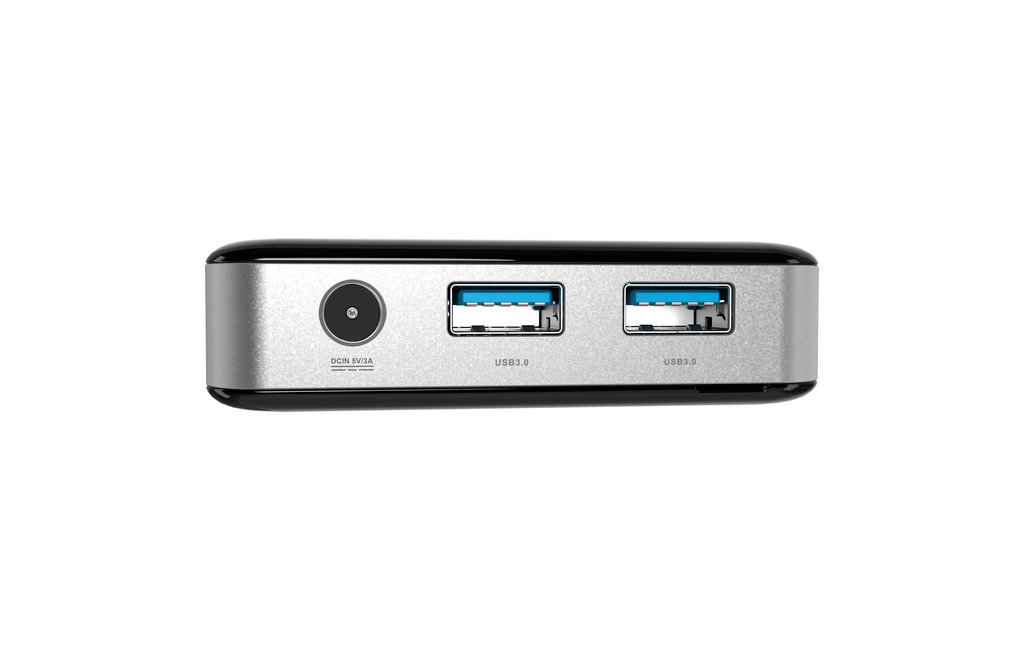

USB Port
1 x USB 3.0 Type-C
2 x USB 3.0
LAN 10/100/1000 Ethernet
Antenna Internal
Wifi 802.11ac
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port None
Thunderbolt None
USB
IDE
VGA
Mechanical
Kensington Lock None

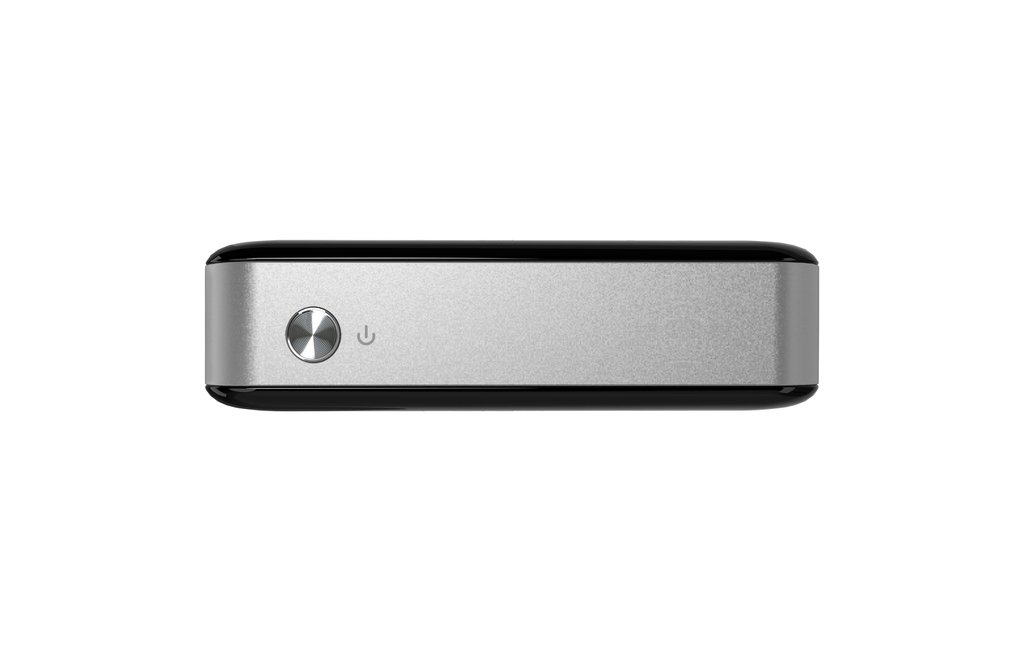

LED Indicators Power
Power Supply AC Adapter O/P: DC 5V/15W
Cooling system Passive
ZBOX Dimensions 115mm x 76mm x 20.7mm
Case Mounting VESA Mounting Bracket
Miscellaneous
Supported OS Windows 10 Home Pre-installed

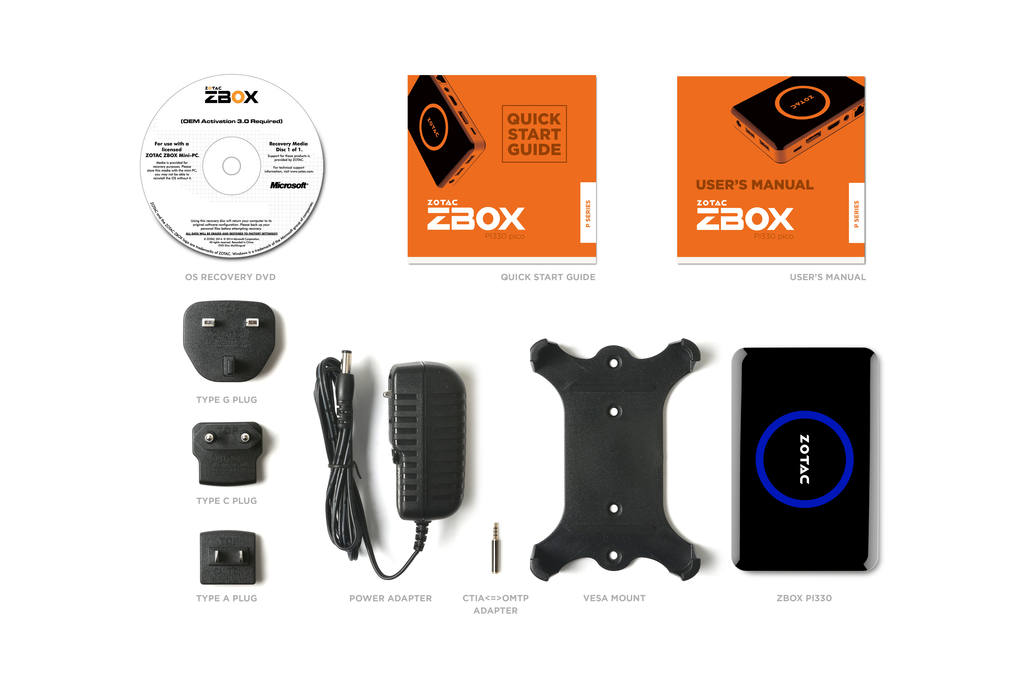

Accessories
1 x Universal power adapter
1 x VESA mounting bracket
2 x Mount screws
1 x CTIA / OMTP adapter
1 x O/S Recovery



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
