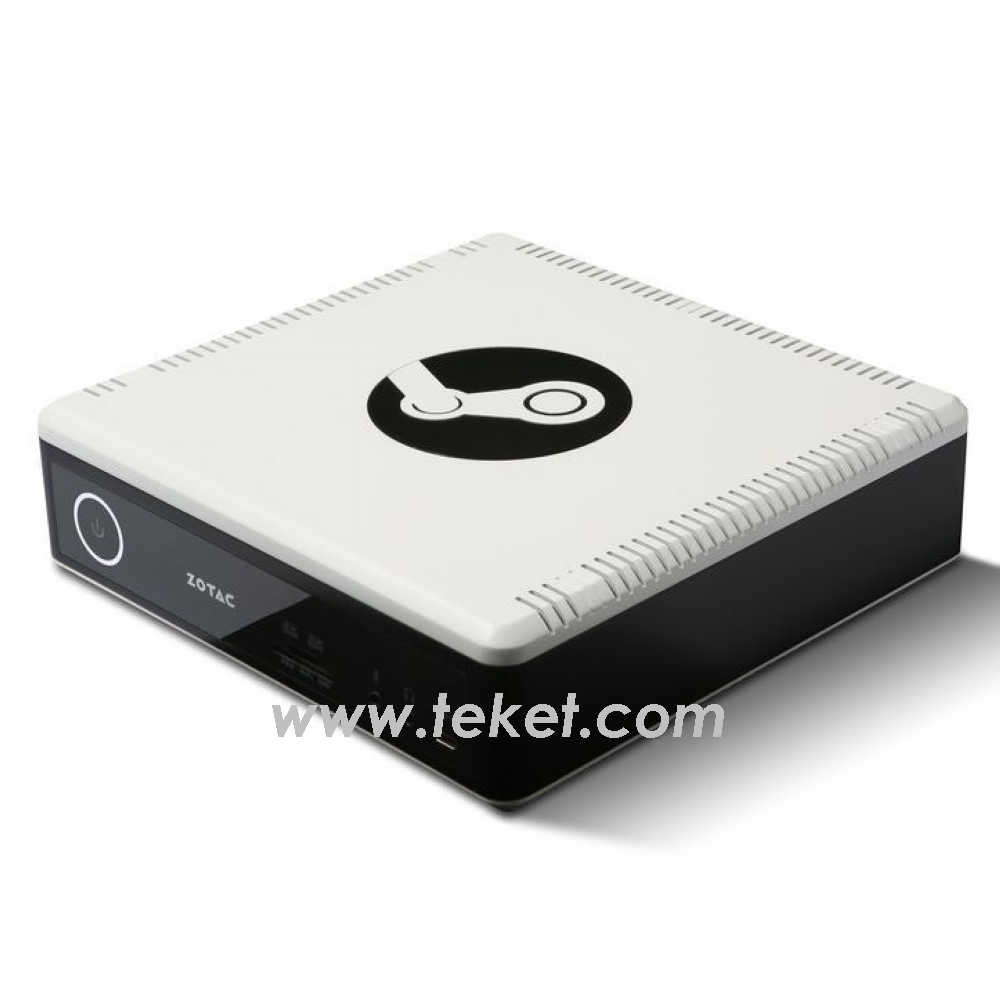

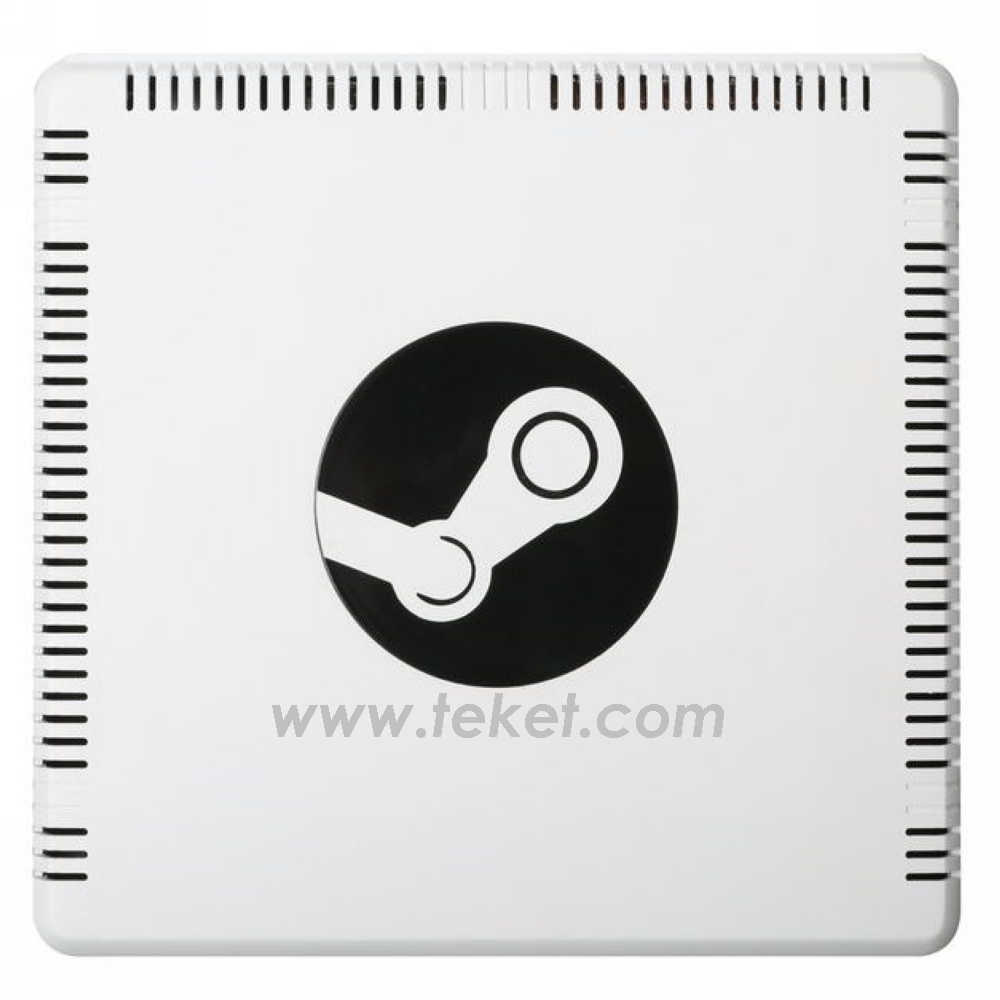

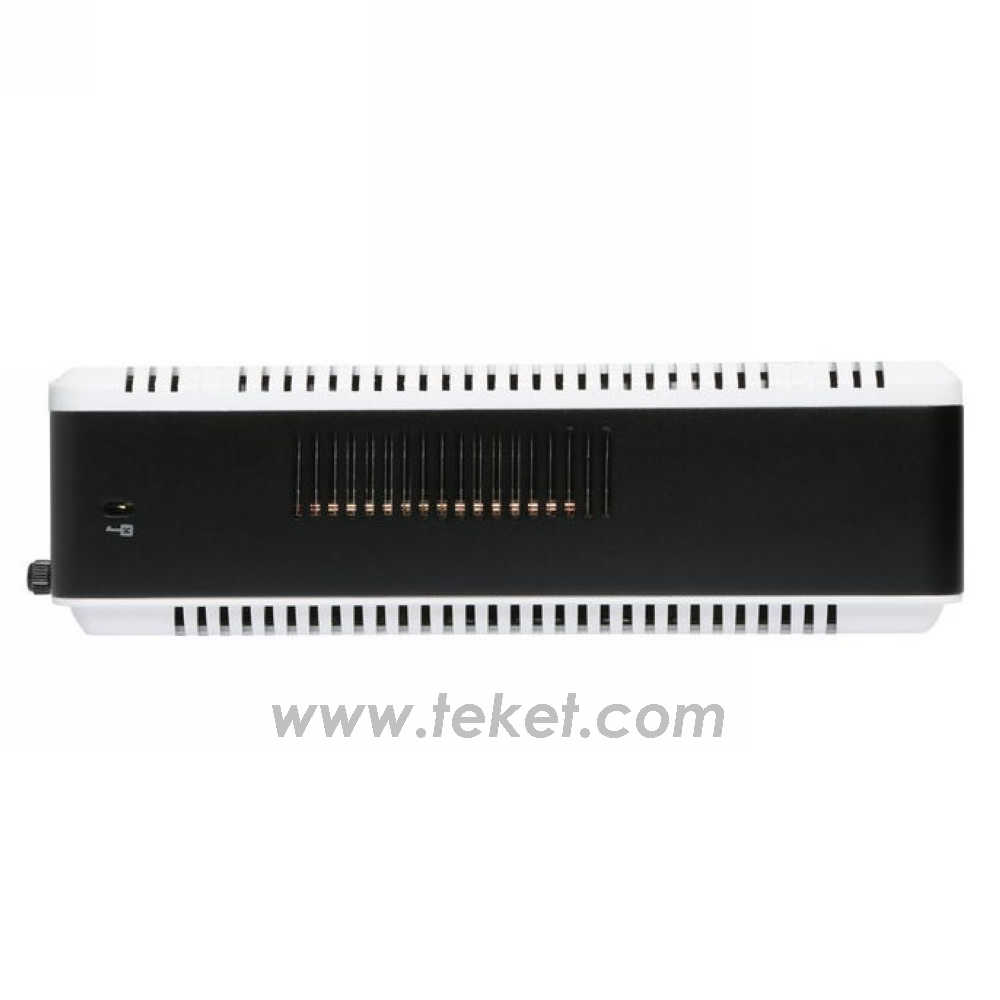

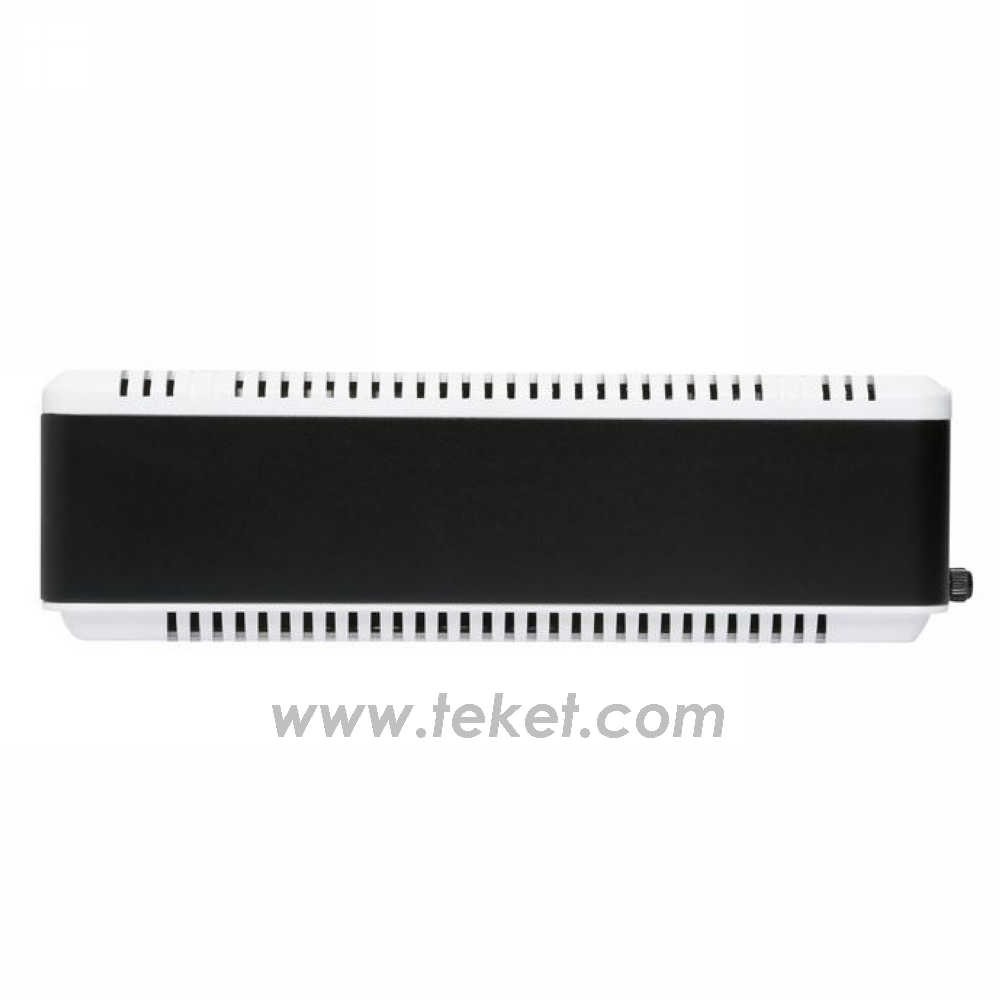

-->> ZOTAC ZBOX SN970 NEN Steam Machine Quad Core i5-6400T 2.2Ghz NVIDIA GeForce GTX 960 ZBOX-SN970-P <<--

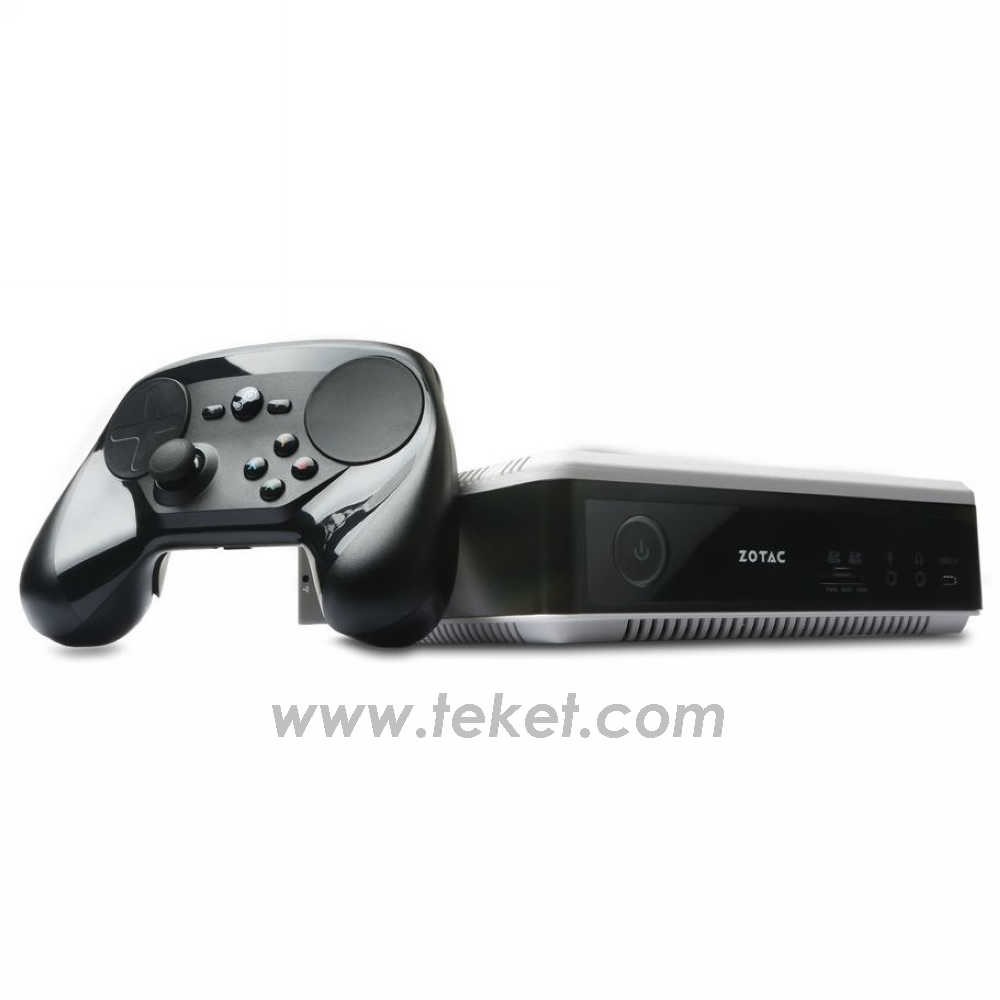

NEN is not simply a PC turned Steam Machine. It is engineered from the ground up to game with the mechanics of the PC imbued with the genetics of console to be the most powerful small form Steam Machine. Game like a PC with your keyboard and mouse or play like a console with the all new bundled Steam Controller.

Size, sound, acoustics, and lighting are all very important for a system that will anchor in the home entertainment center. ZOTAC engineers were able to maintain a height of two inches to ensure it fits neatly into the entertainment center while still outfitting dual radial coolers for maximum cooling performance at whisper quiet levels and the ability to disable the power on LED so it will be just you and the game. Power on to a whole new way to play with SteamOS. Access thousands of games* and connect with millions of gamers*.

Product Specifications
Computing System
Processor Intel Core i5-6400T (quad-core, 2.2 GHz, up to 2.8 GHz)
Chipset Intel 100 Series, NVIDIA
System Memory 8GB(Max 16GB)
Graphics
Graphics Engine NVIDIA GeForce GTX 960
Video Output 4 HDMI2.0 (Up to 4K @ 60Hz, NVIDIA Surround of multi-display not support by SteamOS)
Storage
Hard Drive
Mass Storage 1TB 2.5“ SATA hard drive
Optical Drive
mSATA None
M.2 1 x M.2 SATA SSD slot
Card Reader SD/SDHC/SDXC UHS-II

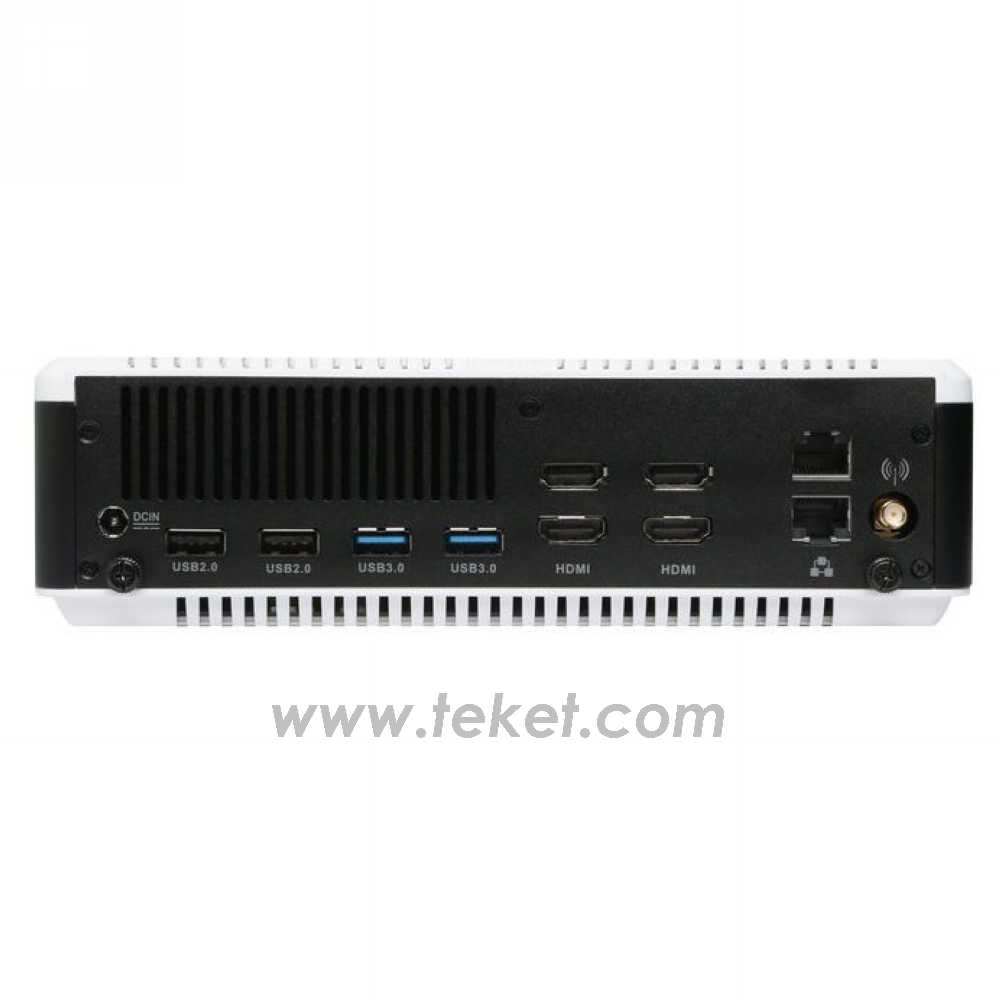

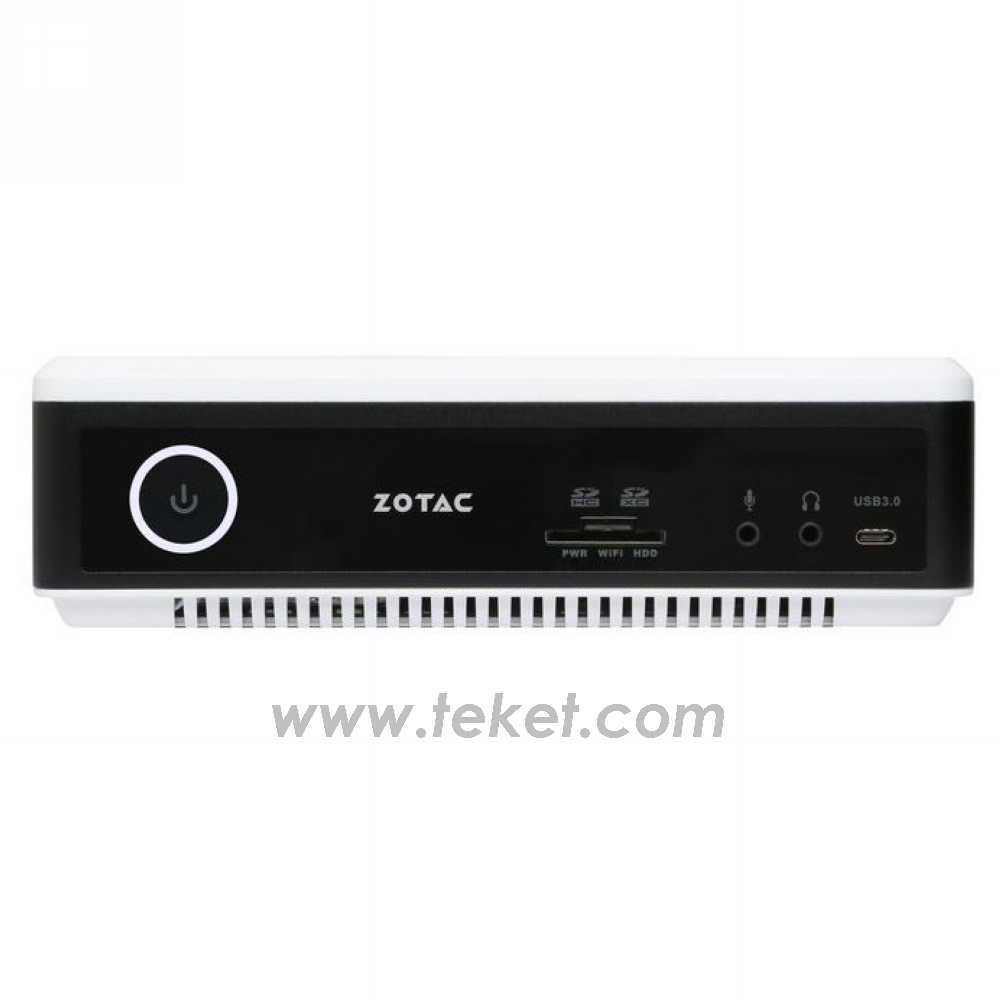

I/O Ports
Audio Microphone, Headphone
USB Port
2 x USB 3.0
1 x USB 3.0 Type-C
1 x USB 3.0 (From SD Combo)
2x USB 2.0
LAN Dual Gigabit LAN
Antenna 1 x WiFI SMA connetor
Wifi 802.11ac/b/g/n
Bluetooth Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical
Kensington Lock Yes
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19.5V/180W
Cooling system Fan + Heatsink
ZBOX Dimensions 210mm x 203mm x 62.2mm
Case Mounting None
Miscellaneous
Supported OS SteamOS pre-installed

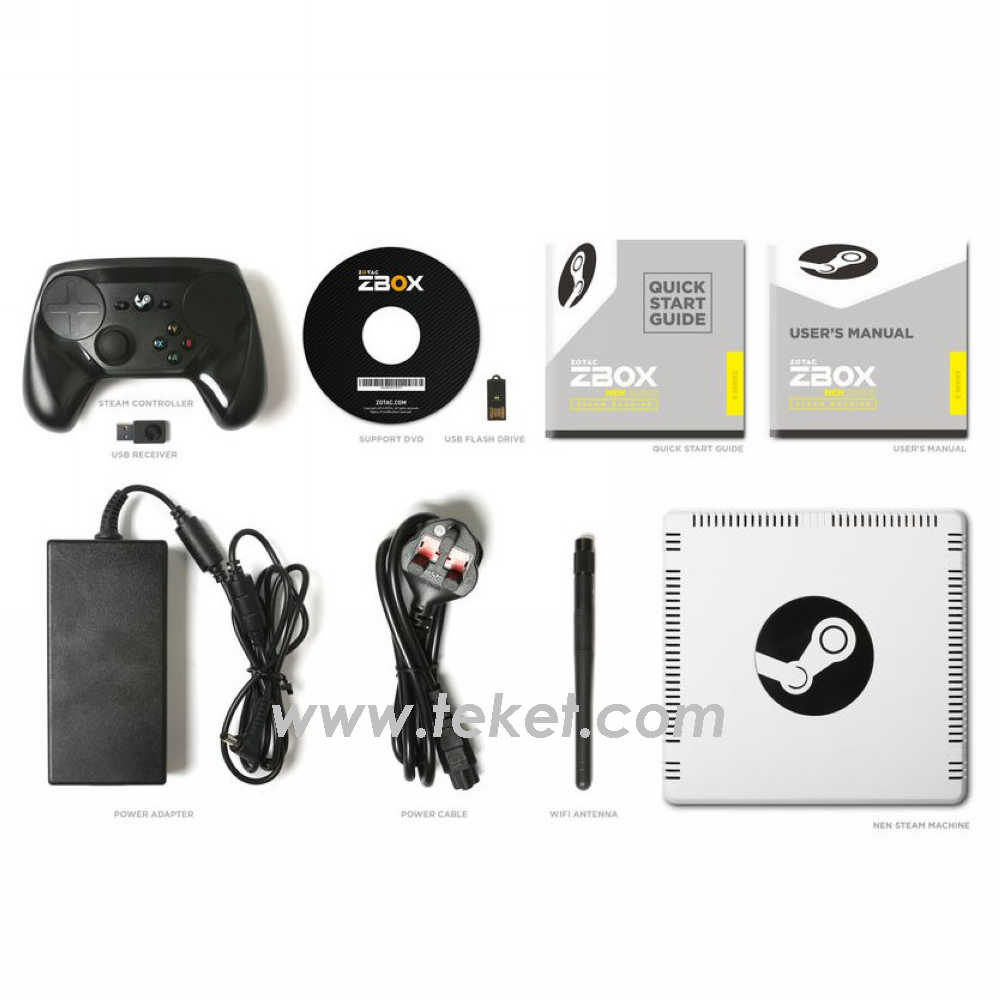

Accessories

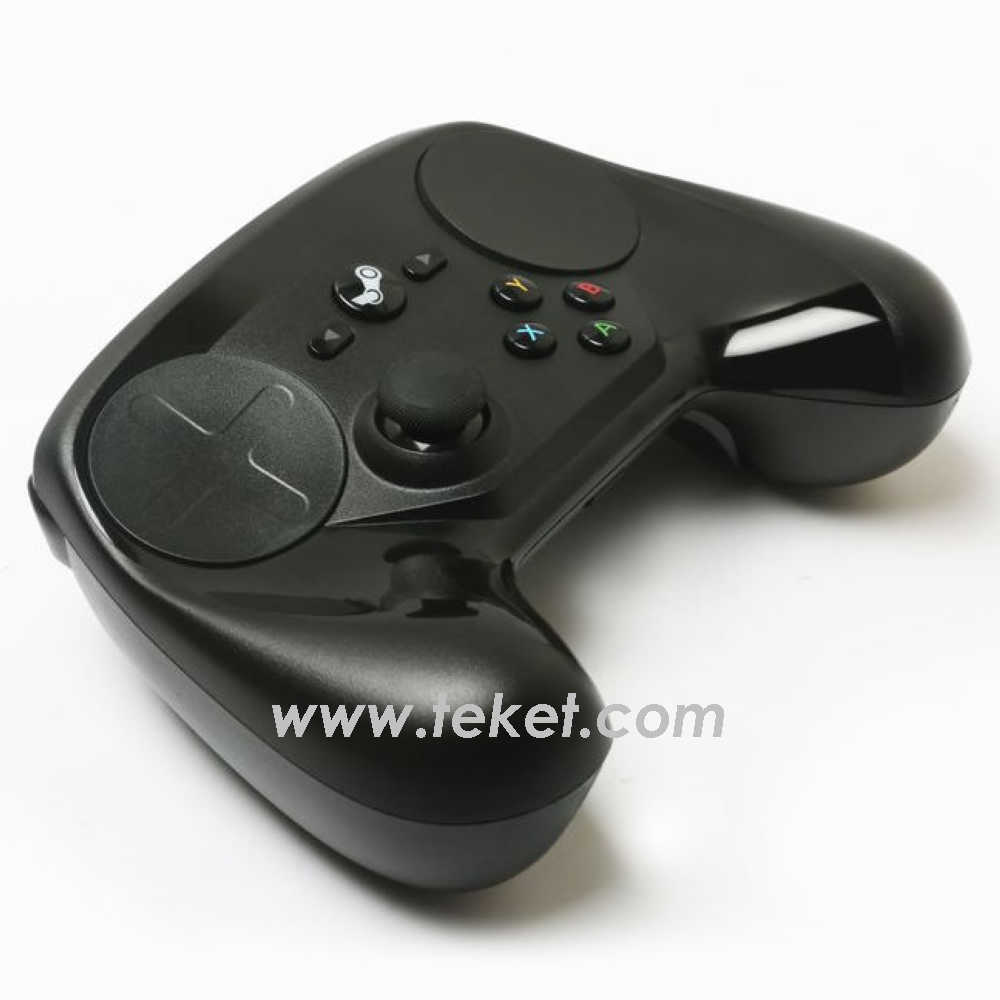

1 x Steam Controller
1 x WiFi antenna
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x USB drive with O/S driver
1 x driver disc

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
