-->> ZOTAC ZBOX NANO AQ02 Quad Core AMD A8-5545M 2.7Ghz with AMD HD 8510G graphics HTPC <<--

AQ02
ZBOXNANO-AQ02

AQ02 PLUS
ZBOXNANO-AQ02-P
System Memory 4GB(Max 8GB)
Mass Storage 500GB 5400RPM SATA HDD

Embrace quad processor cores in a palm-sized form factor with the ZOTAC ZBOX nano AQ02 series. Powered by the latest high-performance AMD APU, the ZOTAC ZBOX nano AQ02 series ushers in a new era of palm-sized computing that offers whisper-quiet noise levels, outstanding energy-efficiency and rich AMD Radeon HD graphics. AMD Radeon HD 8000 series graphics processing enables compatibility with Microsoft DirectX 11.1, OpenCL and compute technologies on the ZOTAC ZBOX nano AQ02 series for excellent performance and compatibility with the latest applications. High-definition video processing capabilities transforms the ZOTAC ZBOX nano AQ02 series into a multimedia powerhouse for stunning HD audio and video playback.

Product Specifications
Computing System
Processor AMD A8-5545M(quad core, 2.7 GHz)
Chipset N/A
System Memory 1 x DDR3-1600 SO-DIMM Slot,Max 8GB
Graphics
Graphics Engine AMD HD 8510G
Video Output HDMI, DisplayPort
Storage
Hard Drive
Mass Storage 1 x 2.5" SATA 6Gbps Slot
Optical Drive
mSATA None
M.2 None
Card Reader MMC/SD/SDHC/SDXC/MS/MS Pro/ MMC/xD

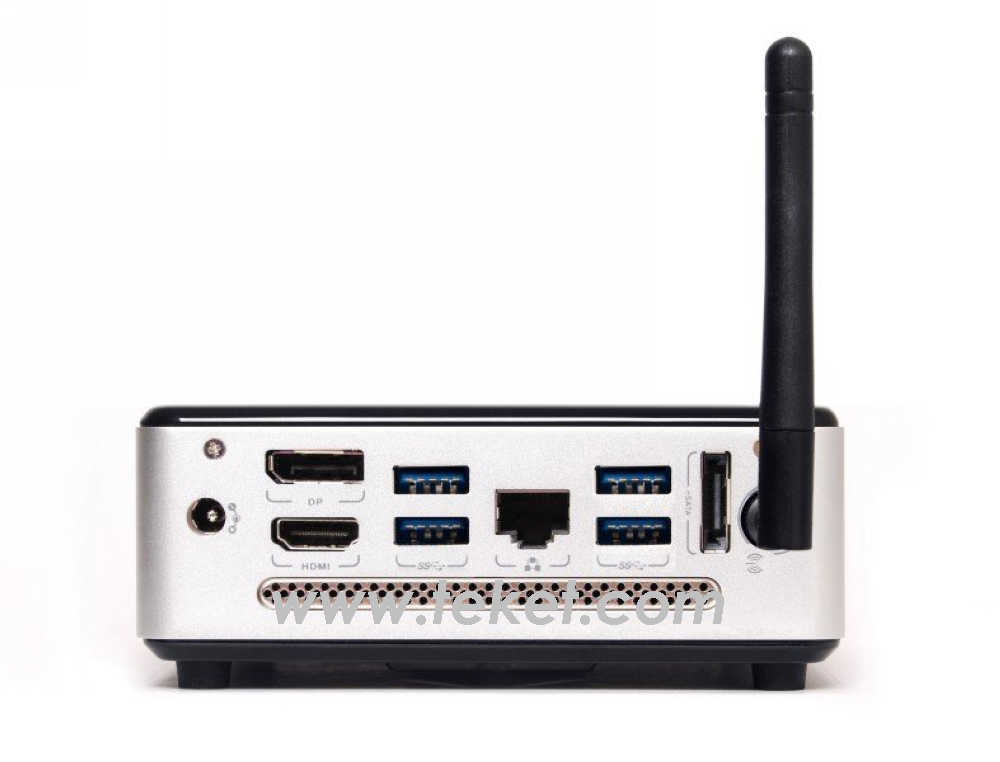

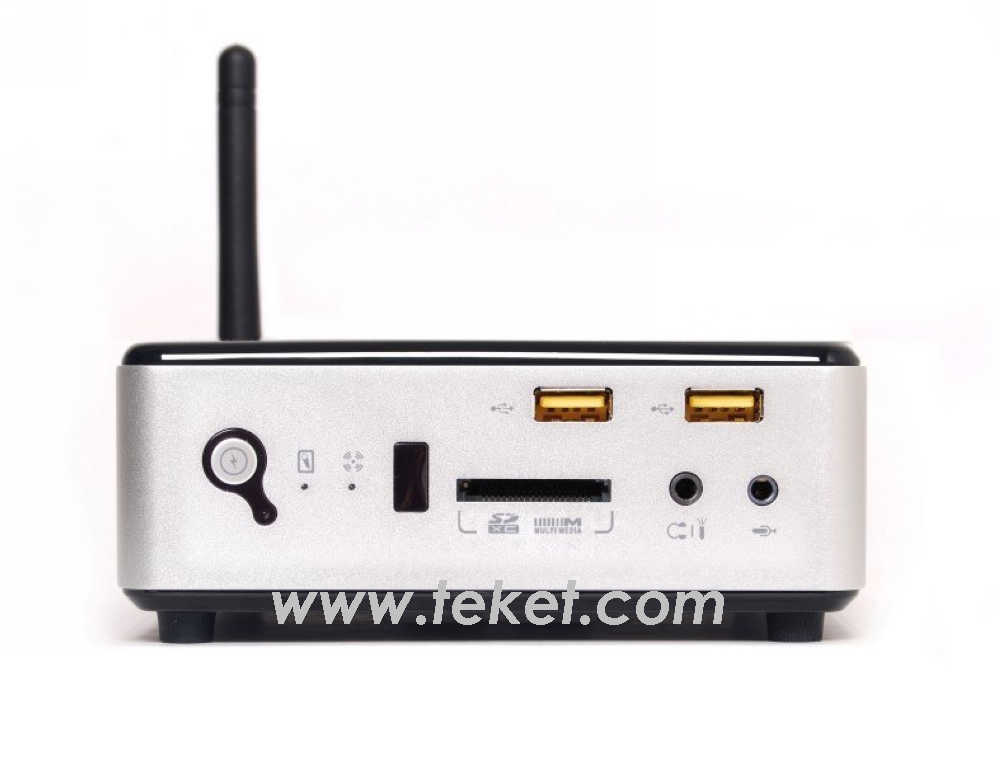

I/O Ports
Audio Microphone, Headphone, SPDIF optical output
USB Port
4 x USB 3.0
2 x USB 2.0
LAN Gigabit LAN
Antenna 1 x WiFi SMA connector
Wifi 802.11ac/b/g/n
Bluetooth
Bluetooth 4.0
Legacy I/O None
CIR Infrared Port Yes
Expansion None
USB
IDE
VGA
Mechanical
Kensington Lock None
LED Indicators Power, HDD, WiFi
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 127mm x 127mm x 45mm
Case Mounting Vesa mount kit
Miscellaneous Supported OS Windows 8 / 7 (32/64-bit)

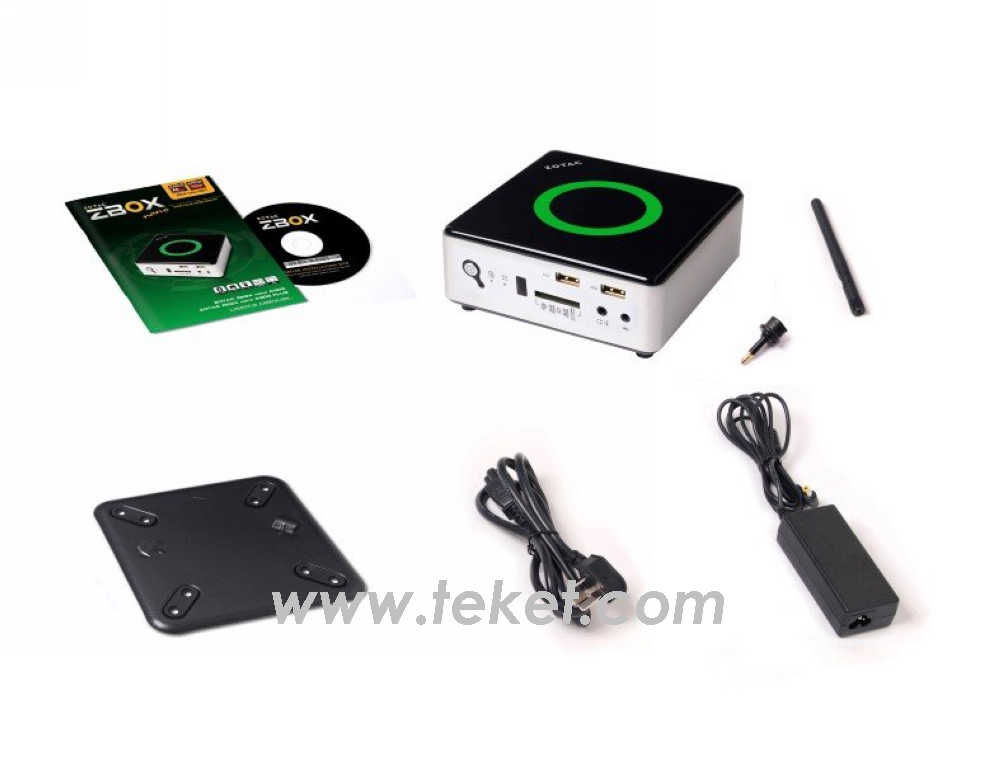

Accessories
1 x WiFi antenna
1 x VESA mount
4 x mounting screws
1 x Mini Optical S/PDIF
1 x AC Adapter
1 x power cord
1 x warranty card
1 x user manual
1 x quick install guide
1 x driver disc

optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
