>>Your Current Position: GiagaByte Motherboard

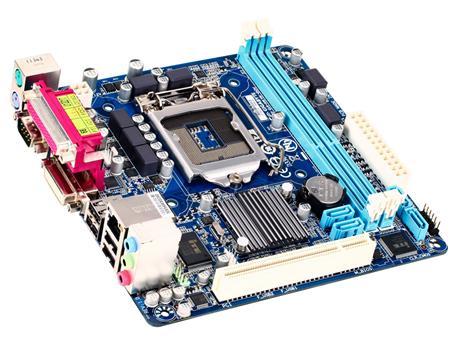

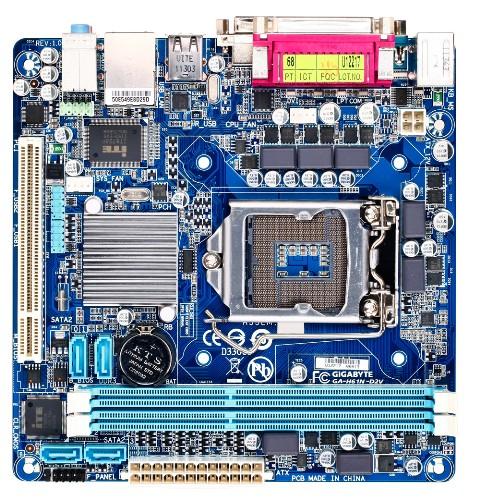

Mini-ITX Motherboard LGA1155 CPU Socket GIGABYTE GA-H61N-D2V

Intel® H61 Chipset
•All new design of Ultra Durable 4 classic
•Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
•Industry's Leading All Solid Capacitor Design
•DVI-I interface for smoother HD video playback
•Enhanced Intel HD Graphics 2000/3000 integrated with the processor
•Dual UEFI BIOS protection with 3TB+ HDD boot up capability






CPU 1.Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2.L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset 1.Intel® H61 Express Chipset

Memory 1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2.Dual channel memory architecture
3.Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
4.Support for non-ECC memory modules
5.Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
1.1 x DVI-I port, supporting a maximum resolution of 1920x1200

Audio 1.Realtek ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN 1.1 x Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1.1 x PCI slot

Storage Interface Chipset:
1.4 x SATA 3Gb/s connectors (SATA2 0~3) supporting up to 4 SATA 3Gb/s devices

USB Chipset:
1.Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.4 x SATA 3Gb/s connectors
4.1 x CPU fan header
5.1 x system fan headers
6.1 x front panel header
7.1 x front panel audio header
8.2 x USB 2.0/1.1 headers
9.1 x Clear CMOS jumper

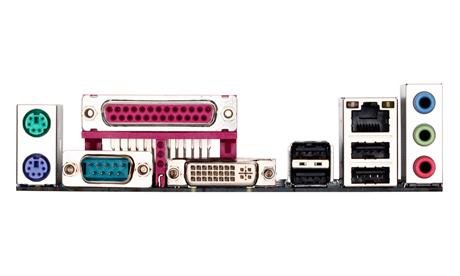

Back Panel Connectors 1.1 x PS/2 Keyboard port
2.1 x PS/2 mouse port
3.1 x serial port header
4.1 x parallel port
5.1 x DVI-I port
6.4 x USB 2.0/1.1 ports
7.1 x RJ-45 port
8.3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller 1.iTE I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU/System fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

BIOS 1.2 x 32 Mbit flash
2.Use of licensed AMI EFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features 1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress Recovery2
4.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
5.Support for ON/OFF Charge

Bundle Software 1.Norton Internet Security (OEM version)

Operating System 1.Support for Microsoft® Windows 8/7/Vista/XP

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
