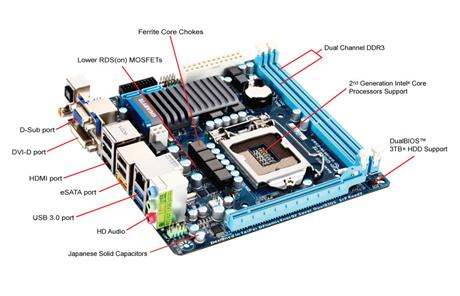

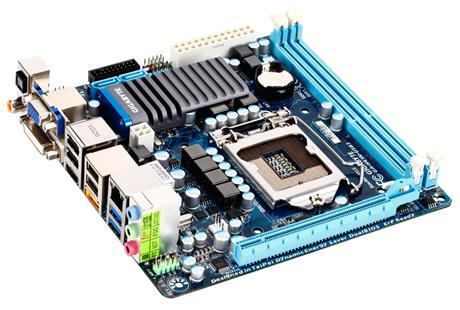

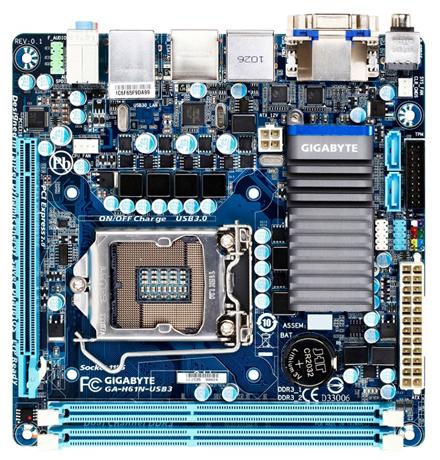

Mini-ITX Motherboard LGA1155 CPU Socket GIGABYTE GA-H61N-USB3

Intel® H61 Chipset

•Supports for LGA1155 2nd Generation Intel® Core™ Processors
•Next Gen. Quality Components and 4 Phase CPU Power design
•GIGABYTE 3x USB Power with On/Off Charge USB ports
•Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
•HDMI/DVI interface for smoother HD video playback
•Enhanced Intel HD Graphics 2000/3000 integrated with the processor
•Innovative Smart 6 technology for smarter PC management
•Hi-def 108dB Signal-to-noise ratio Blu-ray™ DVD audio playback
•DualBIOS™ protection with 3TB+ HDD boot up capability

CPU 1.Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2.L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset 1.Intel® H61 Express Chipset

Memory 1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2.Dual channel memory architecture
3.Support for DDR3 1333/1066/800 MHz memory modules
4.Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
1.1 x D-Sub port
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
3.1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio 1.Realtek ALC889 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4.Support for S/PDIF Out

LAN 1.1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots 1.1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)

Storage Interface Chipset:
1.2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices
2.1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device

USB Chipset:
1.Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Fresco FL1009 chip:
1.Up to 2 USB 3.0/2.0 ports on the back panel

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.2 x SATA 3Gb/s connectors
4.1 x CPU fan header
5.1 x system fan header
6.1 x front panel header
7.1 x front panel audio header
8.1 x S/PDIF Out header
9.2 x USB 2.0/1.1 headers
10.1 x Trusted Platform Module (TPM) header
11.1 x clearing CMOS jumper

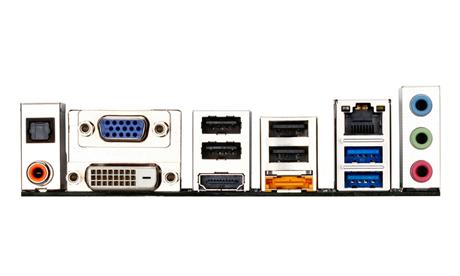

Back Panel Connectors 1.1 x optical S/PDIF Out connector
2.1 x coaxial S/PDIF Out connector
3.1 x D-Sub port
4.1 x DVI-D port
5.1 x HDMI port
6.4 x USB 2.0/1.1 ports
7.2 x USB 3.0/2.0 ports
8.1 x eSATA 3Gb/s connector
9.1 x RJ-45 port
10.3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller 1.iTE IT8728 chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

BIOS 1.2 x 32 Mbit flash
2.Use of licensed AWARD BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features 1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress BIOS Rescue
4.Support for Download Center
5.Support for Xpress Install
6.Support for Xpress Recovery2
7.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
8.Support for Dynamic Energy Saver™ 2
9.Support for Smart 6™
10.Support for Auto Green
11.Support for ON/OFF Charge
12.Support for 3TB+ Unlock
13.Support for Cloud OC
14.Support for Q-Share

Bundle Software 1.Norton Internet Security (OEM version)

Operating System 1.Support for Microsoft® Windows 8/7/Vista/XP

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
