Mini-ITX Motherboard LGA1155 CPU Socket GIGABYTE GA-Z77N-WIFI

Intel® H77 Chipset

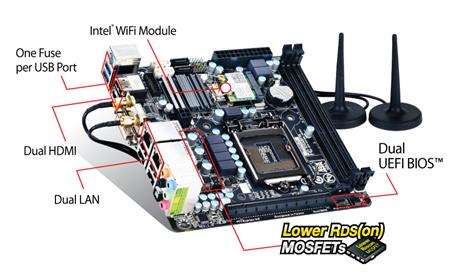

•GIGABYTE 3D BIOS (Dual UEFI)
•Supports Intel WiFi/ WIDI technology
•Integrated Bluetooth 4.0 and Intel Wi-Fi module
•All new design of Ultra Durable 4 classic
•Supports 3rd and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
•Dual LAN for networking flexibility
•PCI Express Gen 3.0 support
•Industry's Leading All Japanese Solid Capacitor Design
•GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
•DVI and Dual HDMI interface for smoother HD video playback
•GIGABYTE On/Off Charge™ for USB devices

CPU 1.Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2.L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset 1.Intel® H77 Express Chipset

Memory 1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR3 2200(OC)/1600/1333/1066/800 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
4.Support for non-ECC memory modules
5.Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
1.1 x DVI-I port, supporting a maximum resolution of 1920x1200
2.2 x HDMI ports, supporting a maximum resolution of 1920x1200

Audio 1.Realtek ALC892 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out

LAN 1.2 x Realtek GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module 1.Wi-Fi 802.11 b/g/n, Supports Intel Wireless Display (WiDi)
2.Bluetooth 4.0, 3.0+HS, 2.1+EDR

Expansion Slots 1.1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.

Storage Interface Chipset:
1.2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2.2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
3.Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB Chipset:
1.Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2.Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.1 x serial port header
4.2 x SATA 6Gb/s connectors
5.2 x SATA 3Gb/s connectors
6.1 x USB 3.0/2.0 header
7.2 x USB 2.0/1.1 headers
8.1 x CPU fan header
9.1 x system fan header
10.1 x front panel header
11.1 x front panel audio header
12.1 x S/PDIF Out header
13.1 x Clear CMOS jumper

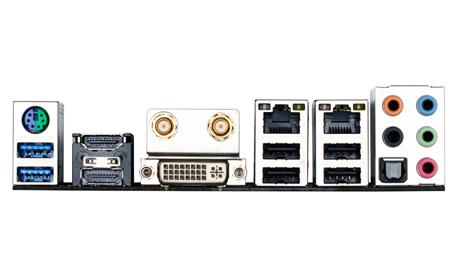

Back Panel Connectors 1.1 x PS/2 keyboard/mouse port
2.2 x HDMI ports
3.2 x antenna connectors
4.1 x DVI-I port
5.2 x USB 3.0/2.0 ports
6.4 x USB 2.0/1.1 ports
7.2 x RJ-45 ports
8.1 x optical S/PDIF Out connector
9.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller 1.iTE I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

BIOS 1.2 x 64 Mbit flash
2.Use of licensed AMI EFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features 1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress Install
4.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
5.Support for eXtreme Hard Drive (X.H.D)
6.Support for Auto Green
7.Support for ON/OFF Charge
8.Support for Q-Share
9.Support for EZ Setup
10.Support for Intel Wireless Display (Intel WiDi)
11.Exclusive Bluetooth 4.0/WiFi module

Bundle Software 1.Norton Internet Security (OEM version)
2.Intel® Rapid Start Technology
3.Intel® Smart Connect Technology
4.Intel® Smart Response Technology

Operating System 1.Support for Microsoft® Windows 8/7/XP

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
