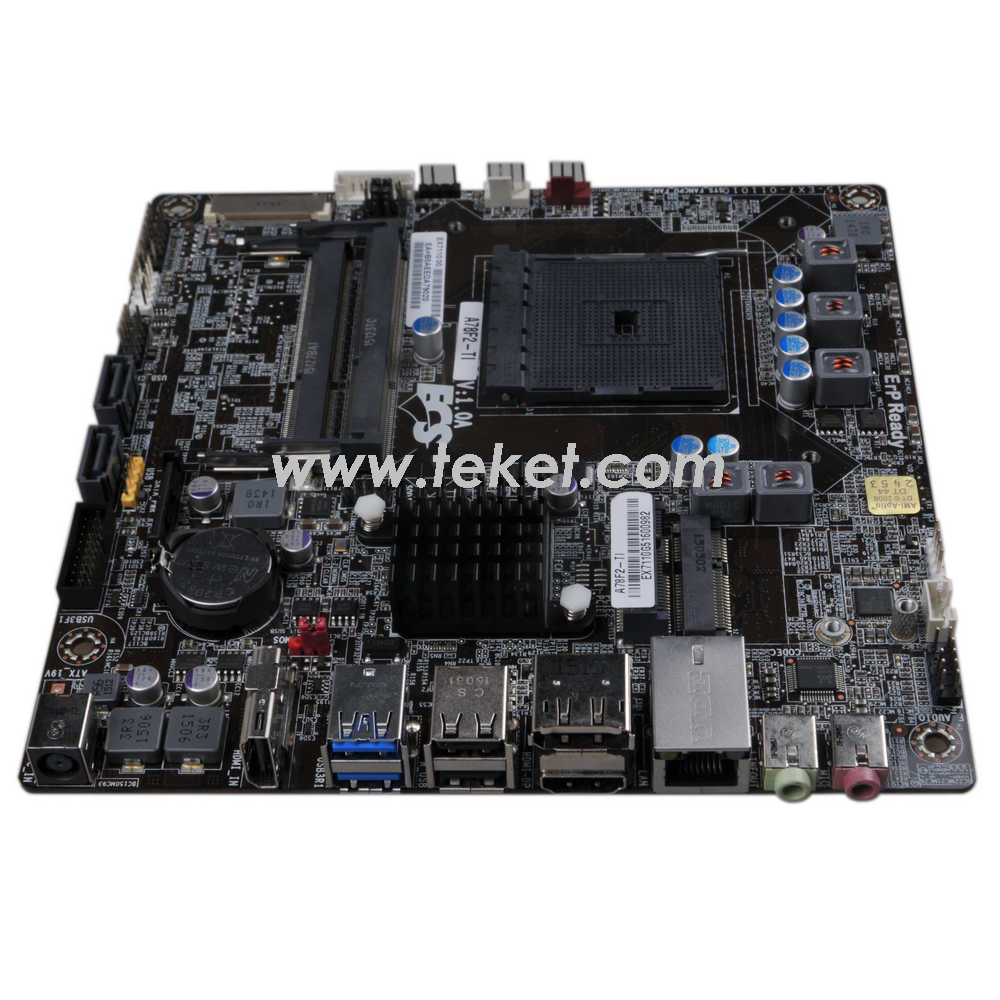

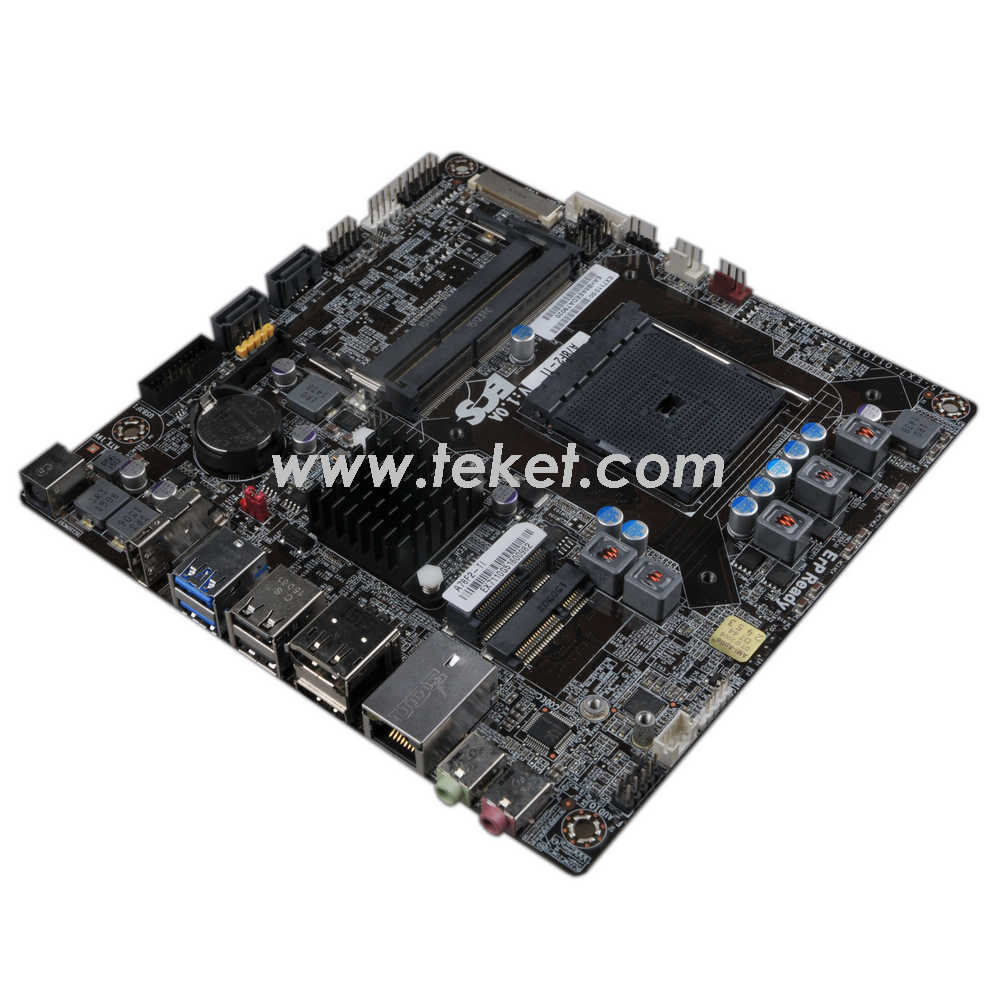

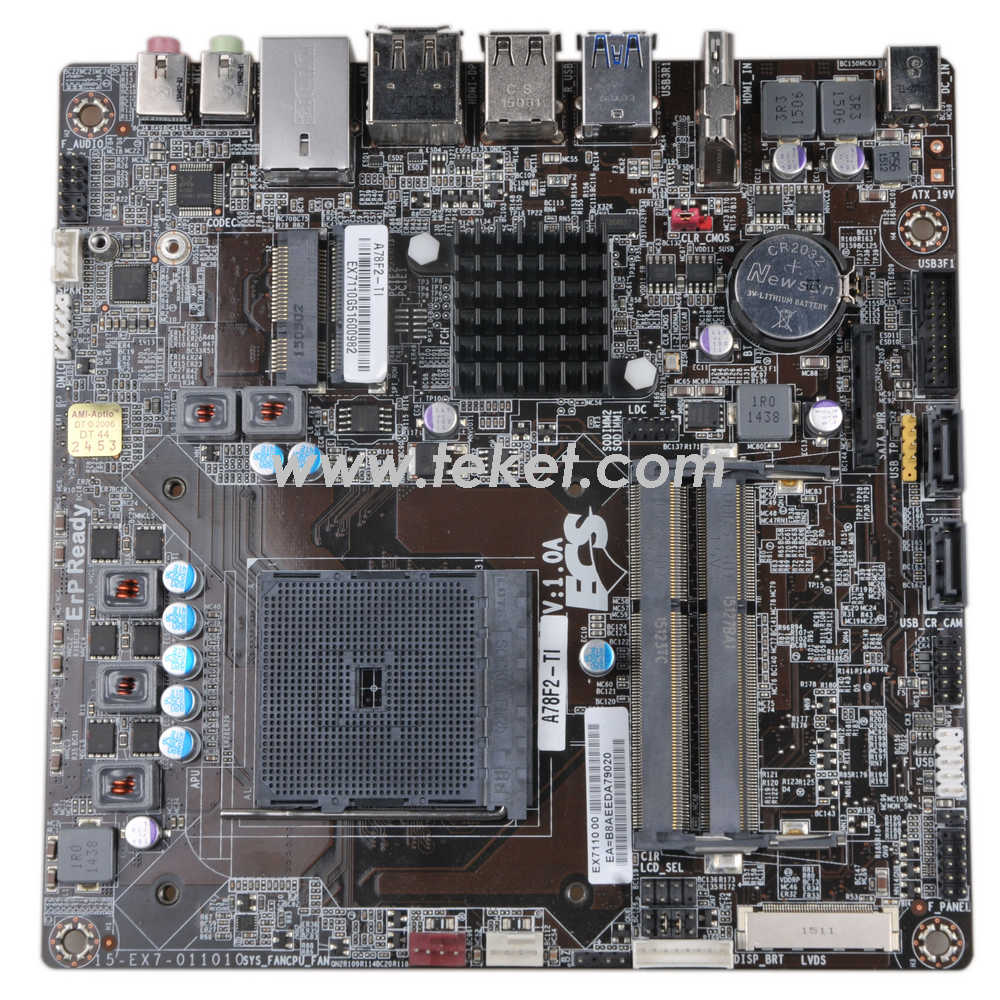

A78F2-TI (V1.0)

Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
DC-in power jack
Supports DirectX® 11.1 to enhance graphical performance
Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
CPU Supports AMD® FM2+ socket for AMD® A series, E Series processors
High Performance AMD HyperTransport 3.0 CPU Interface
100% Solid capacitor design




CHIPSET AMD® A78

MEMORY º Dual-channelDDR3 Memory architecture
Supports 1866/1600/1333 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT º 2 X Mini PCI Express X1 slot(s)( Mini SATA supported)

Storage º Support by Intel® A78 Express Chipset
2 X Serial ATAIII 6Gb/s

Audio 2-Channel HD audio CODEC
Realtek ALC662
Realtek ALC662 6-channel High Definition audio CODEC
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D™, A3D™, I3DL2

LAN Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN

USB Support by A78 Express Chipset
4 X USB3.0 port(s) up to 5Gb/s (either rear I/O or front header)
Back Panel 2 port(s)
Onboard 2 port(s)
4 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 2 port(s)

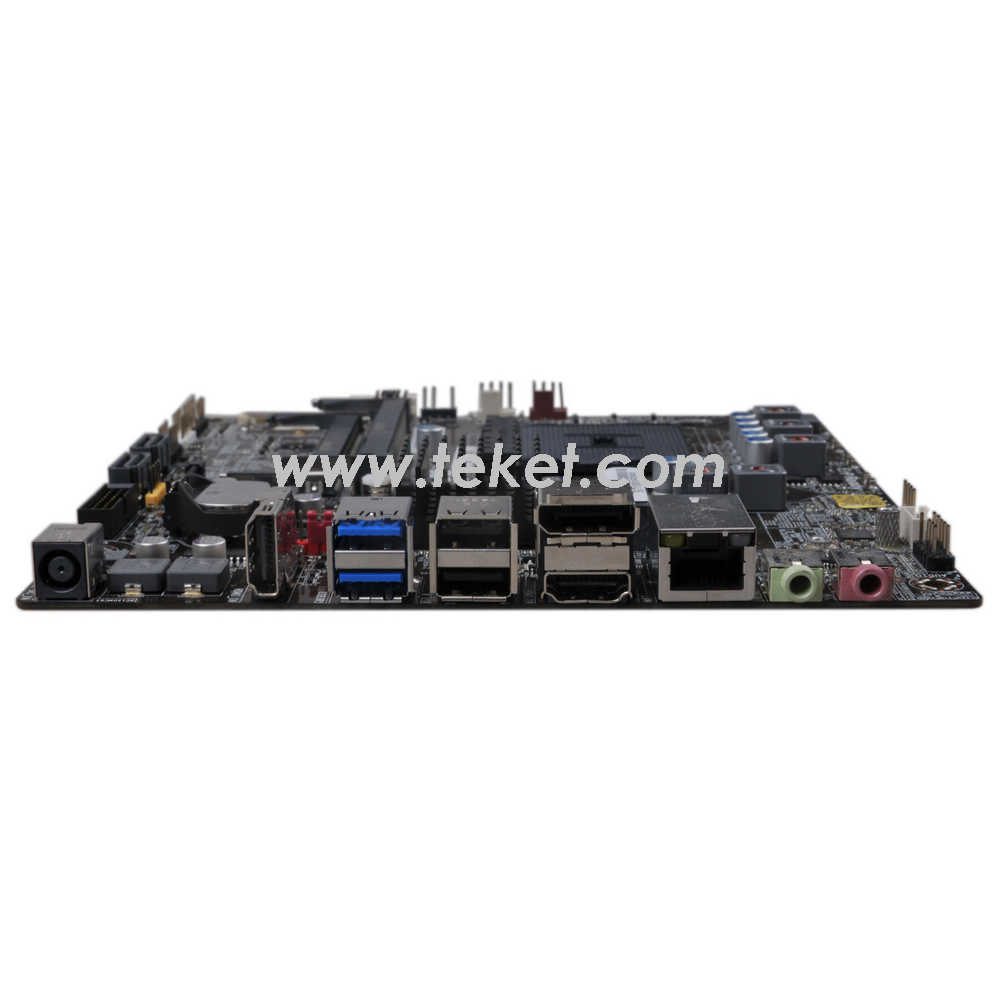

REAR PANEL I/O º 1 X Audio port (Line-in,4x Line-out, Mic in)
1 X RJ-45 port
2 X HDMI port(s)
1 X Display port
2 X USB3.0 port(s)
1 X DC-in Connetor

CONNECTORS & HEADERS º 1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X USB 3.0 header
1 X USB 2.0 header
1 X LVDS connector
1 X SATA power connector

SYSTEM BIOS º AMI BIOS with 32 MB SPI Flash ROM
Dual Display
Support GUI UEFI BIOS

FORM FACTOR º Thin Mini ITX Form Factor
170mm X 170mm

OS Support º Windows 8 32-bit
Windows 8 64-bit

Certifications º CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification

Bundled Software º Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
