ECS Orginal AMD AM1 Socket Athlon Sempron APU Mini-ITX Motherboard KAM1-I

Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Microsoft Windows 8 Certified
Microsoft Windows 8.1 Certified
Supports DirectX® 11.1 to enhance graphical performance
ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite


CPU Supports AMD® Athlon & Sempron
100% Solid capacitor design

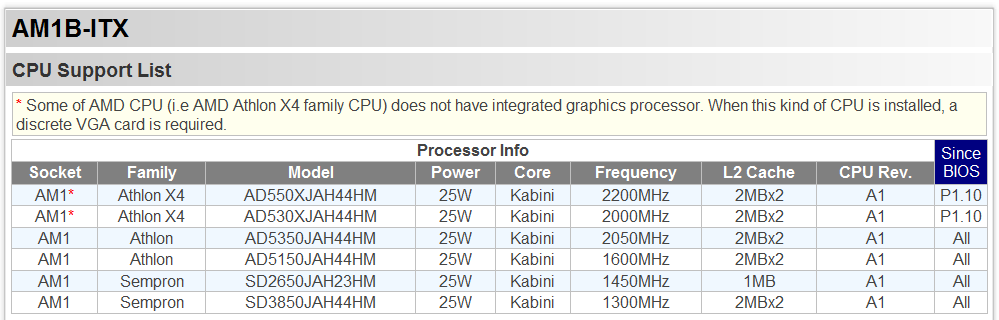

Please refer to CPU support list for details
MEMORY Single-channel DDR3 Memory architecture
Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
Note:Please refer to the latest Memory support list for details



EXPANSION SLOT 1 X PCI Express X16 Gen 2.0 slot(s)
1 X Mini PCI Express X1 slot(s)
• Mini PCI Express X1 slot(s) doesn’t support Mini SATA
Storage 2 X Serial ATAIII 6Gb/s
Audio 6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
Realtek ALC662 6-channel High Definition audio CODEC
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN
USB 2 X USB3.0 port(s) up to 5Gb/s
Back Panel 2 port(s)
• 6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 2 port(s)
REAR PANEL I/O 1 X PS/2 Keyboard & PS/2 mouse connectors
2 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s) (optional)
1 X D-Sub (VGA) port(s)
2 X USB3.0 port(s)
4 X USB2.0 port(s)
CONNECTORS & HEADERS 1 X 24-pin ATX Power Supply connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector
1 X Clear_CMOS button
1 X Front panel audio header
1 X Onboard Buzzer
1 X USB 2.0 header
• Support additional 2 USB ports
1 X S/PDIF out header
2 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X Chassis intrusion header
1 X VGA header (optional)
SYSTEM BIOS AMI BIOS with 32 MB SPI Flash ROM
Dual Display
Support GUI UEFI BIOS
Multi-Language BIOS
FORM FACTOR Mini ITX Form Factor
170mm(W)*170mm(H)
OS Support Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Certifications CE/FCC Certification
WHQL Certification
WHCK Certification
Bundled Software ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite

20pcs/ctn
