Your Current Position: Motheboard\AMD Motherboard

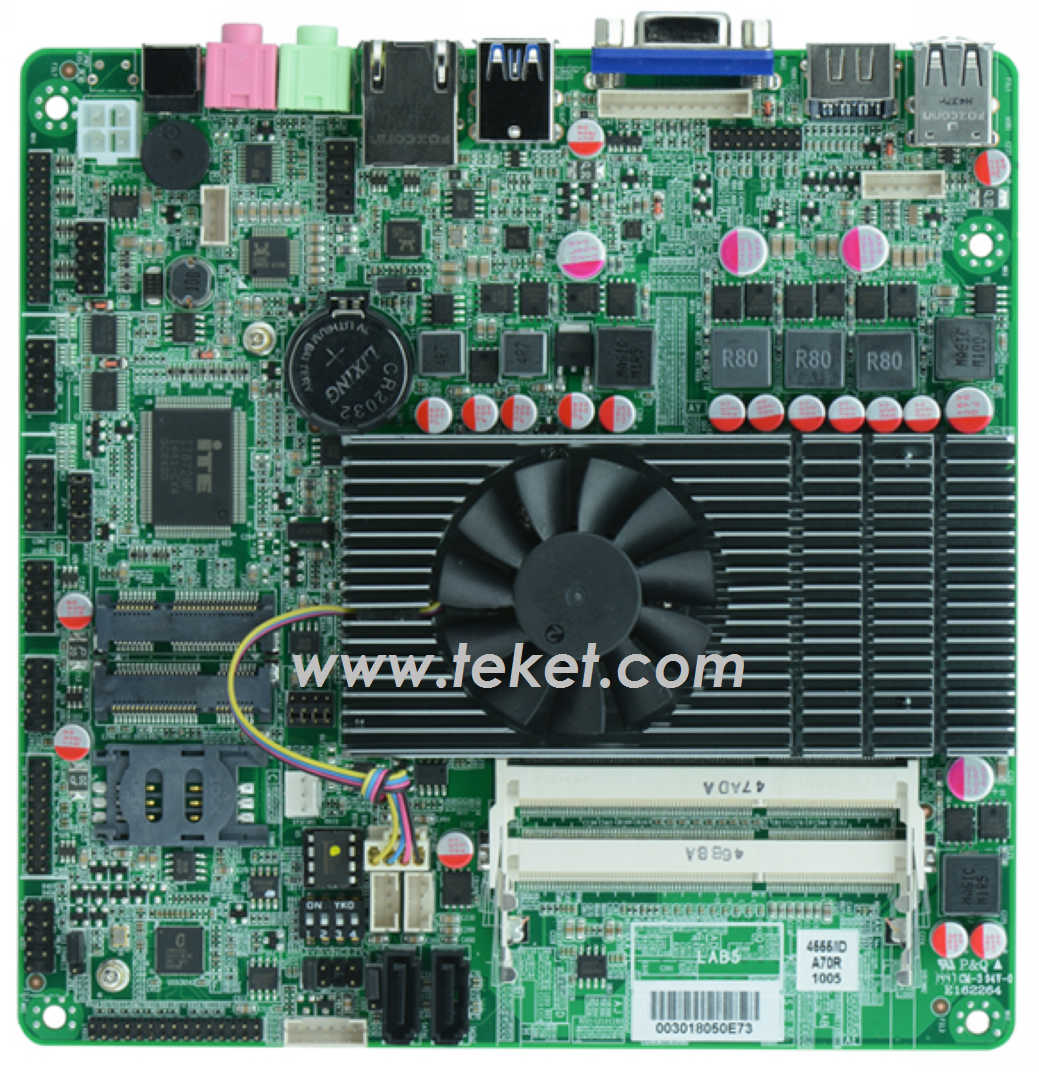

AMD A&R-Series APU A4/A6/A8 AMD A70 chipset Slim Mini-ITX Motherboard A70MHD with Video HD7440 HD7600 HD8450

AMD Radeon HD8000
AMD A70 chipset + AMD A&R-Series APU
Built-in AMD Radeon HD8000 gracphics
AMD Eyefinity technology support VGA/HDMI/LVDS



Model: A70MHD

AMD Radeon HD8000
AMD A70 chipset + AMD A&R-Series APU
Built-in AMD Radeon HD8000 gracphics
AMD Eyefinity technology support VGA/HDMI/LVDS

A7057: AMD A6-5357M dual core 2.90Ghz, Radeon HD8450G, dual so ddr3
A7053: AMD A6-5357M dual core 2.90Ghz, Redeon HD8450G, single so ddr3
A7045: AMD A8-4555M quad core 1.60Ghz, Redeon HD7600, dual so dddr3
A7043: AMD A4-4355M dual code 1.90Ghz, Redeon HD7400, dual so ddr3
24bit LVDS
1*RTL 1000M
ALC662.6 MIC,LINE-OUT,3ohm*2
1*MINI PCIEE(WIFI,3G)
1*MSATA(SSD or WIFI, Intel SSD)
2*SATA3 up to 6gps

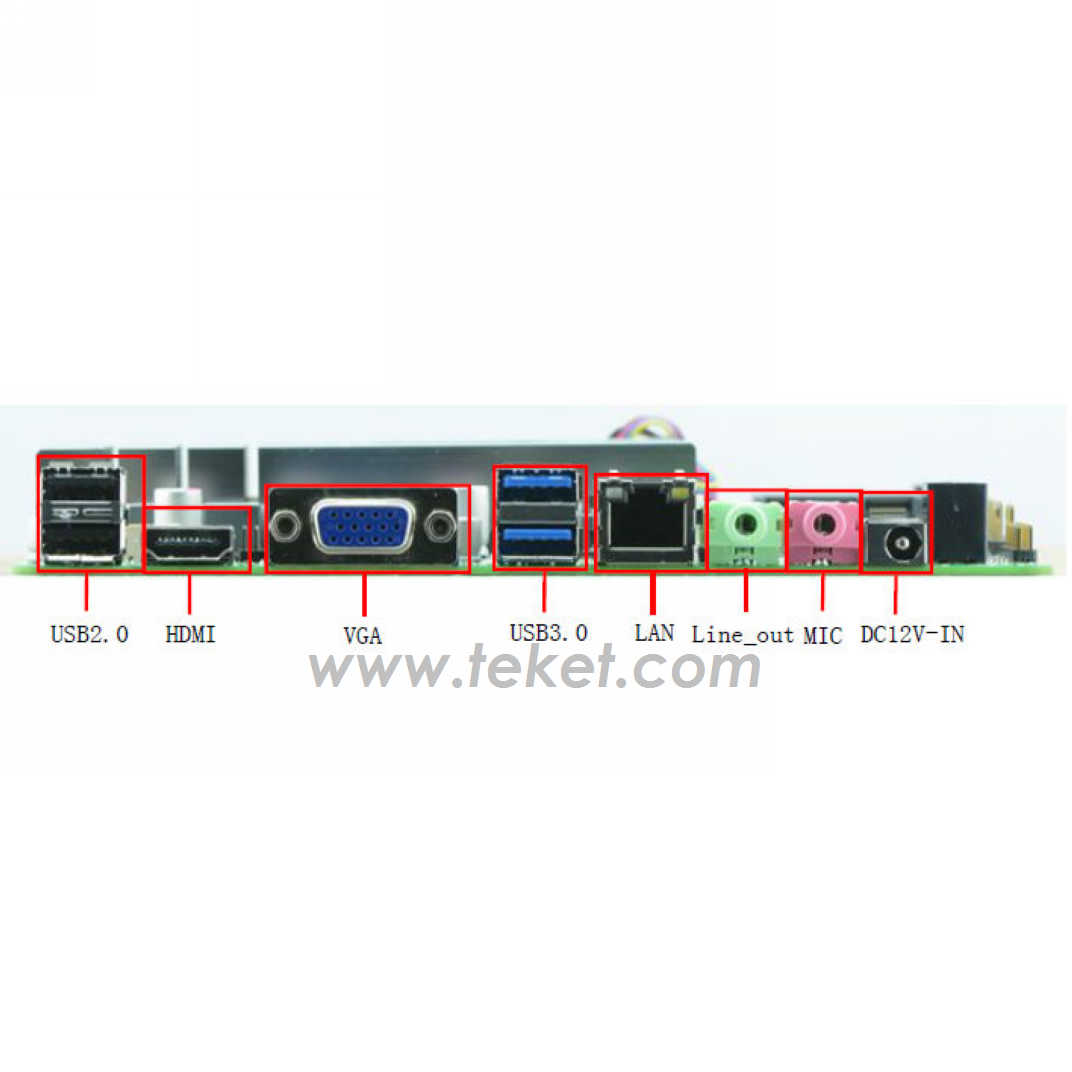

Back I/O
2*USB 2.0
2*USB 3.0
1*HDMI
1*VGA
1*RJ45
1*LINE out(green)
1*MIC(red)
1*12V DC

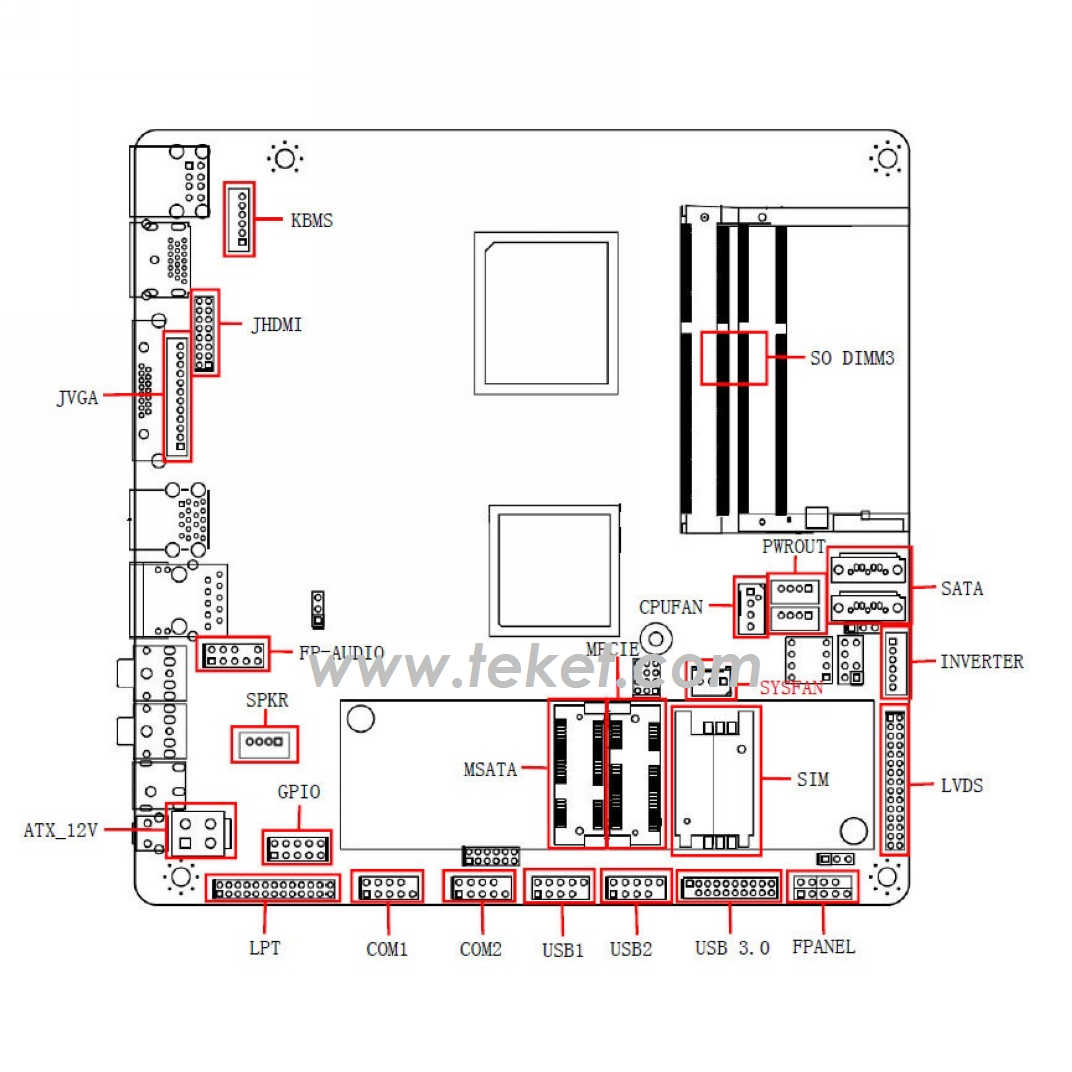

Internal I/O
1*LVDS 24bit LCD(dual 8bit) 2*15pin
1*JVGA1 12pin
1*JHDMI 2*8pin
4*USB 2.0
2*USB 3.0
2*RS232, 9pin dc
1*LPT
1*PS/2 6pin
1*AUDIO (2*5pin)
1*AMP 4pin (3ohm*2 speaker
1*FP1 (2*5pin)
1*SIM
1*ATX_12V
2*PWROUT (hdd)
1*LVDS INVERTER

4 ch GPIO
1*CPU FAN 4pin SYSFAN 3pin temp control
BIOS: 32MB SMT flash ROM
Watchdog (256 reset hardware)
Power: 12V DC IN
Size: MINI-ITX 170x170mm
Work Temp: -10 ~ +60
StorageTemp: -20 ~ +70
