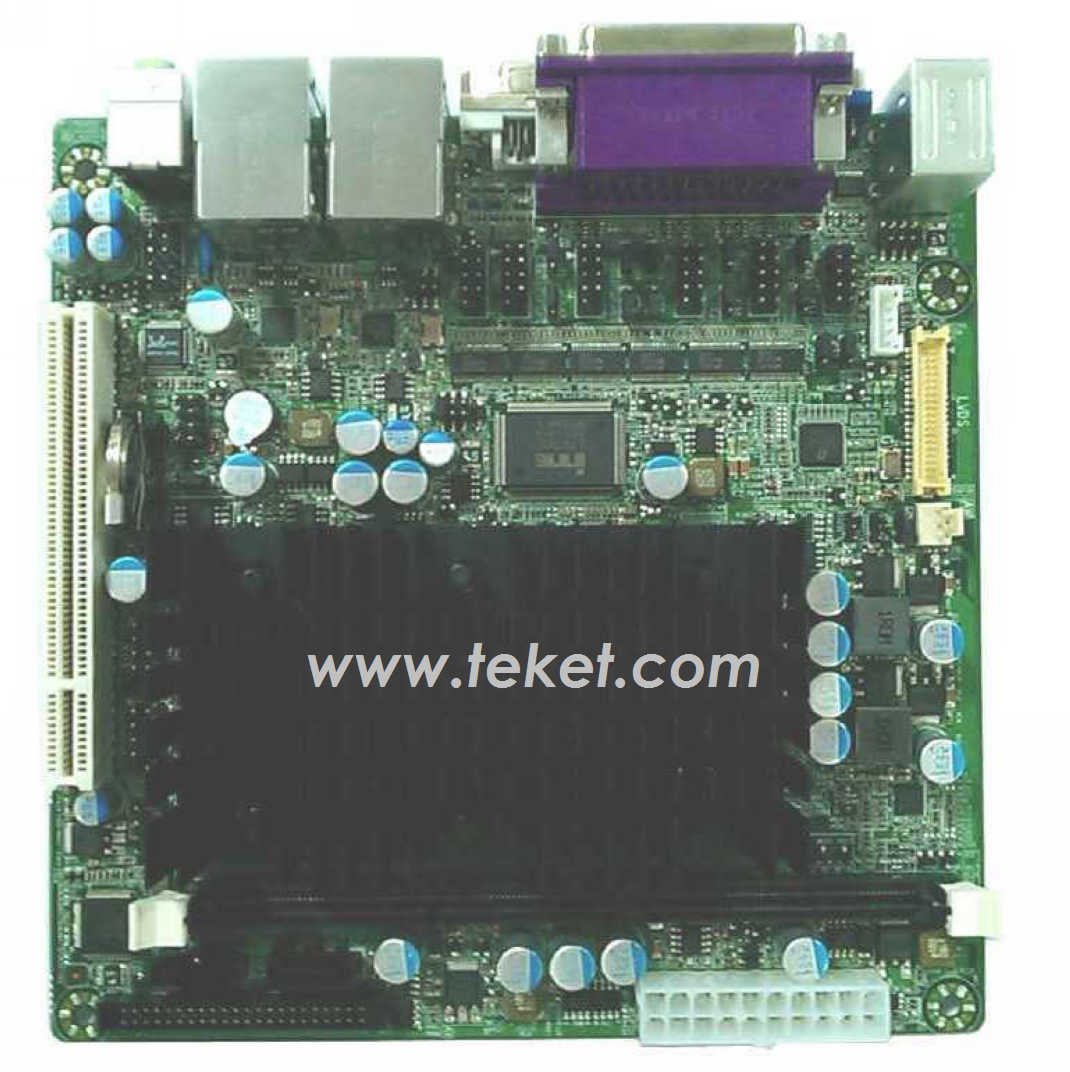

AMD Mini-ITX APU E350 Motherboard E350TE3 with ATI Radeon HD6310

AMD eOntario APU Hudson-E1,MINI-ITX,LAN*2,SATA*2,COM*6,USB*8,PCI*1




Specification
CPU Dual Core FT1 BGA Processor (1.0Ghz, 1.4Ghz, 1.6Ghz
Single Core FT1 BGA Processor (1.2Ghz, 1.5Ghz)
CPU TDP 18W
Chipset AMD Husdon-E1
Memory 1*240pin DDR3 DIMM, up to 4GB
Graphics Integrated AMD HD 624 Graphics with UVD3.0 Decode, support DirectX11, 1080i, 1080P and H.264. VC-1, MPEG-G etc high definition player.
AMD eOntario APU (800MHz~1.6GHz), VGA onboard, UVD3, Support Direct X11
VG+DVI or VGA+LVDS (option)
Audio Realtek ALC662, support 2/4/5.1 HD sound channel
LAN Onboard 2 x Realtek 8111D 1000LAN(10/100/1000MB Adaptive LAN), support PXE.
Storage Interface 4* SATA 3Gb/s (support RAID 0,1)
Expansion Slots 2*PCI-E x16 slot, 1*PCIE
USB 8*USB 2.0(4 pcs on the back panel,4 pcs via the USB brackets connected to the internal USB headers)

Storage Interface:
SATA*2,44pin IDE*1

I/O Interface:
PS/2*2 (1*head)
Gigabyte LAN*1
100M LAN*1
COM*6: COM3 support TTL, COM1-4 support Pin1 5V, COM2-4 support Pin7 12V, COM5-6 support Pin9 5/12v,USB*8(4+4),PCI*1

Audio: HD Audio ALC662, Line Out*1, MIC in*1

Power Supply: ATX
MTBF: more than 50000h
Power comsuption: CTP TDP 9-18W
EMC: EMC, CE, FCC Part 15 Class B

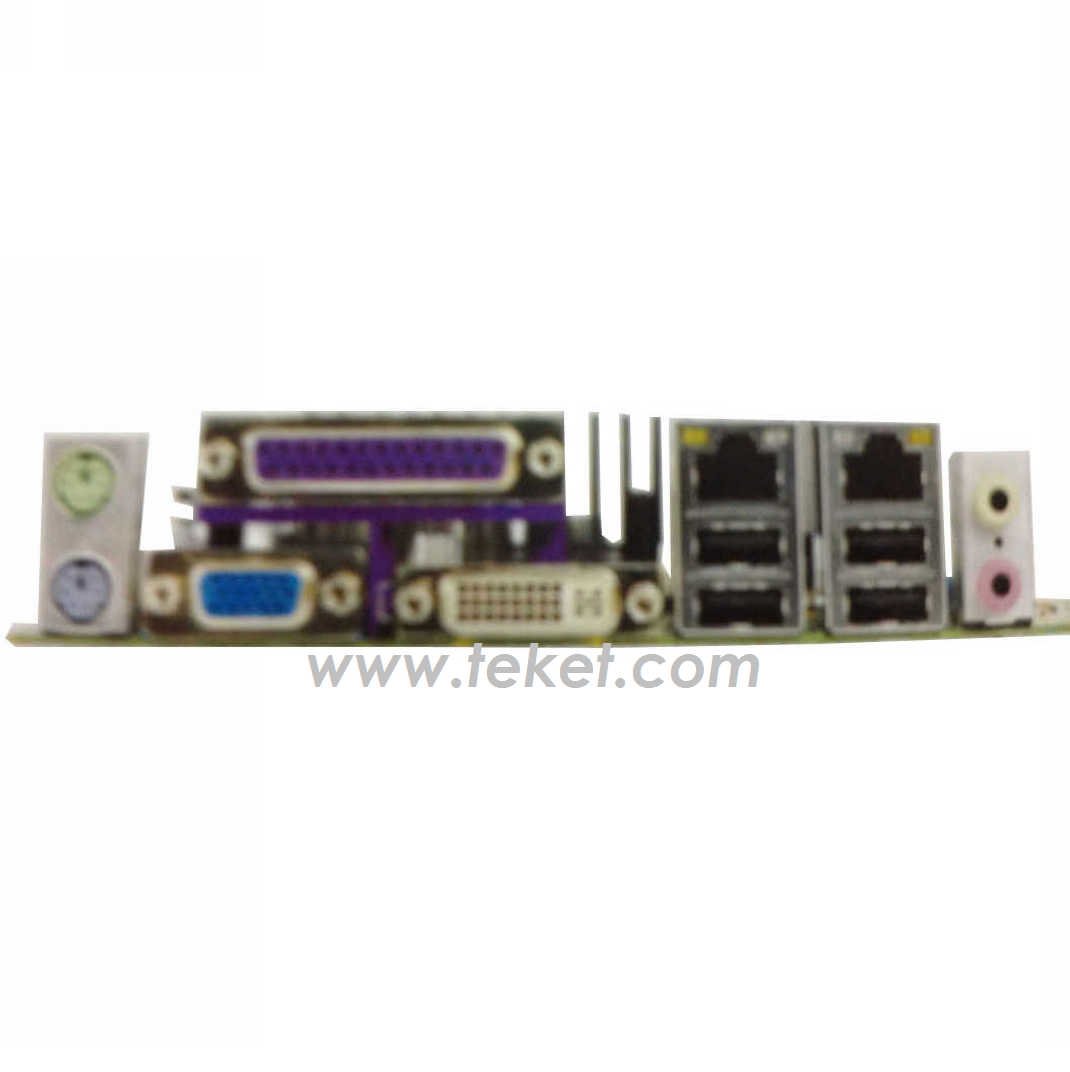

Back Panel
Connectors
1 x PS/2 keyboard and mouse
1 x LPT
0 x COM port
1 x DVI+VGA ports
2 x RJ45 port
2 x audio Jacks( Line-out, MIC or Line-in)
4 x USB connector

Work Environment
Work Temperature -15~55¡
Work Humidity 10%~90% of relative humidity, non-congealable

EMC: EMC:CE,FCC part 15 class B
Form Factor Mini-ITX 170*170mm

Apply Range HTPC,ATM,Kiosk,Digital Signage or Living Room PC

Ordering Information
E350TE3-14 fanless, 1.4ghz
