Your Current Position: Motheboard\AMD Motherboard

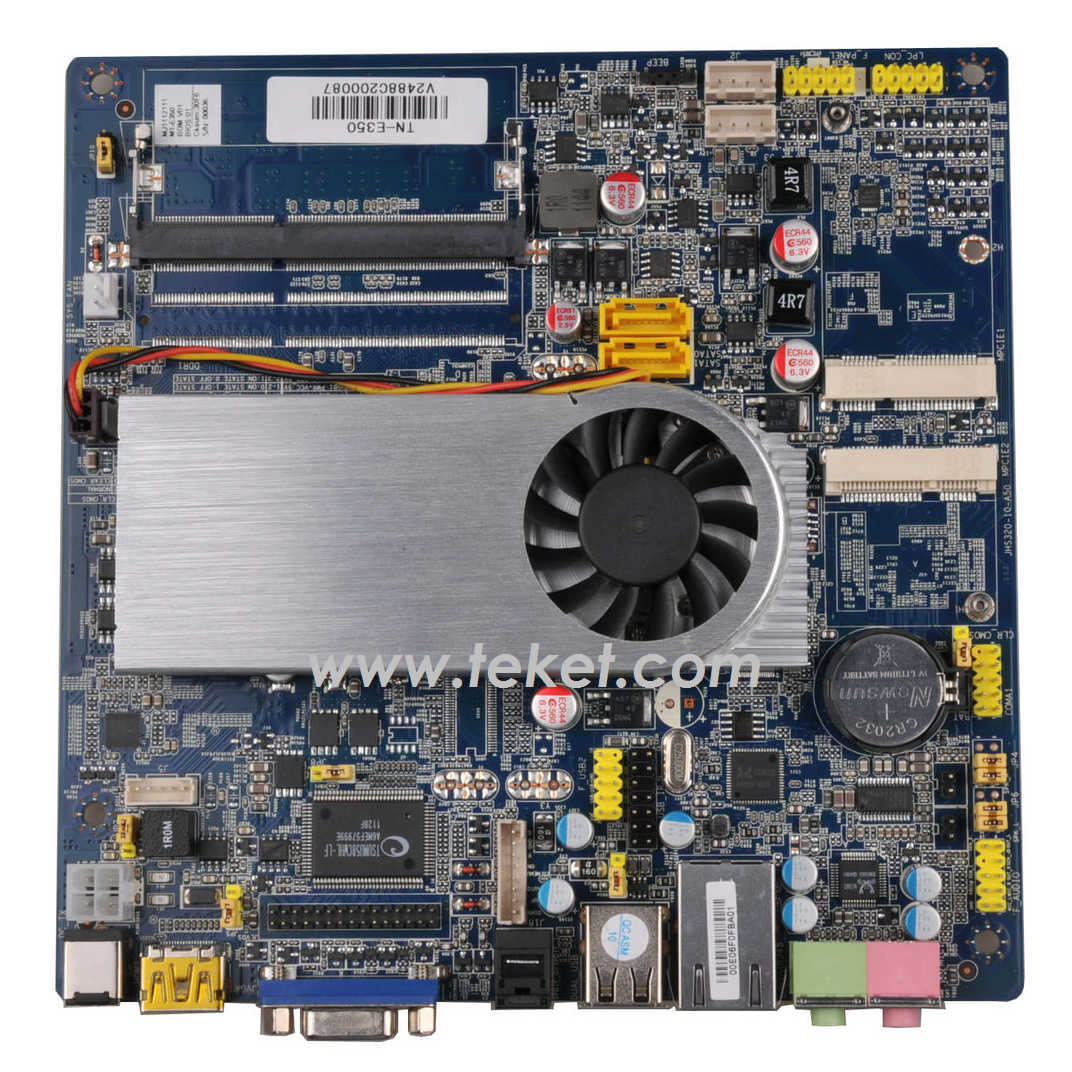

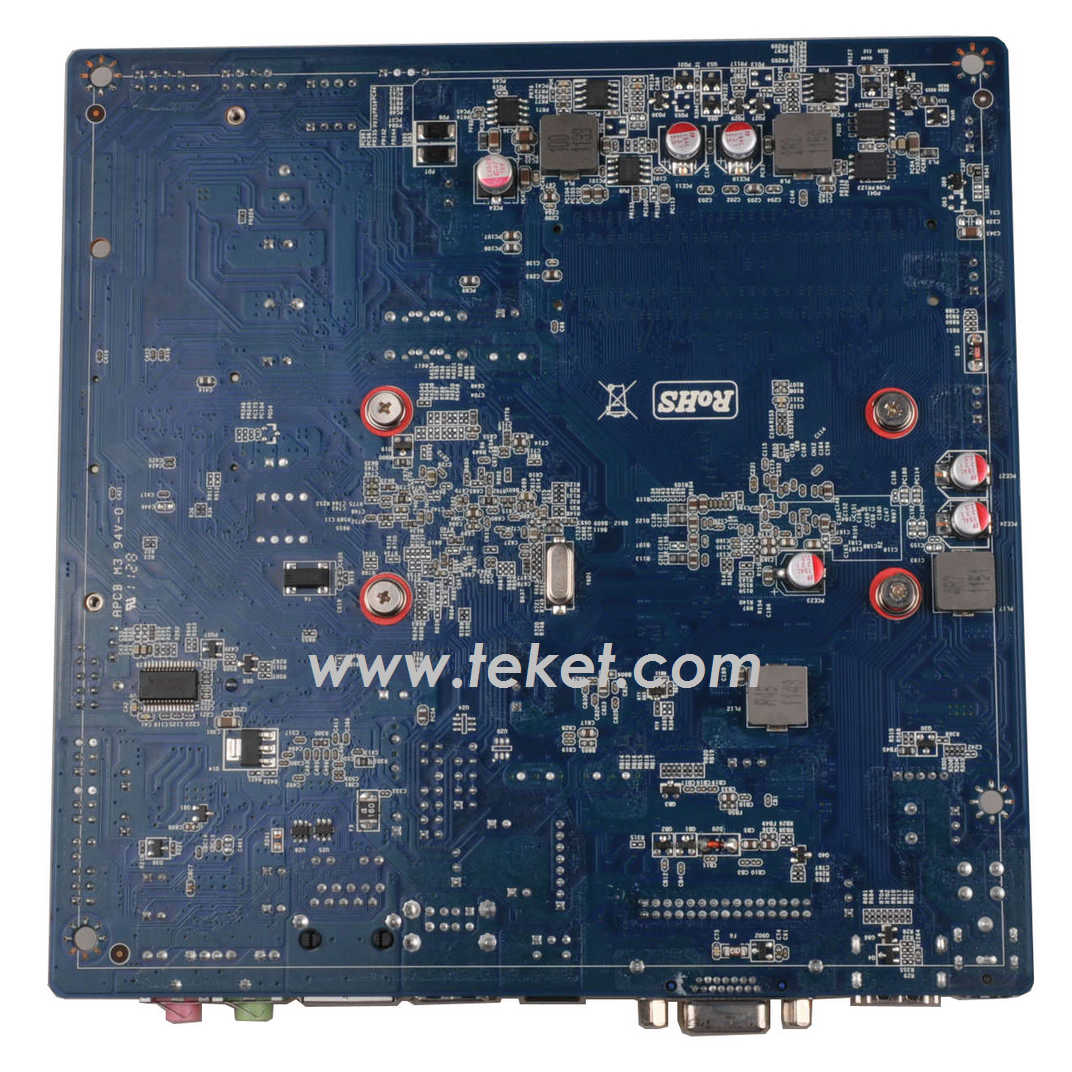

ALL-IN-ONE APU E350 Motherboard E350TN with ATI Radeon HD6310

AMD APU E350 fusion.
ALL-IN-ONE design, 12v dc integrated
Slim form factor, <20mm z-height

• AMD® Fusion APU E350/E240 processor (optional)
• AMD®Hudson M1
• 2 x SO-DIMM, DDR3-1333/1066MHz, Max. 4 GB
Single Channel memory architecture
• 2 x Mini PCIe
• Supports mSATA for special model



CPU AMD® Fusion APU E350/E240 processor (optional)
Chipset AMD®Hudson M1
GPU ATI® Radeon HD 6310 (supports Dx11 3D games)
System Bus Up to 5200 MT/s ; HyperTransport™ 3.0 interface
Memory 2 x SO-DIMM, DDR3-1333/1066MHz, Max. 4 GB
Single Channel memory architecture
Expansion Slots 2 x Mini PCIe (1 x Mini-PCIe, 1 x mSATA)
Storage 2 x SATA Ⅱ 3.0Gb/s ports
LAN Realtek RTL8111E Gigabit LAN controller
Audio ALC662 High Definition Audio 5.1-Channel
USB 6 x USB 2.0 ports (4 ports on board, 2 ports on back panel)

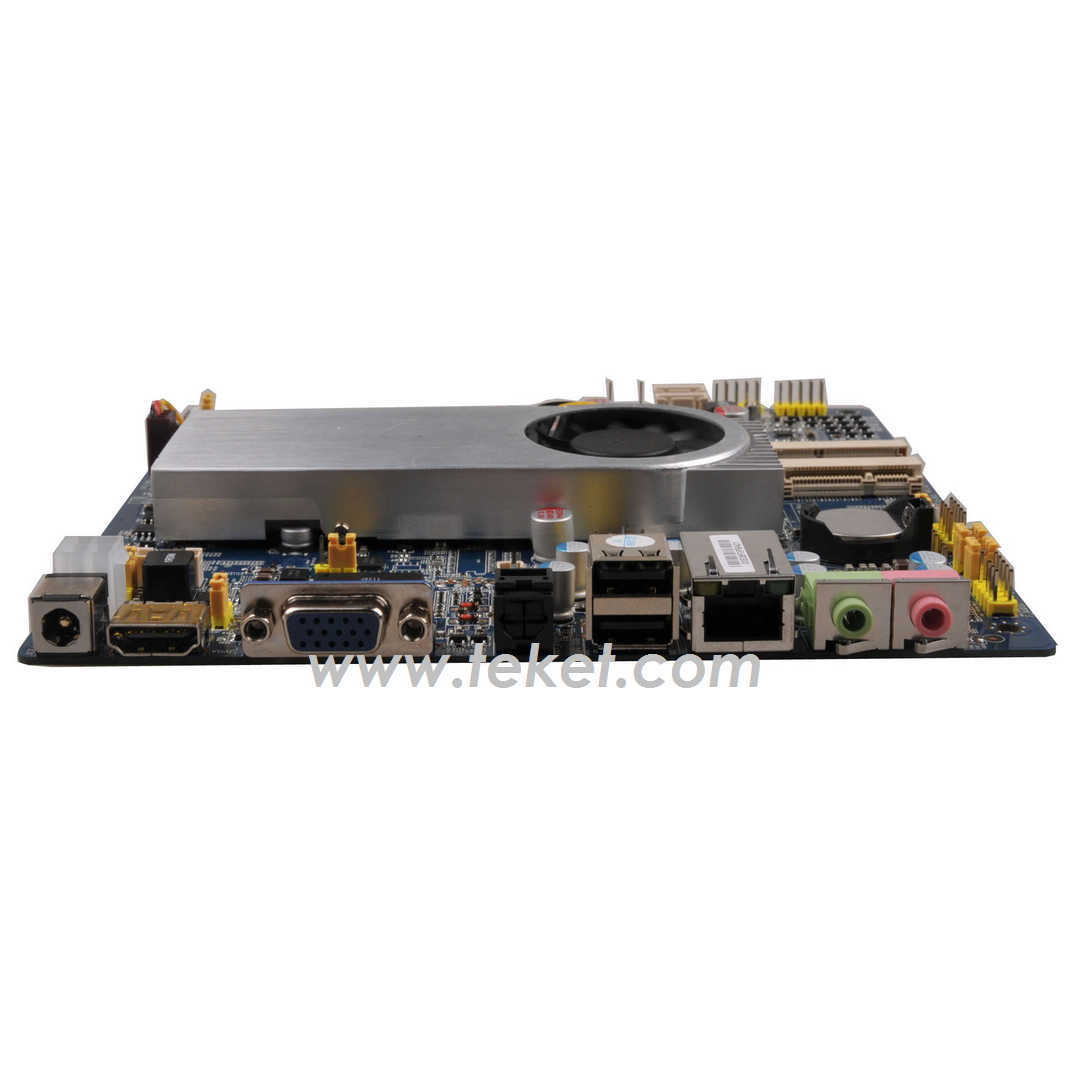

Back Panel I/O Ports 2 x USB 2.0
1 x HDMI port
1 x DVI/VGA port (optional)
1 x LAN(RJ45) port
1 x Optical S/PDIF-out port
5.1 -Channel Audio I/O ( 1 x Audio-out +1 x Mic-in)
1 x DC-in Power Jack ( For 12V/19V adapter)
Internal I/O Connectors 2 x USB headers support for 4 USB 2.0/1.1 ports
1 x VGA
2 x SATA Ⅱ connectors
1 x COM header
1 x CPU Fan connector
1 x Front panel High Definition Audio header
1 x 24-bit LVDS connector
1 x Front panel control header
Form Factor Mini-ITX Form Factor
17cm x 17cm

Specification
CPU: AMD APU E350 1.6GHz
Chipset: AMD Husdon M1
Display: Integrated AMD Radeon HD 6310 Graphics core, support DX11
VG+DVI or VGA+HDMI
Memory: 1*SO DIMM, DDR3 1066Mhz memory, Max 4GB
LAN: RJ45 1000M onboard
Audio: Audio Realtek ALC662, support 2/4/5.1 HD sound channel, S/PDIF
Audio amplifier: support 2w,3w,5w, option
USB: USB 2.0 * 6 (2USB back, 4USB onboard)
Mini-PCIe: 2pcs, support full mSATA
Display: VGA, HDMI, 24bit LVDS (option)

I/O shield:
DC-IN, 12v or 19v adaptive
1*VGA
2*USB
1*HDMI
1*S/PDIF
1*Audio-out&in
1*1000M LAN

Onboard
1*front panel (2*5pin)
4*USB
1*LVDS
1*4PIN power
1*amplifier
1*9pin COM port

Power: 12v/19v dc-in, 4pin atx
Factor: Thin Mini-ITX, 17x17
Cooling system: cpu+chipset with one fan, The fan speed can be adjusted.

Ordering Informatio
e350tn-16 with fan
