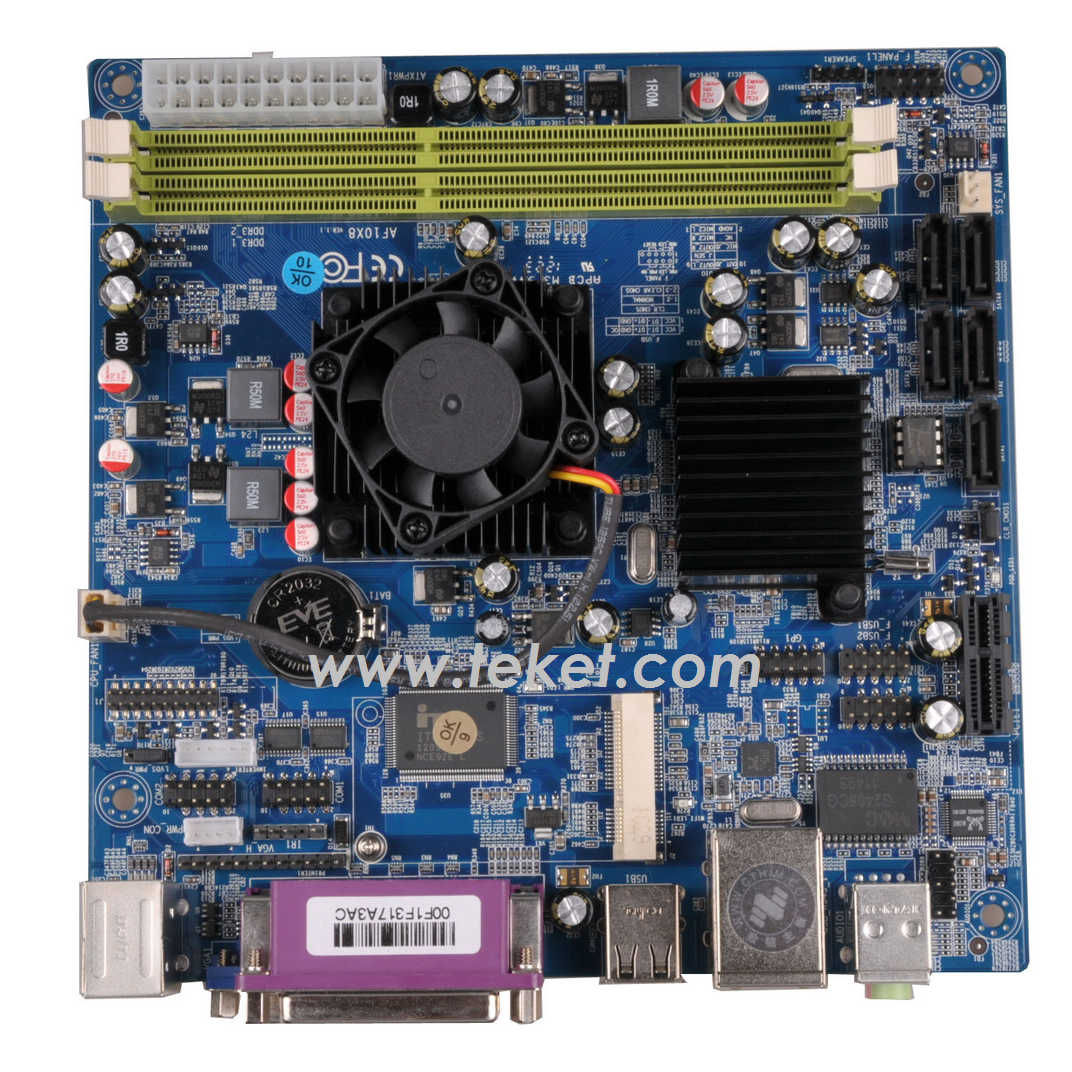

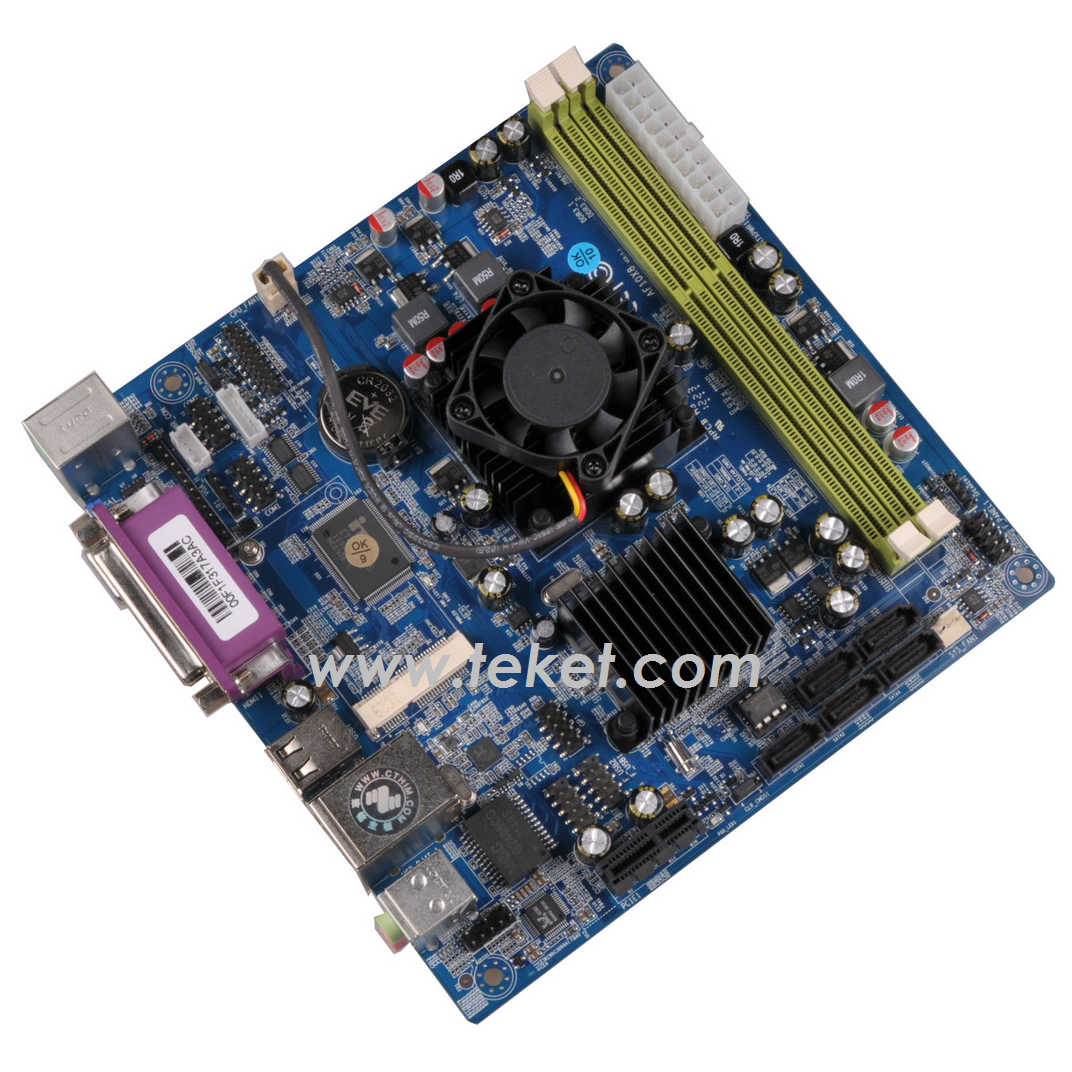

AMD Mini-ITX APU E350 Motherboard E350XA with ATI Radeon HD6250

AMD APU E350 fusion.




Specification
CPU AMD eOntario T56N, dual core 1.6G,18W, M1 FCH processors
Chipset AMD Husdon
Memory 2 x desk pc DDR3 1066/1333MHz, Max up to 8GB
Graphics Integrated AMD HD 6250 Graphics with UVD3.0 Decode, support DirectX11, 1080i, 1080P and H.264. VC-1, MPEG-G etc high definition player.
Audio Realtek ALC662, support 2/4/5.1 HD sound channel
LAN Onboard 2 x Realtek 8111D 1000LAN(10/100/1000MB Adaptive LAN), support PXE.
Storage Interface 6* SATA 3Gb/s
Expansion Slots 2*MINI PCI-E slot, 1*PCIE 1X
USB 8*USB 2.0(4 pcs on the back panel,4 pcs via the USB brackets connected to the internal USB headers)
Internal
I/O Connectors 1 x F_PA NEL header 1 x CPU_ FAN header 1 x SYS_FA N connector
1 x Front Audio header 1 x SPDIF header 1 x CD_IN header
2 x USB 2.0 headers 1 x CLR_CMOS header 1 x Audio header
2 x VGA headers 1 x 24Bit LVDS 1 x GPIO header
6 x SATA connector 1 x MINI_PCIE connector 6 x COM headers

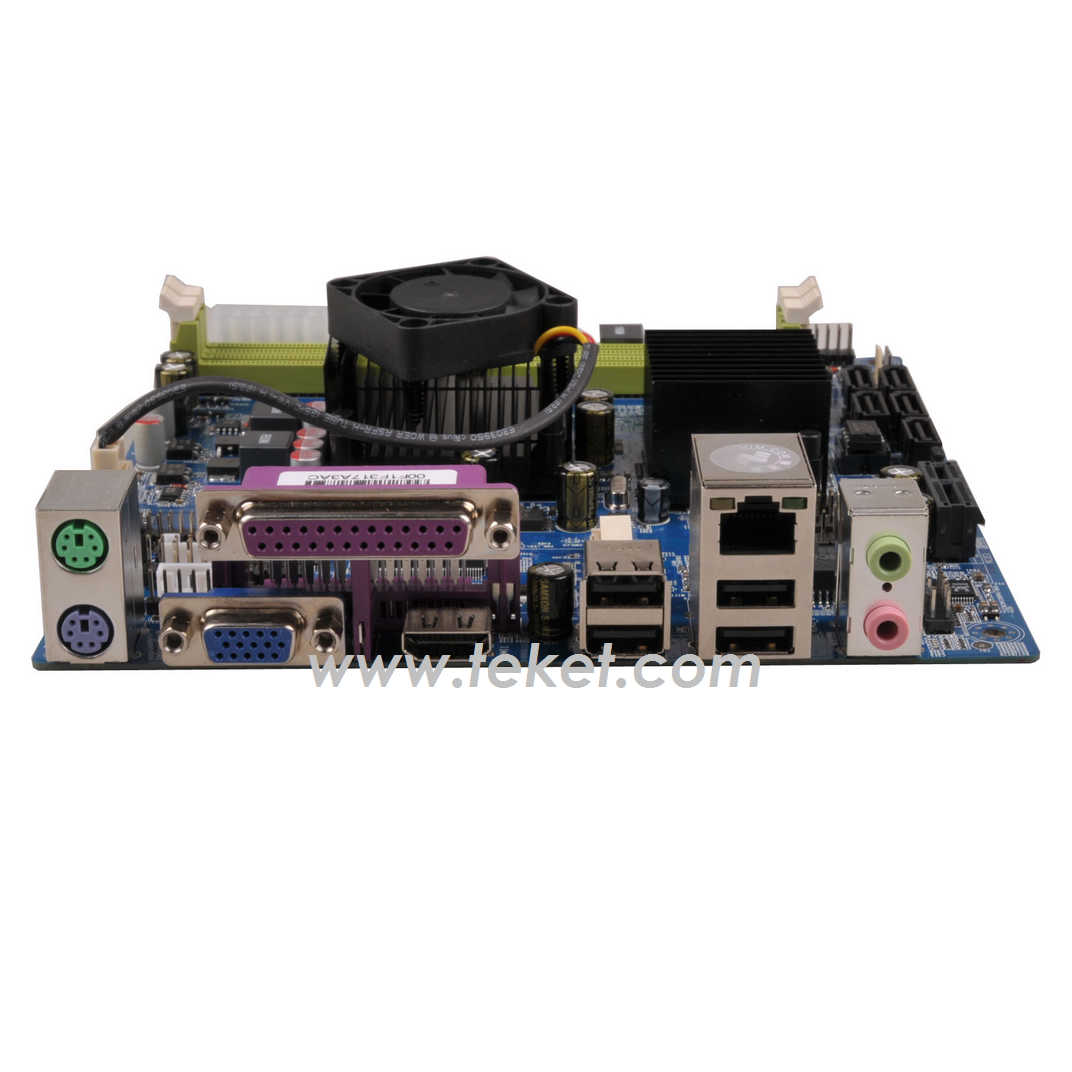

Back Panel
Connectors 1 x PS/2 keyboard and mouse
1 x LPT+VGA+HDMI ports
2 x R J45 port
2 x audio Jacks( Line-out, MIC or Line-in)
4 x U SB connector
I/O Controller 1 x IT8782F-S
BIOS AMI Authorized 8Mbit BIOS, support RPL/PXE non-disk system
Form Factor Mini-ITX 170*170mm
Work Environment
Work Temperature -15~55c
Work Humidity 10%~80% of relative humidity, non-congealable.
Apply Range ATM, Kiosk, Digital Signage or Living Room PC

Order information:
E350XA-62(6*COM,2*LAN)
E350XA-21(2*COM,1*LAN)
