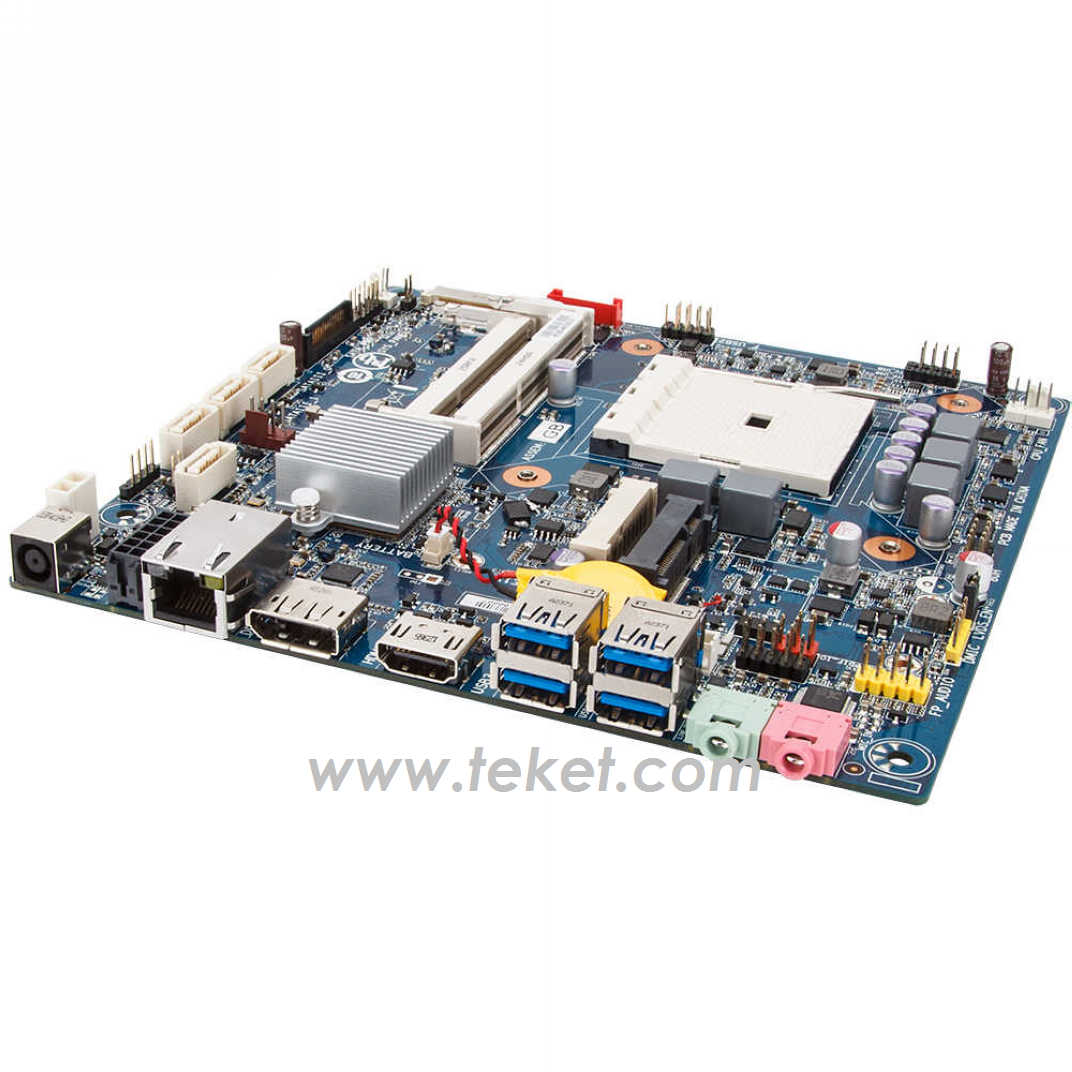

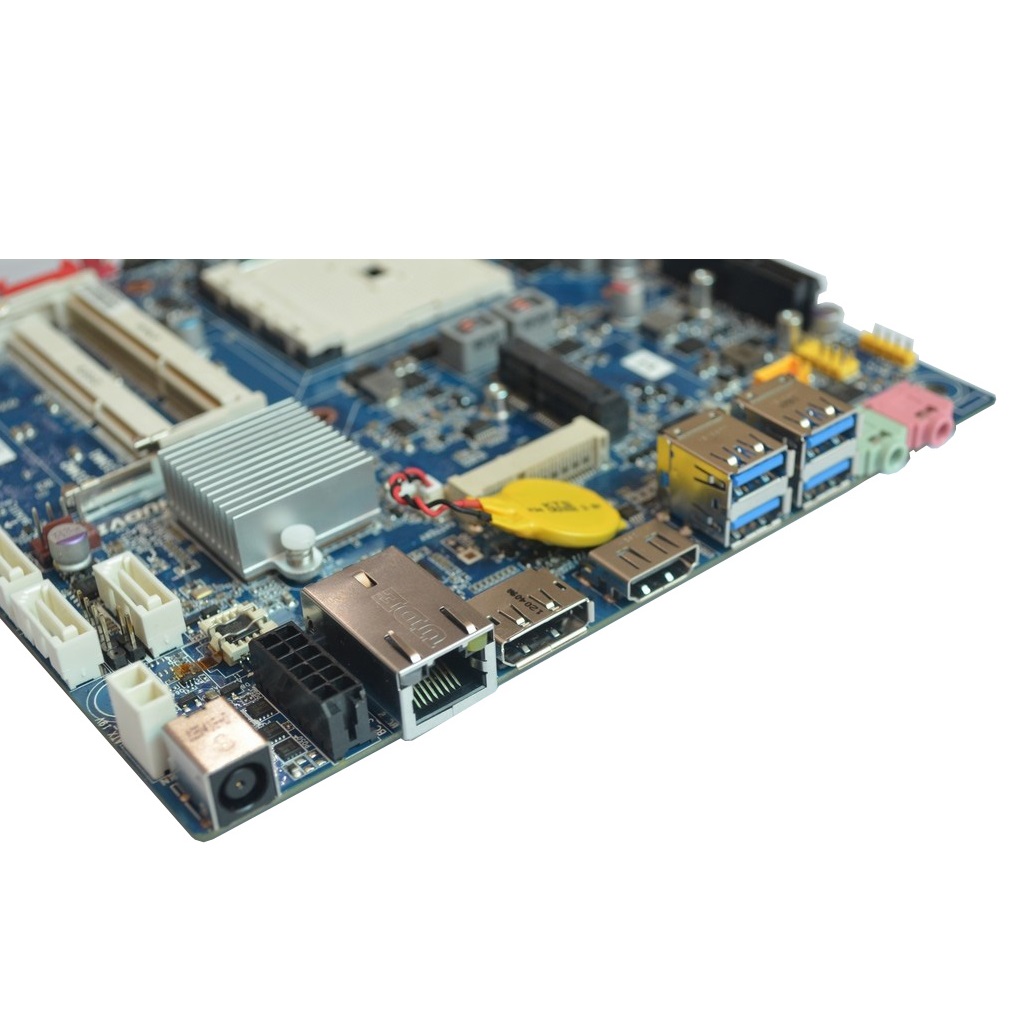

AMD FM APU A4-5/A6-5/A8-5/A10-5 A75 chipset Slim Mini-ITX Motherboard MQHUDVI with Video HD7480D-HD7660D

Thin Mini-ITX form factor
AMD Fusion APU A4-5/A6-5/A8-5/A10-5
2 x SO-DIMM, up to 16GB 1866MHz
1 x GbE LAN port (Realtek? RTL8111E)
4 x SATA III 6Gb/s ports




MQHUDVI (rev. 1.0)
AMD? A75 chipset

Form Factor Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield
CPU AMD? Fusion? APU A4-5/A6-5/A8-5/A10-5
Socket 1 x FM2
Chipset AMD? A75
Memory 2 x SO-DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1600/1866 MHz
LAN 1 x GbE LAN port (Realtek? RTL8111E)
Video AMD? HD7480D-HD7660D
Audio Realtek? ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
SATA 4 x SATA III 6Gb/s ports
RAID AMD? SATA RAID 0/1/10
Expansion Slots 1 x mSATA slot
1 x Half-size Mini-PCIe slot
Internal I/O 1 x 2-pin ATX 19V power connector
3 x USB 2.0 headers
1 x Digital MIC header
1 x LVDS 18/ 24bit
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x SATA power (15-pin)
1 x Front panel header
1 x Back light control
1 x Speaker header
1 x Serial header (optional)
Rear I/O 4 x USB 3.0
1 x DisplayPort (optional)
1 x HDMI
1 x MIC-In (optional)
1 x Line-Out
1 x RJ45
1 x DC-In
TPM -
OS Supported Windows 7 (32/64bit)
Windows 8 (32/64bit)
PSU Connectors 1 x DC-In 12V/19V
1 x 2-pin ATX 19V power connector
Power Supply DC-In 19V or 12V
Adapters available in option:
120W, 19V, 6.3A, DC plug (74x51mm)

Packaging Bundle -
Ordering Information 9MQHUDVINR-SI
