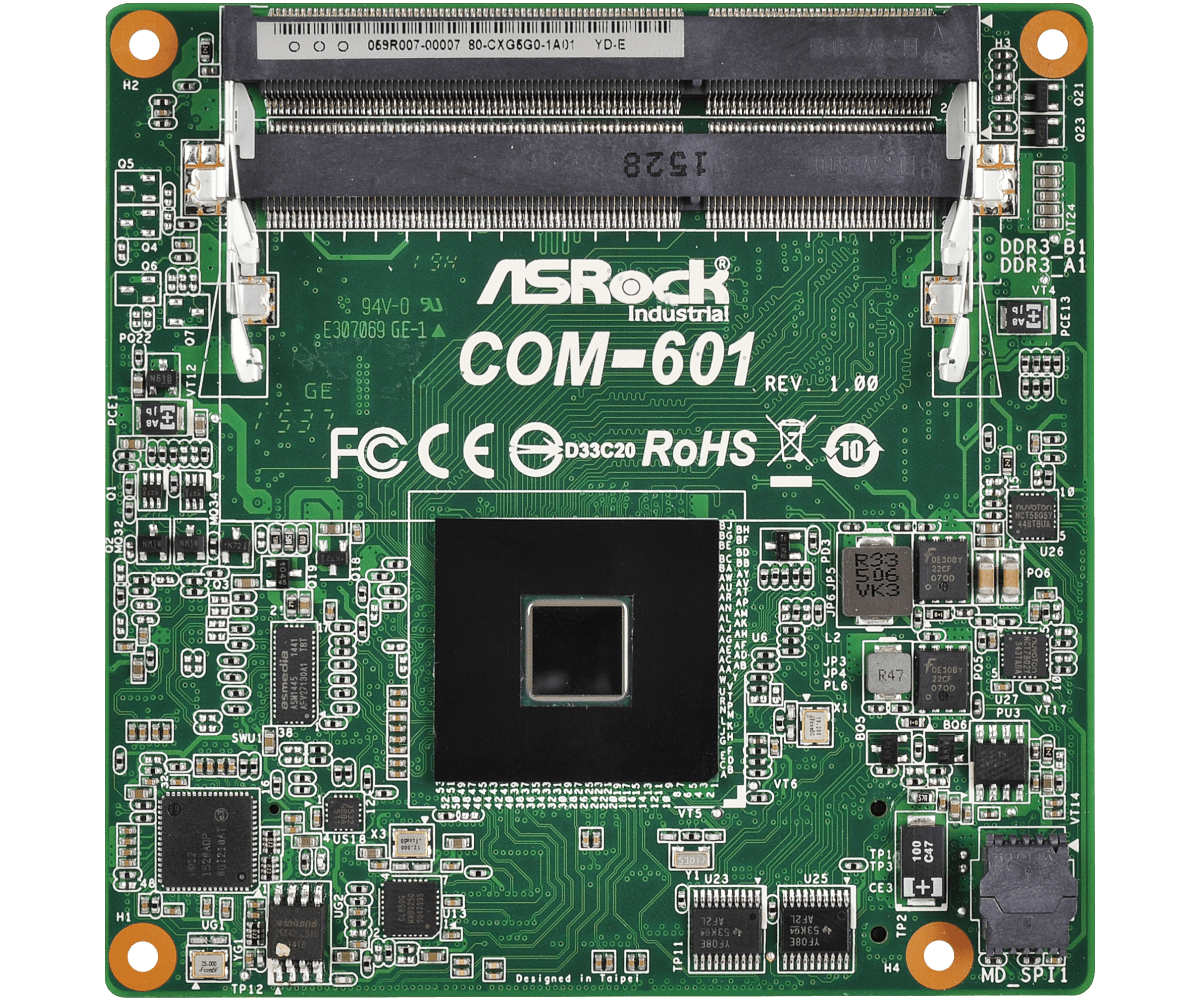

-->> Asrock Embedded Intel Pentium / Celeron Braswell SoC COM Express Compact Size 95x95mm motherboard COM-601 <<--

COM-601
COM Express Type 6 Compact Size
Intel? Pentium? / Celeron? Braswell SoC Processor
Supports DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
3 x DDI channels, 1 x eDP channel
7 x PCIe x1 Lanes (1 for Intel? I211AT GbE)
4 x USB SS, 8 x USB 2.0, 2 x SATA 3

Form Factor
Dimensions - COM Express Compact Size 95x95mm (3.74-in x 3.74-in)
Processor System
CPU
- Intel? Pentium? / Celeron? Braswell SoC Supports Hyper-Threading Technology
- Default N3150 Quad core 6W processor
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI
Expansion Slot
PCIe - 7 x PCIe x1 Lane
Mini-PCIe - By Carrier Board
mSATA - By Carrier Board
Memory
Technology - DDR3L 1333 / 1600 MHz SDRAM
Max. - 8GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? HD Graphics
VRAM - Shared Memory
VGA - N/A
DVI - N/A
LVDS - Dual channel 24-bit co-lay with eDP, max resolution1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - Supports DP 1.1a
MultiDisplay - Yes
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? i210
Connector - By Carrier Board
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)
Rear I/O
VGA - 1 x DDI to VGA, By Carrier Board (Shared with DP)
DVI - 0
HDMI - 1 x DDI to HDMI, By Carrier Board
DisplayPort - 2 x DDI to DP, By Carrier Board
Ethernet - 1 x RJ45 for GbE, By Carrier Board
USB - 4 x USB 3.0 Ports, By Carrier Board
Audio - 1 x Line-Out, 1 x MIC-in, 1 x Line- In, By Carrier Board
Serial - 2
PS2 - 1 x PS/2, By Carrier Board
Internal Connector
USB - 2 x USB 2.0, By Carrier Board
LVDS / inverter - 1, By Carrier Board
VGA - 0
Serial - 2 (TX/RX Only), By Carrier Board
SATA - 4, By Carrier Board
mPCIe - 2, By Carrier Board
Parallel - 1, By Carrier Board
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI, 4 x GPO, By Carrier Board
SATA PWR Output Con - 1, By Carrier Board
Speaker Header - 0
Watchdog Timer
Interval - 1,2...255 Sec
Power Requirements
Input PWR - By Carrier Board
Power On - By Carrier Board
Environment
Temperature - 0oC – 60oC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
