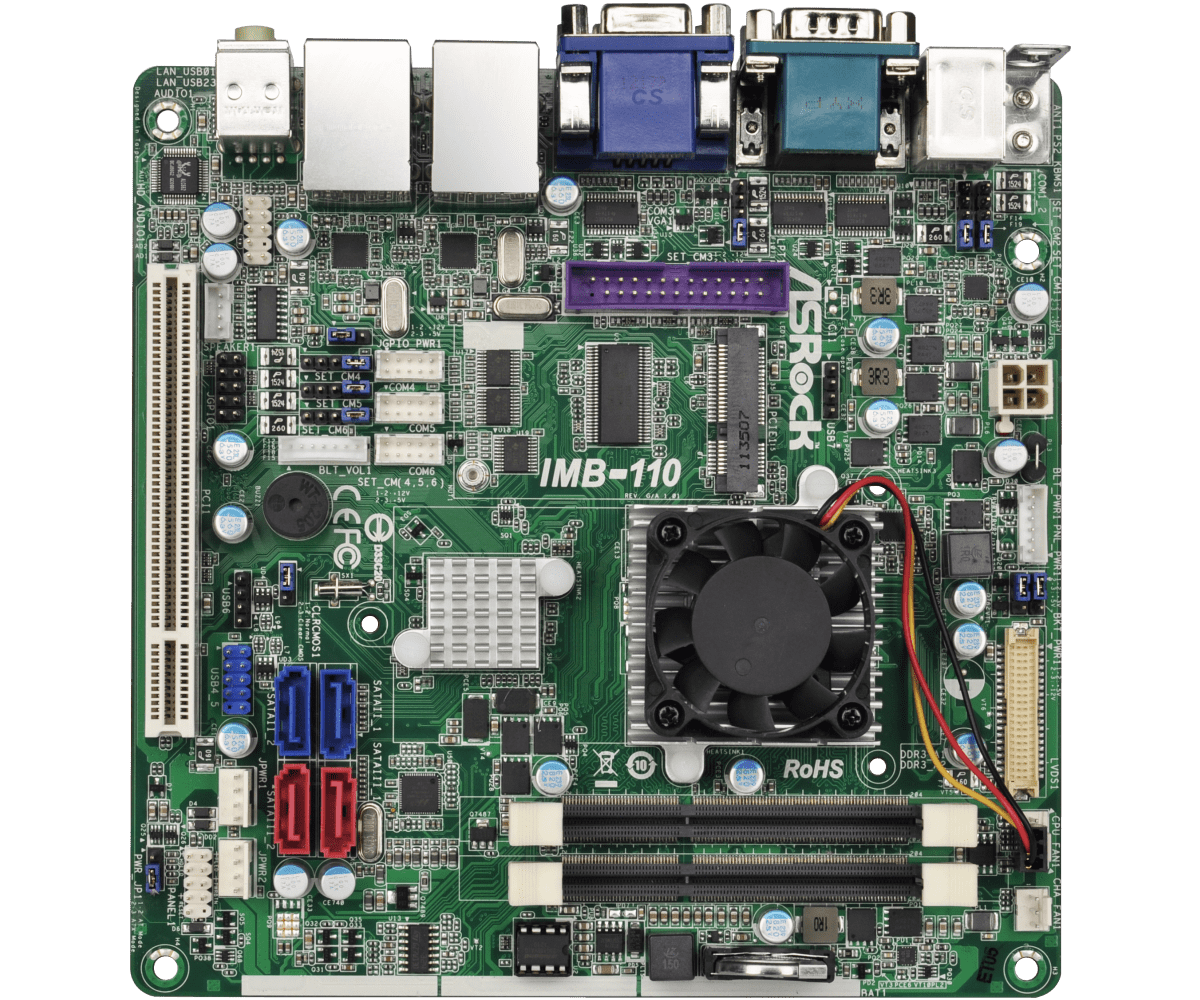

-->> Asrock Embedded ATOM PineView D525/D425/N455 MINI-ITX motherboard with Intel GMA3150 Graphics IMB-110 Series <<--

IMB-110 Series
Intel? Atom? PineView Processor D525/D425/N455
Intel? NM10 Express Chipset
Integrated Intel? Graphics Media Accelerator 3150, DirectX 9.0
Supports DDR3 800MHz, 2 x SO-DIMM, up to 4GB system memory
3 x COM (RS-232/422/485), 3 x COM (RS-232)
1 x D-Sub, 1 x Single Channel 18-bit LVDS
8 x USB 2.0, 2 x SATA3, 2 x SATA2
1 x PCI, 1 x mini-PCIe
Gigabit LAN : 2 x Realtek RTL8111E-VL



Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- Intel? Dual-Core Atom? PineView Processor D525 / D425 / N455
- Supports Hyper-Threading Technology
Core Number
- D525 : 2 ; D425/N455 : 1
Max Speed
- D525/D425: 1.8 GHz, N455: 1.66 GHz
L3 Cache - N/A
Chipset - NM10
BIOS - UEFI

Expansion Slot
PCIe - 0
PCI - 1
Mini-PCIe - 1 (Full Size)
mSATA - 0
CFast Card Socket - 0

Memory
Technology
- D525/D425: Single Channel DDR3 800 MHz SDRAM
- N455: Single Channel DDR3 667 MHz SDRAM
Max.
- D525 / D425: 4GB
- N455: 2GB
Socket
- 2 x SO-DIMM

Graphics
Controller
- Intel? Graphics Media Accelerator 3150
- Pixel Shader 2.0, DirectX 9.0
VRAM - Shared Memory
VGA
- D525/D425: supports max. resolution 2048x1536 @ 60Hz
- N455: supports max. resolution 1400x1050 @ 60Hz
DVI - No
LVDS - Single Channel 18-bit, max resolution 1366 x 768
HDMI - No
DisplayPort - No
MultiDisplay - Yes

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: 2 x Realtek RTL8111E-VL
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1

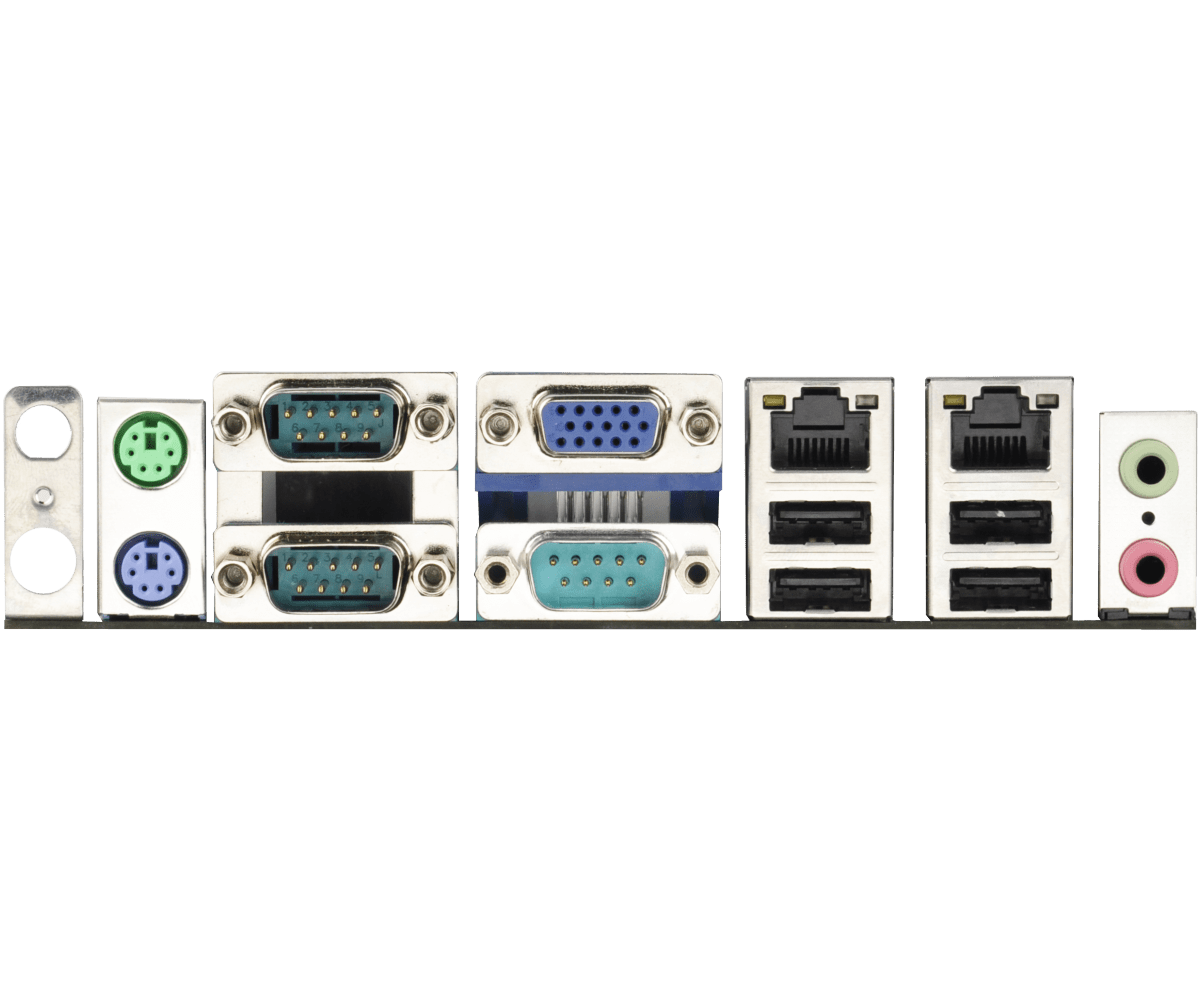

Rear I/O
VGA - 1
DVI - 0
HDMI - 0
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 2.0
Audio - 2 (Mic-in, Line-out)
Serial - 3 (RS-232/422/485)
eSATA - 0
PS2 - 2 (1 x keyboard, 1 x mouse)

Internal Connector
USB - 4 x USB 2.0
LVDS / inverter - 1/1
VGA - 0
Serial - 3 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1
mPCIe - 1
Parallel - 1
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 2
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 12V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX : Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC
