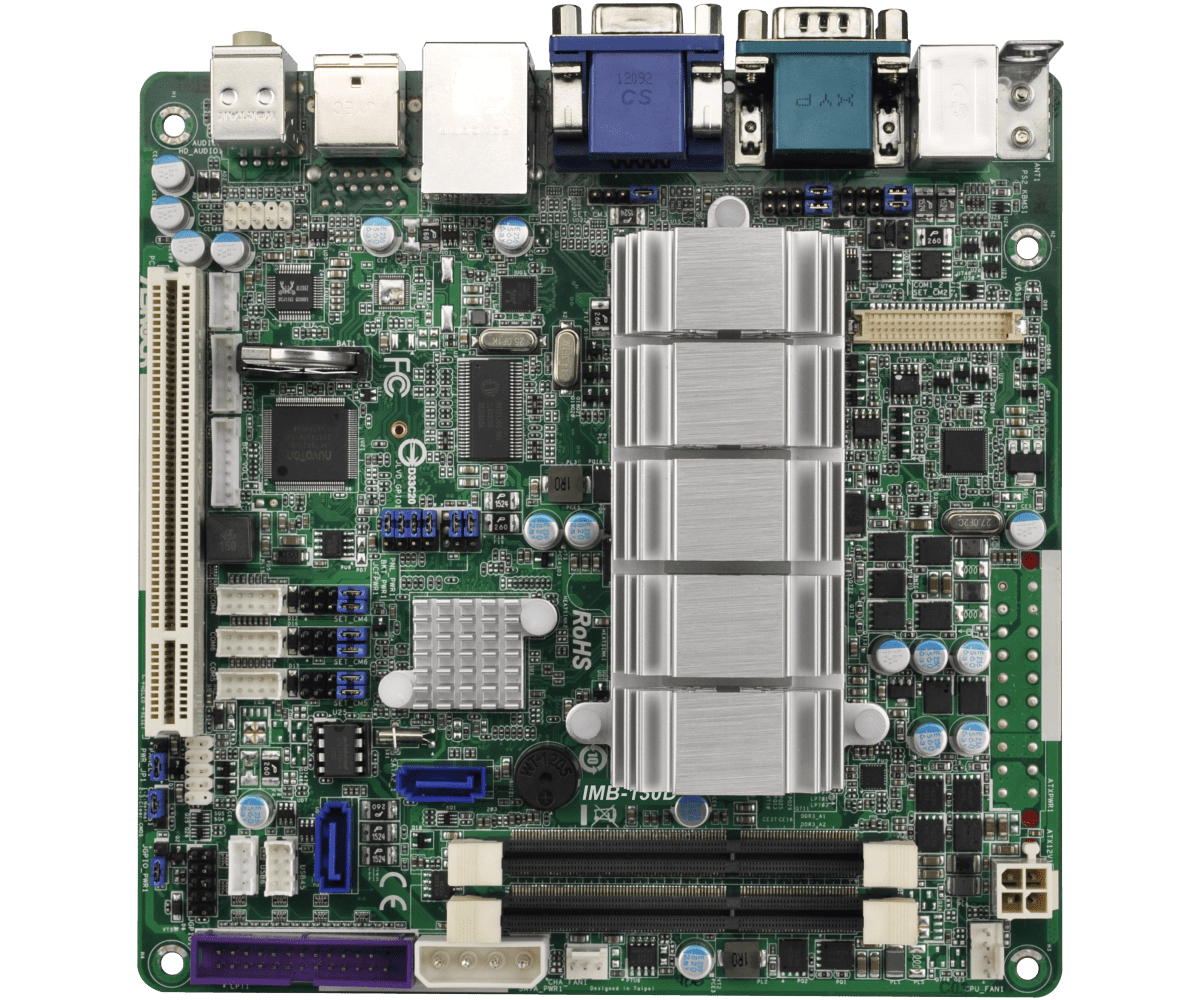

-->> Asrock Embedded ATOM CedarView D2500/N2600/N2800 MINI-ITX motherboard with Intel Graphics IMB-130 Series <<--

IMB-130 Series
Intel? Dual-Core Atom? CedarView Processor D2550/N2600/N2800
Intel? NM10 Express Chipset
Integrated Intel? PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0
Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
1 x COM (RS-232/422/485), 4 x COM (RS-232)
1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
7 x USB 2.0, 2 x SATA2
1 x PCI, 1 x mini-PCIe
Gigabit LAN : 1 x Realtek RTL8111E-VL



Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- Intel? Dual-Core Atom? CedarView Processor D2550 / N2600 / N2800
- Supports Hyper-Threading Technology
Core Number - 2
Max Speed
- D2550/N2800: 1.86 GHz
- N2600: 1.6GHz
L3 Cache - N/A
Chipset - NM10
BIOS - UEFI

Expansion Slot
PCIe - 0
PCI - 1
Mini-PCIe - 1 (Full Size)
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Single Channel DDR3 800 / 1066 MHz SDRAM
Max.
- D2550 / N2800: 4GB
- N2600: 2GB
Socket
- D2550 / N2800: 2 x SO-DIMM
- N2600: 1 x SO-DIMM

Graphics
Controller
- Intel? PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0
VRAM - Shared Memory
VGA - Supports max. resolution 1920x1200
DVI - No
LVDS - Dual Channel 24-bit, max resolution 1920 x 1200
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - No
MultiDisplay - Yes

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: 2 x Realtek RTL8111E-VL
Connector - 1 x RJ45

Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

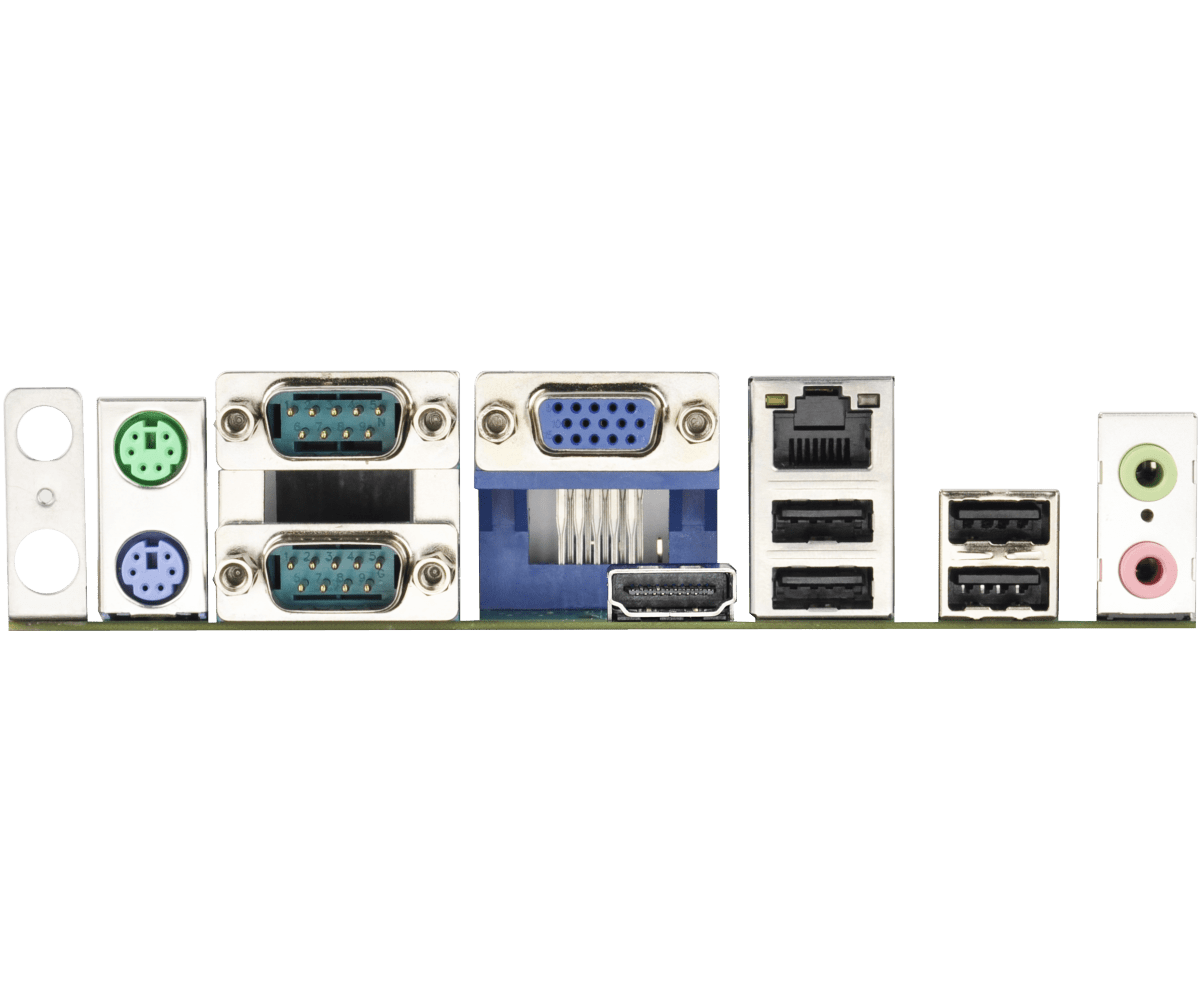

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 1
USB - 4 x USB 2.0
Audio - 2 (Mic-in, Line-out)
Serial - 1 (RS-232/422/485) + 1 (RS232)
eSATA - 0
PS2 - 2 (1 x keyboard, 1 x mouse)

Internal Connector
USB - 3 x USB 2.0
LVDS / inverter - 1/1
VGA - 0
Serial - 3 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s)
mPCIe - 1
Parallel - 1
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 12V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX : Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information - IMB-130D (90-PXG0A0-A0UAYZ, Gift package) : IMB-130 with Intel? Atom? D2550, 2 Core, 1.86GHz, 10W, 1M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x COM cable
- 2 x SATA cable
- 1 x SATA power cable
- 1 x DC-IN power cable
- 2 x Screw for mini card
