-->> Asrock Embedded ATOM CedarView D2550 MINI-ITX motherboard with Intel Graphics IMB-148 <<--

IMB-148
Intel? Atom? CedarView Processor D2550
Intel? NM10 Express Chipset
Integrated Intel? PowerVR SGX545, DirectX 9.0, PS3.0
Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
4 x COM (RS-232)
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
8 x USB 2.0, 2 x SATA2
1 x mini-PCIe
Gigabit LAN : 1 x Realtek Lan
9~19V DC-in



Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- Intel? Atom? CedarView Processor D2550
- Supports Hyper-Threading Technology
Core Number - 2
Max Speed - D2550: 1.86 GHz
L3 Cache - N/A
Chipset - NM10
BIOS - UEFI

Expansion Slot
PCIe - 1 (1x)
PCI - 0
Mini-PCIe - 1 (half size) PCIe only
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Single Channel DDR3 800/1066 MHz SDRAM
Max. - 4GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0
VRAM - Share Memory
VGA - Supports max. resolution 1920x1200
DVI - No
LVDS - Single channel 24-bit, max resolution 1440 x 900 @ 60Hz
HDMI - Yes
DisplayPort - No
MultiDisplay - Yes (Dual Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN Realtek
Connector - 1 x RJ45

Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

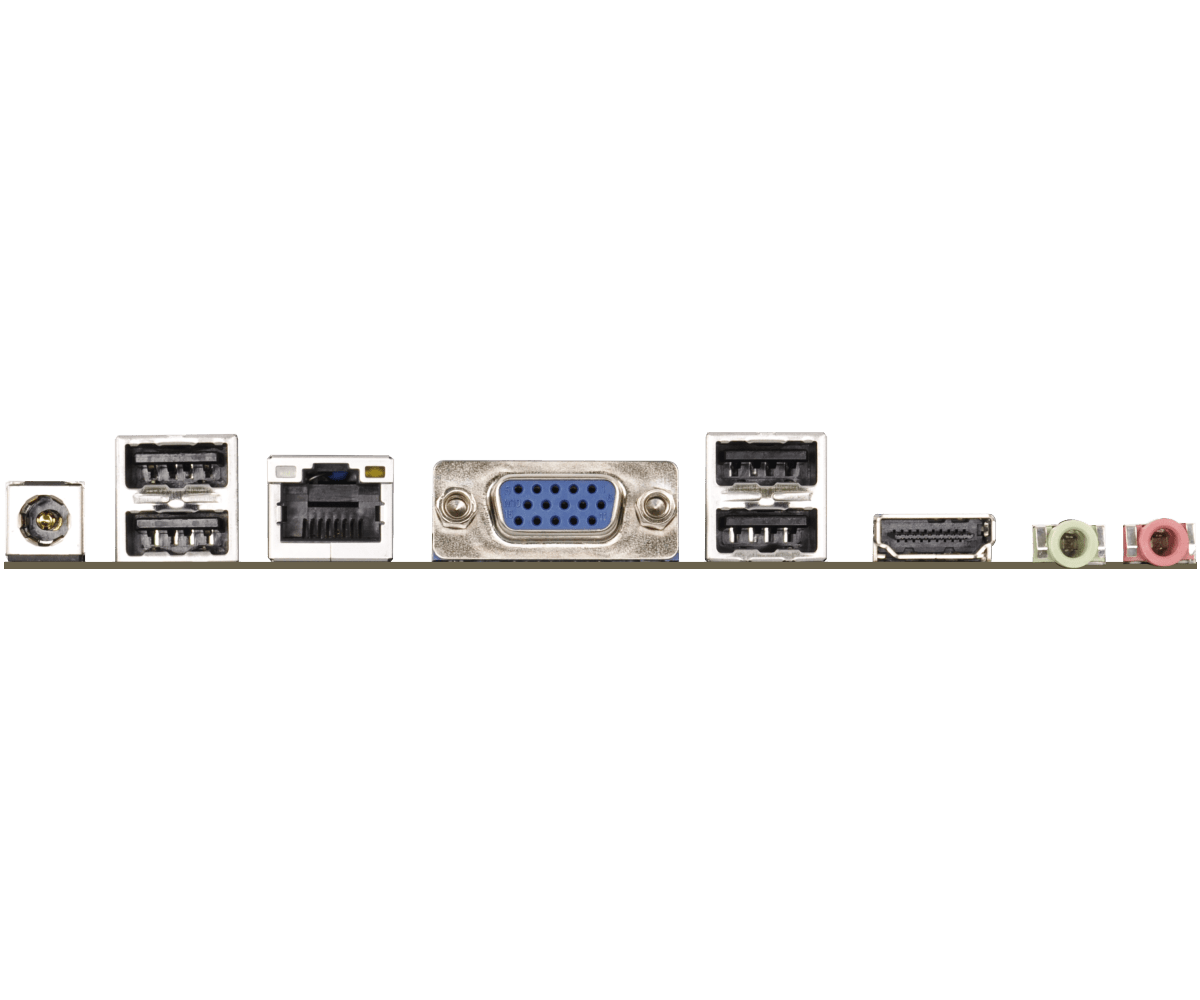

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 1
USB - 4 x USB 2.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0

Internal Connector
USB - 4 x USB 2.0
LVDS / inverter - 1/1
VGA - 1 (shared with rear I/O VGA)
Serial - 4 (RS-232)
SATA - 2 x SATA2 ( 3.0Gb/s)
mPCIe - 1
Parallel - 1
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 in / 4 out
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 9~19V DC-In (2-pin PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information
- IMB-148 (90-PXG1Y0-A0UAYZ, Gift package) : IMB-148 with Intel? Atom? D2550, 2 Cores, 1.86GHz, 10W, 1M
- IMB-148-NF (90-PXG2L0-A0UAYZ, Gift package) : IMB-148 with Intel? Atom? D2550, 2 Cores, 1.86GHz, 10W, 1M, Fanless
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 2 x IO shield
- 1 x SATA cable
- 1 x SATA power cable
- 2 x Screw for mini card
