>>Your Current Position: Asrock Motherboard

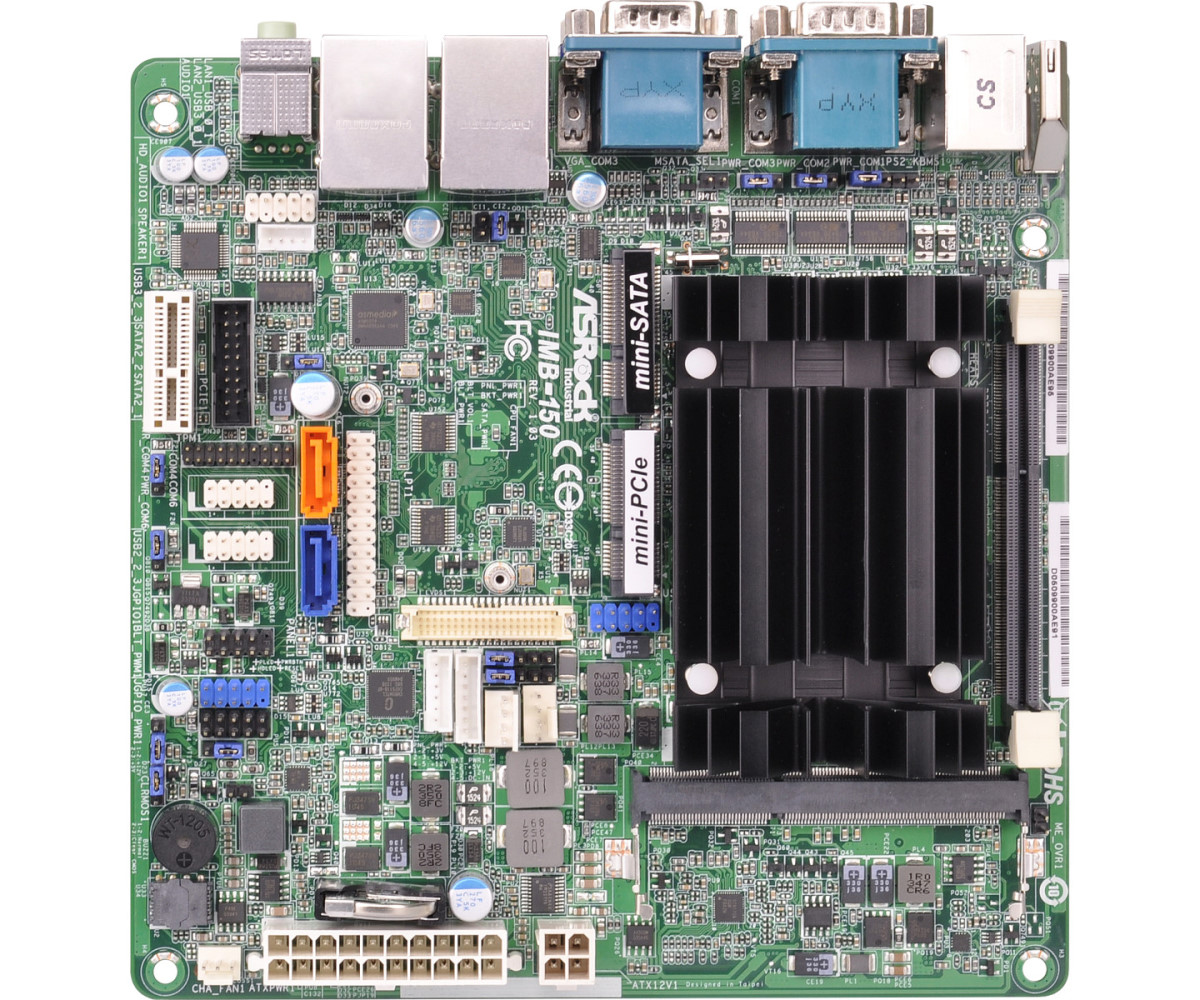

-->> Asrock Embedded Celeron J1900/N2930/N2920 MINI-ITX motherboard with Intel Graphics IMB-150 <<--

IMB-150
Intel? Celeron Processor J1900/N2930/N2920
Integrated Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
Supports Dual Channel DDR3 1333MHz, 2 x SO-DIMM, up to 8GB system memory
3 x COM (RS-232/422/485), 2 x COM (RS-232)
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1 x mSATA(shared)
Gigabit LAN : 2 x Realtek Lan
9~19 V DC-in / ATX Power Support



Product Specifications

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU - Intel? Celeron Processor J1900/N2930/N2920
Core Number - 4
Max Speed - (By CPU)
L3 Cache - 2MB
Chipset - N/A
BIOS - UEFI
Expansion Slot
PCI - 0
Mini-PCIe - 1 (Half Size)
mSATA - 1
PCIe - 1
CFast Card Socket - 0
Memory
Technology - Dual Channel DDR3 1333 MHz SDRAM
Max. - 8GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920x1200
LVDS - Dual Channel 24-bit, max resolution 1920x1200@60Hz
HDMI - Supports HDMI 1.3a, max resolution 1920x1200
DVI - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: 2 x Realtek RTL8111G-CG
Connector - 2 x RJ-45
SATA
Max Data Transfer Rate - SATA2 (3.0Gb/s)

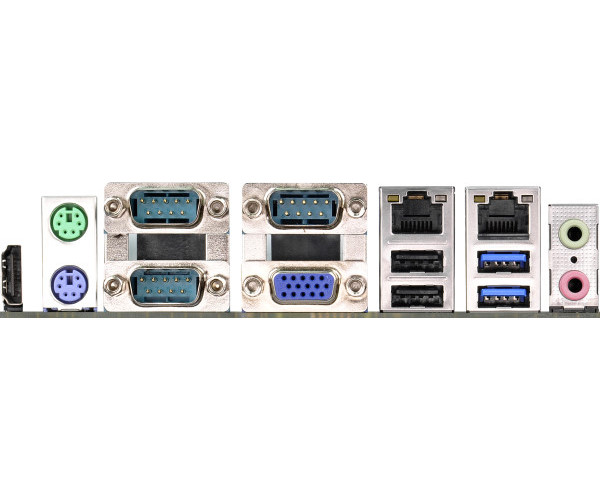

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 4 (2 x USB 3.0, 2 x USB 2.0)
Audio - 2 (Mic-in, Line-out)
Serial - 3 (RS-232/422/485)
eSATA - 0
PS2 - 2 (1 x keyboard, 1 x mouse)
Internal Connector
USB - 6 (2 x USB 3.0, 4 x USB 2.0)
LVDS / inverter - 1/1
VGA - 1 (shared with rear I/O VGA COM)
Serial - 2 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s)
mPCIe - 1
Parallel - 1
mSATA - 1 (shared)
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR - 9-19V DC-In (4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
Ordering Information
- IMB-150D (90-PXG1T0-A0UAYZ, Gift package) : IMB-150 with Intel? Celeron J1900, 4 Cores, 2.0GHz, 10W, 2M
- IMB-150N (90-PXG1T2-A0UAYZ, Gift package) : IMB-150 with Intel? Celeron N2930, 4 Cores, 1.83GHz, 7.5W, 2M

*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x SATA cable
- 1 x SATA power cable
- 2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
