-->> Asrock MINI-ITX motherboard Intel Celeron J1900/N2930/N2920 with Intel HD Graphics IMB-152 <<--

IMB-152
Intel? Celeron Processor J1900/N2930/N2920
Integrated Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
Supports Dual Channel DDR3L 1333MHz, 2 x SO-DIMM, up to 4GB system memory
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
4 xUSB 3.0, 6 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1 x PCIe x1 slot
Gigabit LAN : 1 x Realtek Lan
1 x TPM Header
12 V DC-in

Product Specifications

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU - Intel? Celeron Processor J1900/N2930/N2920
- Default J1900 Quad core processor
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI
Expansion Slot
PCI - 0
Mini-PCIe - 1 (Half Size)
mSATA - 0
PCIe - 1 (x1)
CFast Card Socket - 0
Memory
Technology - Single Channel DDR3L 1333 MHz SDRAM
Max. - 8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
LVDS - Dual channel 24-bit, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920x1200
DVI - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: 1 x Realtek RTL8111G-CG
- Optional Support 2 x Realtek RTL811g-CG
Connector - 1 x RJ-45 Optional 2 x RJ-45
Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

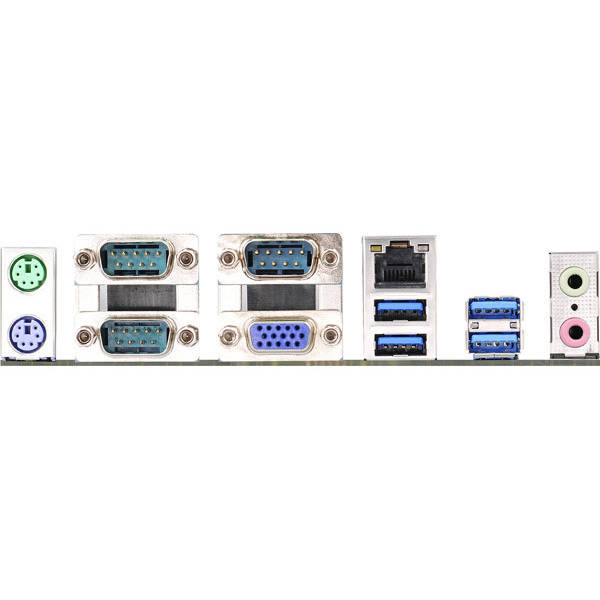

Rear I/O
VGA - 1
DVI - 0
HDMI - 1(Pin Header)
DisplayPort - 0
Ethernet - 1 Optional 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 3 x RS-232
eSATA - 0
PS2 - 2 (1 x keyboard and 1 x mouse)
Internal Connector
USB - 6 (3 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 0
Serial - 3 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s)
mPCIe - 1
Parallel - 1
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO Share with COM 5
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR - 12V DC-In (4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
Ordering Information
- IMB-152D (90-PXG220-A0UAYZ, Gift package) : IMB-152 with Intel? Celeron J1900, 4 Cores, 2.0GHz, 10W, 2M
- IMB-152N (90-PXG221-A0UAYZ, Gift package) : IMB-152 with Intel? Celeron N2930, 4 Cores, 1.83GHz, 7.5W, 2M

*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x SATA cable
- 1 x SATA Power cable
- 2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
