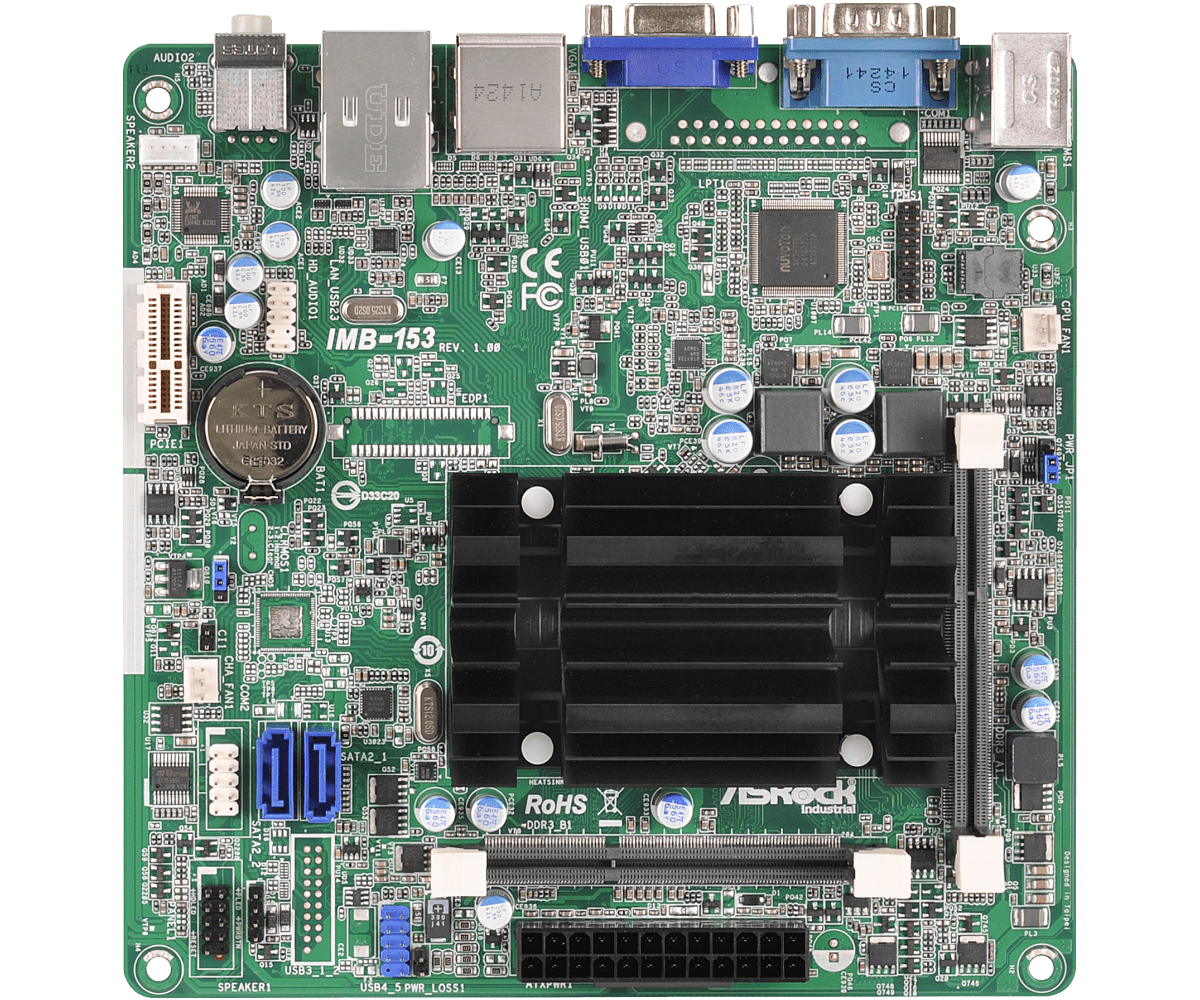

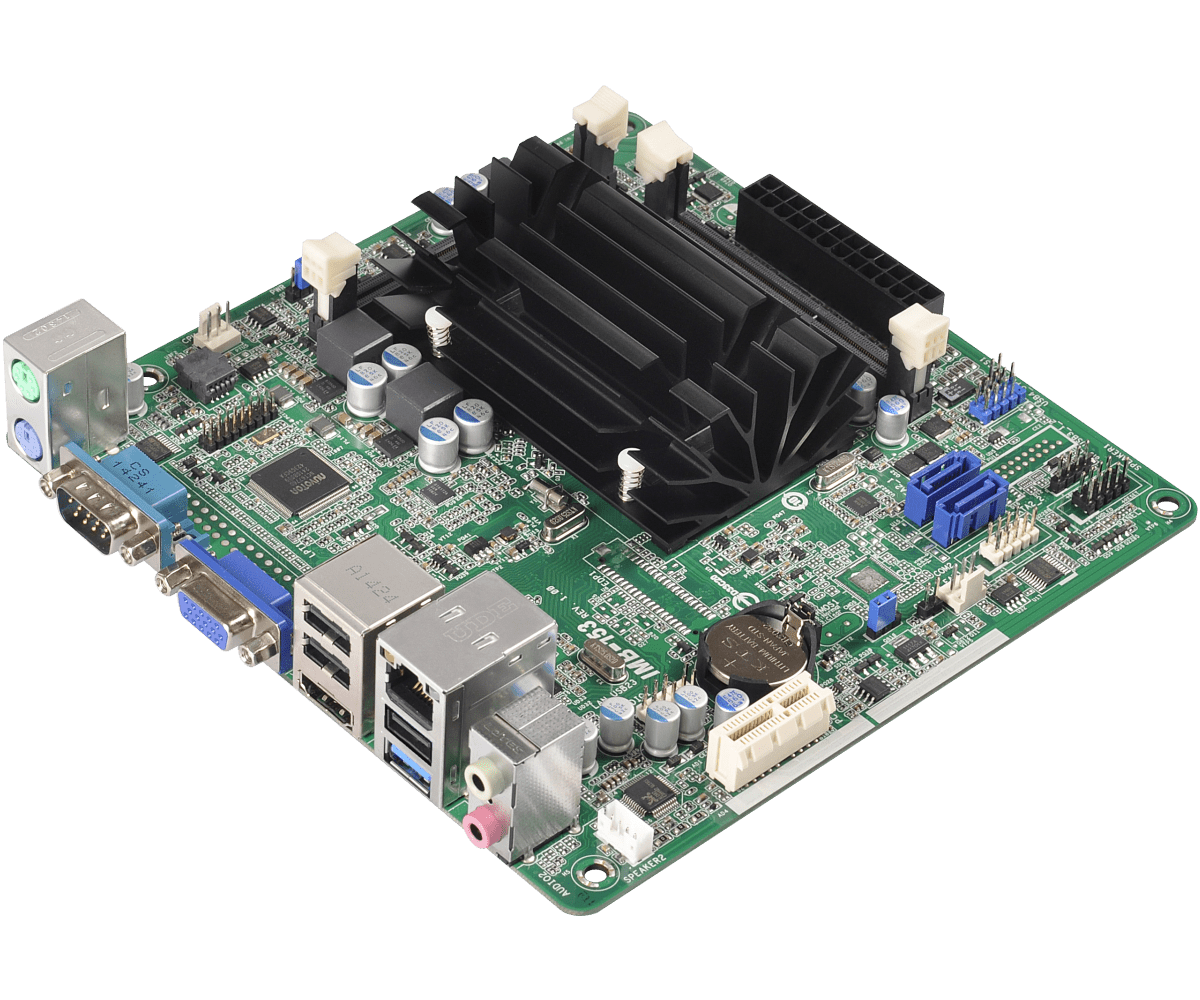

-->> Asrock MINI-ITX motherboard Intel Baytrail-D J1900 with Intel HD Graphics IMB-153 <<--

IMB-153
Intel? Qual-Core Atom? Baytrail-D Processor J1900
Integrated Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
Supports Dual Channel DDR3 1066/1333MHz, 2 x SO-DIMM, up to 8GB system memory
1 x HDMI, 1 x D-Sub,
1 xUSB 3.0, 5 x USB 2.0, 2 x SATA2
1 x PCIe x1
Gigabit LAN : 1 x Realtek Lan
ATX Power connector

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- Intel? Quad-Core Atom? Baytrail-M J1900
- Supports Hyper-Threading Technology
Core Number - 4
Max Speed - (By CPU)
L2 Cache - 2MB
Chipset - N/A
BIOS - UEFI

Expansion Slot
PCIe - 1
PCI - 0
Mini-PCIe - 0
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3 1066 / 1333 MHz SDRAM
Max. - 8GB
Socket - 2 x SO-DIMM

Graphics
Controller
- Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
VRAM - share Memory
VGA - Supports max. resolution 1920 x 1200
DVI - no
LVDS - np
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - no
MultiDisplay - Yes (Dual Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: 1x Realtek RTL 8111GR
Connector - 1 x RJ45

Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 1
USB - 4 (1 x USB 3.0 compliant, 3 x USB 2.0 compliant)
Audio - 2 (Mic-in, Line-out)
Serial - 1
eSATA - 0
PS2 - KB/Mouse

Internal Connector
USB - 2 (2 x USB 2.0 compliant)
LVDS / inverter - 0
VGA - 1
Serial - 1 x RS-232
SATA - 2 x SATA2 ( 3.0Gb/s)
mPCIe - 0
Parallel - Optional
mSATA - 0
IrDA - 0
GPIO 8-bit - 0
SATA PWR Output Con - 0
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - ATX (24-pin PWR Con)
Power On
ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information - IMB-153D (90-PXG2T0-A0UAYZ, Gift package) : IMB-153 with Intel? Celeron? J1900, 4 Cores, 2.0GHz, 10W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x SATA cable
- 2 x Screw for mini card
