-->> Asrock MINI-ITX motherboard Intel Braswell SOC N3150 with Intel HD Graphics IMB-155 <<--

IMB-155
Intel? Pentium? / Celeron? Braswell SoC Processor
Integrated Intel? Gen8 Intel? Graphics DX 11, OGL3.2
Supports Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS/eDP
4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3
1 x mini-PCIe, 1 x mSATA
Gigabit LAN : 2 x Realtek Lan
1 x TPM Header
12V or 19~24V DC in

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- Intel? Pentium? / Celeron? Braswell SoC
- Supports Hyper-Threading Technology
- Default N3150 Quad core 6W processor
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCIe x1 slot
PCI - 0
Mini-PCIe - 1 (full/half size, supports PCIe x1 and USB device. USB is shared with USB 2.0 header)
mSATA - 1 (full size, supports SATA device)

Memory
Technology - Dual Channel DDR3L 1333 / 1600 MHz SDRAM
Max. - 8GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? Gen8 Intel? Graphics DX 11*, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
DVI - No
LVDS - Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI with Level Shifter , max resolution 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
DisplayPort - No
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Realtek RTL8111G
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

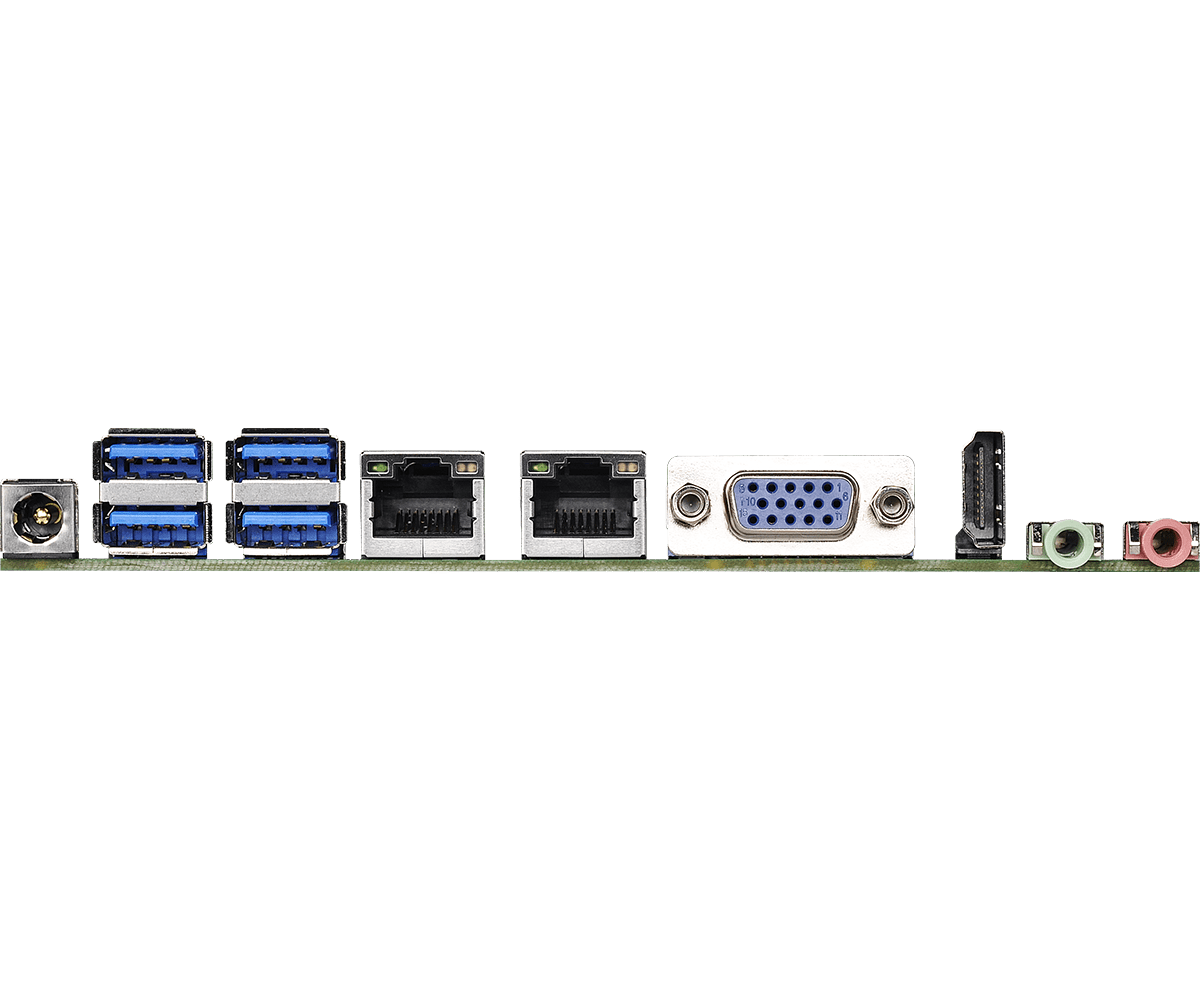

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0

Internal Connector
USB - 4 (2 x 2.0 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 0
Serial - 4 x 2.0 pitch header RS-232 (COM1 support RS-232/RS-422/485)
SATA - 1 x SATA3 (6.0Gb/s)
mPCIe - 1
Parallel - 1 (Co-lay with 8in/8out DIO)
mSATA - 1
IrDA - 0
GPIO 8-bit - 8 x GPI + 8 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 12V or 19~24V DC in (4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC
