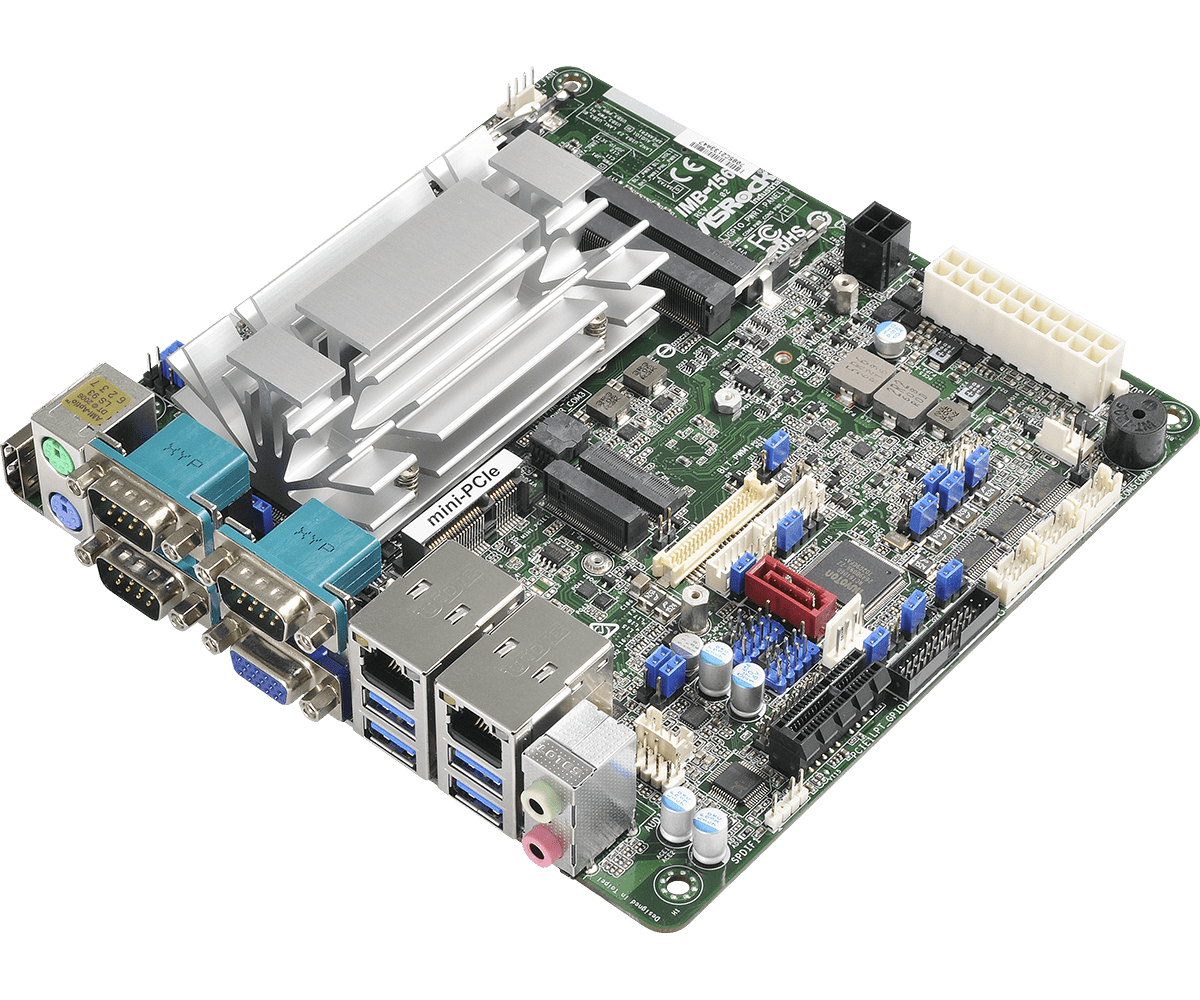

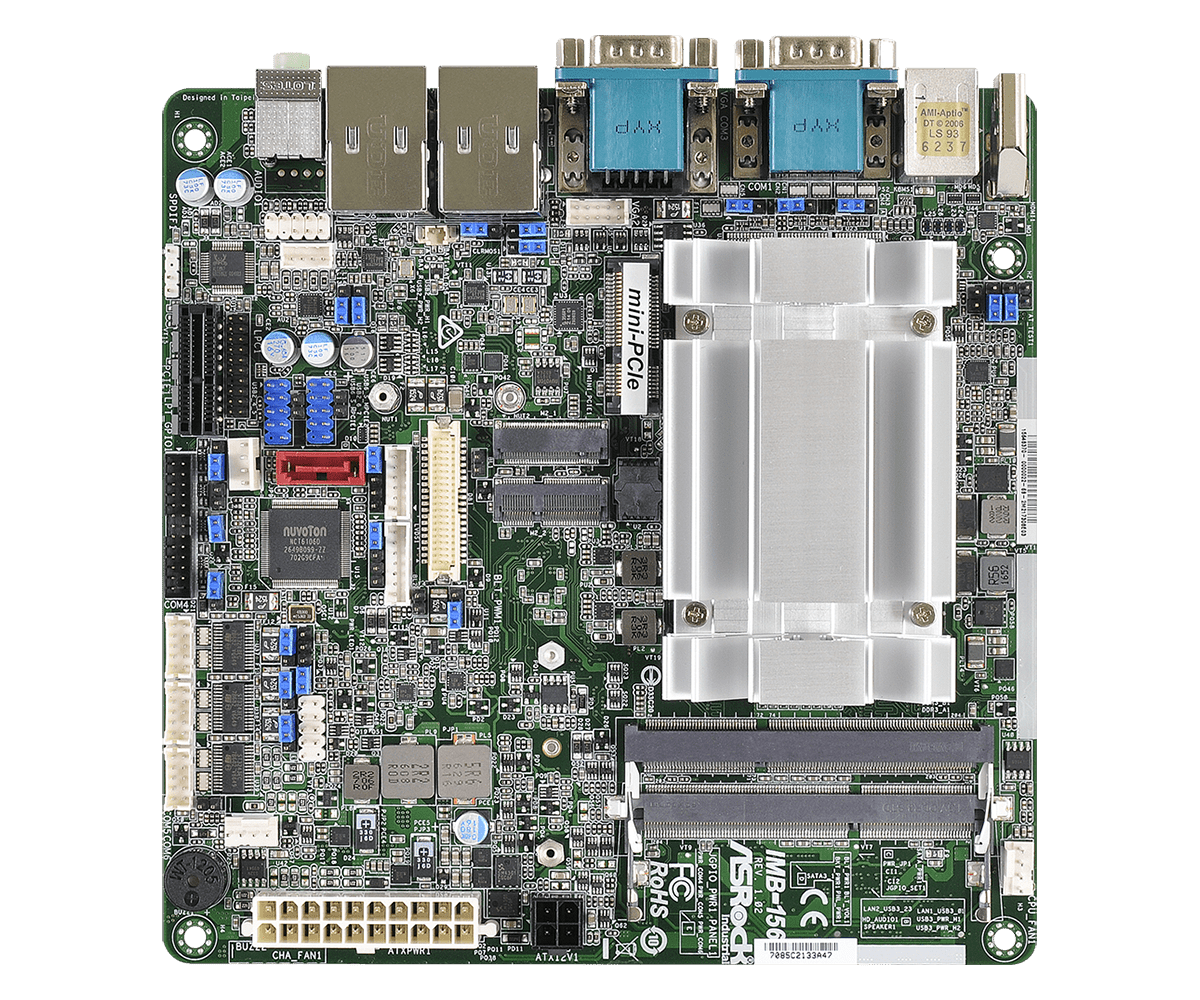

-->> Asrock MINI-ITX motherboard BGA1296 Intel Apollo Lake SoC with Intel HD Graphics IMB-156 <<--

IMB-156
BGA1296 for Intel? Apollo Lake SoC
Intel? HD Graphics
Supports Dual Channel DDR3L 1867MHz, 2 x SO-DIMM, up to 16GB system memory
1 x VGA, 1 x HDMI, 1 x LVDS (eDP by BOM option)
4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3
1 x Mini-PCIe, 1 x PCIe x1 Slot ,2 x M.2 (1 x KEY M, 1 x KEY E)
Gigabit LAN : 2 x Realtek LAN
1 x TPM Header
+12V or +19V~+24V DC-In (4-pin ATX PWR Con / ATX)

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - BGA1296 for Intel? Apollo Lake SoC
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCIe x1 slot
Mini-PCIe - 1 (full/half size) with PCIe x1 and USB 2.0 (Shared)
mSATA - 0
M.2
- 1 x KEY M (2260/2280) with SATA III signal for SSD
- 1 x KEY E (2230) with PCIe x1 and USB 2.0 (Shared) for Wireless

Memory
Technology - Dual Channel DDR3L 1867 MHz
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics
VRAM - Shared Memory
VGA - Supports Max resolution up to 1920 x 1200
DVI - No
LVDS - Supports Max resolution up to 1920 x 1200@60Hz

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Realtek RTL8111G
Connector - 2 x RJ45
HDMI - Supports HDMI, Max resolution up to 4096 x 2160@24Hz
DisplayPort - No
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Realtek RTL8111G
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 3 x COM (Supports RS-232/422/485)
PS2 - 2

Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 1/1
eDP - 1 (BOM Option)
VGA - 1
Serial - 3 x COM (Supports RS-232 only)
SATA - 1
mPCIe - 1
Parallel - 1 (shared with GPIO)
mSATA - 0
IrDA - 0
GPIO 8-bit
- 8 x GPI + 8 x GPO (shared with LPT header)
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR
- +12V or +19V~+24V DC-In (4-pin ATX PWR Con / ATX)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
