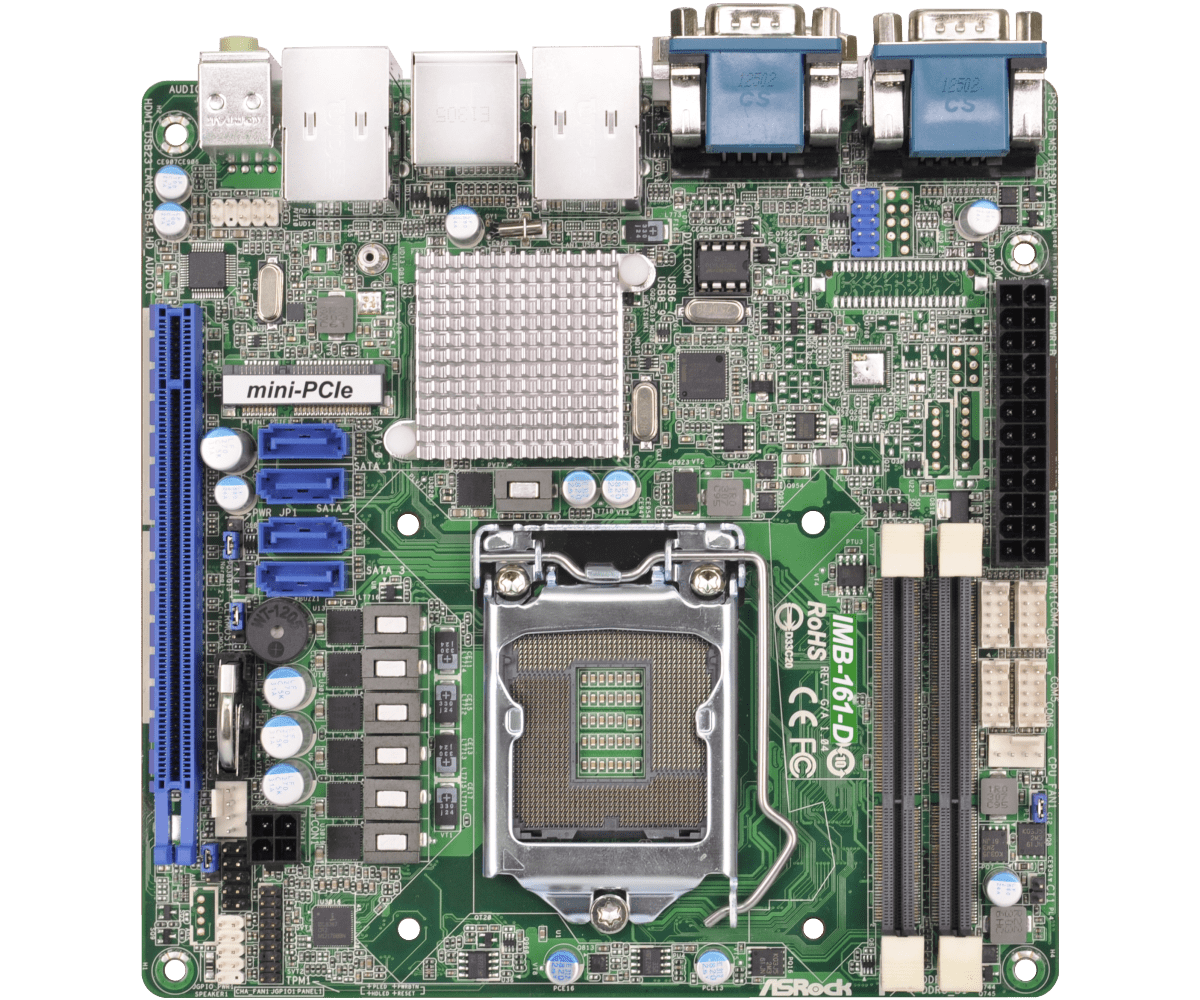

-->> Asrock MINI-ITX motherboard Ivy Bridge and Sandy Bridge LGA1155 with H61 Chipset IMB-161-D <<--

IMB-161-D
Socket LGA1155 for Intel? Core i7 / i5 / i3 / Celeron? (Ivy Bridge and Sandy Bridge)
Intel? H61 Chipset
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
2 x COM (RS-232/422/485), 4 x COM (RS-232)
1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit DisplayPort
8 x USB 2.0, 4 x SATA2
1 x PCIe x16, 1 x mini-PCIe
Gigabit LAN : 1 x Intel? 82579V, 1 x Intel? 82583V
1 x TPM Header

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1155 for Intel? Core i7 / i5 / i3 / Celeron? (Sandy Bridge and Ivy Bridge)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - H61
BIOS - UEFI

Expansion Slot
PCIe - 1 (x16) (IVY Bridge: Gen3; Sandy Bridge: Gen2)
PCI - 0
Mini-PCIe - 1 (Half size)
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM - Shared Memory
VGA - No
DVI - Supports max. resolution 1920x1200
LVDS - No
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - Supports max. resolution 2560x1600
MultiDisplay - Yes (Dual Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN1:Intel? 82583V, LAN2: Intel? 82579V
Connector - RJ45 x 2 w/ LED

Storage
Max Data Transfer Rate - 4 x SATA2 (3.0Gb/S)

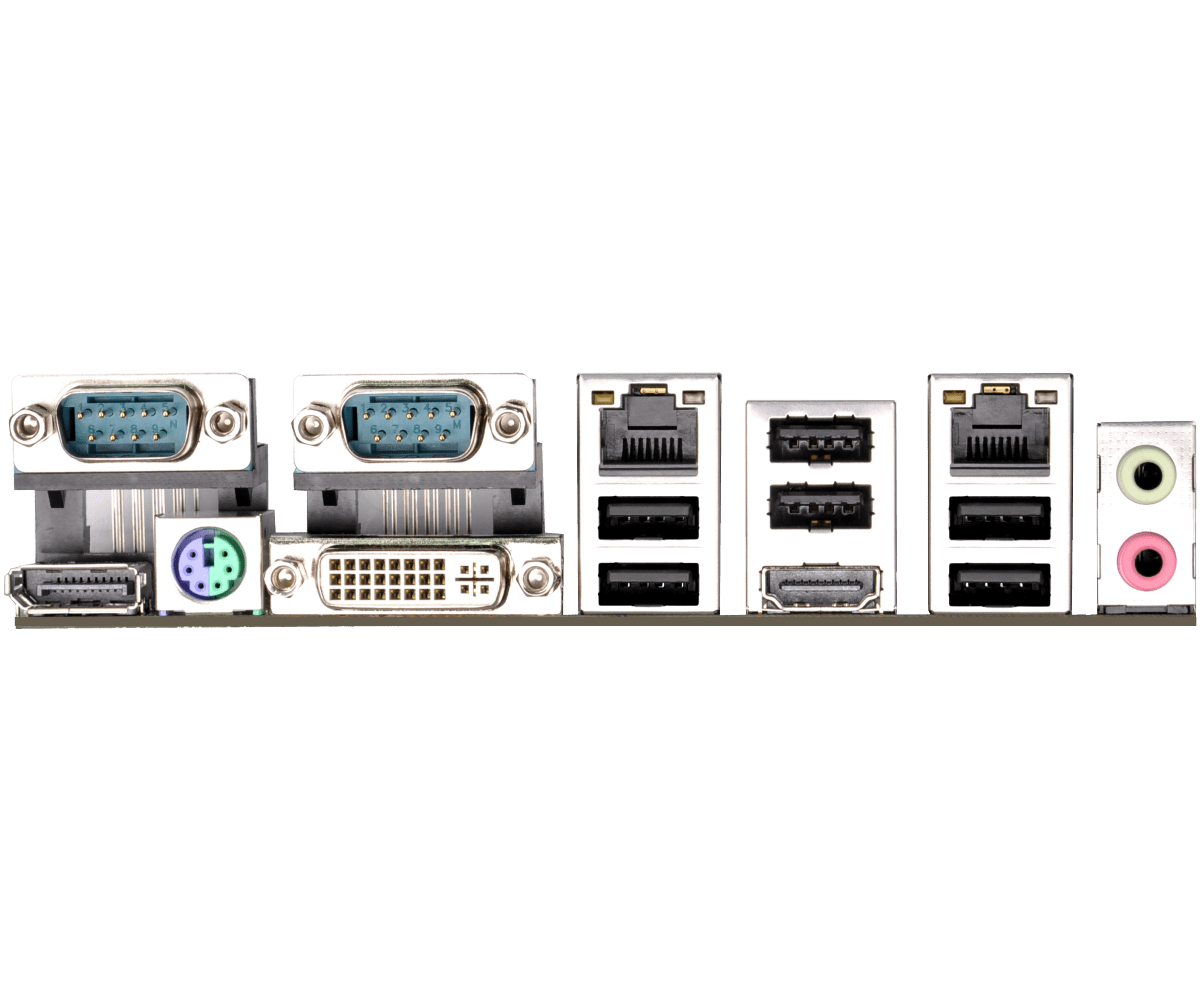

Rear I/O
VGA - 0
DVI - 1 (DVI-I)
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 6 x USB 2.0
Audio - 2 (Mic-in, Line-out)
Serial - 2 (RS-232/422/485)
eSATA - 0
PS2 - 1 (Combo)

Internal Connector
USB - 2 x USB 2.0
LVDS / inverter - 0
VGA - 0
Serial - 4 (RS-232)
SATA - 4 x SATA2 (3.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 0
Speaker Header - 1

Watchdog Timer
Output - Output from super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - ATX PWR (24+4 pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information
- IMB-161-D (90-PXG0M0-A0UAYZ, Gift package) : IMB-161 with Socket LGA1155, Intel? H61 Chipset, HDMI, DVI-I, DP
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x COM cable
- 2 x SATA cable
- 2 x Screw for mini card
