-->> Asrock MINI-ITX motherboard Socket G2 (rPGA988B) Ivy Bridge and Sandy Bridg with QM77 Chipset IMB-170 <<--

IMB-170
Socket G2 (rPGA988B) for Intel? Core i7 / i5 / i3 / Celeron? (Ivy Bridge and Sandy Bridge)
Intel? QM77 Chipset
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
2 x COM (RS-232/422/485), 4 x COM (RS-232)
1 x DVI-I, 1 x HDMI, 1 x DisplayPort, 1 x Dual Channel 24-bit LVDS
4 x USB 3.0, 8 x USB 2.0, 2 x SATA3, 2 x SATA2
1 x PCIe 2.0 x16, 1 x mini-PCIe
Gigabit LAN : 1 x Intel? 82579LM, 1 x Intel? 82583V

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket G2 (rPGA988B) for Intel? Core i7 / i5 / i3 / Celeron? (Sandy Bridge and Ivy Bridge)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - QM77
BIOS - UEFI

Expansion Slot
PCIe - 1 (IVY Bridge: Gen3; Sandy Bridge: Gen2)
PCI - 0
Mini-PCIe - 1 (Full Size)
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM - Shared Memory
VGA - No
DVI - Supports max. resolution 1920x1200
LVDS - Dual Channel 24-bit, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - Supports max. resolution 2560x1600
MultiDisplay - Yes

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN1: Intel? 82579LM, LAN2: Intel? 82583V
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5/10

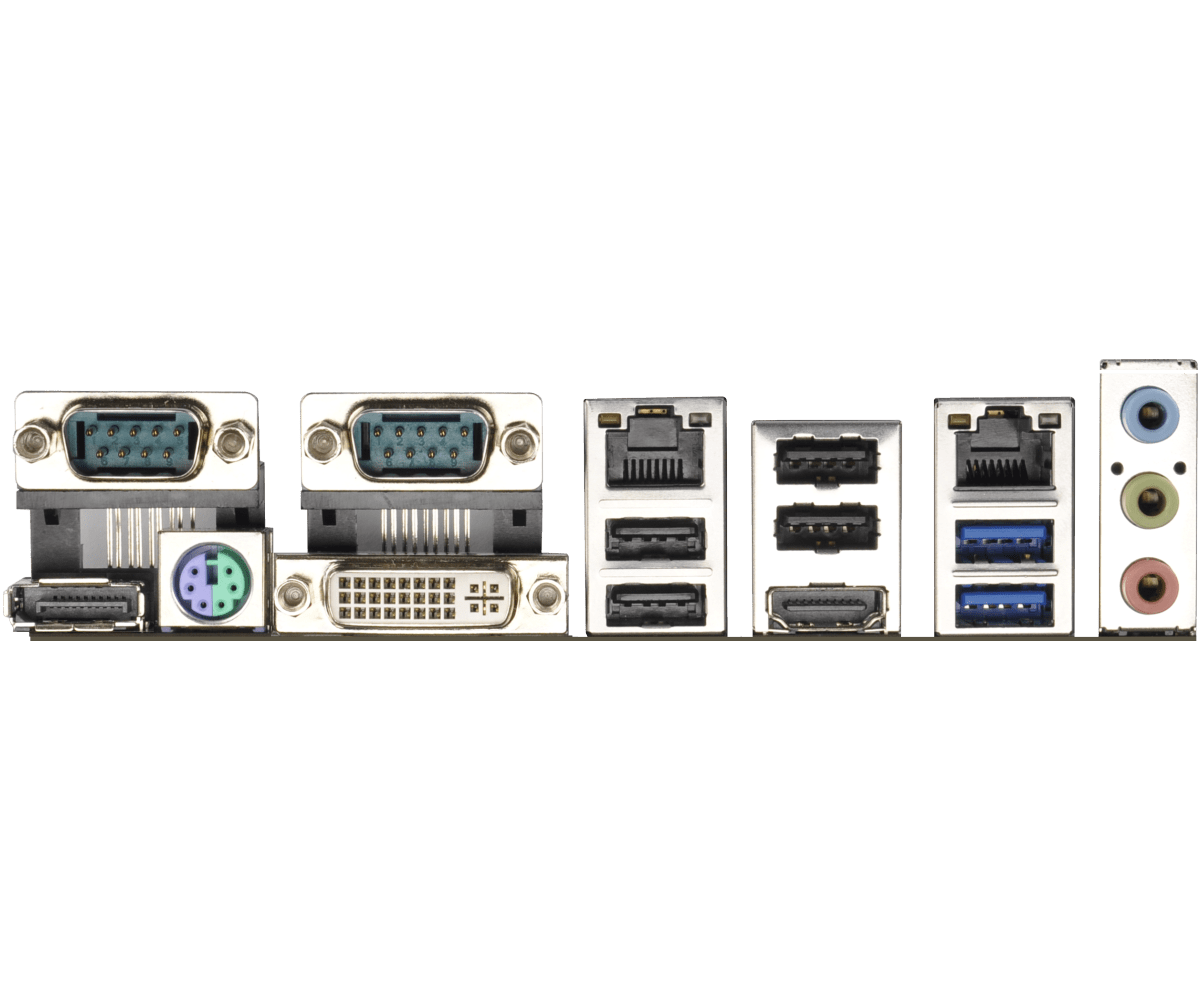

Rear I/O
VGA - 0
DVI - 1 (DVI-I)
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 6 (4 x USB 2.0, 2 x USB 3.0)
Audio - 3 (Mic-in, Line-out, Line-in)
Serial - 2 (RS-232/422/485)
eSATA - 0
PS2 - 1 (Combo)

Internal Connector
USB - 6 (4 x USB 2.0, 2 x USB 3.0)
LVDS / inverter - 1/1
VGA - 0
Serial - 4 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
mPCIe - 1
Parallel - 1
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 12V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information
- IMB-170 (90-PXG050-A0UAYZ, Gift package) : IMB-170 with Socket G2 (rPGA 988B), Intel? QM77 Chipset, DVI-I, HDMI, LVDS
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x COM cable
- 2 x SATA cable
- 1 x SATA power cable
- 2 x Screw for mini card
