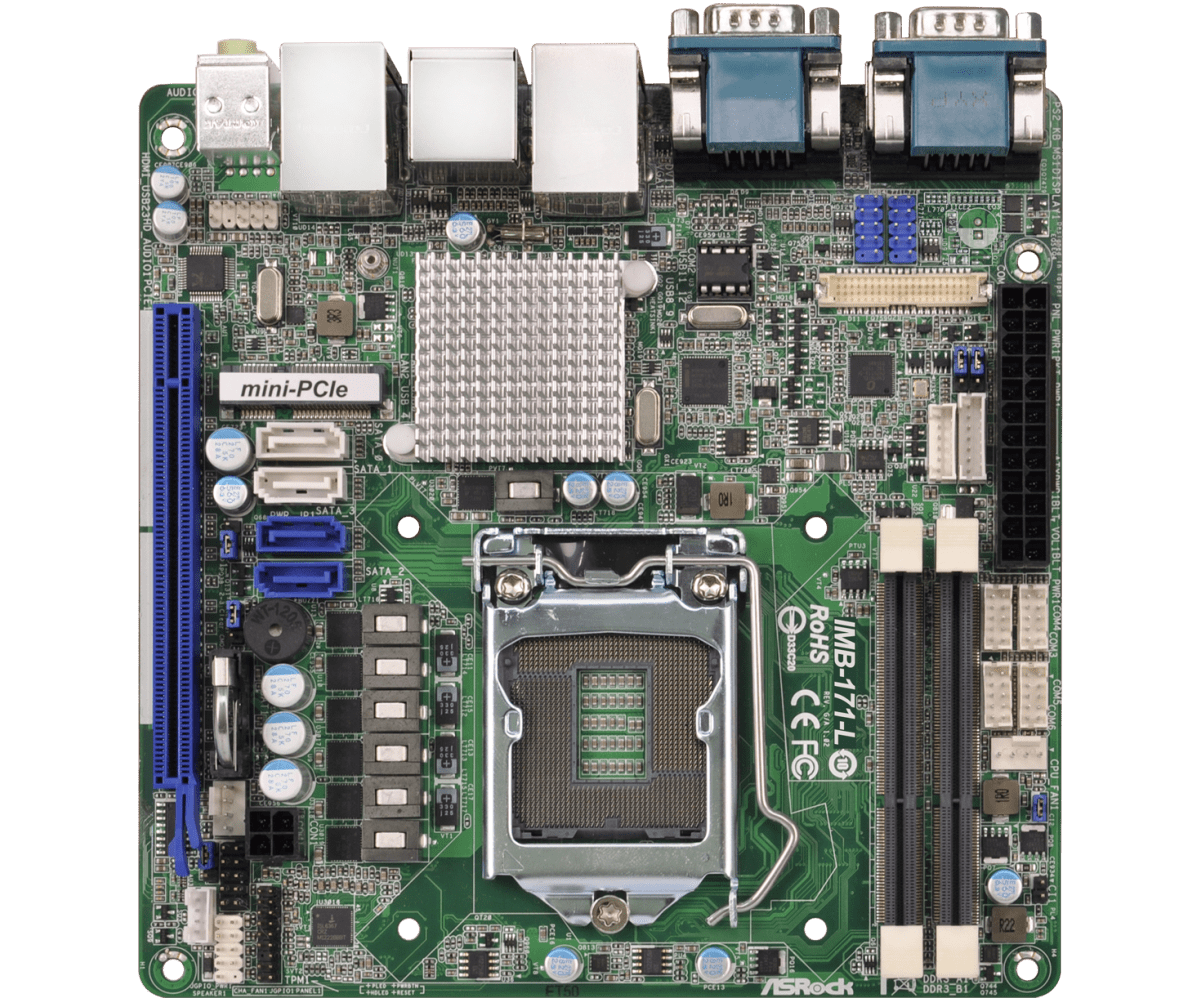

-->> Asrock MINI-ITX motherboard Ivy Bridge and Sandy Bridge LGA1155 with Q77 Chipset IMB-171-L <<--

IMB-171-L
Socket LGA1155 for Intel? Core i7 / i5 / i3 / Celeron? (Ivy Bridge and Sandy Bridge)
Intel? Q77 Chipset
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
2 x COM (RS-232/422/485), 4 x COM (RS-232)
1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
4 x USB 3.0, 6 x USB 2.0, 2 x SATA3, 2 x SATA2
1 x PCIe x16, 1 x mini-PCIe
Gigabit LAN : 1 x Intel? 82579LM, 1 x Intel? 82583V
1 x TPM Header

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1155 for Intel? Core i7 / i5 / i3 / Celeron? (Sandy Bridge and Ivy Bridge)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - Q77
BIOS - UEFI

Expansion Slot
PCIe - 1 (x16) (IVY Bridge: Gen3; Sandy Bridge: Gen2)
PCI - 0
Mini-PCIe - 1 (Half Size)
mSATA - 0
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM- Shared Memory
VGA - Supports max. resolution 2048x1536
DVI - No
LVDS - Dual Channel 24-bit, support max resolution 1920 x 1200
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - No
MultiDisplay - Yes

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN1:Intel? 82583V, LAN2: Intel? 82579LM
Connector - RJ45 x 2 w/ LED

Storage
Max Data Transfer Rate - 2 x SATA2 (3.0Gb/S), 2 x SATA3 (6.0Gb/S), Supports RAID 0/1/5

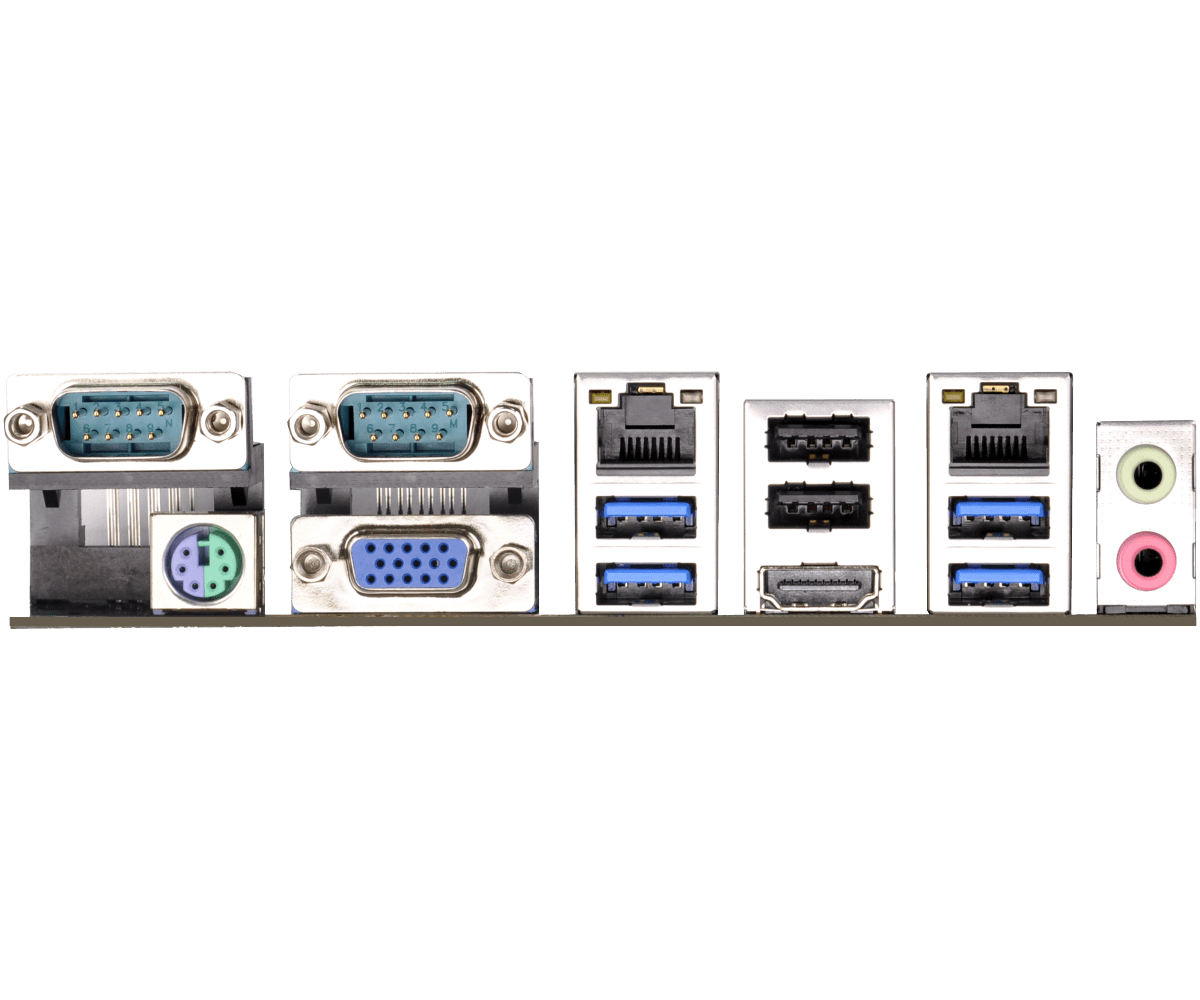

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 6 (2 x USB 2.0, 4 x USB 3.0)
Audio - 2 (Mic-in, Line-out)
Serial - 2 (RS-232/422/485)
eSATA - 0
PS2 - 1 (Combo)

Internal Connector
USB - 4 (USB 2.0)
LVDS / inverter - 1/1
VGA - 0
Serial - 4 (RS-232)
SATA - 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5
mPCIe - 1
Parallel - 0
mSATA - 0

Watchdog Timer
Output - Output from super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 0
Speaker Header - 1

Power Requirements
Input PWR
- ATX PWR (24+4 pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information
- IMB-171-L (90-PXG0Z0-A0UAYZ, Gift package) : IMB-171 with Socket LGA 1155, Intel? Q77 Chipset, HDMI, LVDS, VGA
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x COM cable
- 2 x SATA cable
- 2 x Screw for mini card
