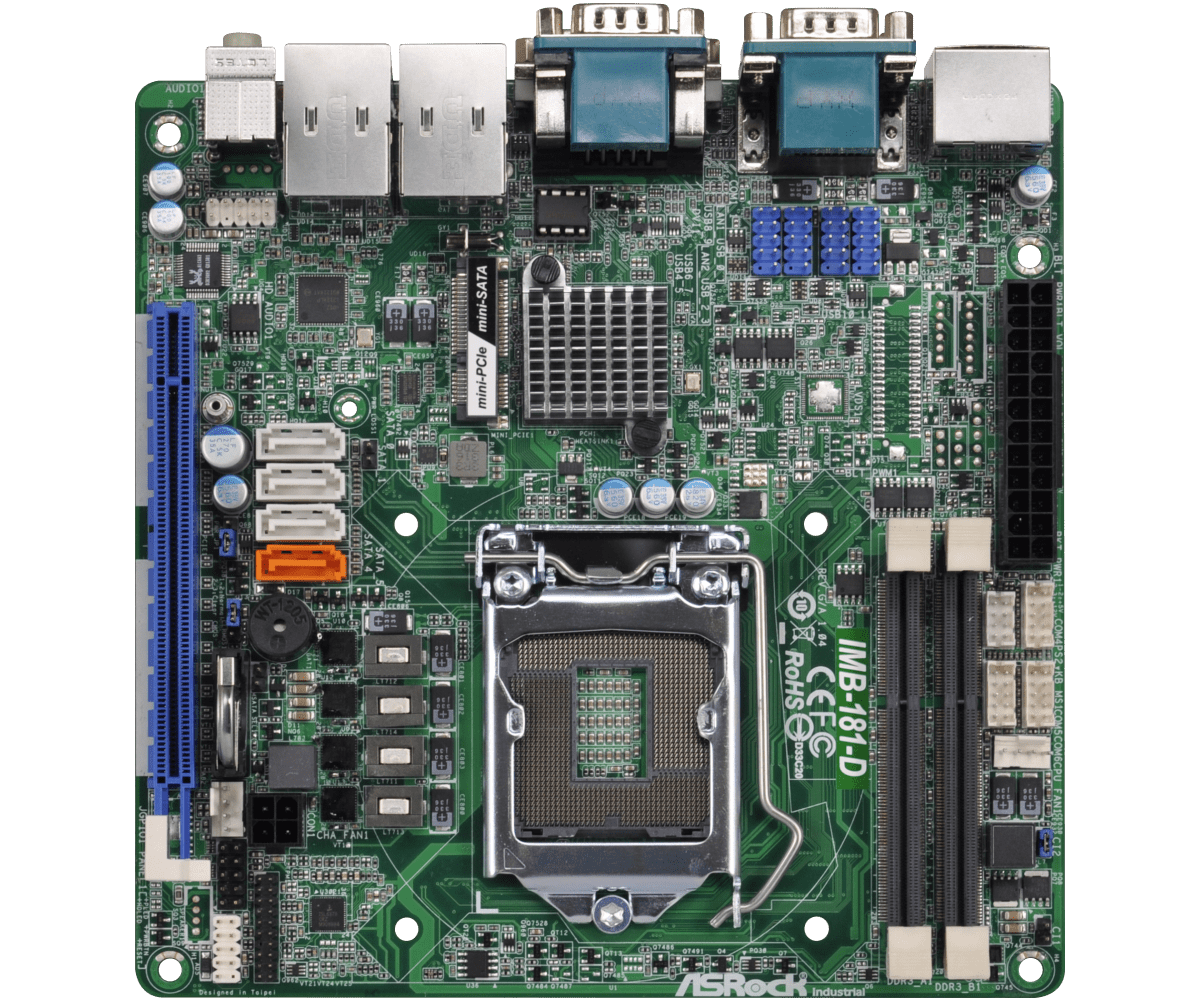

-->> Asrock MINI-ITX motherboard Haswell LGA1150 with Q87 Chipset IMB-181-D <<--

IMB-181-D
Socket LGA1150 for Intel? Core i7 / i5 / i3 / Celeron? (Haswell)
Intel? Q87 Chipset
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
3 x COM (RS-232/422/485), 3 x COM (RS-232)
1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel DisplayPort
4 x USB 3.0, 8 x USB 2.0,4 x SATA3
1 x mini-PCIe, 1 x PCIe (x16),
Gigabit LAN : 1 x Intel? I217LM (with v-Pro support), 1 x Intel? I210
1 x TPM Header

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1150 for Intel? Core i7 / i5 / i3 / Celeron? (Haswell)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - Q87
BIOS - UEFI

Expansion Slot
PCIe - 1 (x16)
PCI - 0
Mini-PCIe - 1 (Full Size) shared with m-SATA
mSATA - 1 (shared with mini-PCIe)
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM - Shared Memory
VGA - Supports max. resolution 2048x1536
DVI - Yes
LVDS - No
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - Supports max. resolution 2560x1600
MultiDisplay - Yes (Three Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN1:Intel? I210, LAN2: Intel? I217LM (with v-Pro support)
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA2 (3.0Gb/S), SATA3 (6.0Gb/S), Supports RAID 0/1/5/10

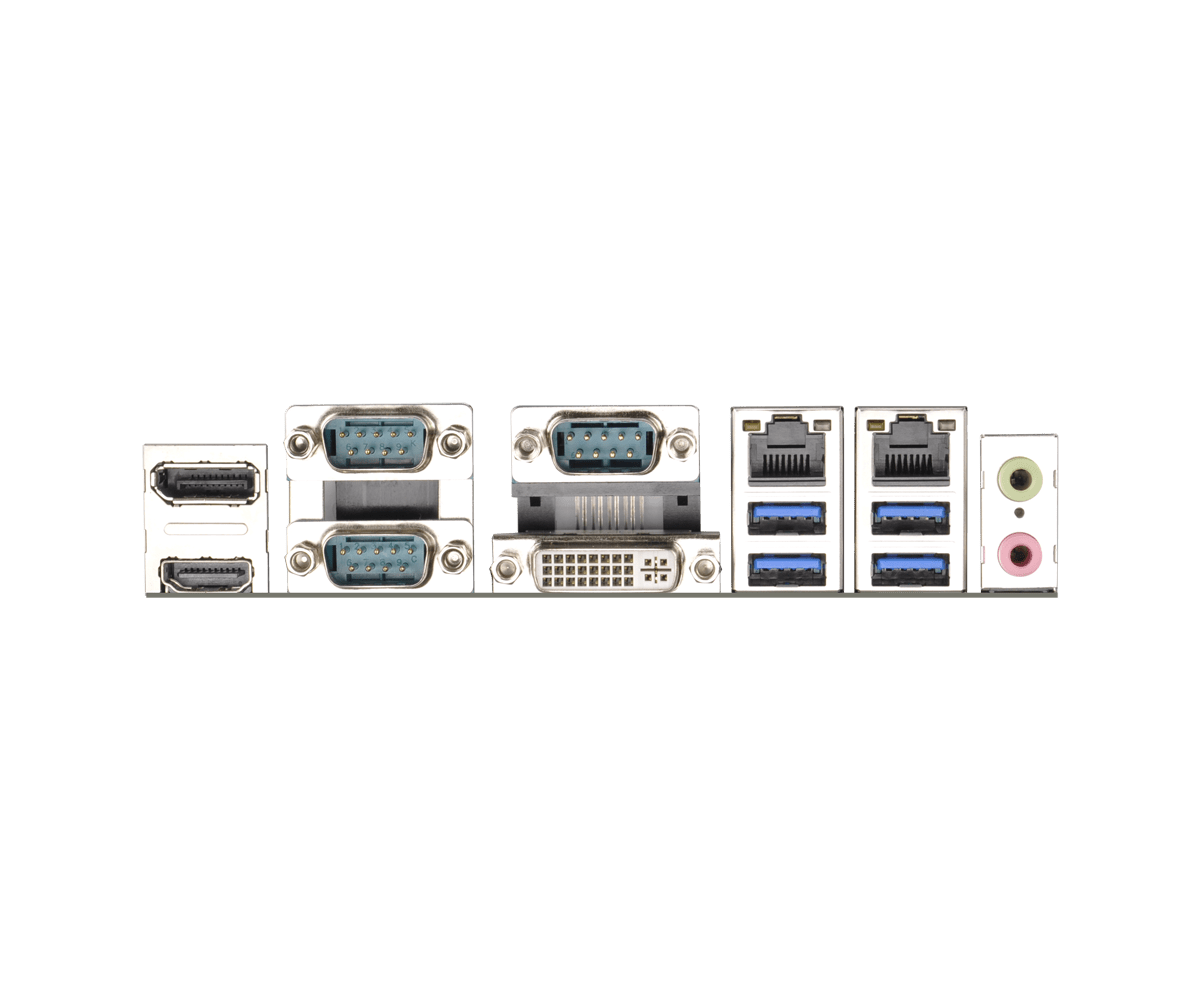

Rear I/O
VGA - 0
DVI - 1 (DVI-I)
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 4 (USB 3.0)
Audio - 2 (Mic-in, Line-out)
Serial - 3 (RS-232/422/485)
eSATA - 0
PS2 - 0

Internal Connector
USB - 8 (4 x USB Header 2.54mm pitch)
LVDS / inverter - 0
VGA - 0
Serial - 3 (RS-232)
SATA - 4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
mPCIe - 1 (shared)
Parallel - 0
mSATA - 1 (shared)
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 0
Speaker Header - 1

Power Requirements
Input PWR
- ATX PWR (4 + 24)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Temperature - 0oC – 60oC

Others
Ordering Information
- IMB-181-D (90-PXG0W0-A0UAYZ, Gift package) : IMB-181 with Socket LGA 1150, Intel? Q87 Chipset, HDMI, DP, DVI-I
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x SATA cable
- 2 x Screw for mini card
