-->> Asrock MINI-ITX motherboard BGA MCP Haswell ULT i5-4300U 2980U IMB-186 <<--

IMB-186
BGA Haswell MCP for Intel? Core i5-4300U / Celeron? 2980U (Default) (Haswell ULT)
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 16GB system memory
1 x DP++, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
4 x USB 3.0, 6 x USB 2.0,2 x SATA3
1 x mini-PCIe, 1x mSATA,
Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel? I218LM(4300U SKU)
Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel? I218V(2890U SKU)
1 x TPM Header

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU
- BGA type for Intel? Core i5-4300U / Celeron? 2980U mobile processor (Haswell ULT MCP )
- Default 2980U Dual core MCP
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI

Expansion Slot
PCIe - 0
PCI - 0
Mini-PCIe - 1 (Half Size + USB2.0)
mSATA - 1 (Full Size ) shared with SATA2
CFast Card Socket - 0

Memory
Technology - Dual Channel DDR3L 1333 / 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM - Shared Memory
VGA - 1 (pin header share with HDMI)
DVI - 0
LVDS - 1
HDMI - Supports HDMI, supported with Level Shifter, resolution up to 4096x2304 (1x HDMI)
DisplayPort - 1
MultiDisplay - Yes (Three Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller
- GbE LAN1:Intel? 218LM , LAN2: RTL8111G (4300U SKU)
- GbE LAN1:Intel? 218v , LAN2: RTL8111G (2980U SKU)
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/S)

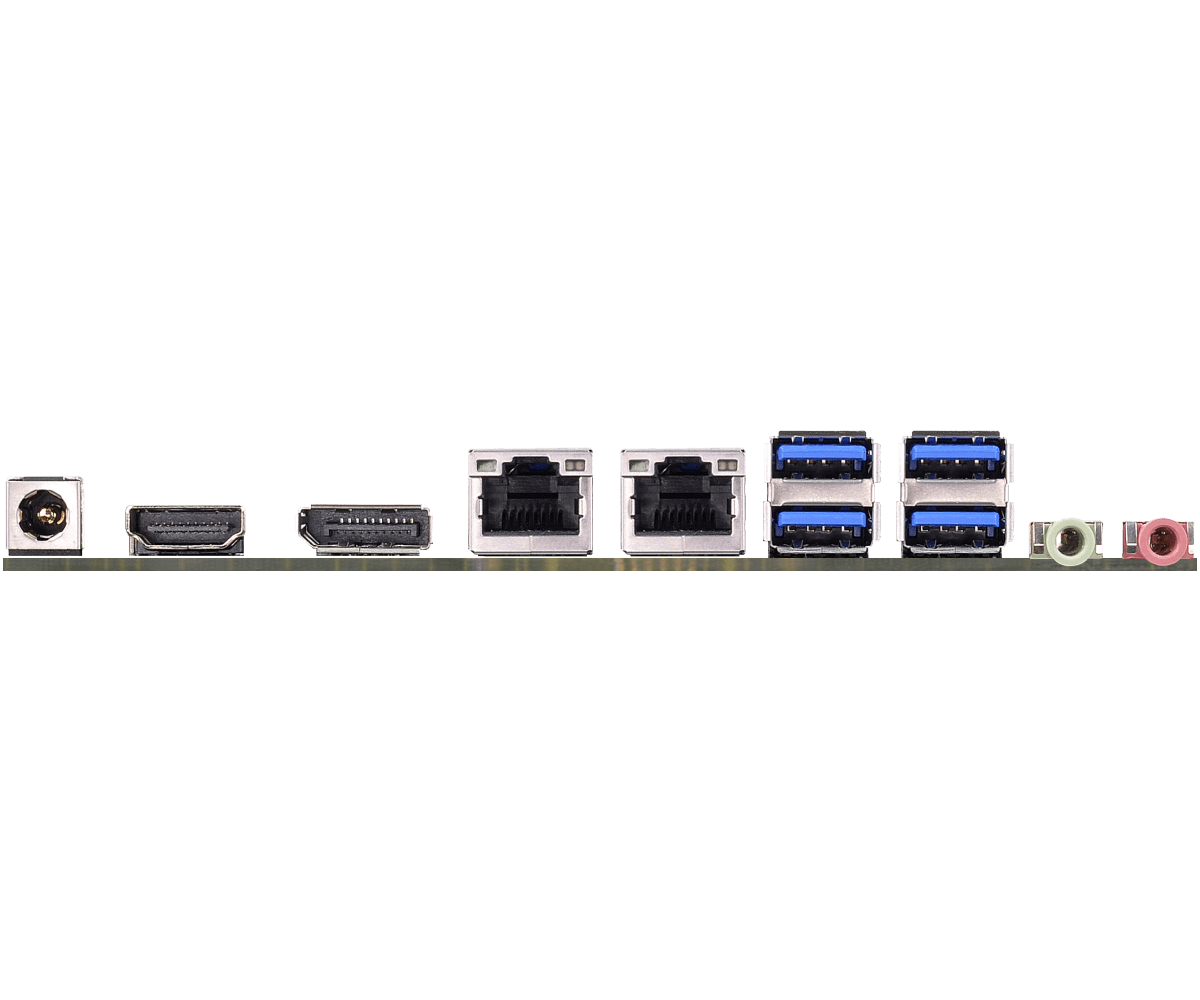

Rear I/O
VGA - 1 (Co-lay with HDMI)
DVI - 0
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 4 x USB 3.0
Audio - Mic-in Line- out
Serial - 0
eSATA - 0
PS2 - 0

Internal Connector
USB - 6 (2 x USB Header 2.00mm pitch)
LVDS / inverter - 24 bit dual channel LVDS
VGA - 1
Serial - 6 ( 2 RS-232/422/485, 4 RS-232)
SATA - 2 x SATA3 (6.0Gb/s)
mPCIe - 1
Parallel - 1 (Co-lay with DIO)
mSATA - 1 (shared)
IrDA - 0
GPIO 8-bit - 8 x GPI + 8 x GPO (Co-lay with LPT)
SATA PWR Output Con - 2
Speaker Header - 1

Watchdog Timer
Output - Output from super I/O to drag RESETCON#
Interval - 256 Segments, 0,1,2...255 Sec/Min

Power Requirements
Input PWR - DC 9-19 input
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC

Others

Ordering Information
- IMB-186M (90-PXG232-A0UAYZ, Gift package) : IMB-186 with Intel? Core? i5-4300U, 2 Cores, 1.9GHz, 15W, 3M
- IMB-186E (90-PXG230-A0UAYZ, Gift package) : IMB-186 with Intel? Celeron? 2980U, 2 Cores, 1.6GHz, 15W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 2 x IO shield
- 2 x SATA cable
- 1 x SATA power cable
